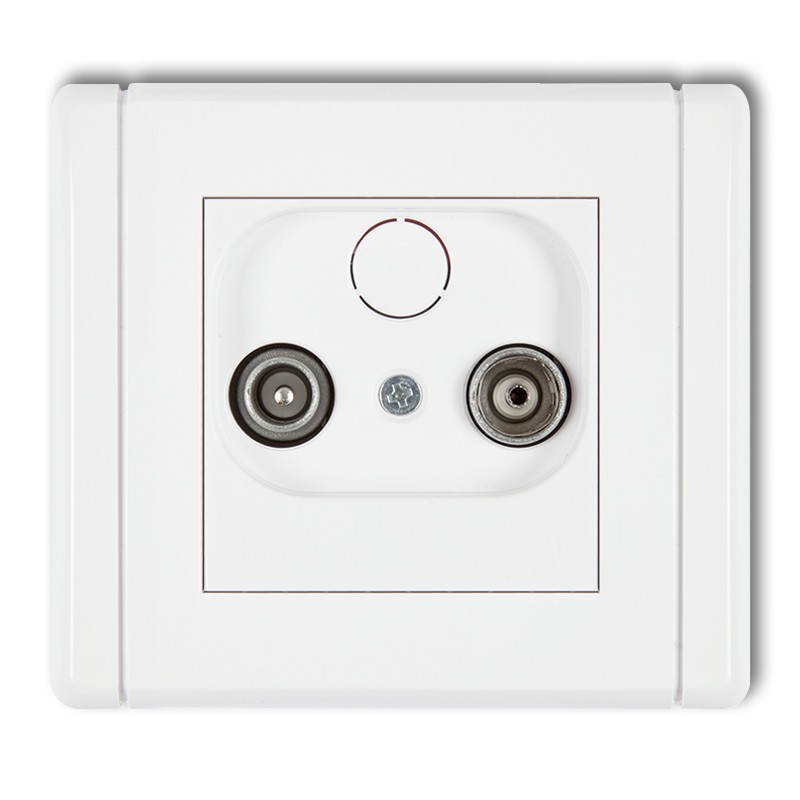

Radio/TV through socket the 12dB
white
FG12P
Product description
Downloads
Configurator
The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.
Frames should be folded without the mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 12 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
