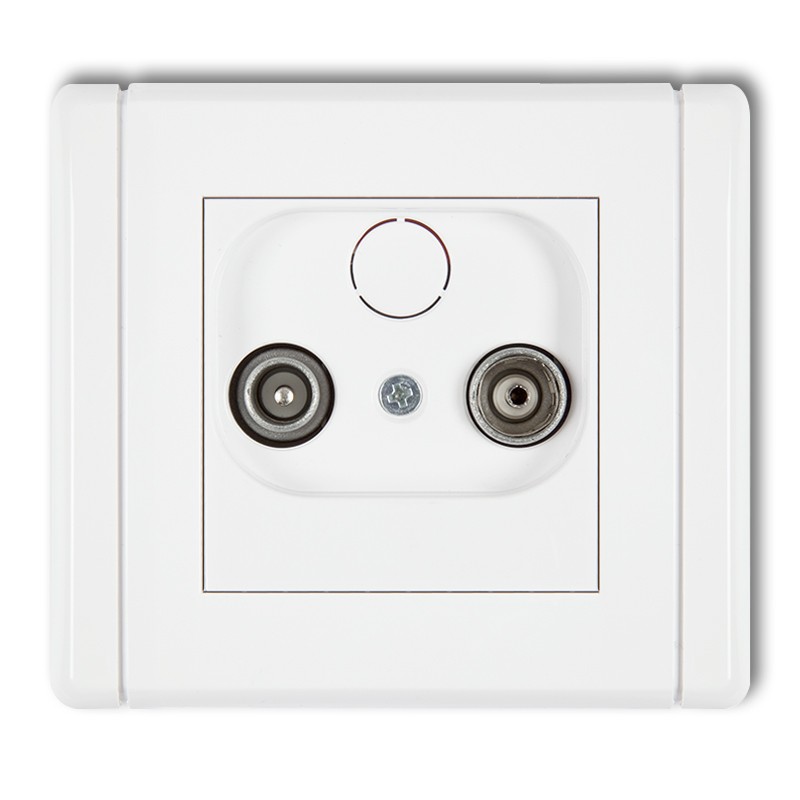

Radio/TV final socket (in series of through sockets) the 6dB
white
FG6K
Product description
Downloads
Configurator
The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.
Frames should be folded without the mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 6,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Radio/TV final socket the 2dB
white
FG2K
-

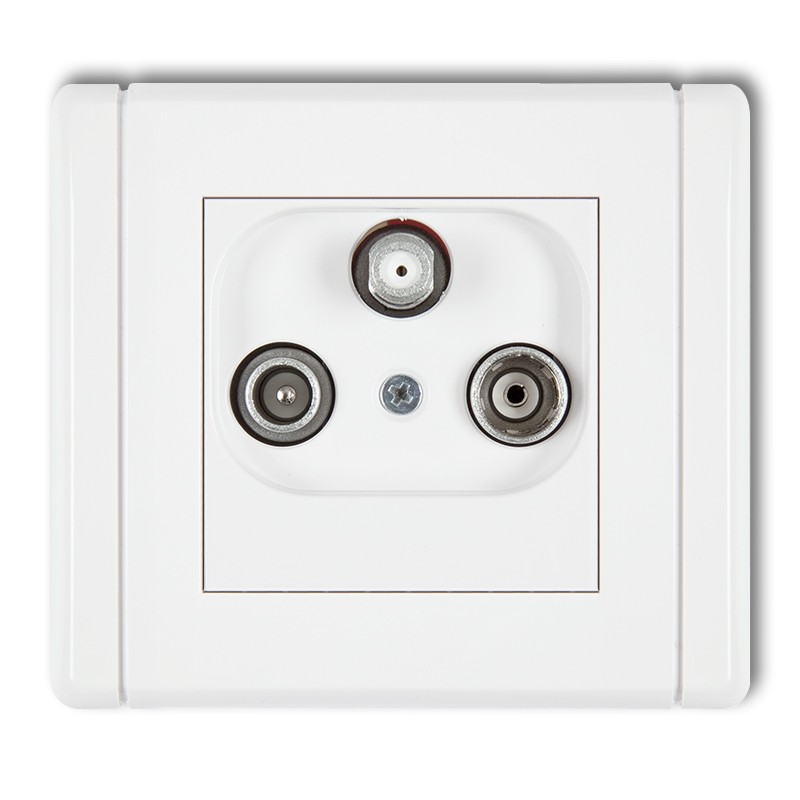

Radio/TV/SAT final socket (two antenna inputs)
white
FGST
-

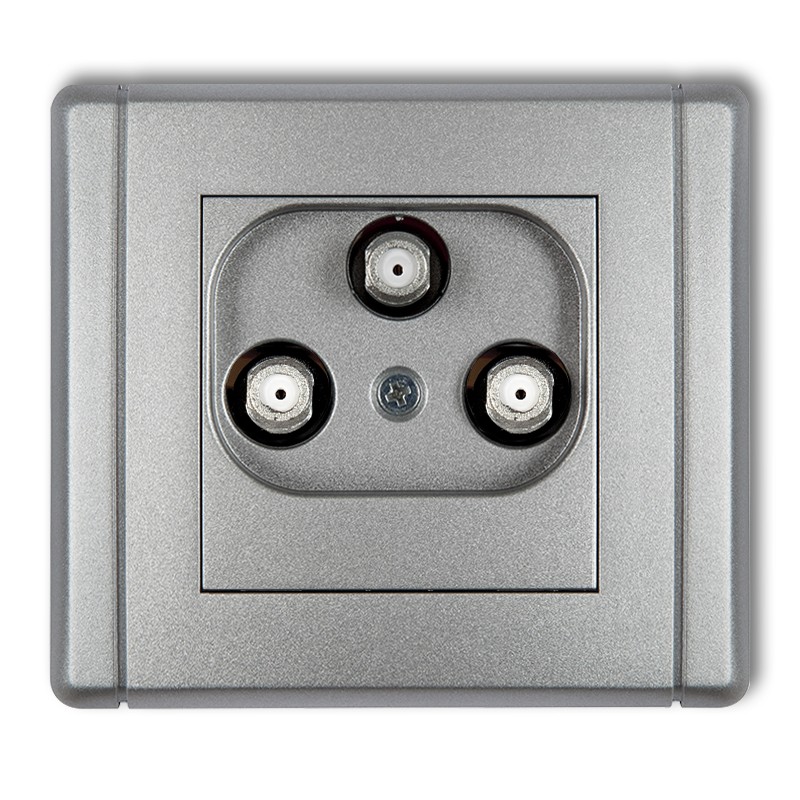

3F DATA (UPC) multimedia socket
silver metallic
7FGMU
-

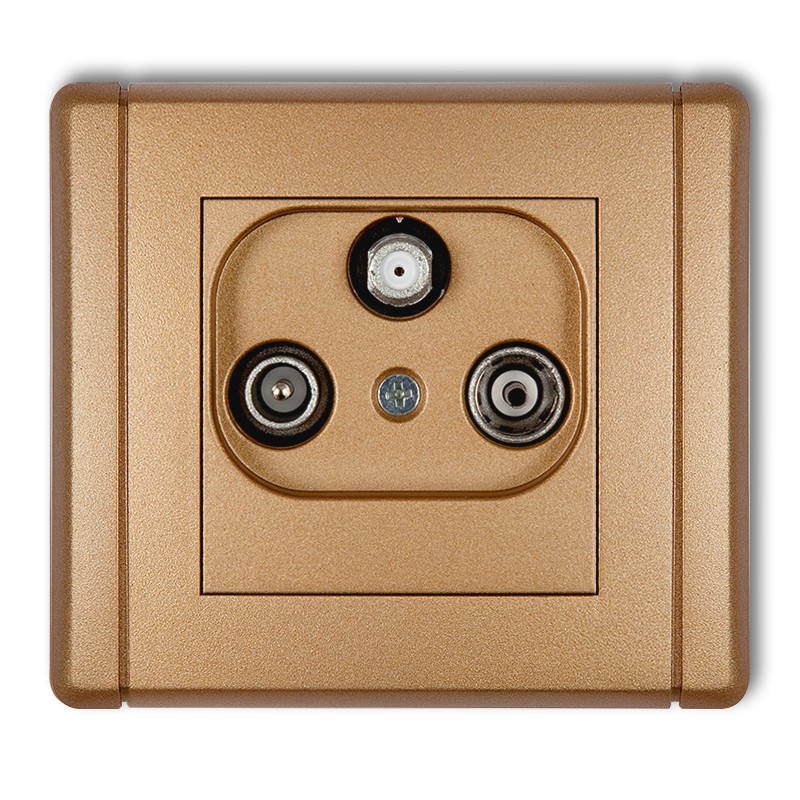

Radio/TV/SAT final socket (two antenna inputs)
gold metallic
8FGST
-

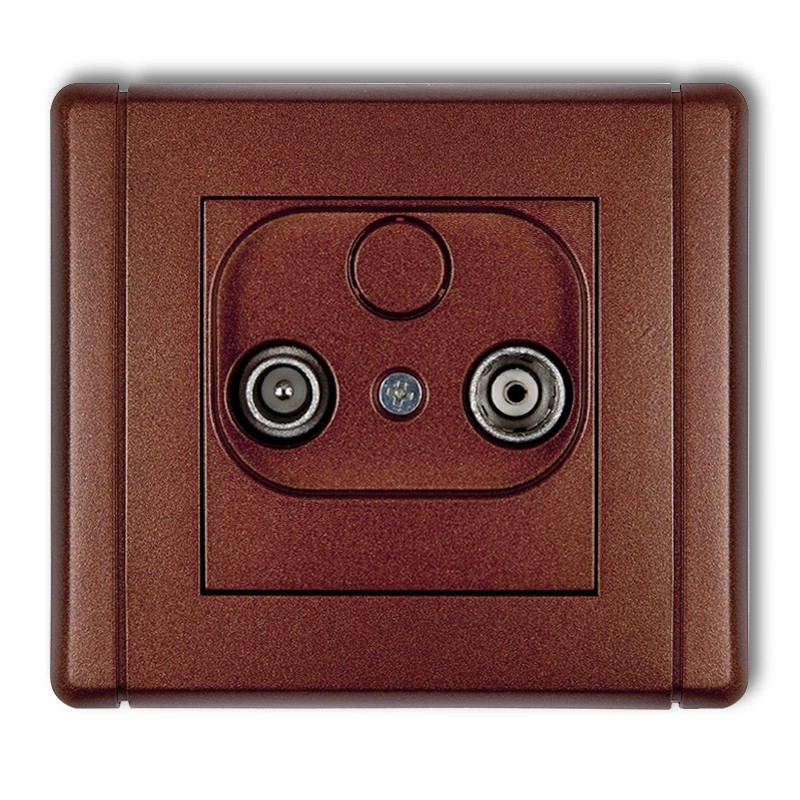

Radio/TV through socket the 12dB
brown metallic
9FG12P
-
TV/SAT with two satellite inputs socket
graphite
11FGSN
Complementary products
-
The sides of the frame (set of 2 pieces)
white
FRB
-
The sides of the frame (set of 2 pieces)
beige
1FRB
-
The sides of the frame (set of 2 pieces)
silver metallic
7FRB
-
The sides of the frame (set of 2 pieces)
gold metallic
8FRB
-
The sides of the frame (set of 2 pieces)
brown metallic
9FRB
-
The sides of the frame (set of 2 pieces)
graphite
11FRB
Related products
-
Electronic temperature controller with underfloor sensor
white
FRT-1
-
Triple switch
silver metallic
7FWP-7
-

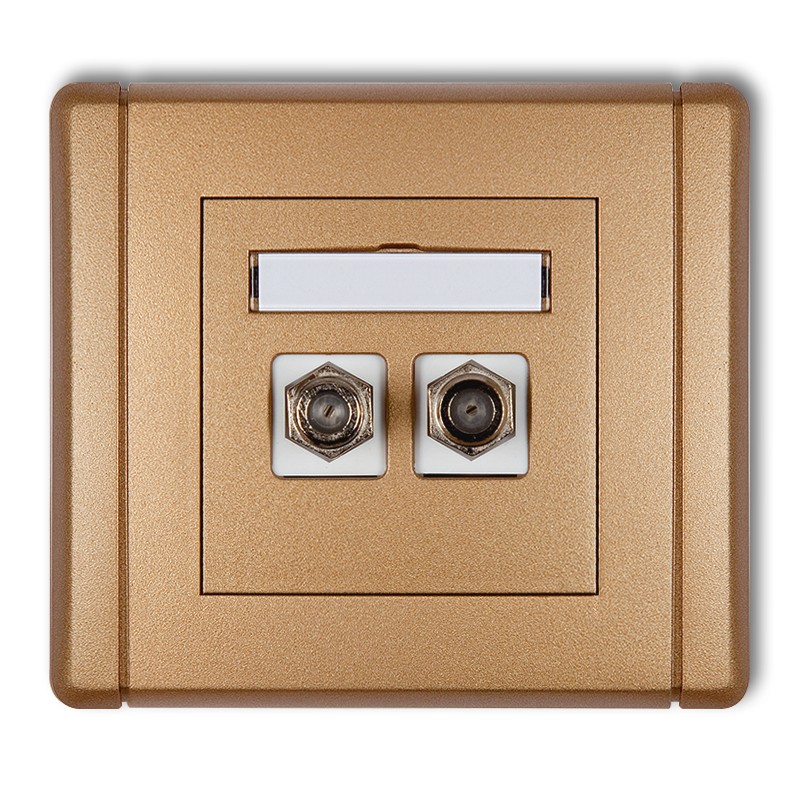

Double antenna F type socket (SAT) – nickel
