Radio/TV/SAT final socket (two antenna inputs)
white
FGST
Product description
Downloads
Configurator
The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.
Frames should be folded without the mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
SAT circut frequency range | 5 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |
Product variants
-
Radio/TV/SAT through socket the 10dB
white
FGSP
-
Single antenna TV socket
white
FGTV-1
-
TV/SAT with two satellite inputs socket
white
FGSN
-
TV/SAT with two satellite inputs socket
silver metallic
7FGSN
-

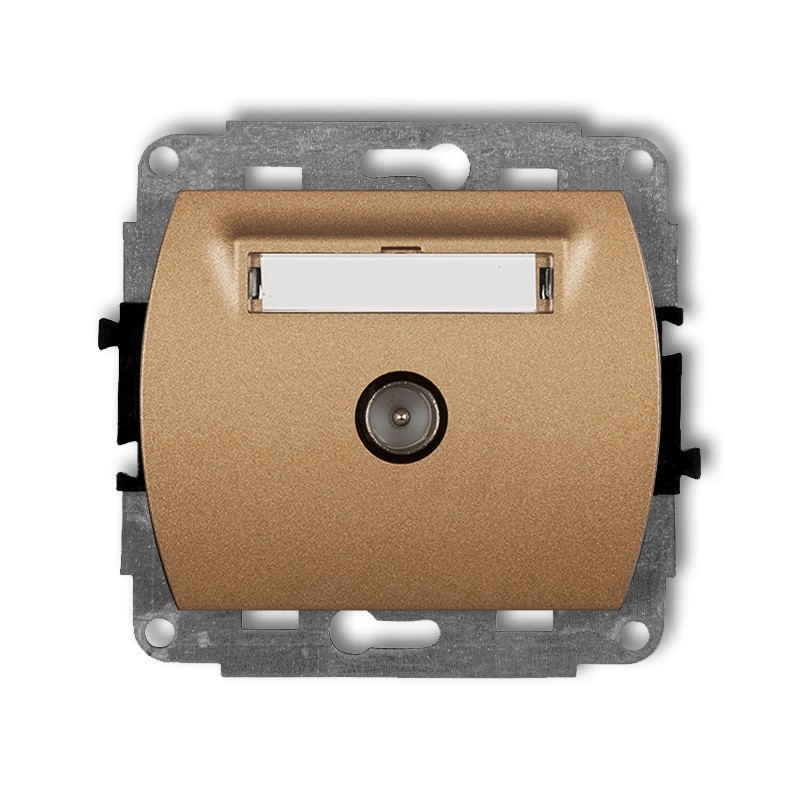

Single antenna TV socket mechanism
gold metallic
8GTV-1
-

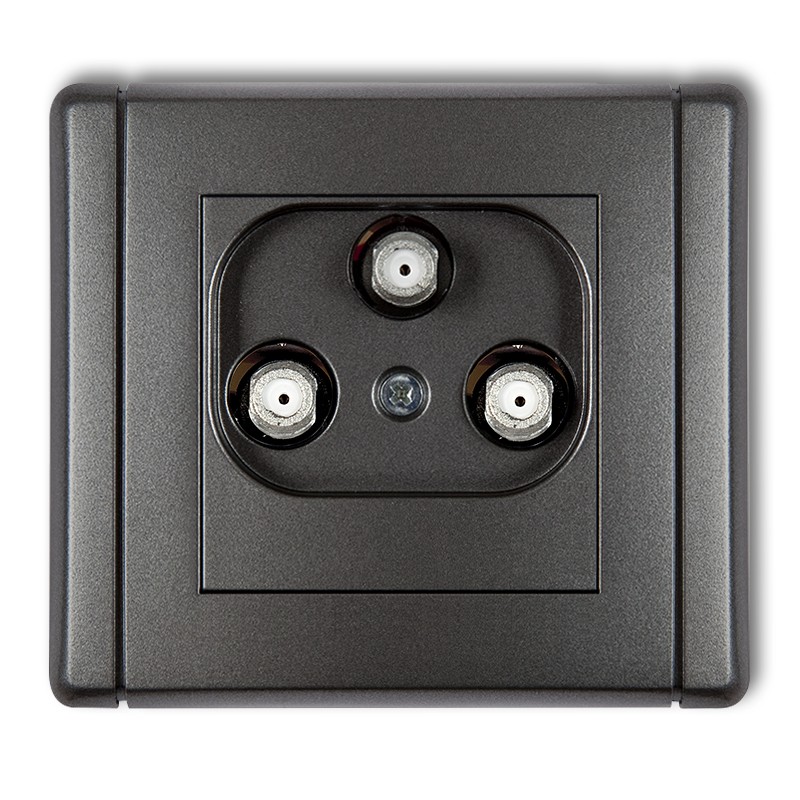

3F DATA (VECTRA) multimedia socket
graphite
11FGMV
Complementary products
-
The sides of the frame (set of 2 pieces)
white
FRB
-
The sides of the frame (set of 2 pieces)
beige
1FRB
-
The sides of the frame (set of 2 pieces)
silver metallic
7FRB
-
The sides of the frame (set of 2 pieces)
gold metallic
8FRB
-
The sides of the frame (set of 2 pieces)
brown metallic
9FRB
-
The sides of the frame (set of 2 pieces)
graphite
11FRB
Related products
-
2xUSB A-A 2.0 double socket
white
FGUSB-2
-
RCA single socket (cinch type-yellow, gold-plated)
white
FGRCA-1
-
Single socket with the 2P+Z earth SCHUKO (with increased contact protection/shutter)
beige
1FGP-1sp
-

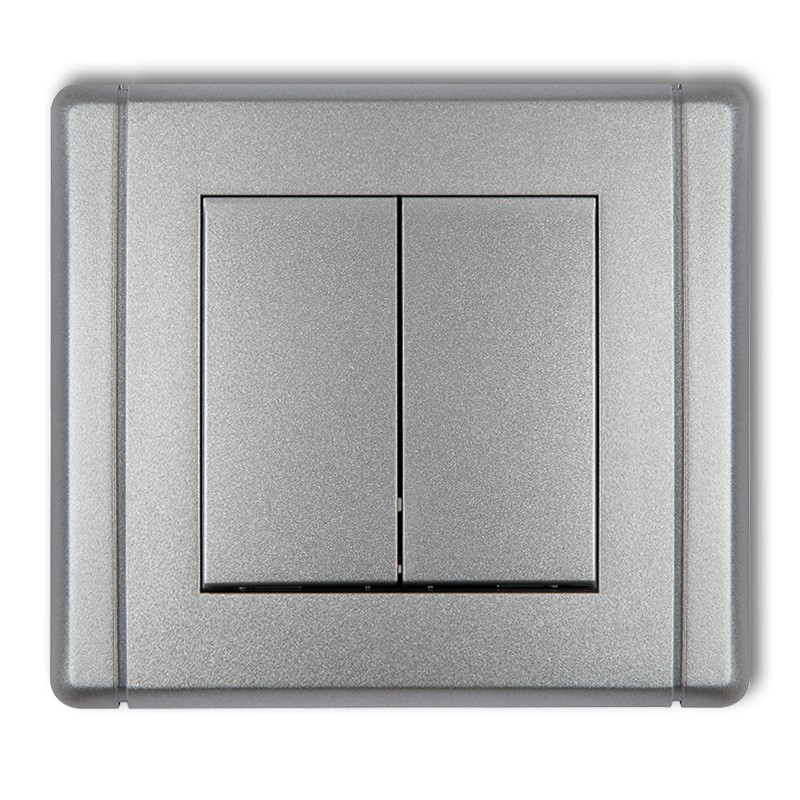

Double push button switch (double push button without pictograms, separate power supply)
