Electronic control roller shutter (local control, remote control, zone control and local control of sub-zone)
white
FSR-4
Product description
Downloads
Configurator
The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.
Frames should be folded without the mechanisms.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Power supply | 230 V~ 50 Hz |
Load range | max 150 W |
Type of load | Inductive – single phase motor 230 V~ 50 Hz |
Type of work | Intermittent |
Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
UV resistance | Resistant |
Product variants
-
Electronic control roller shutter (local control and remote control)
white
FSR-2
-
Electronic control roller shutter (local control)
beige
1FSR-1
-
Electronic control roller shutter (central/additional button)
silver metallic
7FSR-6
-

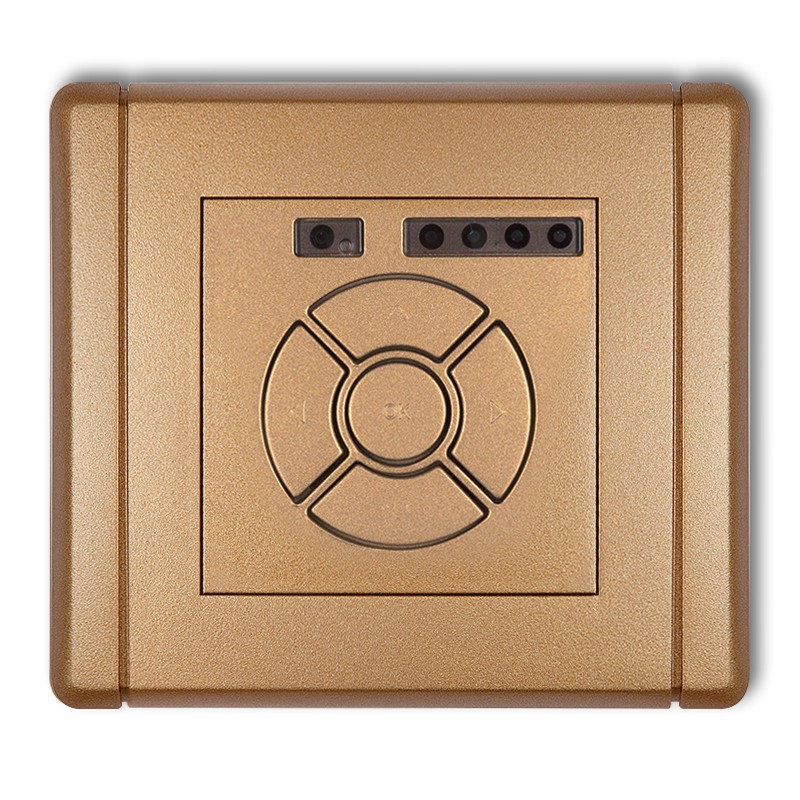

Electronic control roller shutter (local control, remote control, zone control, central/additional button)
gold metallic
8FSR-3
-
Electronic control roller shutter (local control, remote control, zone control, central/additional button)
graphite
11FSR-3A
-
Electronic control roller shutter (zone button function)
graphite
11FSR-5
