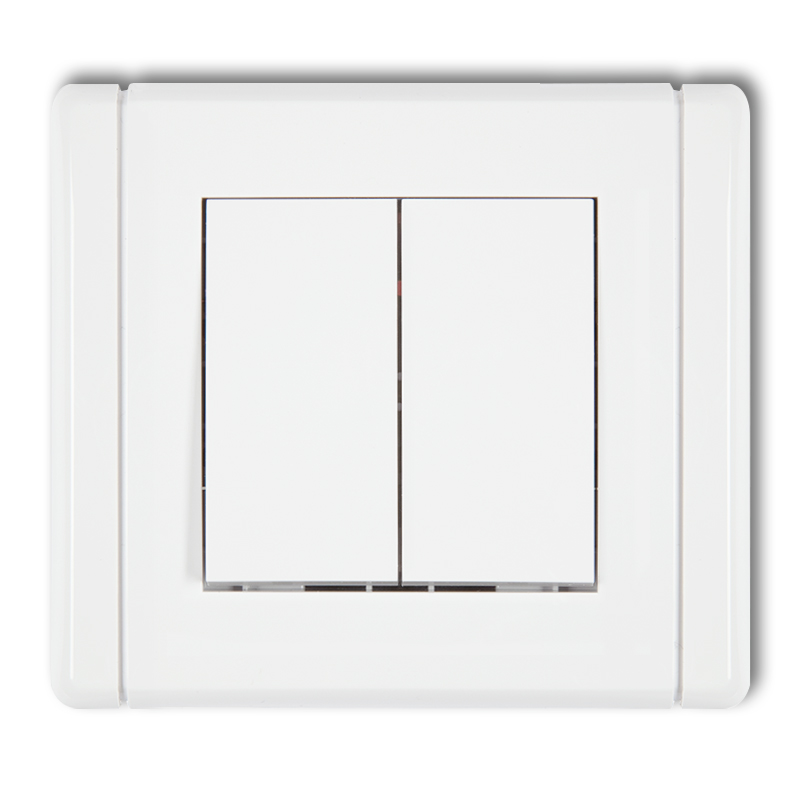

Single pole with two-way switch (double push button without pictograms, common power supply)
white
FWP-10.11
Product description
Downloads
Configurator
The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.
Frames should be folded without the mechanisms.
FLEXI switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all FLEXI switches besides the following switches: FWP-7, FWP-8, FWP-8.1, FWP-44.2, FWP-88, FWP-88.1, FWP-33, FWP-33.1, FWP-10.2, FWP-10.21.
FLEXI switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all FLEXI switches besides the following switches: FWP-7, FWP-8, FWP-8.1, FWP-88, FWP-88.1.
The actual appearance of product may be different from the presented photographs.
Technical data
IP 20 / IP 44 | |
Rated current | 10 AX |
Rated voltage | 250 V~ |
Product variants
-
Single pole with two-way switch (common power supply)
white
FWP-10.1
-
Single pole with two-way switch (separate power supply)
white
FWP-10.2
-

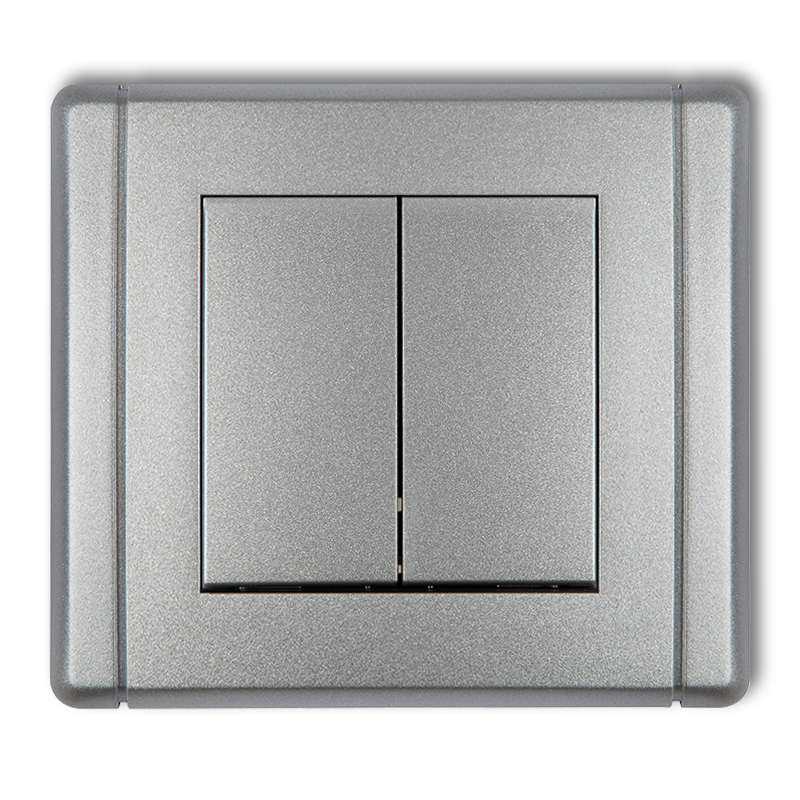

Single pole with two-way switch (common power supply)
silver metallic
7FWP-10.1
-

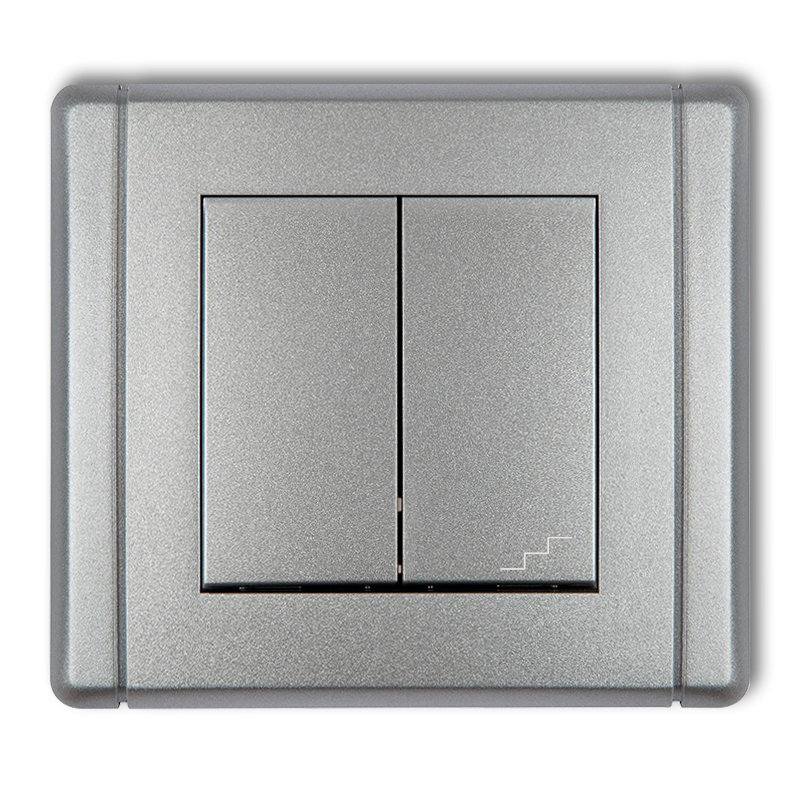

Single pole with two-way switch (separate power supply)
silver metallic
7FWP-10.2
-

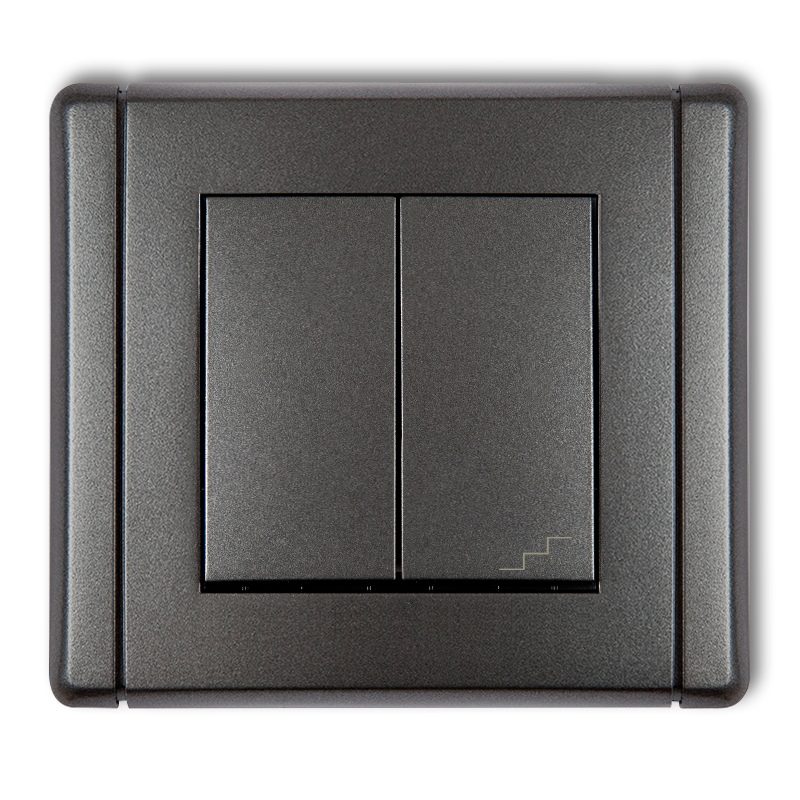

Single pole with two-way switch (separate power supply)
graphite
11FWP-10.2
-

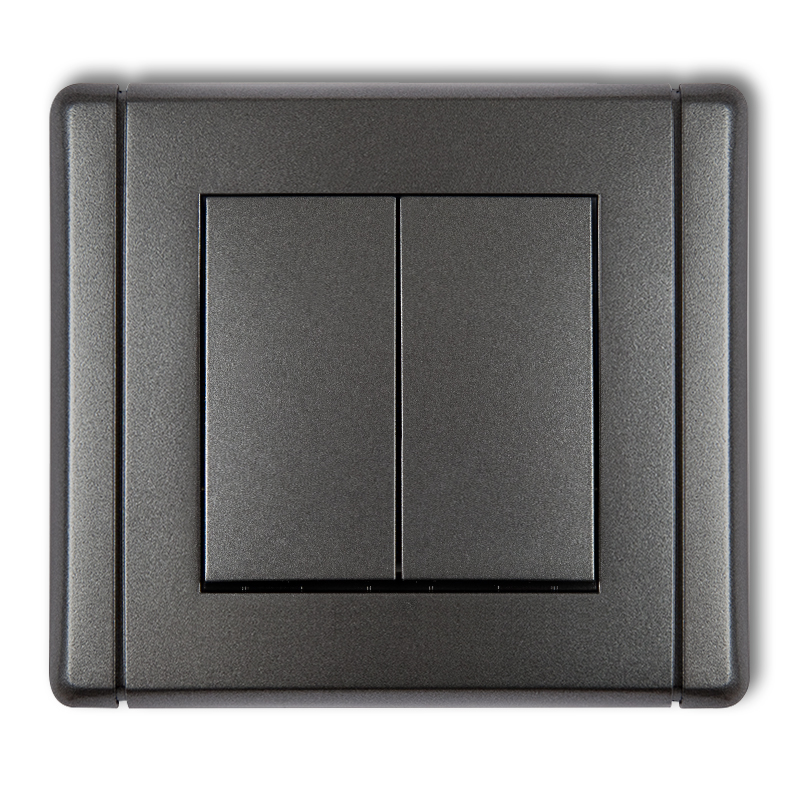

Single pole with two-way switch (common power supply)
graphite
11FWP-10.1
