Two-way switch (single push button without pictogram)
white
FWP-3.1
Product description
Downloads
Configurator
The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.
Frames should be folded without the mechanisms.
FLEXI switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all FLEXI switches besides the following switches: FWP-7, FWP-8, FWP-8.1, FWP-44.2, FWP-88, FWP-88.1, FWP-33, FWP-33.1, FWP-10.2, FWP-10.21.
FLEXI switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all FLEXI switches besides the following switches: FWP-7, FWP-8, FWP-8.1, FWP-88, FWP-88.1.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 / IP 44 |
Rated current | 10 AX |
Rated voltage | 250 V~ |
Product variants
Complementary products
Related products
-
Single socket without the 2P earth (with increased contact protection/shutter)
white
FGP-1p
-
Single telephone socket 1xRJ11, 4-contact, tool-less
white
FGT-1
-
Electronic control roller shutter (local control)
silver metallic
7FSR-1
-
Electronic temperature controller with underfloor sensor
silver metallic
7FRT-1
-
Single loudspeaker socket (banana type- red and black, gold-plated, 4mm2, twisted)
graphite
11FGG-4
-

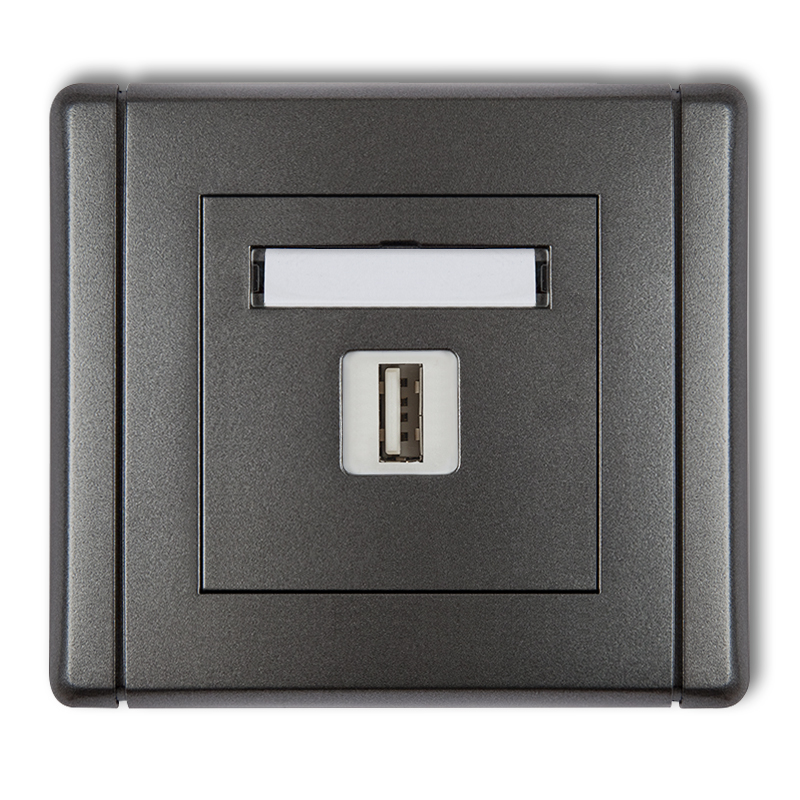

Single USB charger USB A, 10W max., 5V, 2A
