Roller blind switch with mechanical lock (double push button without pictograms)

Roller blind switch with mechanical lock (double push button without pictograms)

white

FWP-88.1

white

FWP-88.1

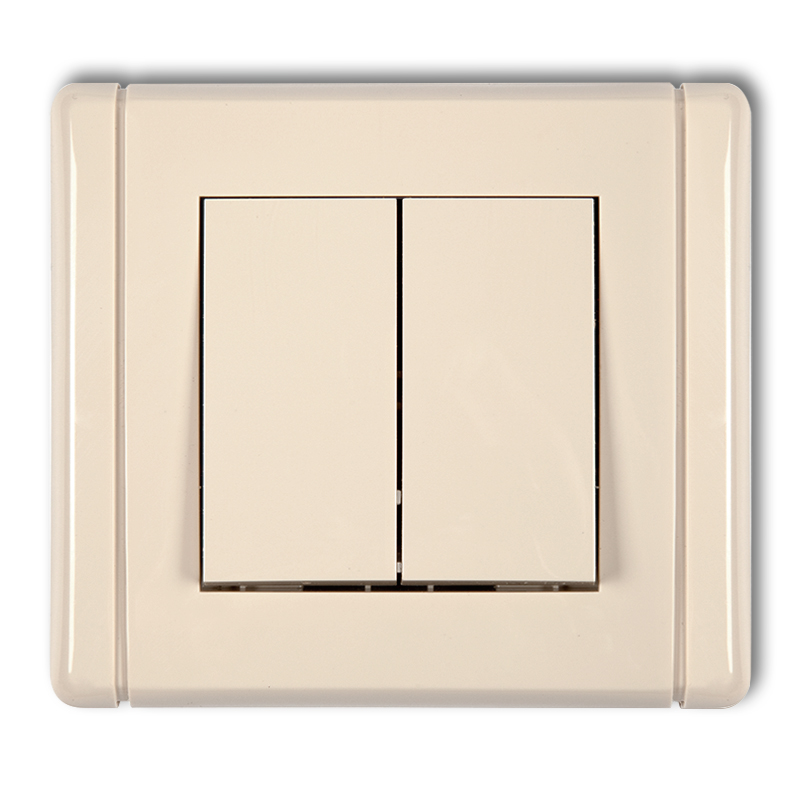

beige

1FWP-88.1

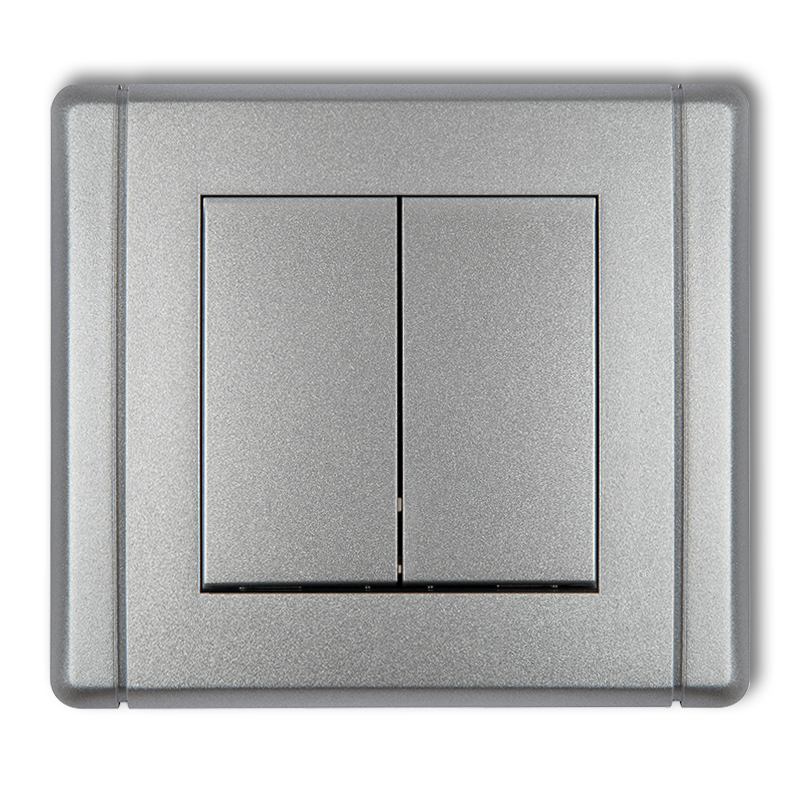

silver metallic

7FWP-88.1

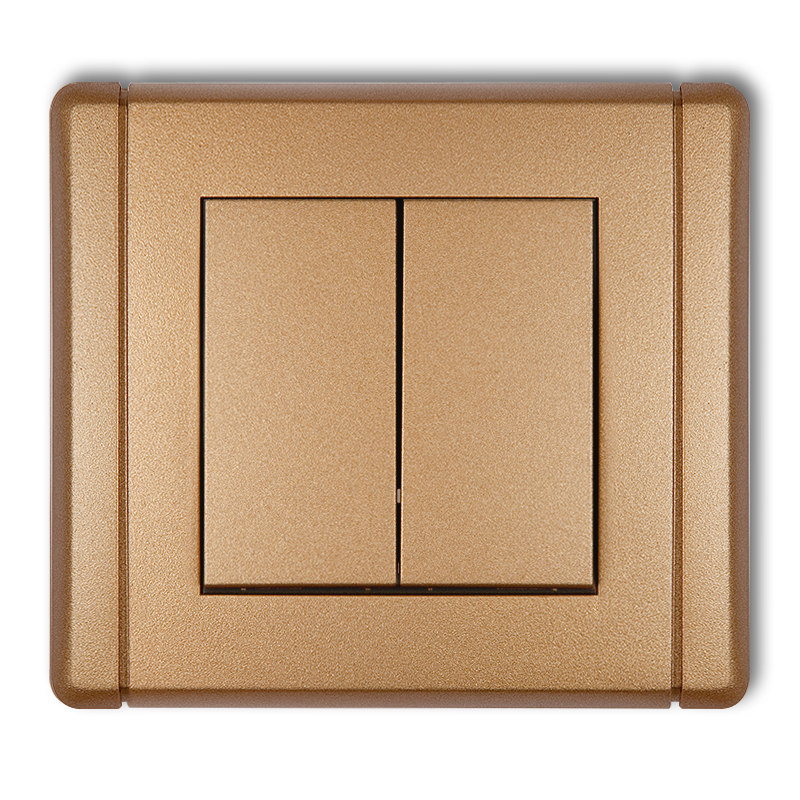

gold metallic

8FWP-88.1

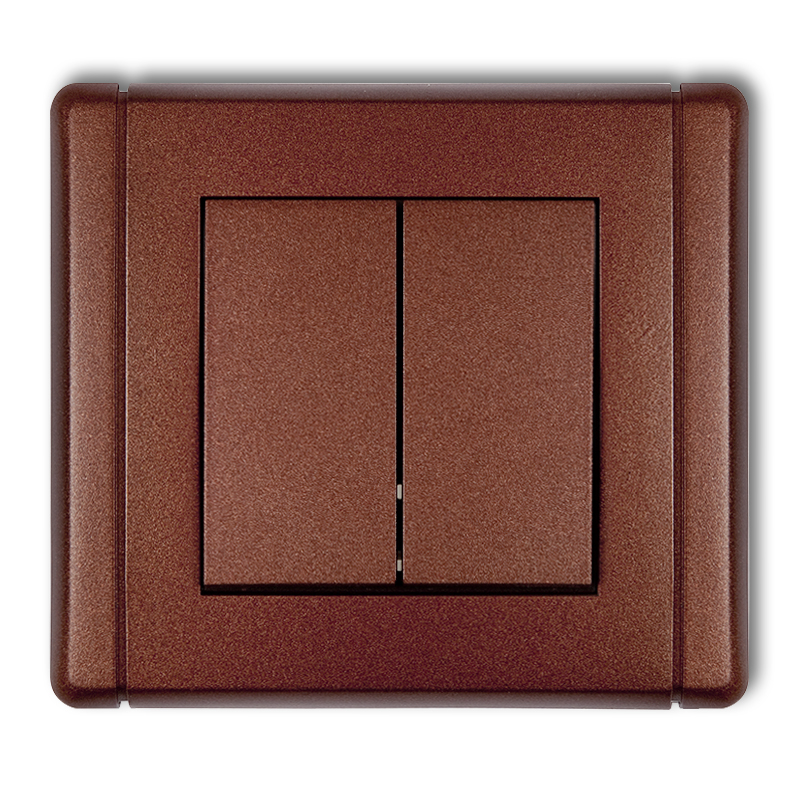

brown metallic

9FWP-88.1
graphite

11FWP-88.1

Product description
Downloads
Configurator

The FLEXI series products are sold with an outer frame as a "monoblock" system, thereby allowing the user to create multiple connections vertically or horizontally. To this end, there is no need to buy additional external multiple frames. With an innovatively designed external frame, it is enough to remove the side of the frame and, using the tongue-and-groove, join any number of frames with each other.

Frames should be folded without the mechanisms.

FLEXI switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:

> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.

Light modules can go with all FLEXI switches besides the following switches: FWP-7, FWP-8, FWP-8.1, FWP-88, FWP-88.1, FWP-33, FWP-33.1, FWP-10.2, FWP-10.21.

FLEXI switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all FLEXI switches besides the following switches: FWP-7, FWP-8, FWP-8.1, FWP-88, FWP-88.1.

Rolle r blind switch with mechanical lock has a cradle that alternates key switching, with which the blind / roller shutter moves without holding the key. The blind / shutter can be stopped at any time.

The connector should be used with rollers and blinds fitted with end switches or other safeguards preventing motor damage.

The actual appearance of product may be different from the presented photographs.
