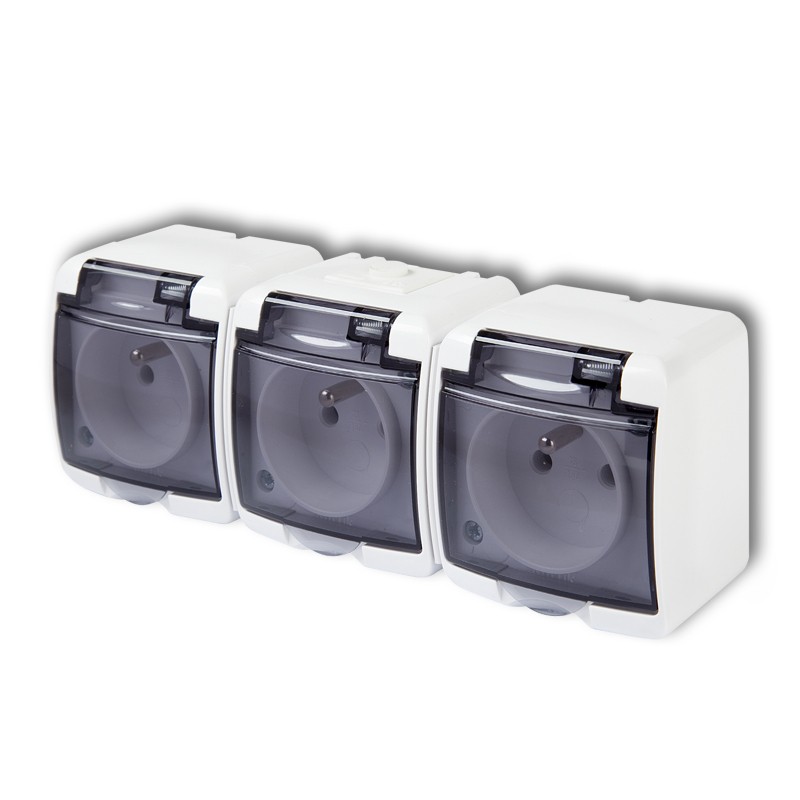

Triple socket with the 3x(2P+Z) earth (shaded transparent cover; with increased contact protection/shutter)
white
GHE-3dp
Product description
Downloads
The JUNIOR series products can be used wherever there is dust and moisture, including in the industry.
According to the Ingress Protection Rating in terms of suitability for work in hazardous conditions such as dust and water, the JUNIOR accessories can be used:
>> in rooms exposed to large amounts of dust (workshops, garages, warehouses, etc.),
>> in areas of high humidity (terraces, gazebos). This product provides protection against splashes of water from any direction, it cannot be exposed to water.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 54 |
Rated current | 16 A |
Rated voltage | 250 V~ |
Connection | Screw clamps |
Increased contact protection/shutter | YES |
Product variants
-
Triple socket with the 3x(2P+Z) earth (shaded transparent cover; without increased contact protection/shutter)
white
GHE-3d
-
Triple socket with the 3x(2P+Z) earth (white cover; with increased contact protection/shutter)
white
GHE-3p
-
Triple socket with the 3x(2P+Z) earth (brown cover, with increased contact protection/shutter)
brown
4GHE-3p
-
Triple socket with the 3x(2P+Z) earth (shaded transparent cover; with increased contact protection/shutter)
brown
4GHE-3dp
-
Triple socket with the 3x(2P+Z) earth (grey cover, with increased contact protection/shutter)
grey
10GHE-3p
-
Triple socket with the 3x(2P+Z) earth (shaded transparent cover; with increased contact protection/shutter)
grey
10GHE-3dp
