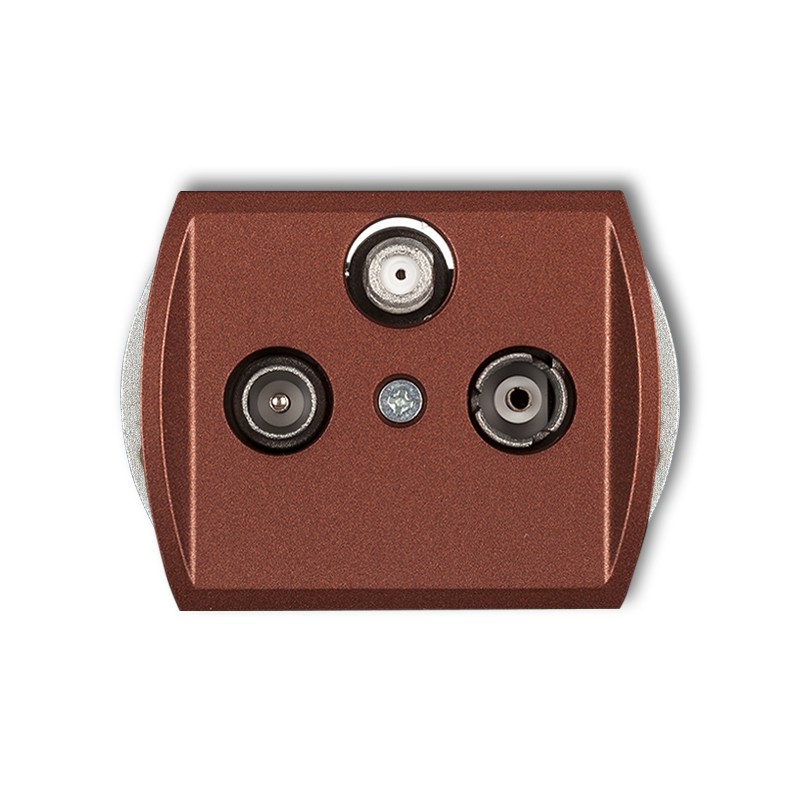

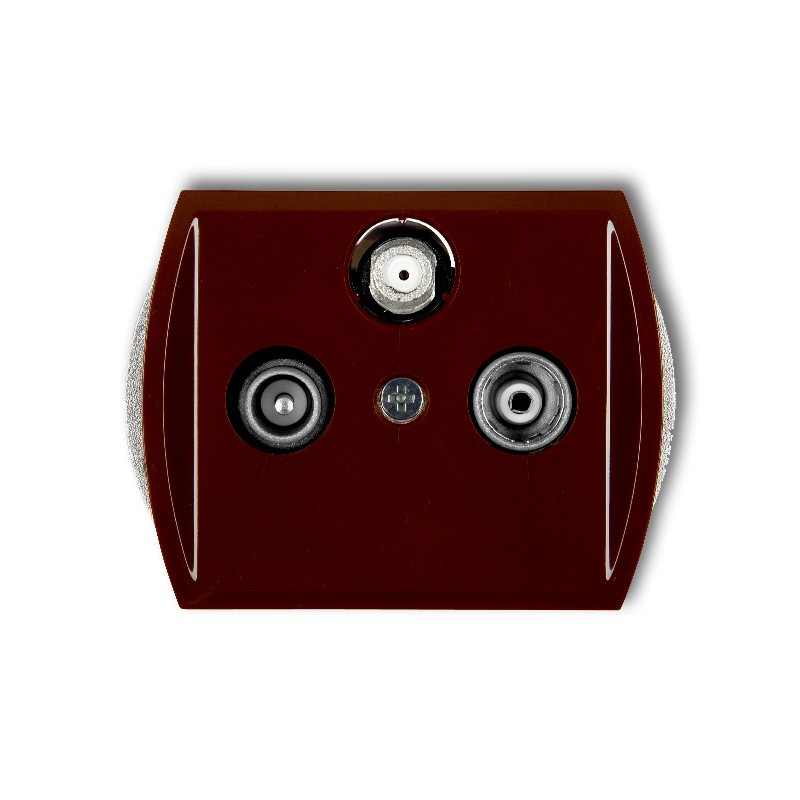

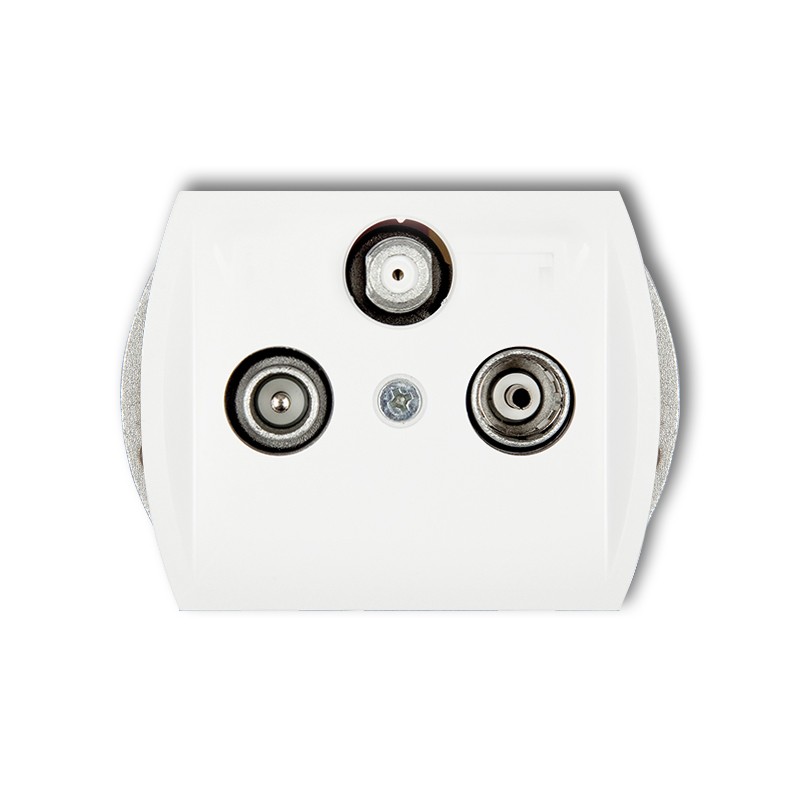

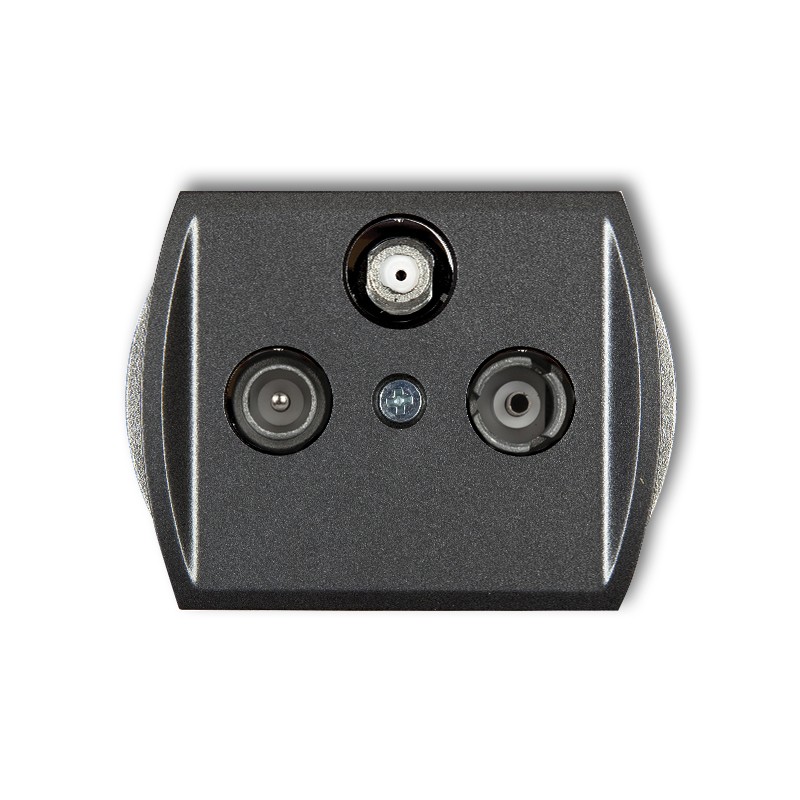

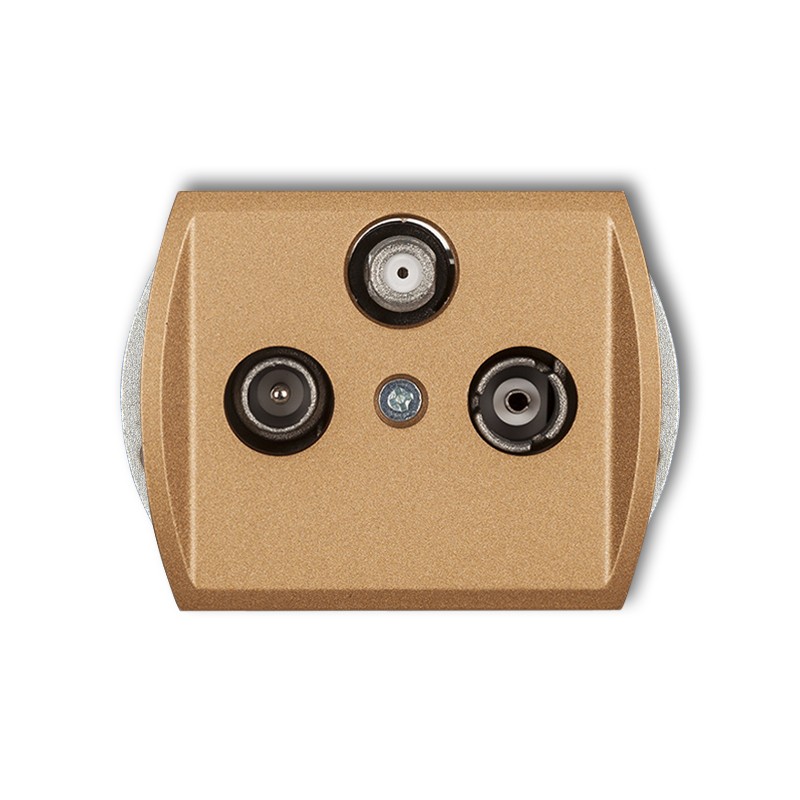

Radio/TV/SAT multimedia socket mechanism (Internet)
white
GM
Product description
Downloads
Configurator
TREND mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 88 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
DATA circut frequency range | 5 ÷ 862 MHz |
Compression damping | 13,2 ÷ 13,6 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
Product variants
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
white
GST
-
Radio/TV final socket mechanism the 2dB
white
G2K
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
beige
1GST
-
Radio/TV through socket mechanism the 9dB
silver metallic
7G9P
-
Radio/TV final socket mechanism the 2dB
silver metallic
7G2K
-
3F DATA (UPC) multimedia socket mechanism
graphite
11GMU
