Radio/TV/SAT final socket mechanism the 1,5dB
![TREND](/media/filer_public/32/c1/32c13b2e-9e18-40ca-8b5f-408c68fd170d/gs.jpg)
white
GS
Product description
Downloads
Configurator
TREND mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
SAT circut frequency range | 950 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |

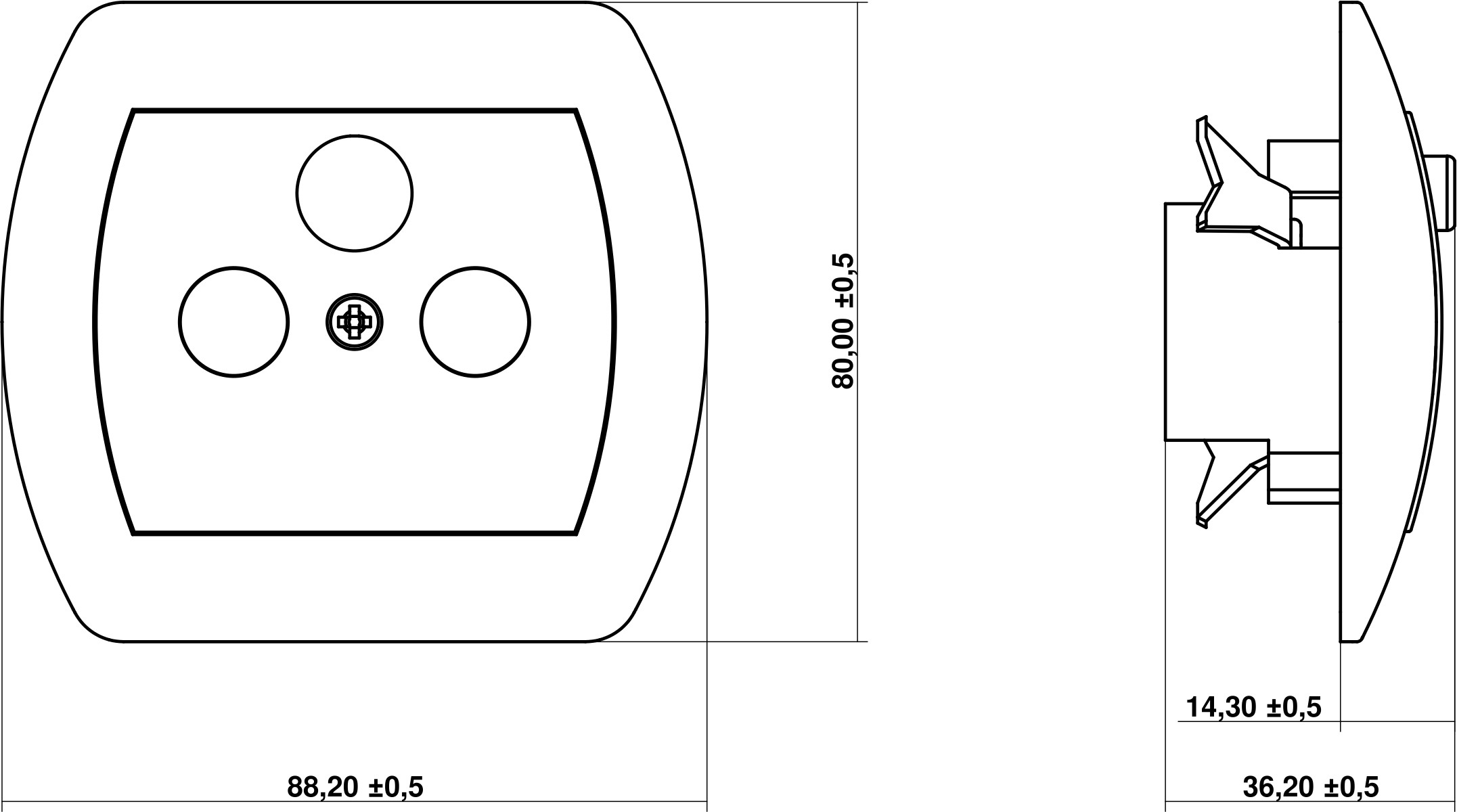

![Technical image](/media/techdata/karlik_trend_gniazdo_abonenckie_rtv-sat_1UMIshO.jpg)
