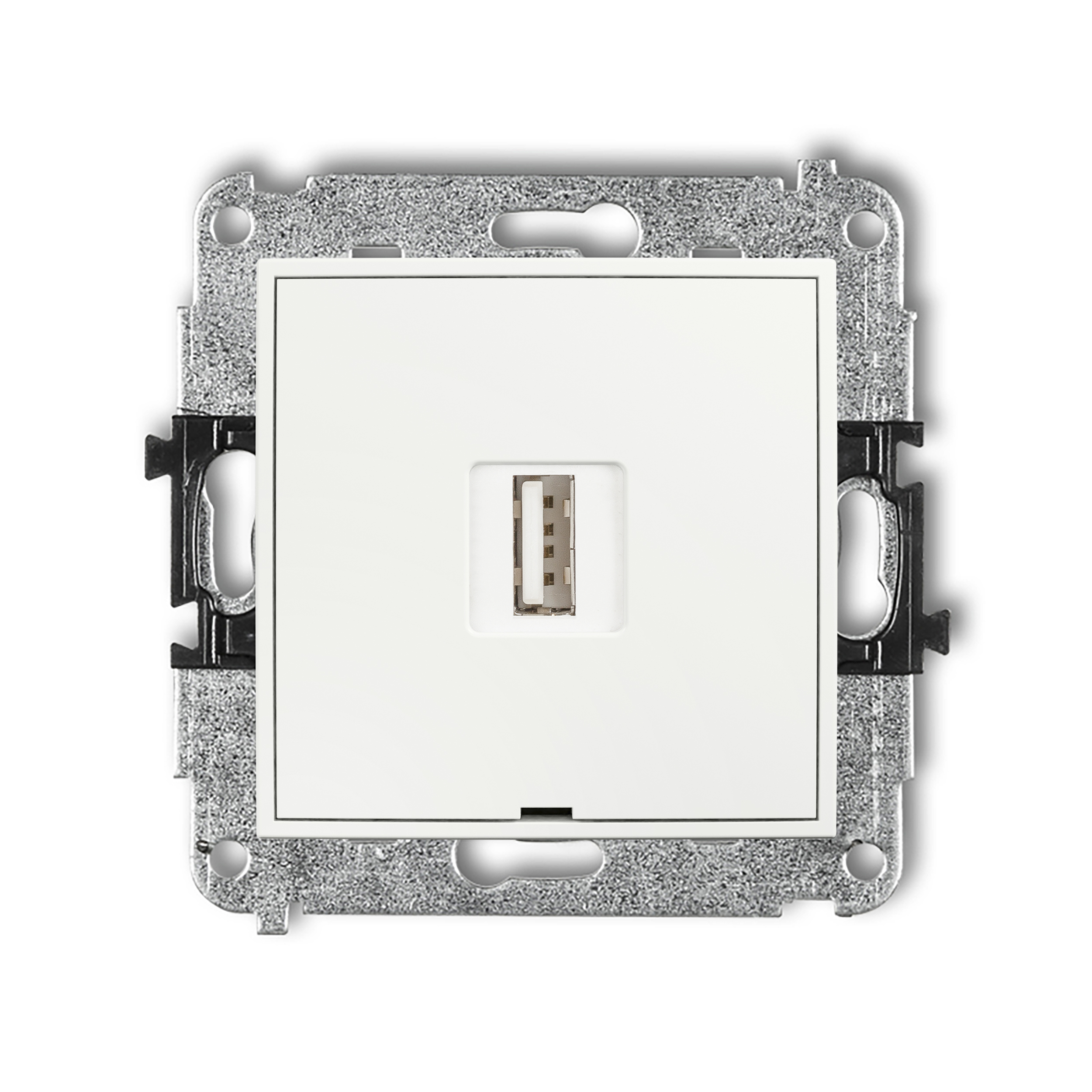

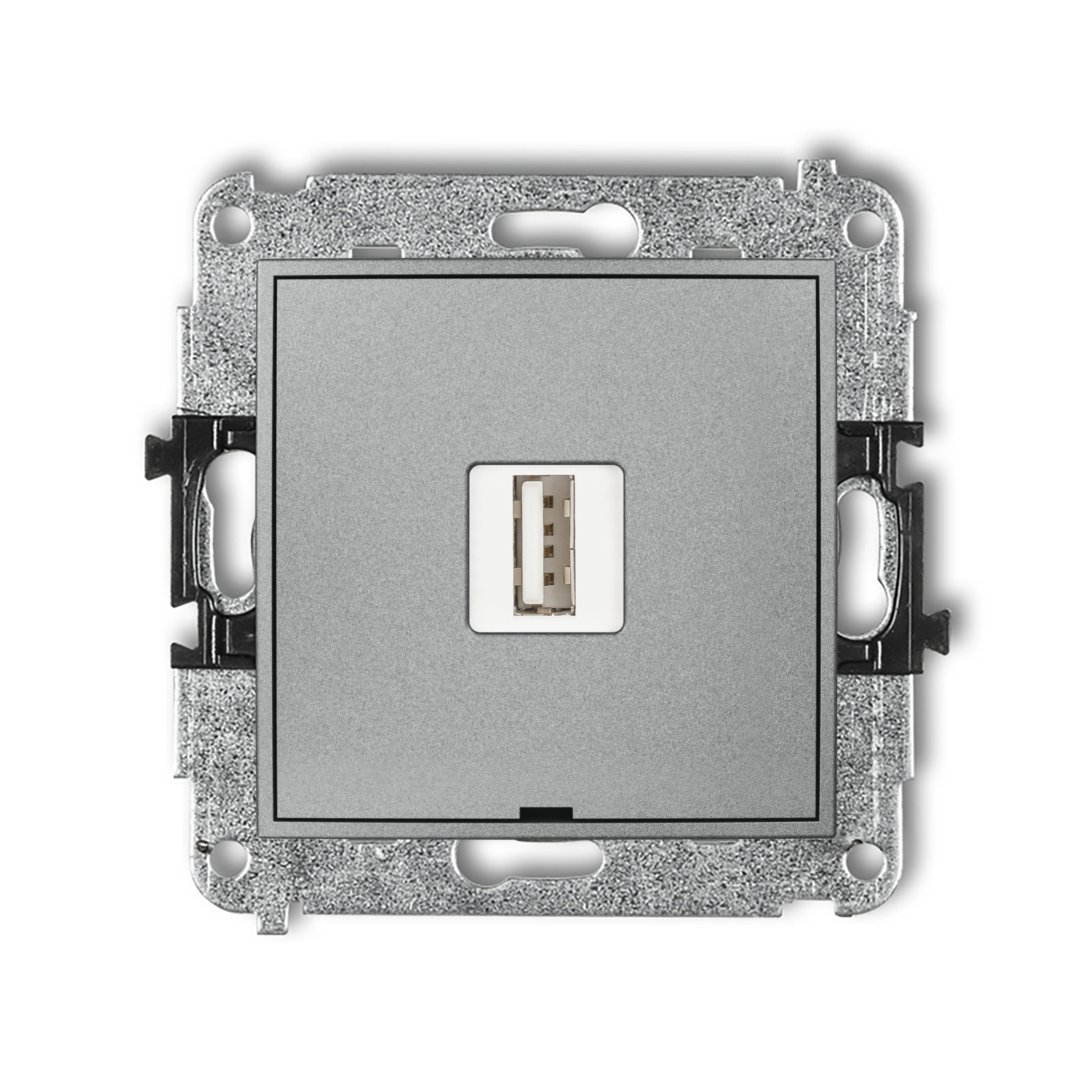

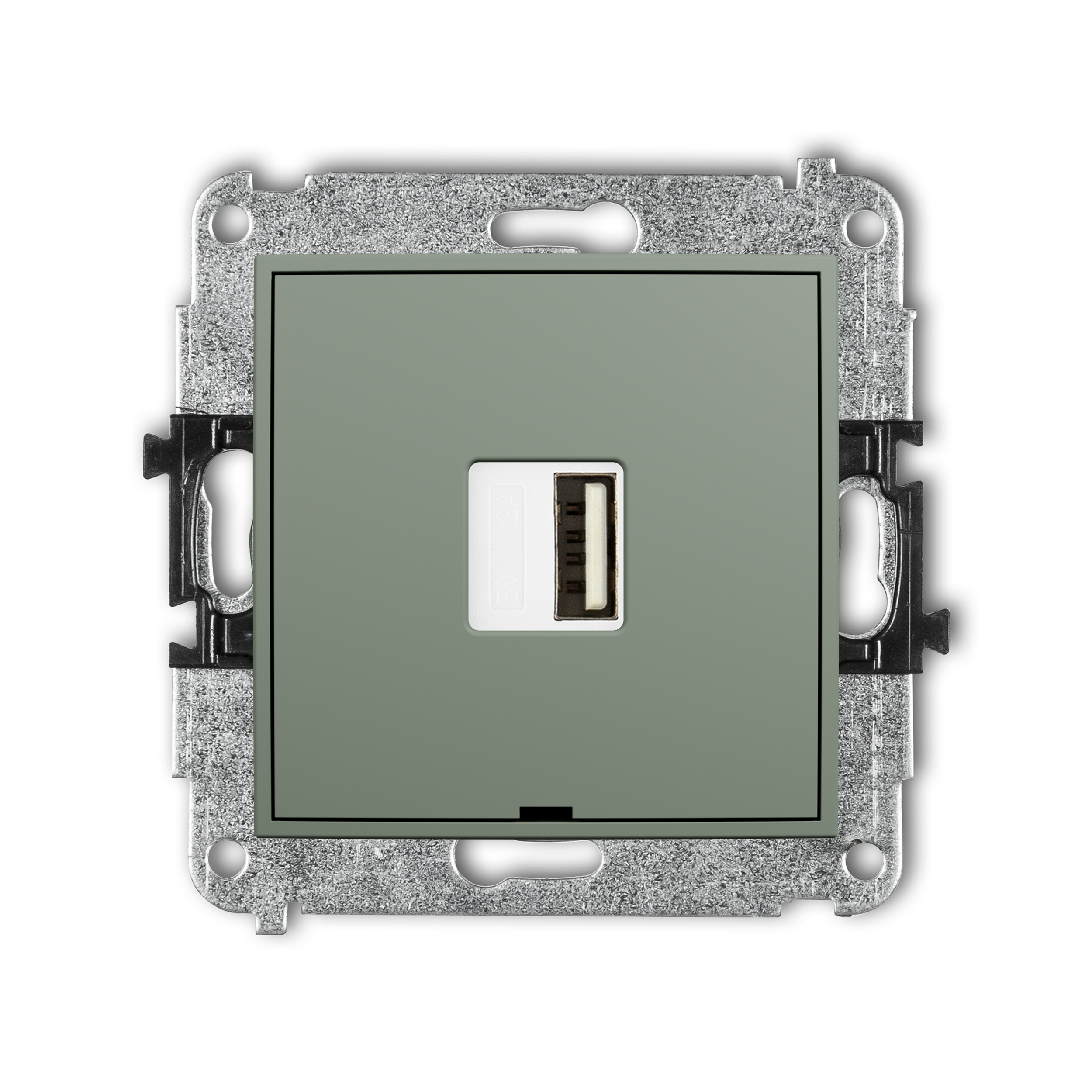

Single USB charger mechanism USB A, 10W max., 5V, 2A, without description field
white
ICUSBBO-3
Product description
Downloads
USB charger mechanism with idle power supplu consumes less than about 0,2W.
ICON mechanisms and frames are sold separately.
ICON series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Rated output voltage | 5 V |
Rated output current | 2 A |
Connection type | USB-A |
Connection | Screw clamps |
UV resistance | Resistant |
Product variants
-
Single USB charger mechanism, 5V, 1A
white
ICUSB-1
-
Double USB charger mechanism 2xUSB A, 15,5W max., 5V, 3.1A, without description field
matt black
12ICUSBBO-6
-
Single USB charger mechanism USB A, 5W max., 5V, 1A, without description field
matt grey
27ICUSBBO-1
-
Dual USB charger mechanism USB C + USB A, 20W max., without description field
matt white
29ICUSBBO-8
-

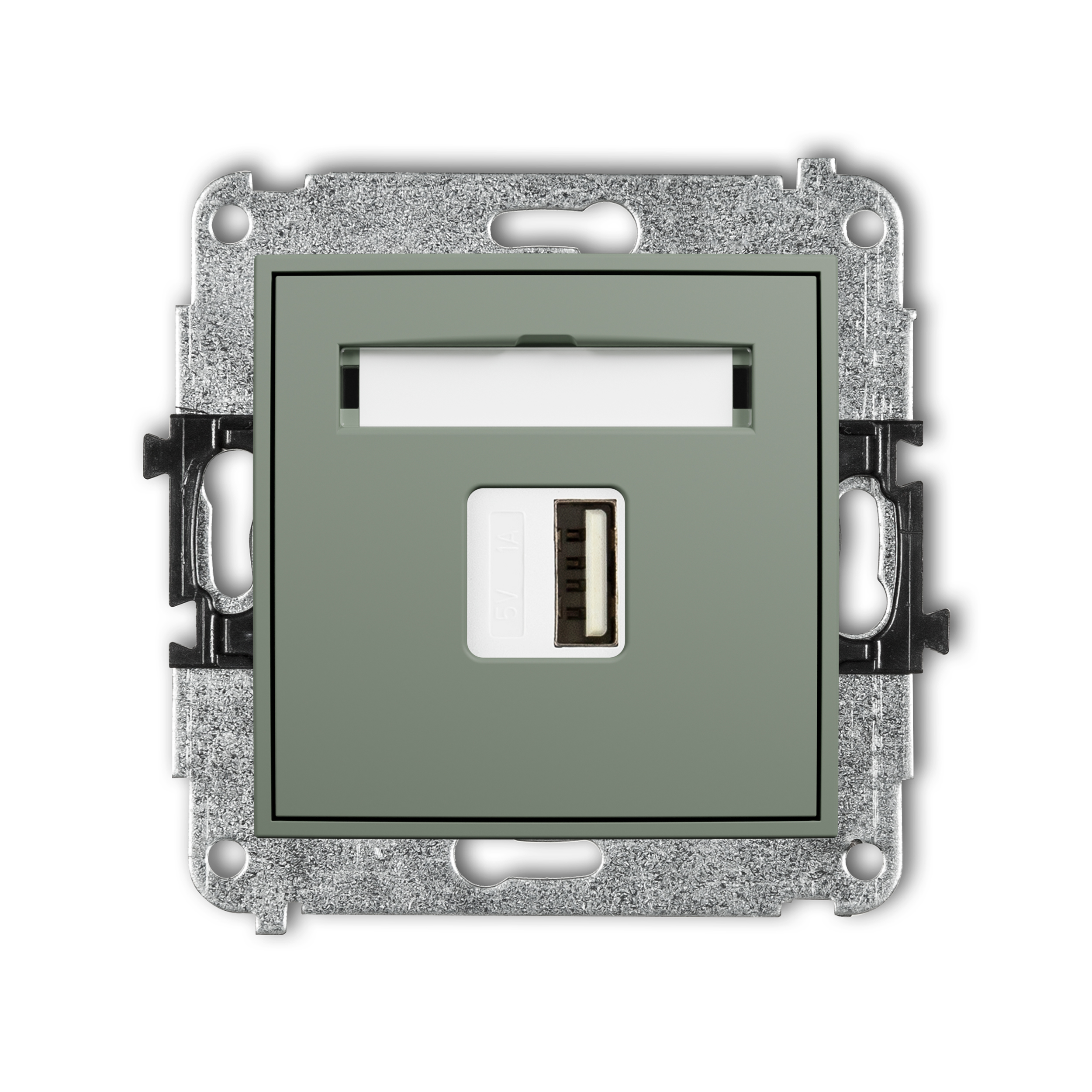

Single USB charger mechanism, 5V, 1A
sage
61ICUSB-1
-

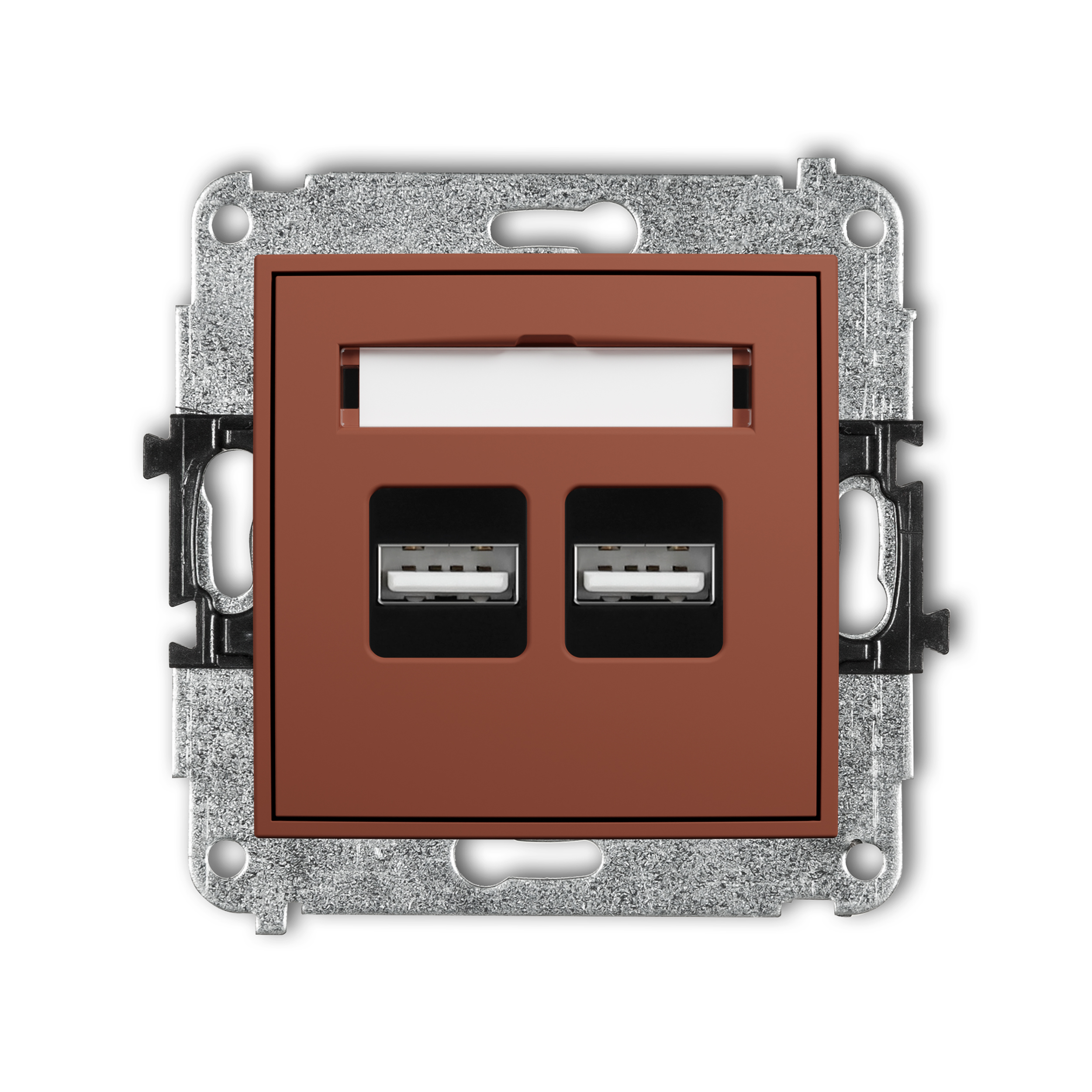

Double USB charger mechanism 2xUSB A, 15,5W max., 5V, 3.1A
