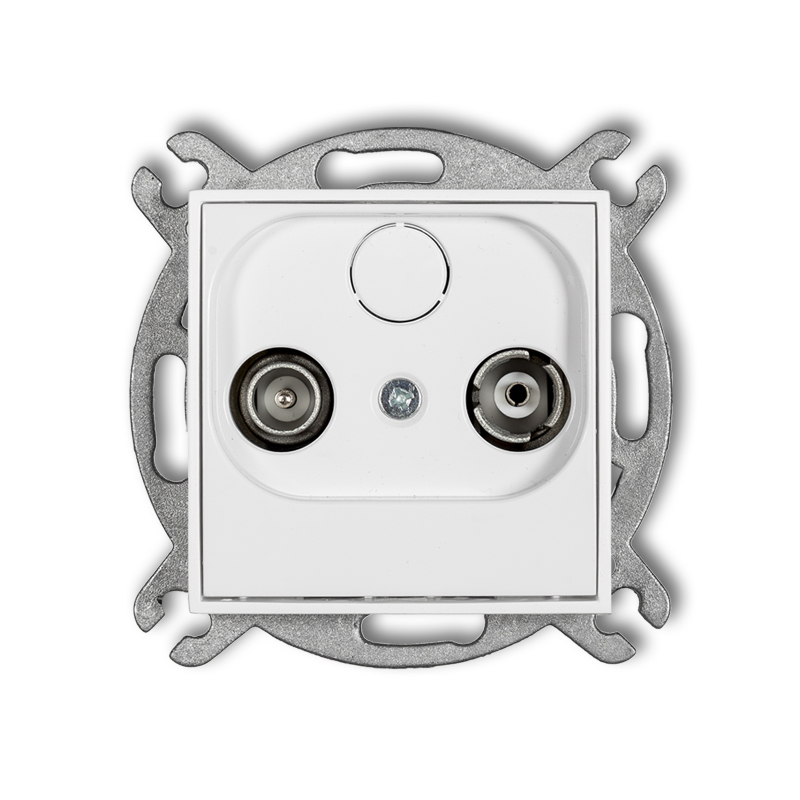

Radio/TV final socket mechanism the 2 dB
white
IG2K
Product description
Downloads
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Radio/TV final socket (in series of through sockets) mechanism the 6 dB
white
IG6K
-
TV/SAT with two satellite inputs socket mechanism
matt black
12IGSN
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
matt grey
27IGST
-
3F DATA (UPC) multimedia socket mechanism
matt graphite
28IGMU
-
TV/SAT with two satellite inputs socket mechanism
salmon
62IGSN
-

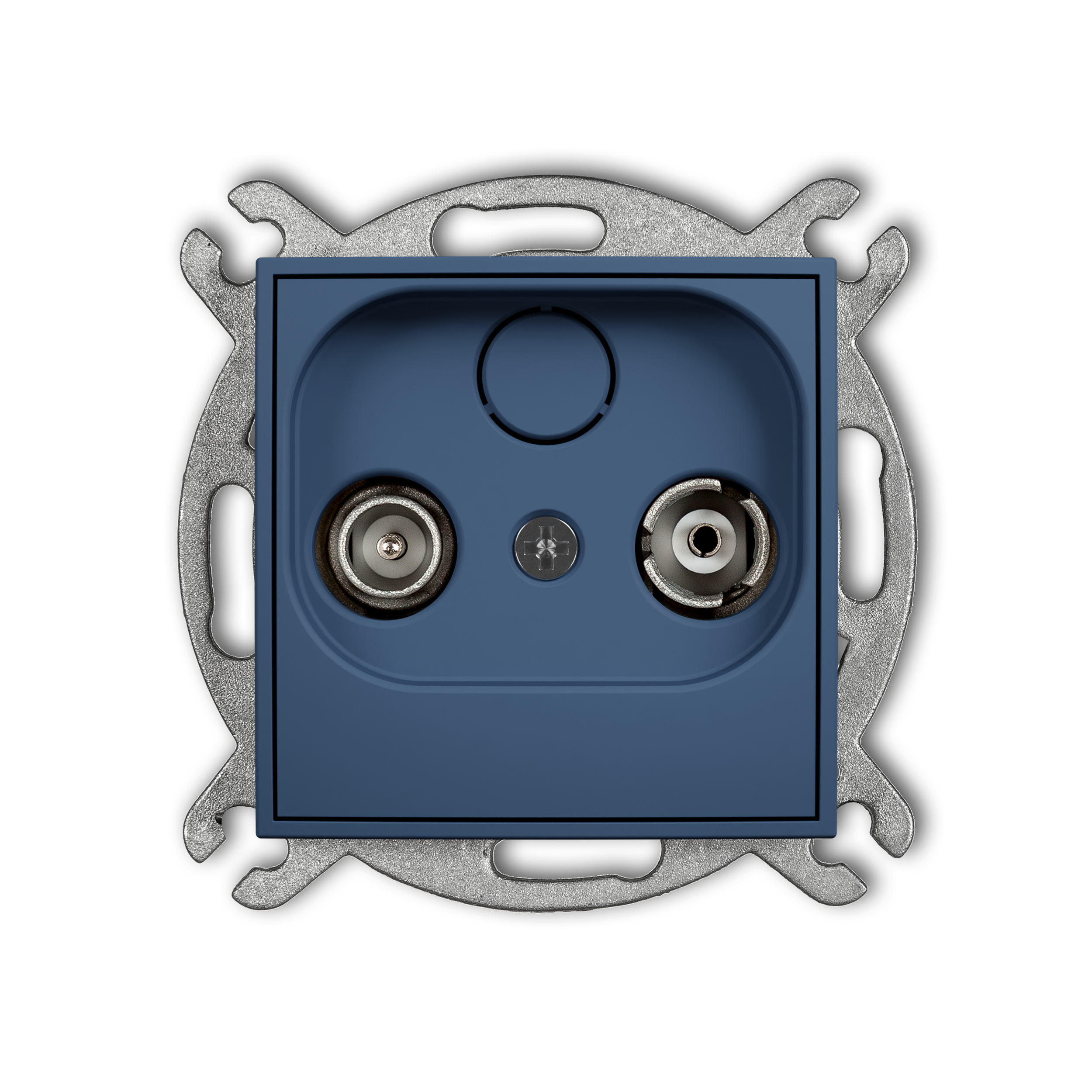

Radio/TV final socket mechanism the 2 dB
navy blue
64IG2K
Complementary products
Related products
-
Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
white
IGPR-2z
-
Single antenna TV socket mechanism
matt black
12IGTV-1
-
1-gang round universal frame - glass effect
grey frame / matt graphite rear
15-28-IRSO-1
-

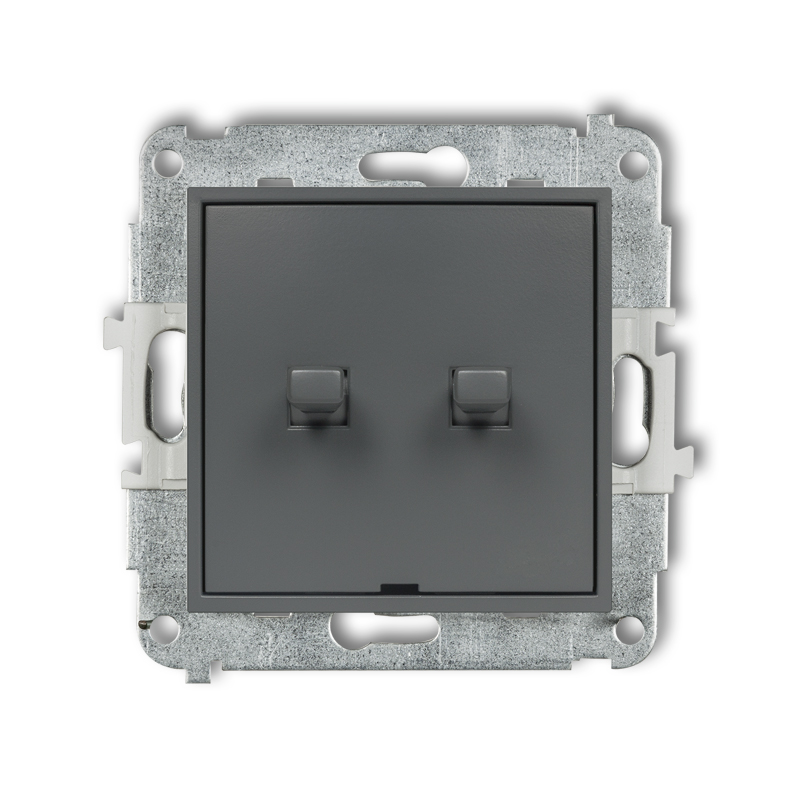

American-style roller blind switch mechanism (double push button without pictograms)
