Single loudspeaker socket (banana type- red and black, gold-plated,4mm) mechanism, without description field
white
IGGBO-3
-
white
IGGBO-3
-

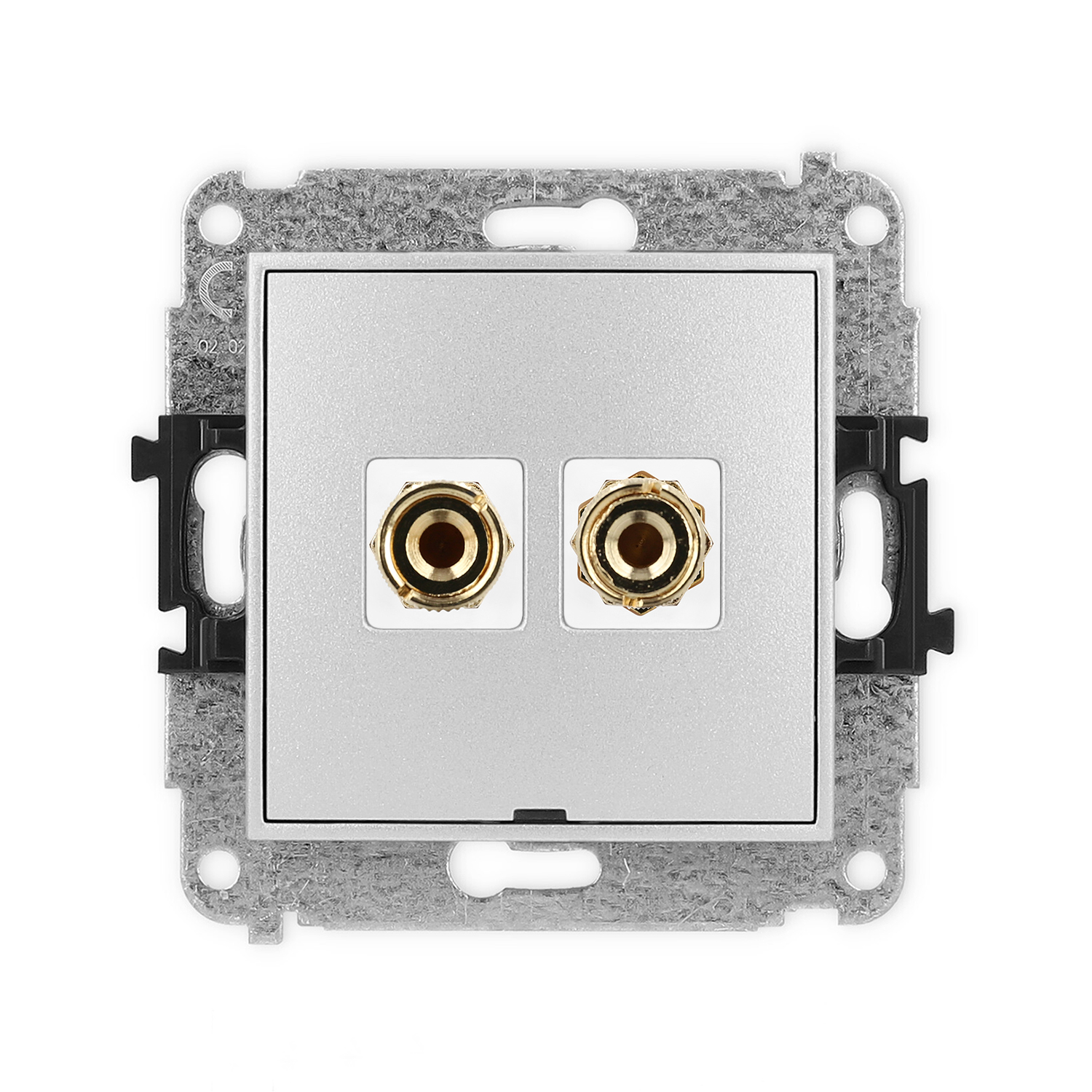

silver metallic
7IGGBO-3
-

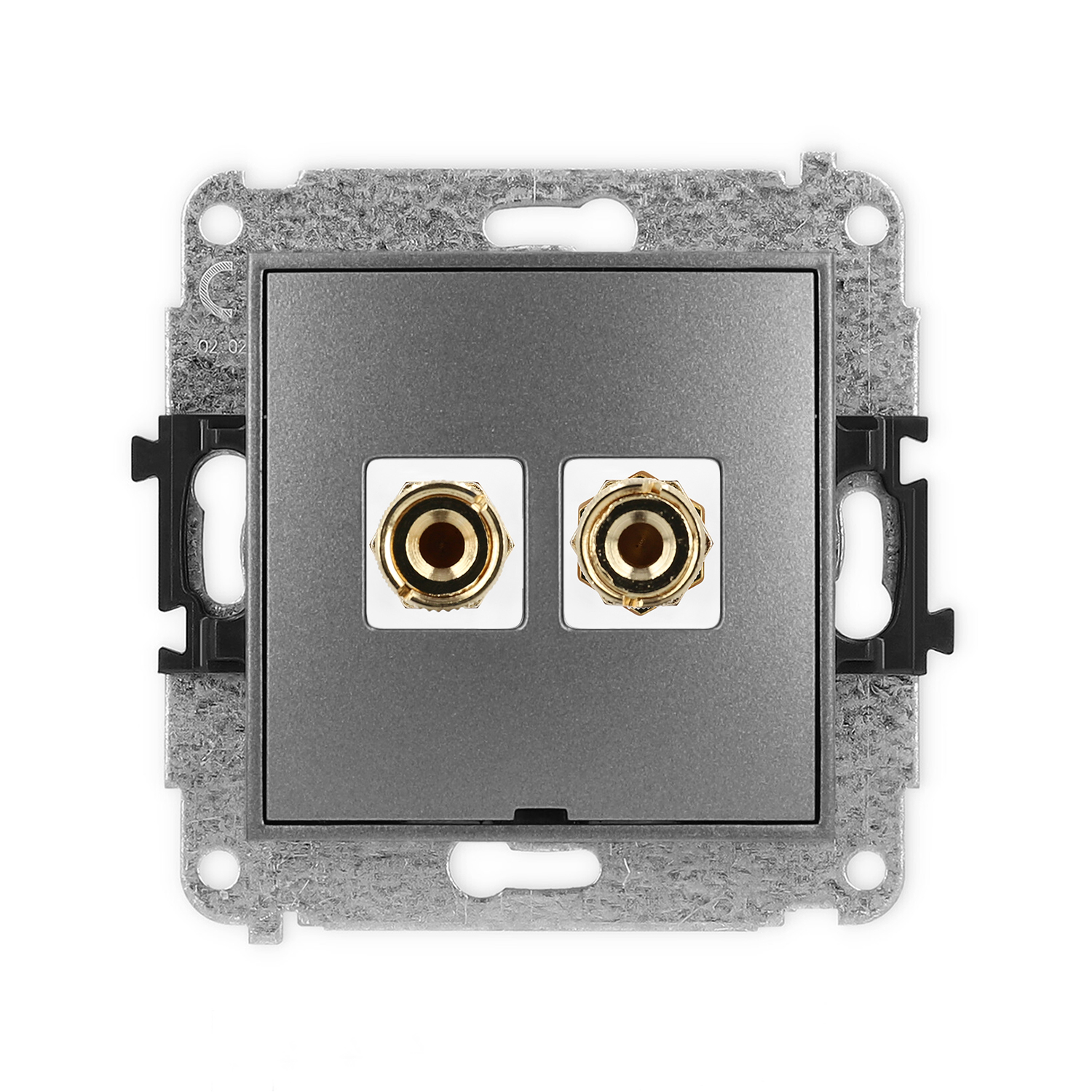

graphite
11IGGBO-3
-

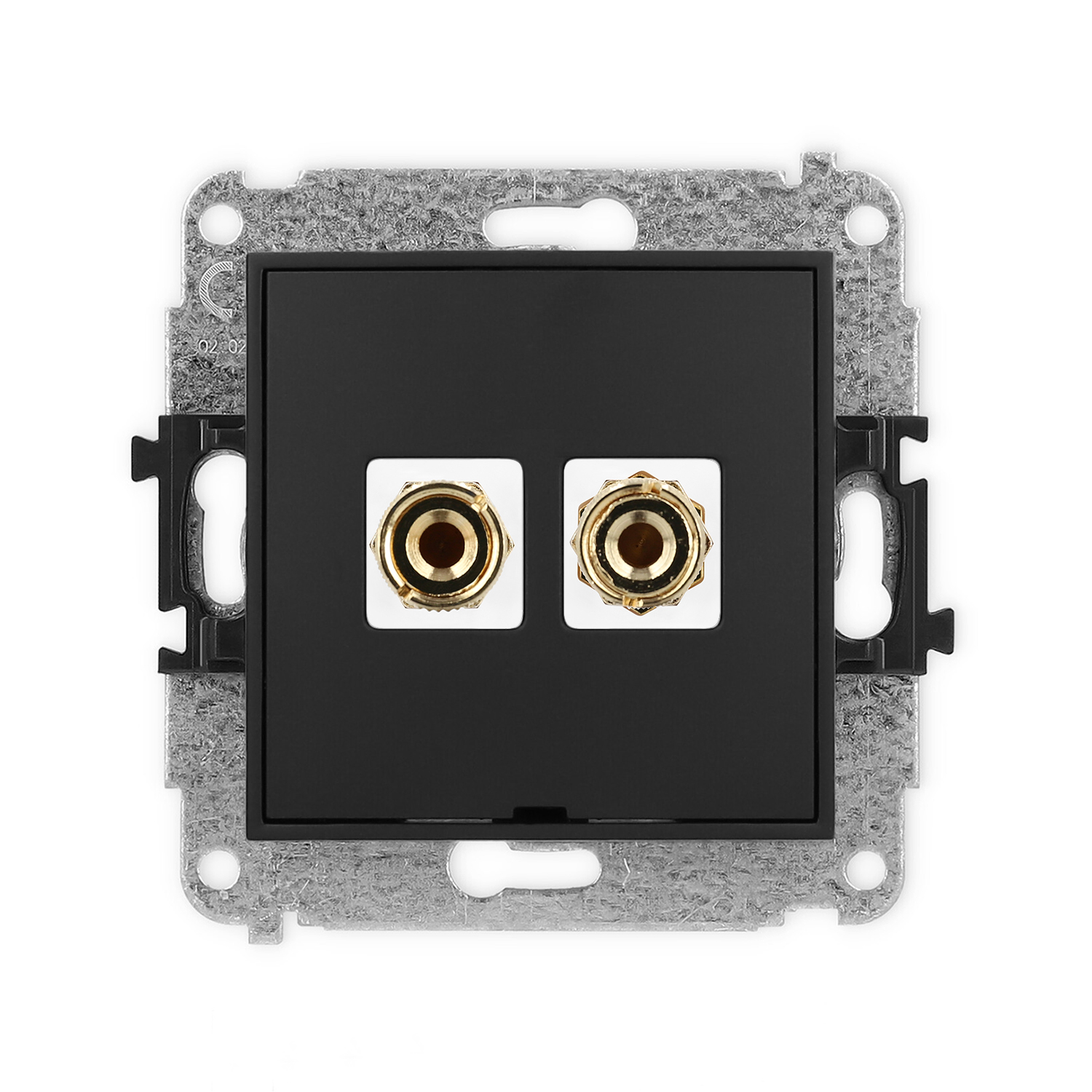

matt black
12IGGBO-3
-

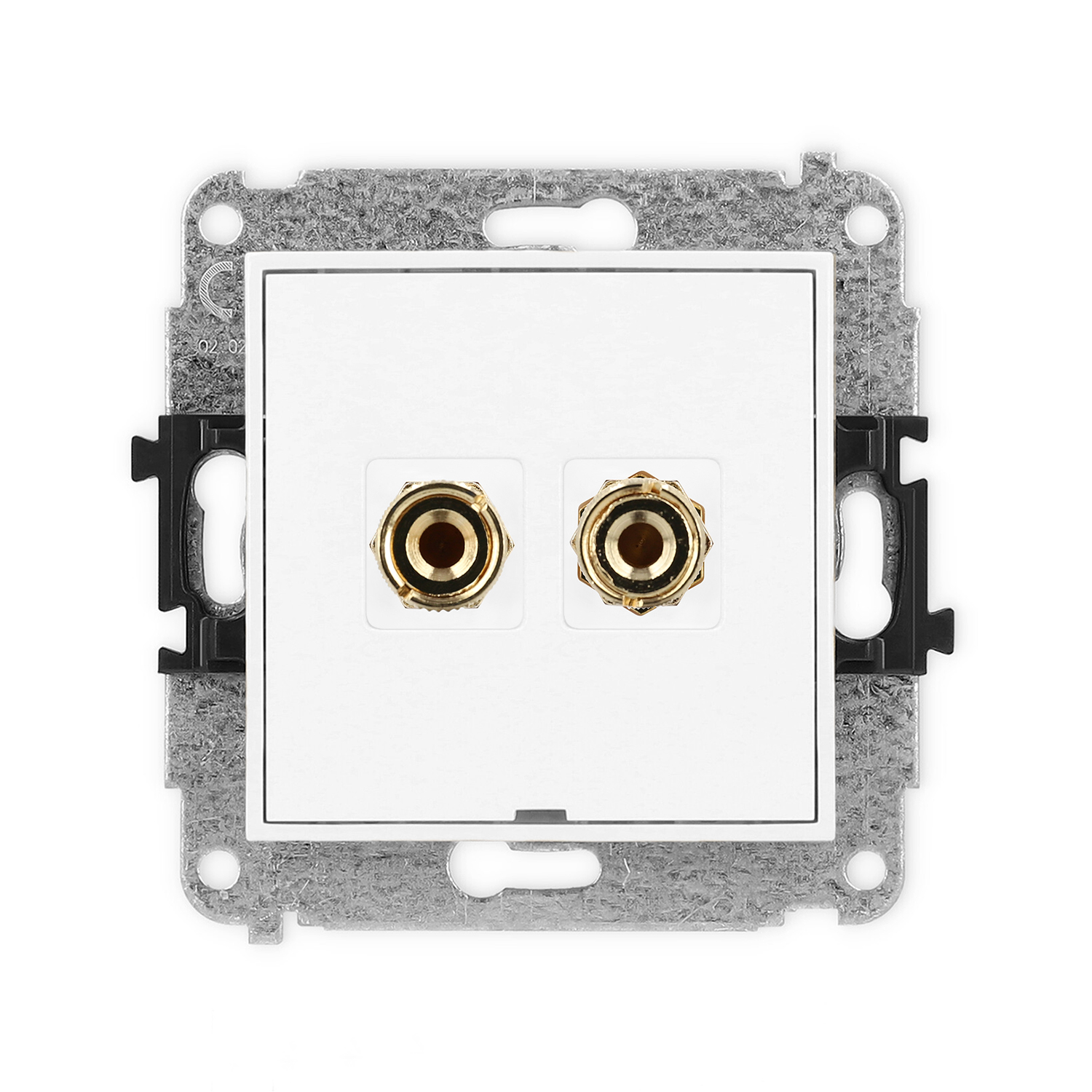

matt white
25IGGBO-3
-

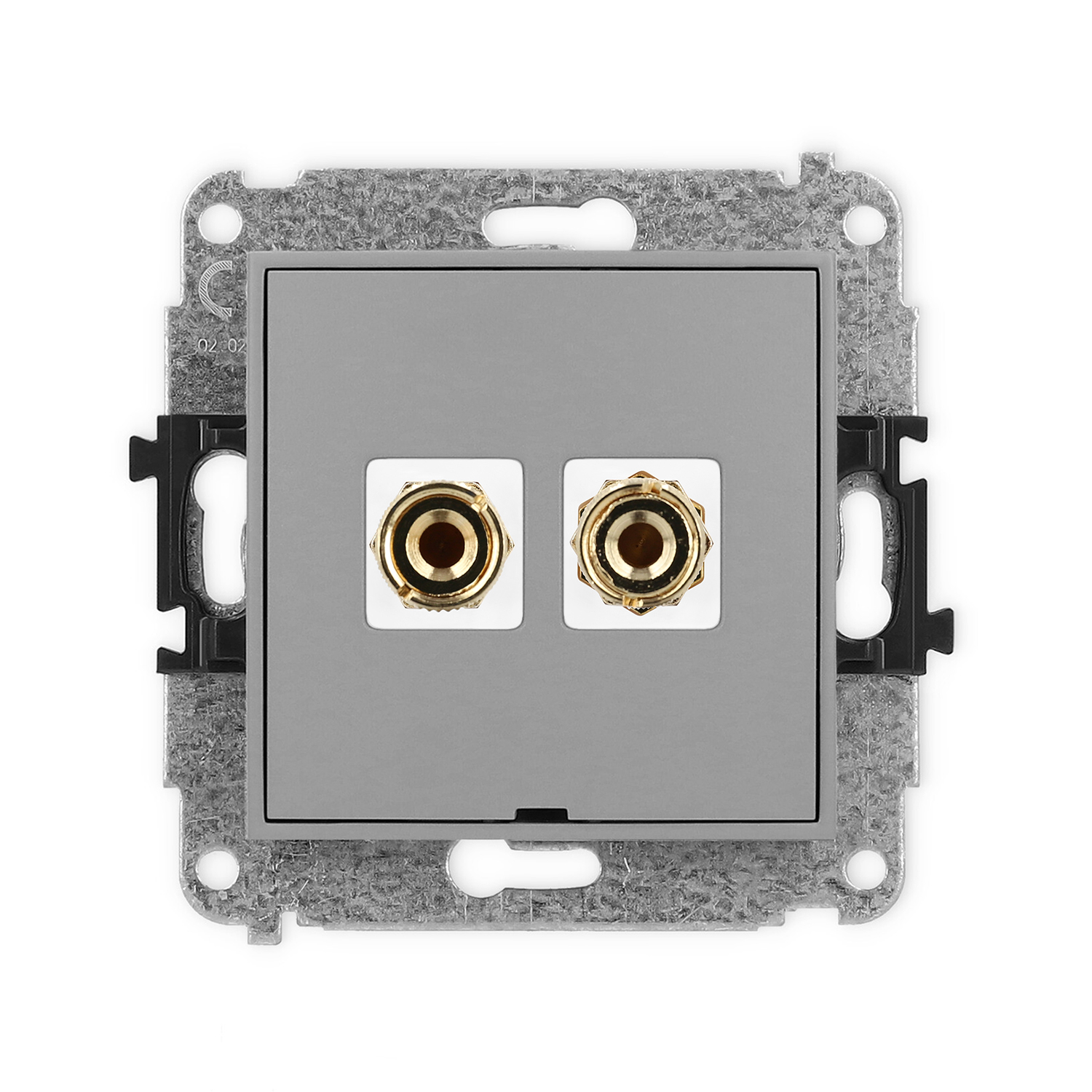

matt grey
27IGGBO-3
-

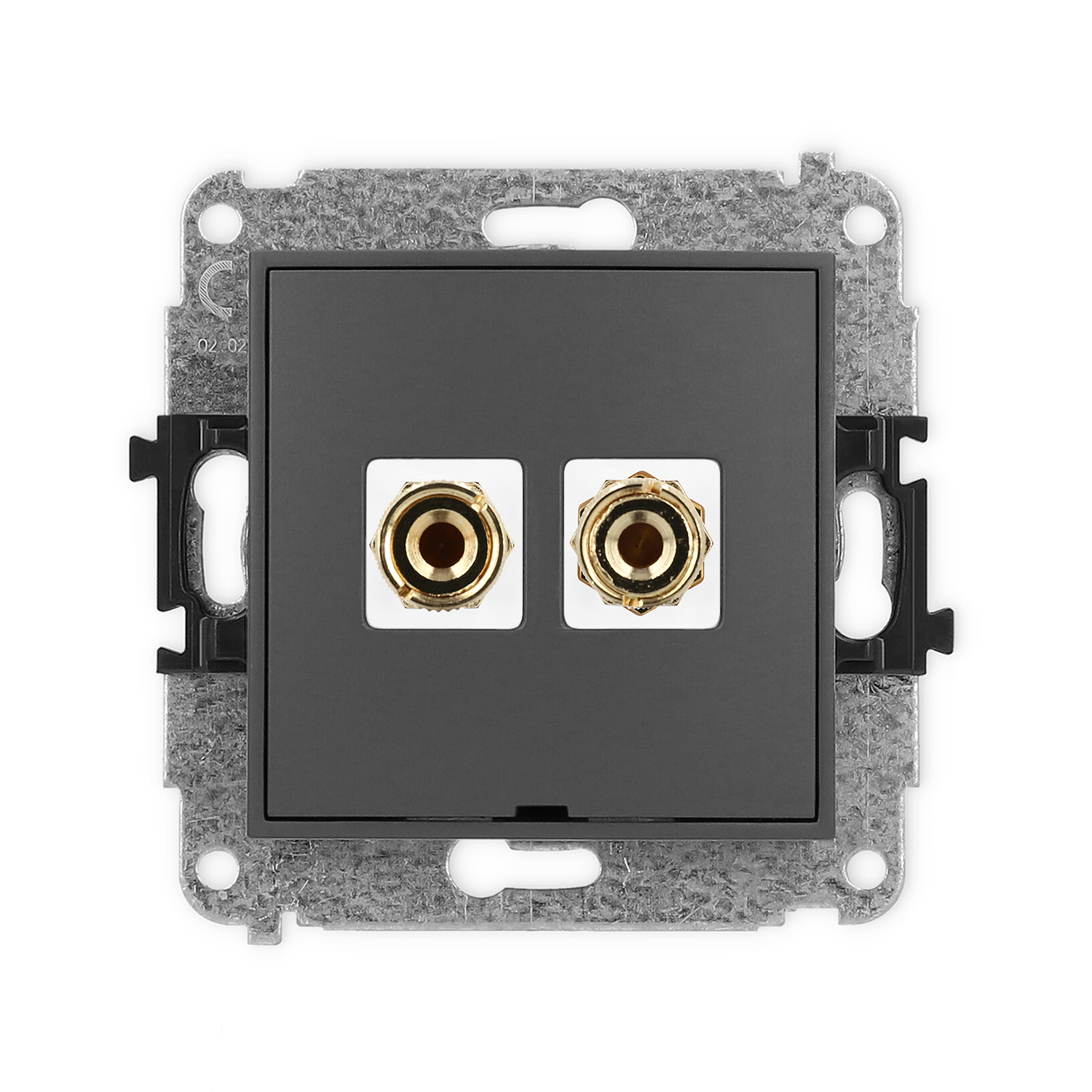

matt graphite
28IGGBO-3
-

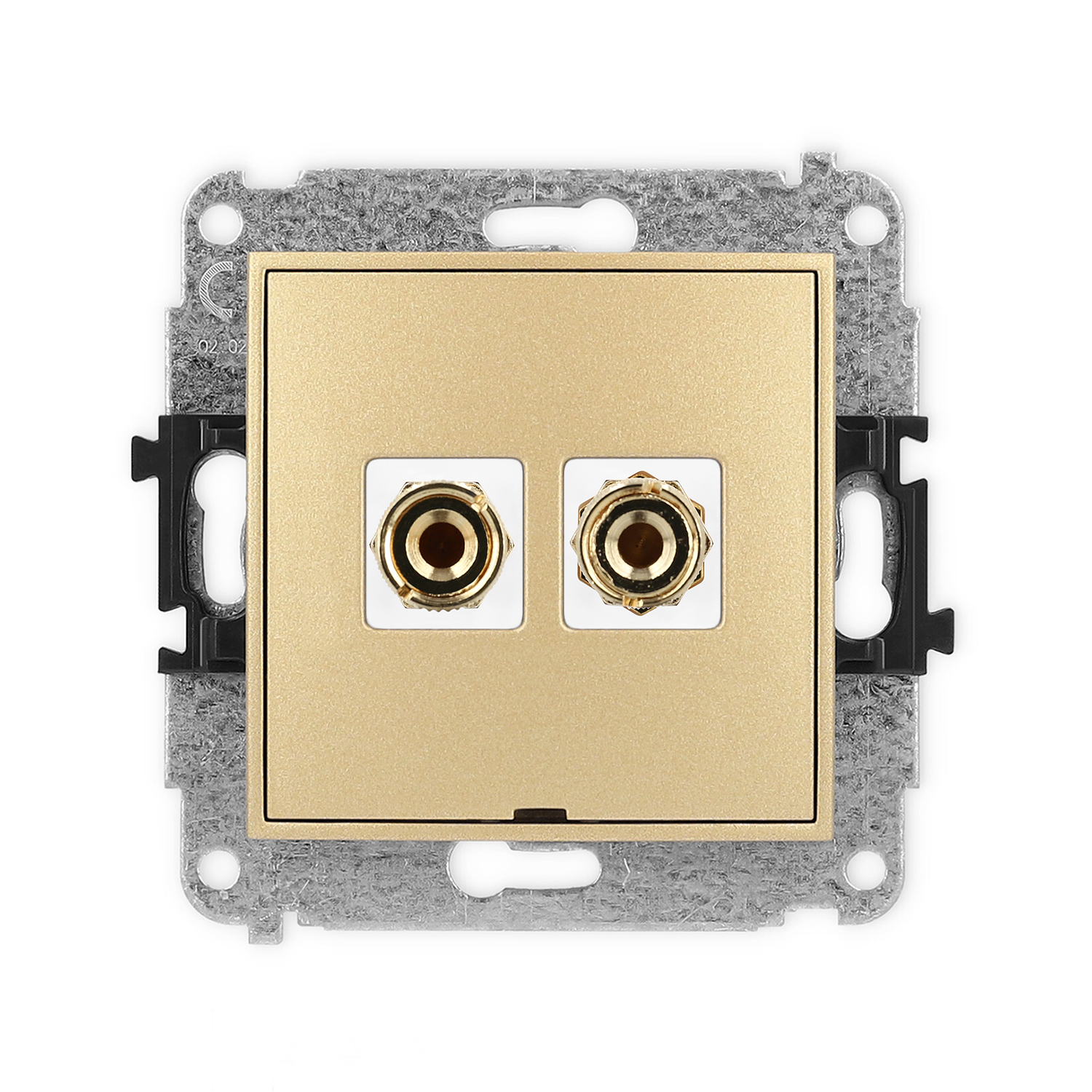

gold
29IGGBO-3
-
taupe
60IGGBO-3
-

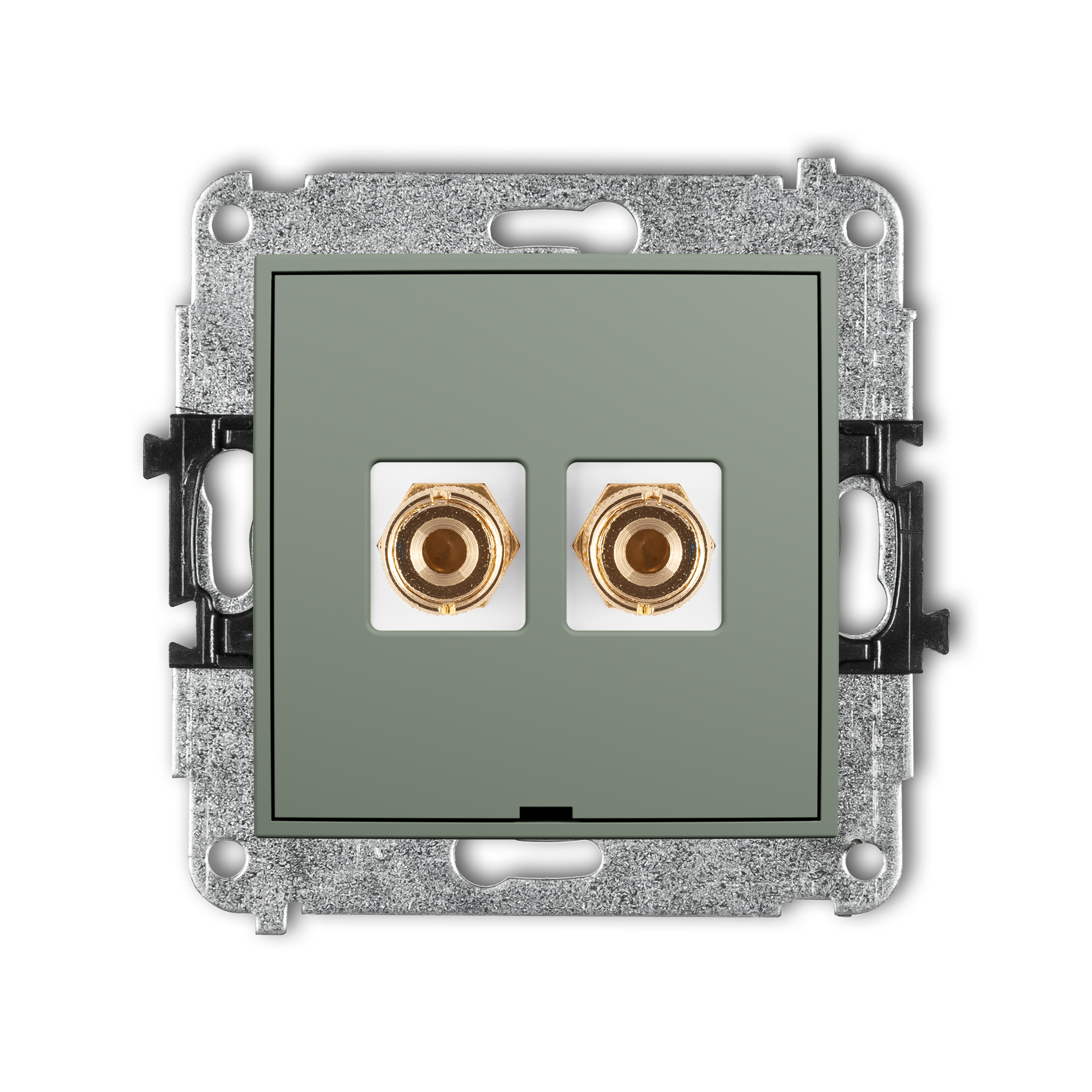

sage
61IGGBO-3
-

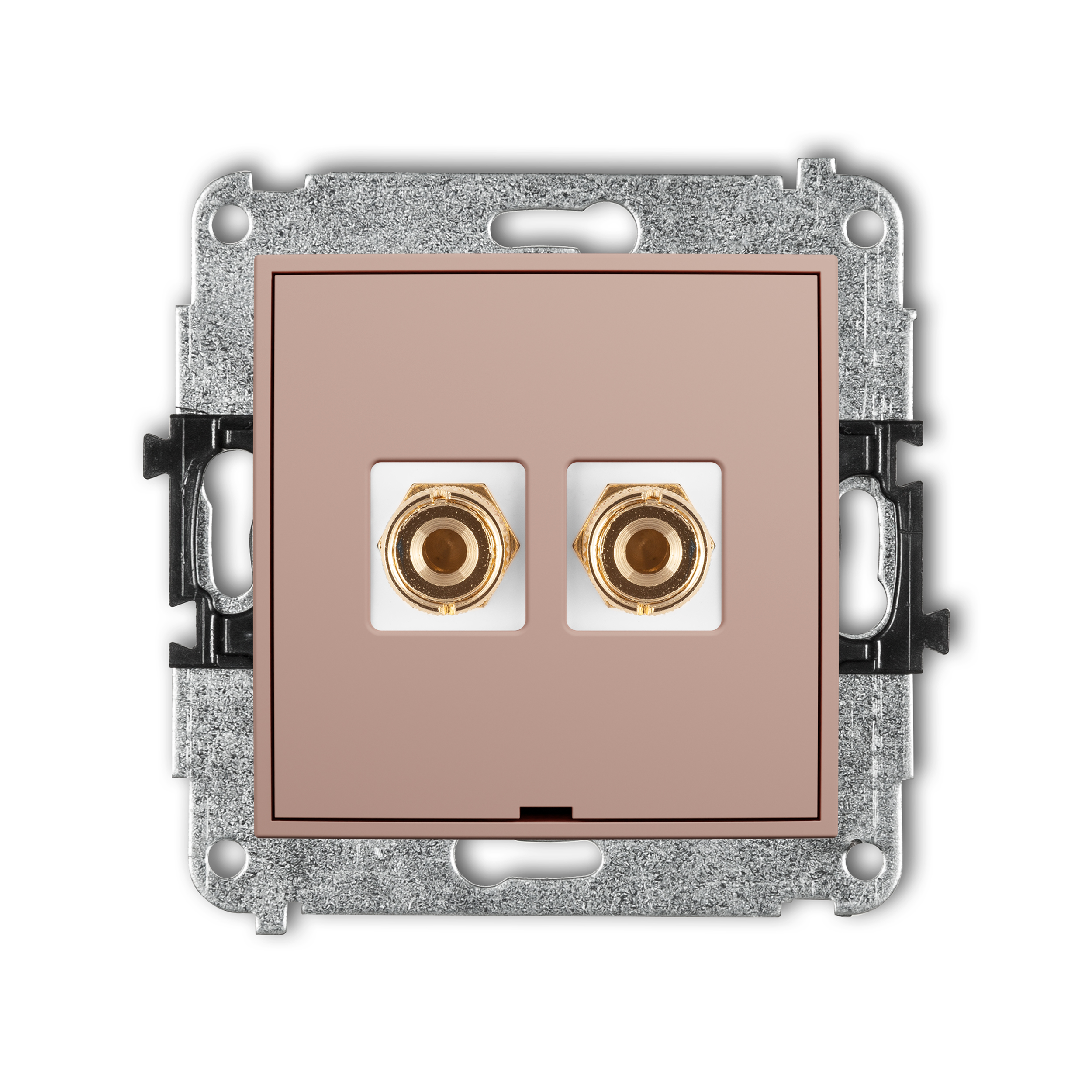

salmon
62IGGBO-3
-

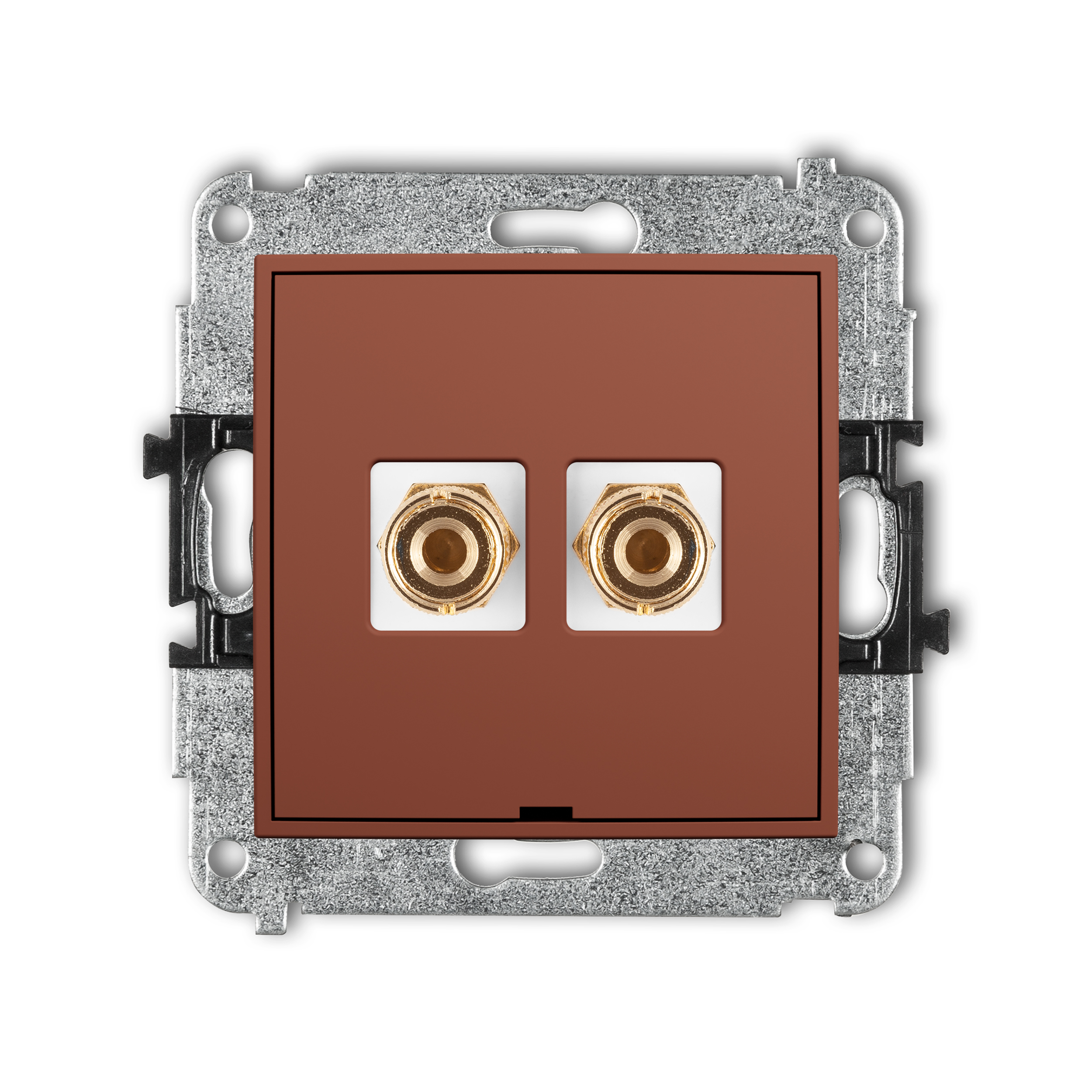

terracotta
63IGGBO-3
-
navy blue
64IGGBO-3
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Connector type | Banana type - red and black, gold-plated, soldering |
| Connection | For soldering |
| Cross section of cable | 4 mm2 |
| UV resistance | Resistant |
