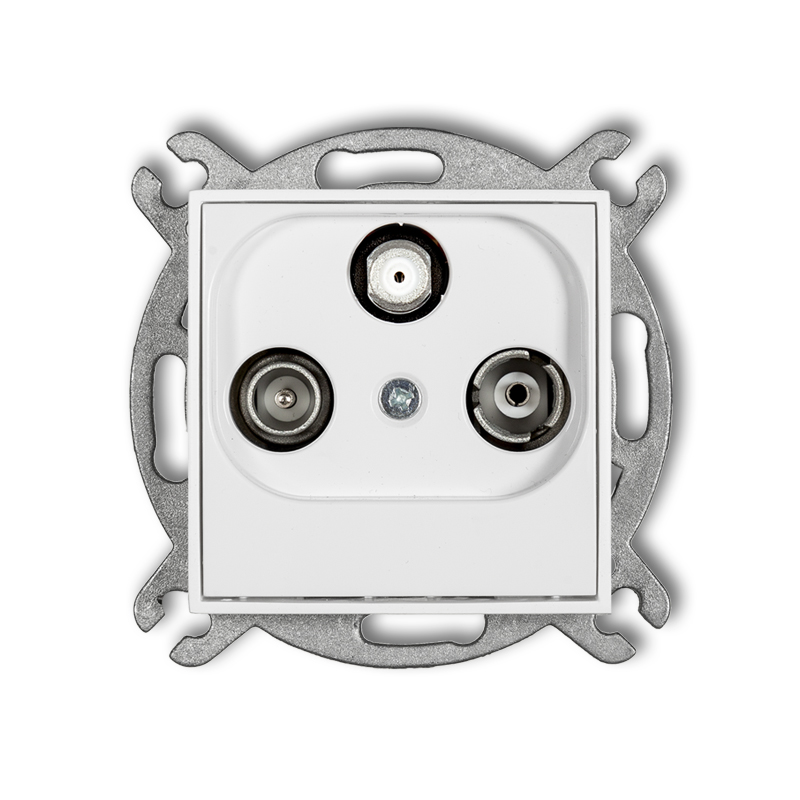

Radio/TV/SAT multimedia socket mechanism (Internet)
white
IGM
Product description
Downloads
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 88 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
DATA circut frequency range | 5 ÷ 862 MHz |
Compression damping | 13,2 ÷ 13,6 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |
Product variants
-
Radio/TV/SAT final socket mechanism the 1,5 dB
white
IGS
-

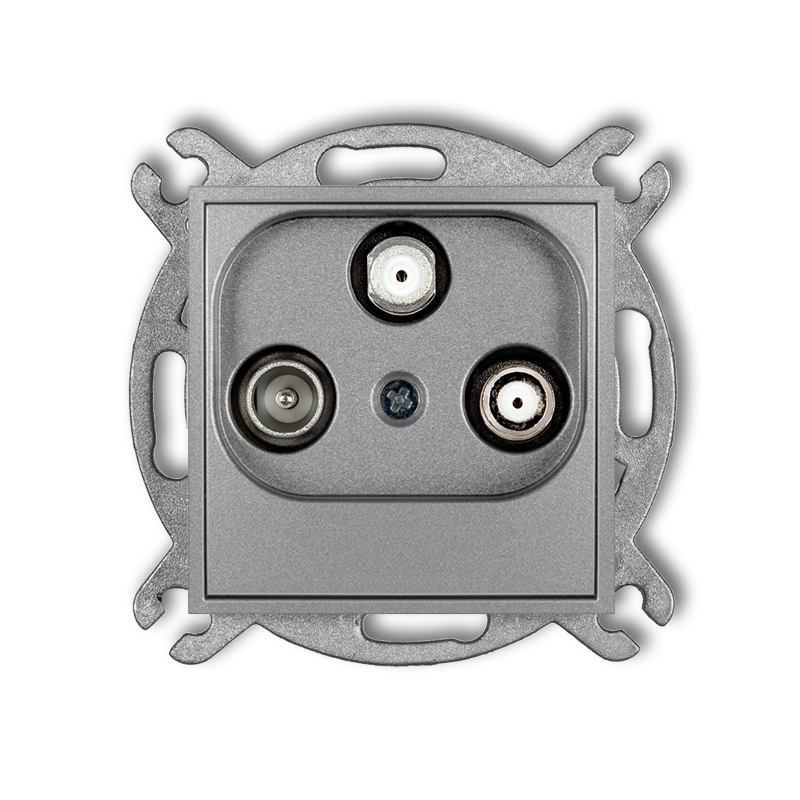

TV/SAT with two satellite inputs socket mechanism
silver metallic
7IGSN
-

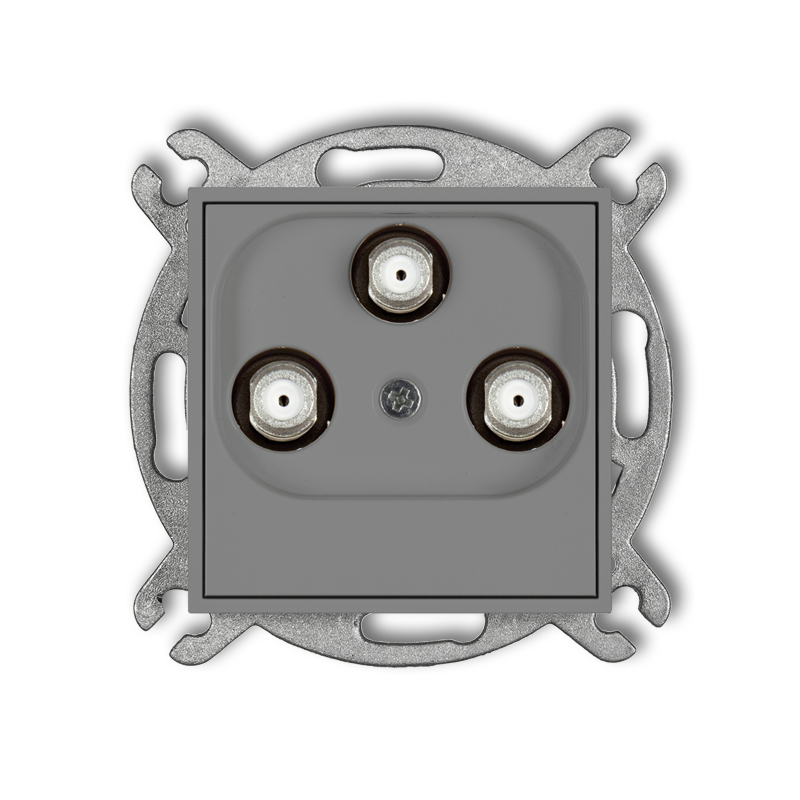

3F DATA (UPC) multimedia socket mechanism
matt grey
27IGMU
-

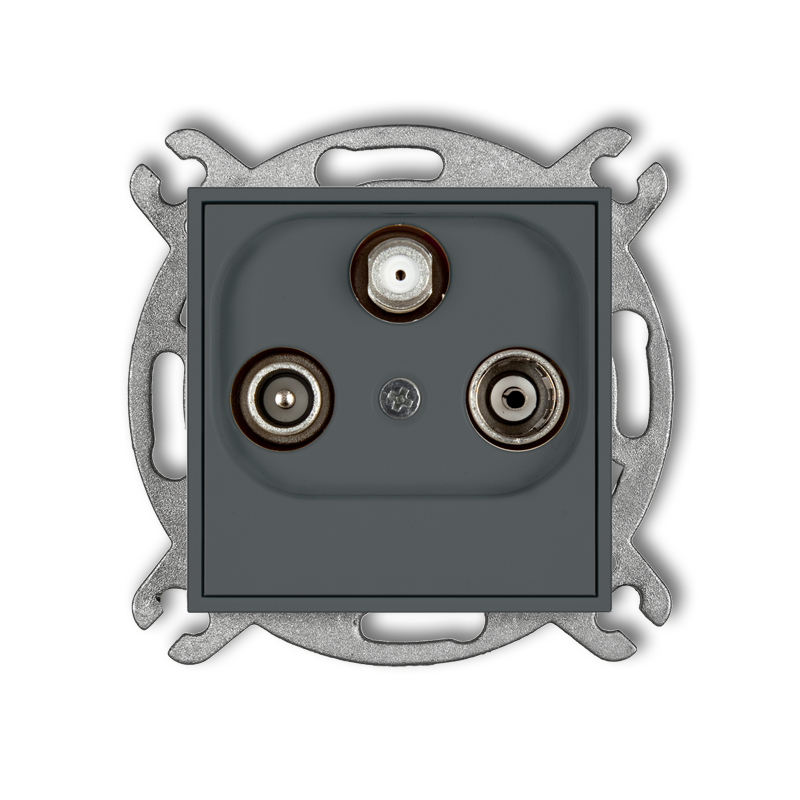

Radio/TV/SAT multimedia socket mechanism (Internet)
matt graphite
28IGM
-

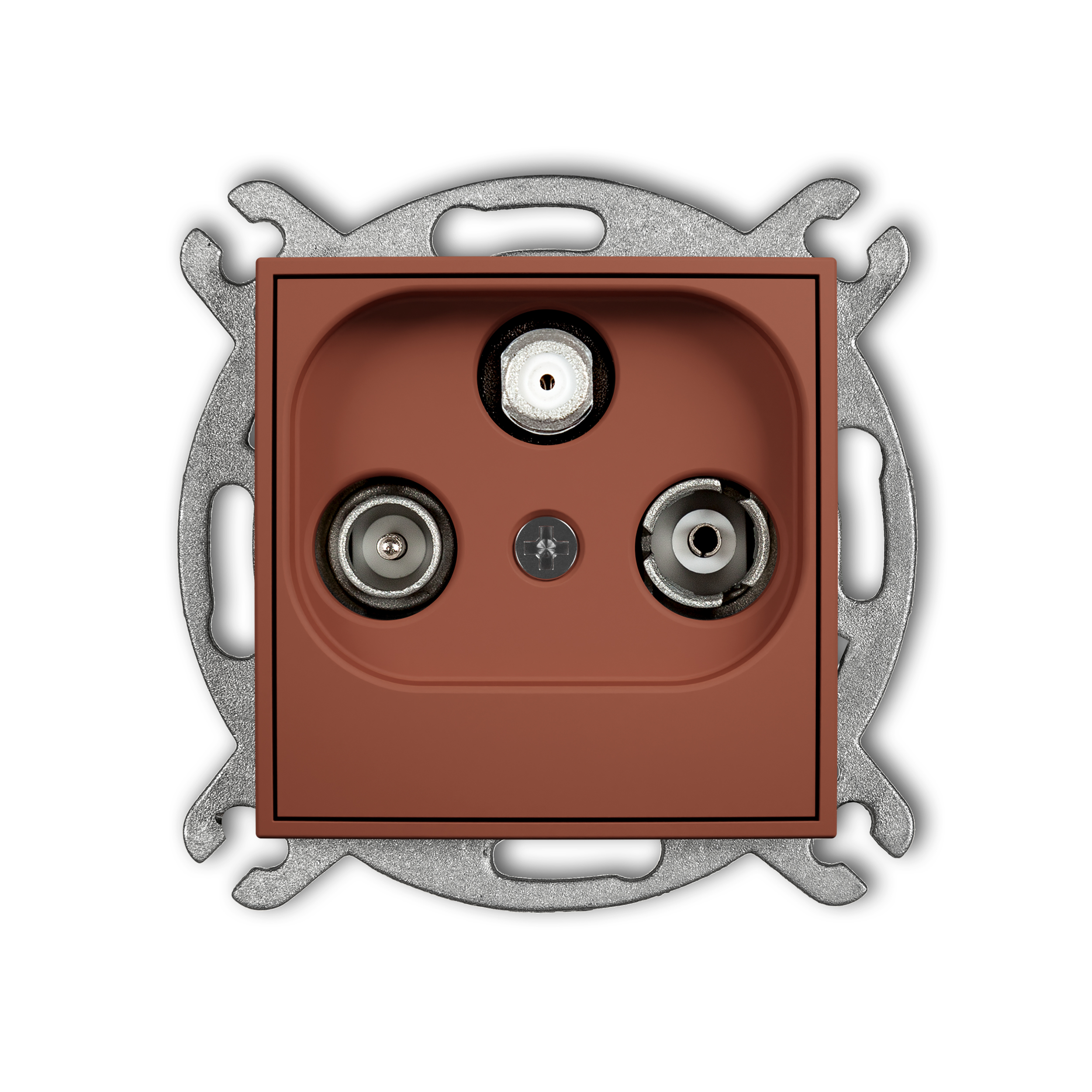

Radio/TV/SAT final socket (two antenna inputs) mechanism
terracotta
63IGST
-

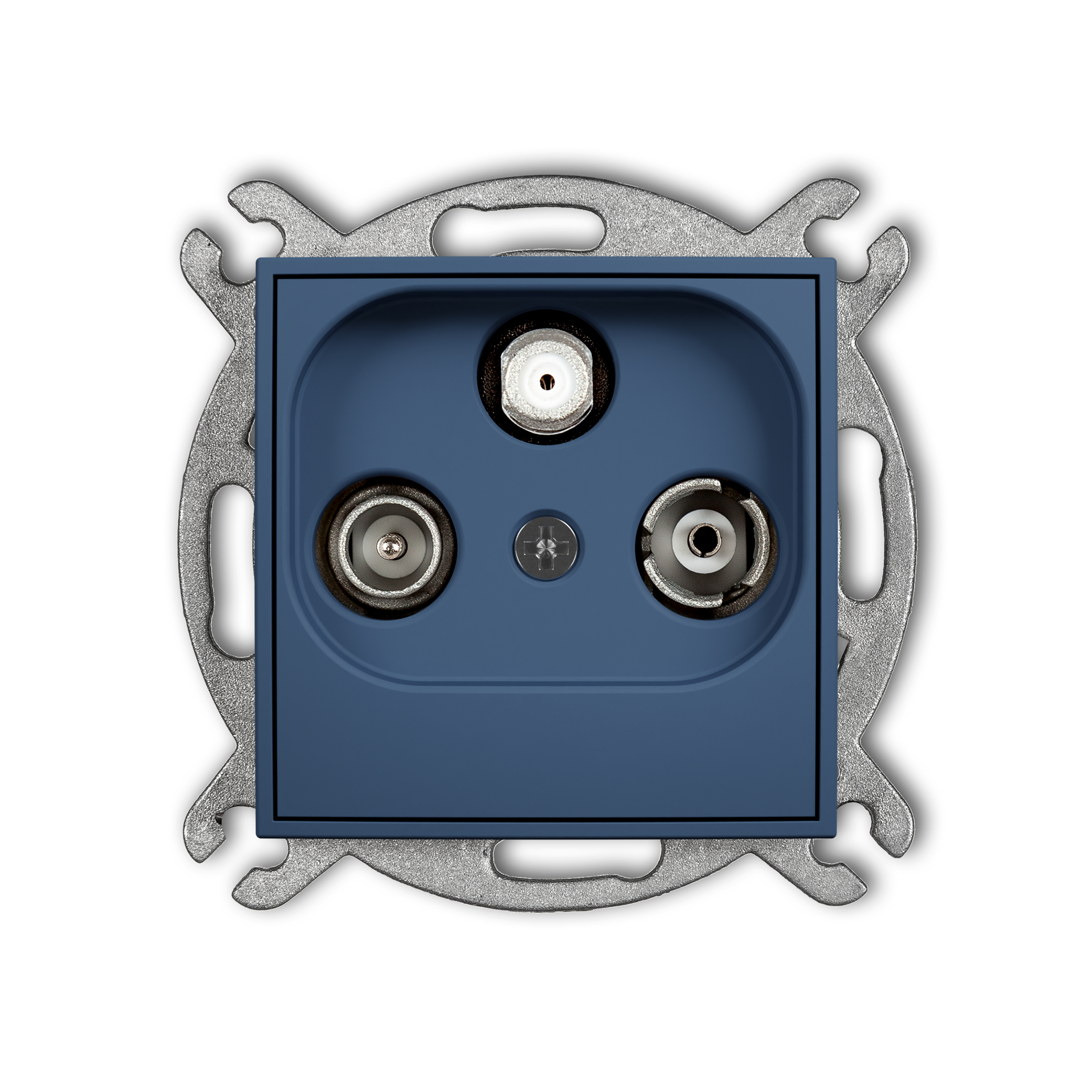

TV/SAT with two satellite inputs socket mechanism
navy blue
64IGSN
Complementary products
Related products
-

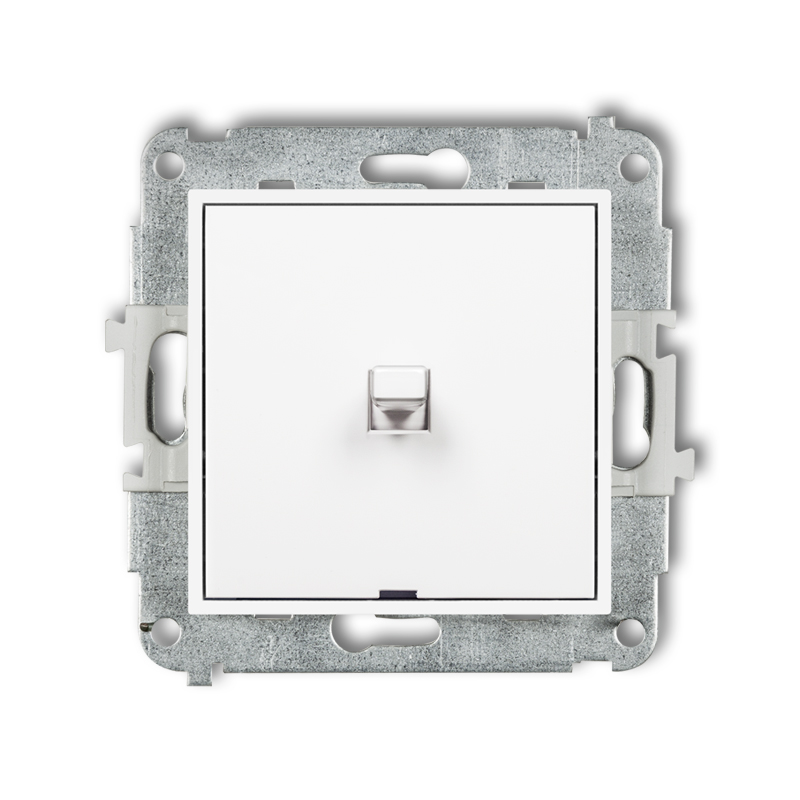

American-style single push button "bell" mechanism (single push button without pictogram)
white
IWPUS-4.1
-

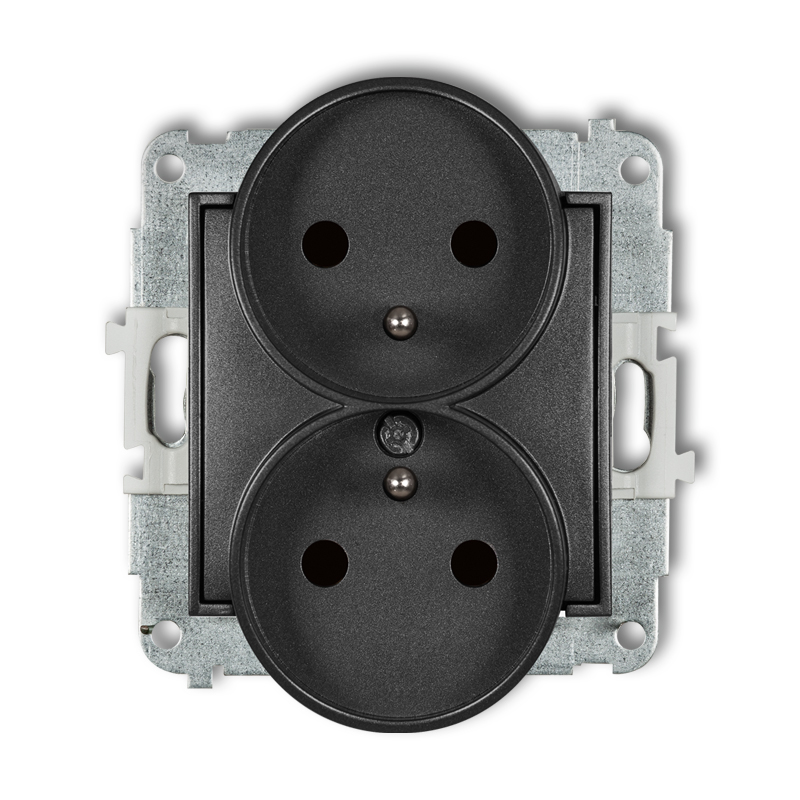

Double socket to a frame with the 2x(2P+Z) earth mechanism (with increased contact protection/shutter)
graphite
11IGPR-2zp
-
Splash proof socket with the 2P+Z earth mechanism (shaded transparent cover, with increased contact protection/shutter)
matt black
12IGPB-1zdp
-
1-gang round universal frame - glass effect
grey frame / white rear
15-0-IRSO-1
-

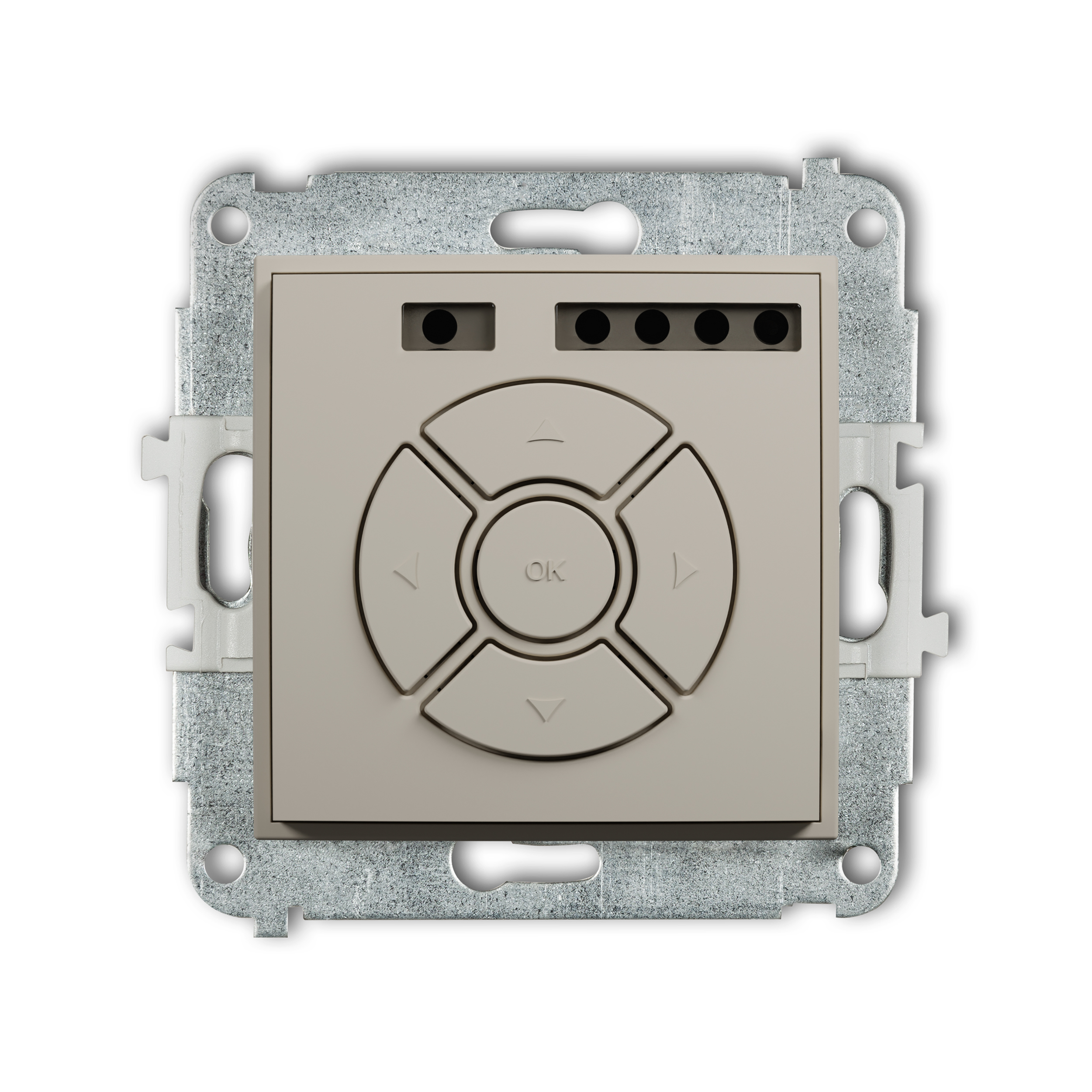

Electronic control roller shutter (local control, remote control, zone control)
taupe
60ISR-3
-

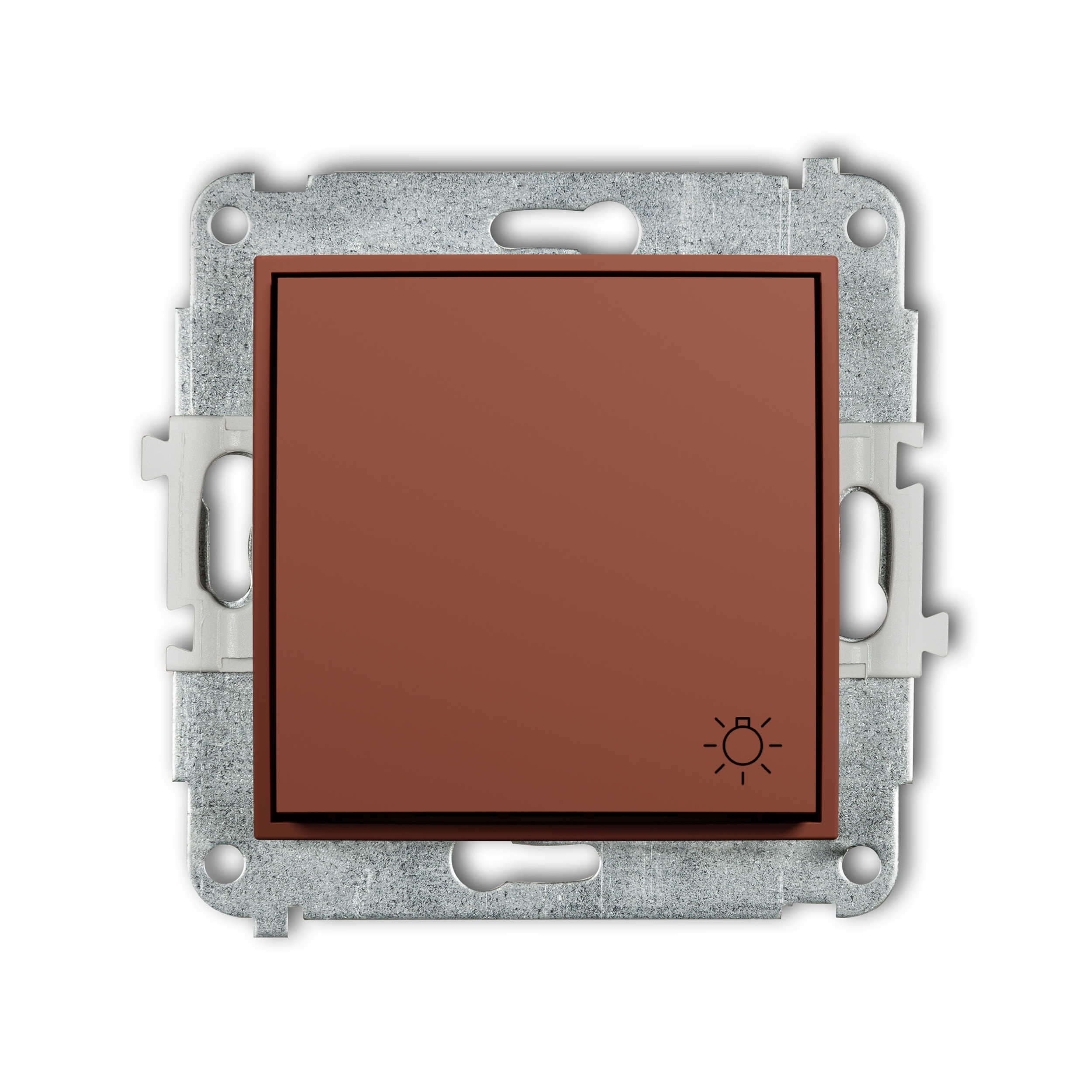

Single push button "light" mechanism
