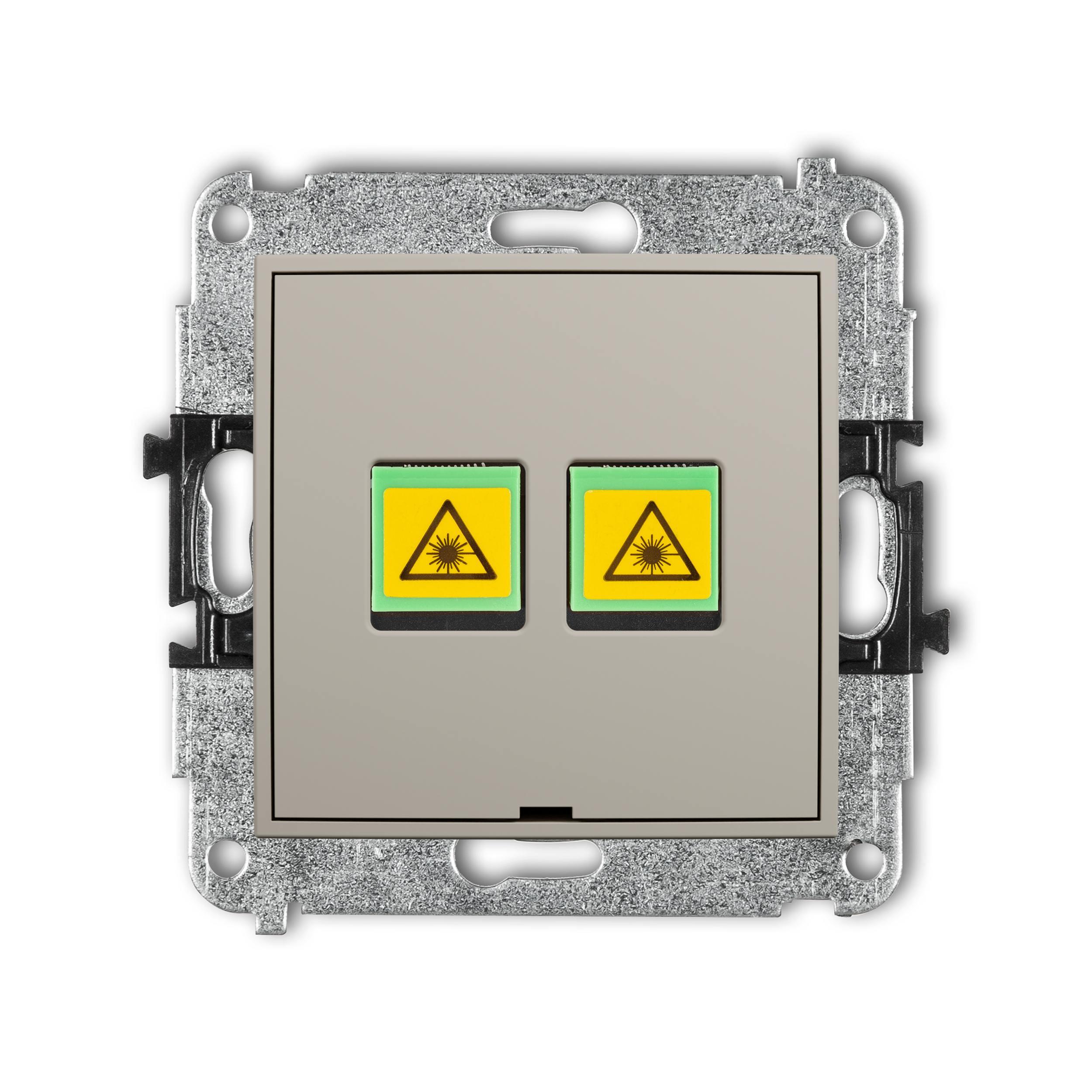

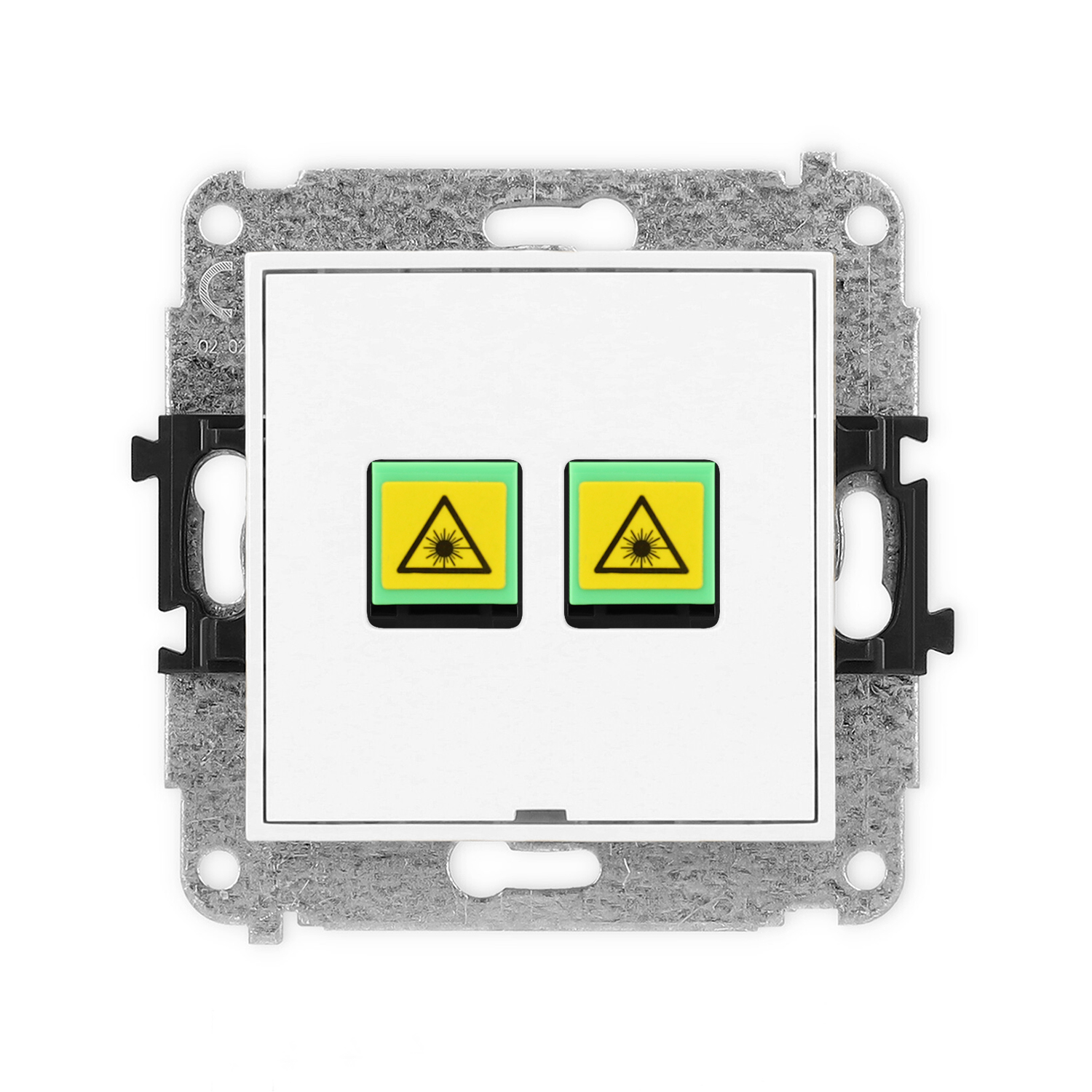

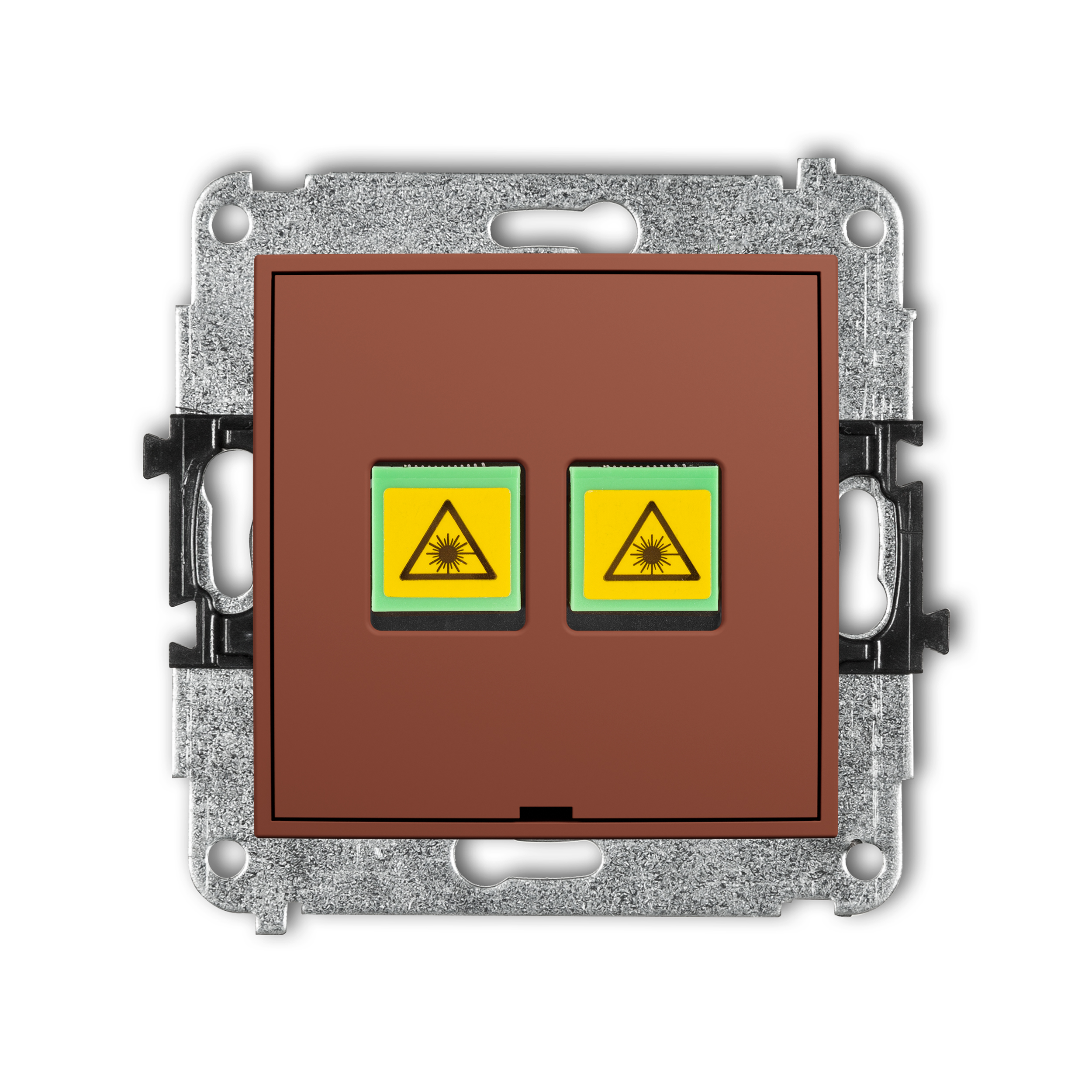

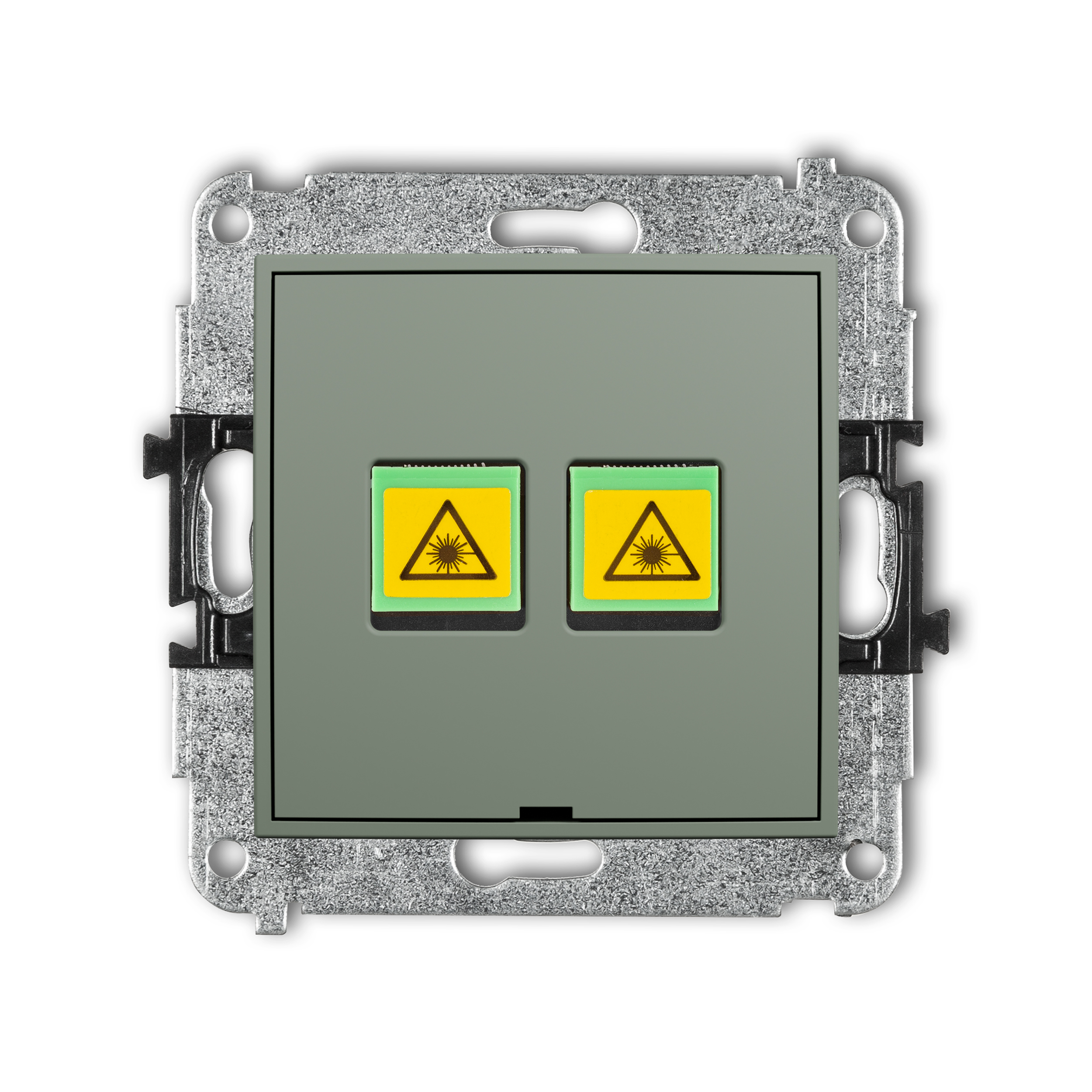

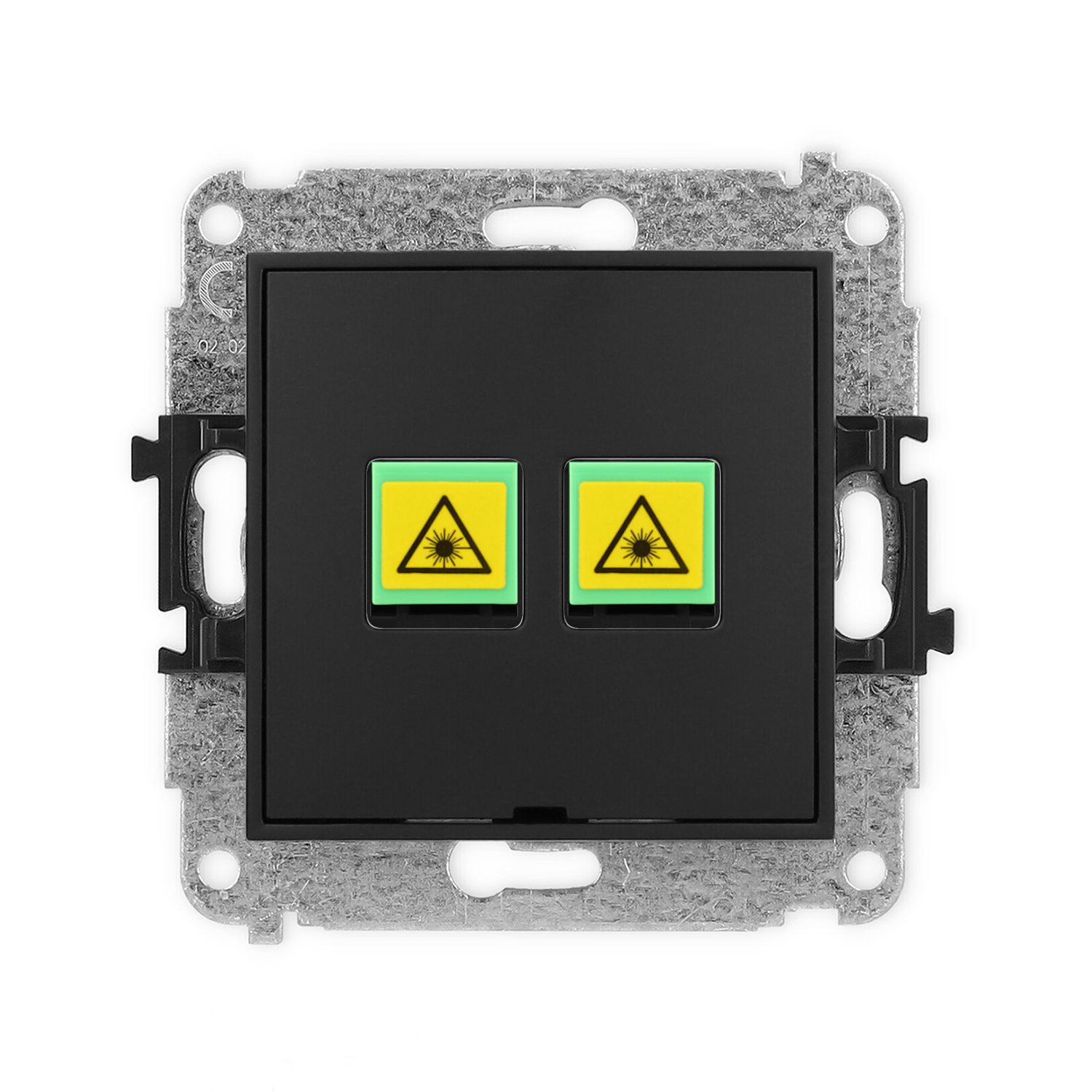

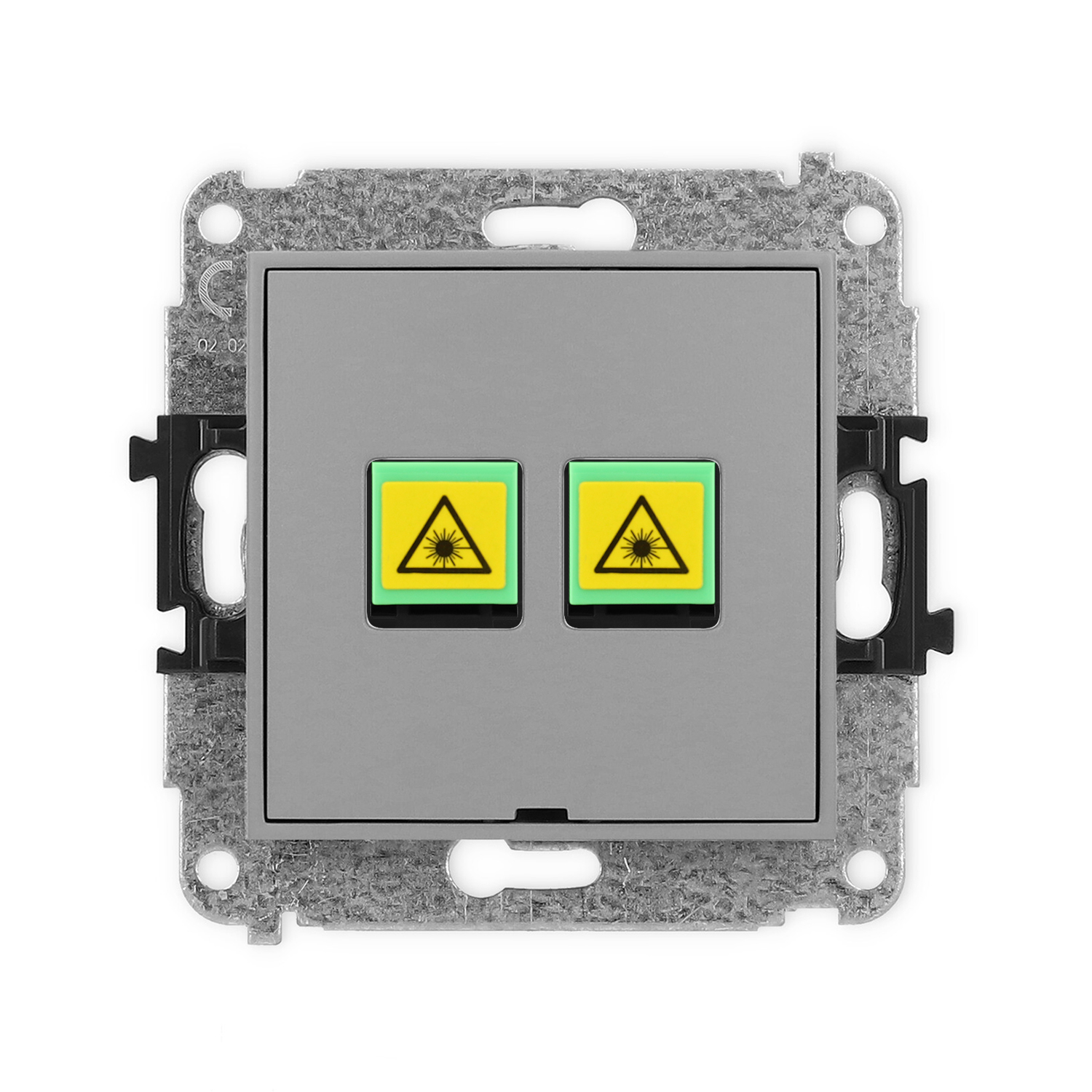

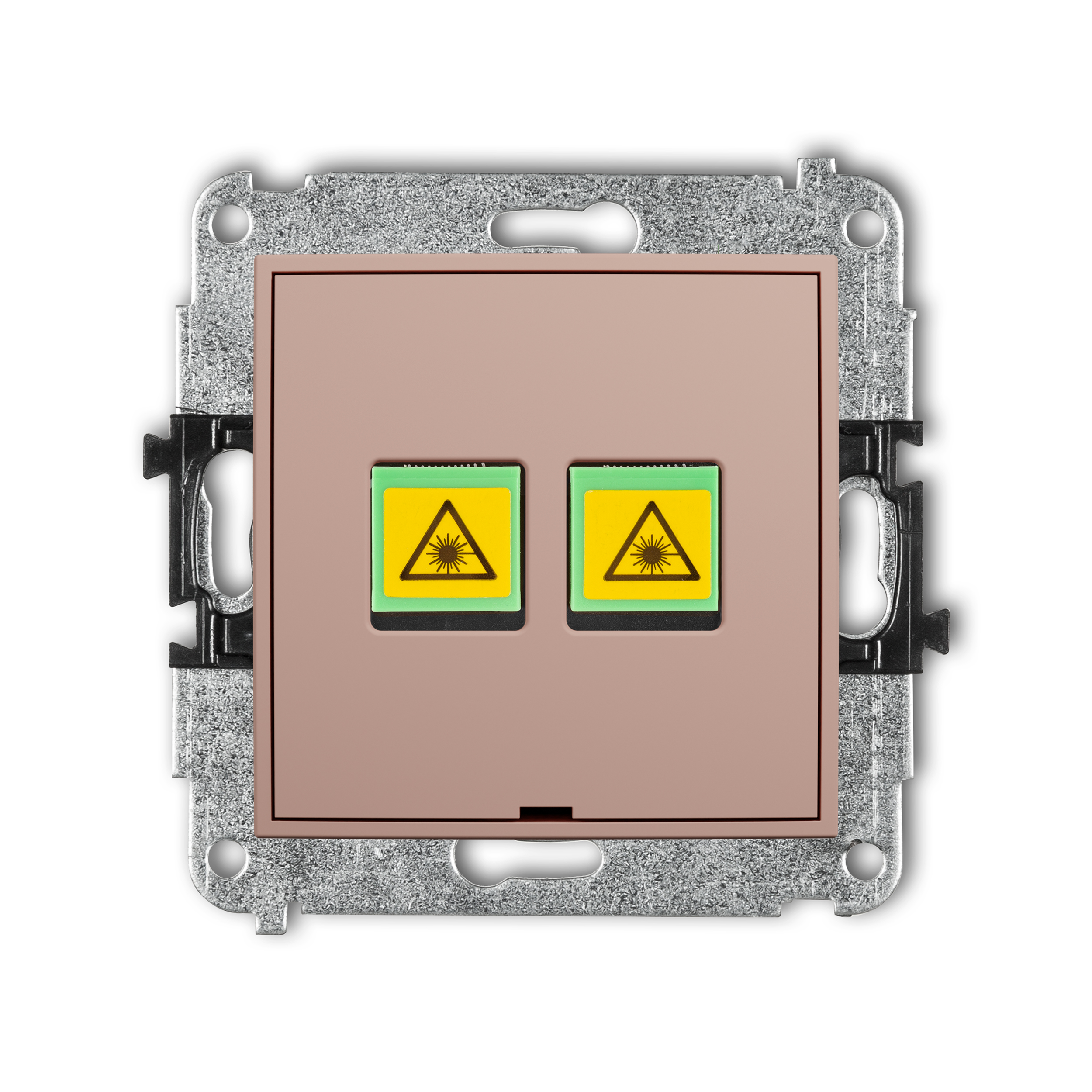

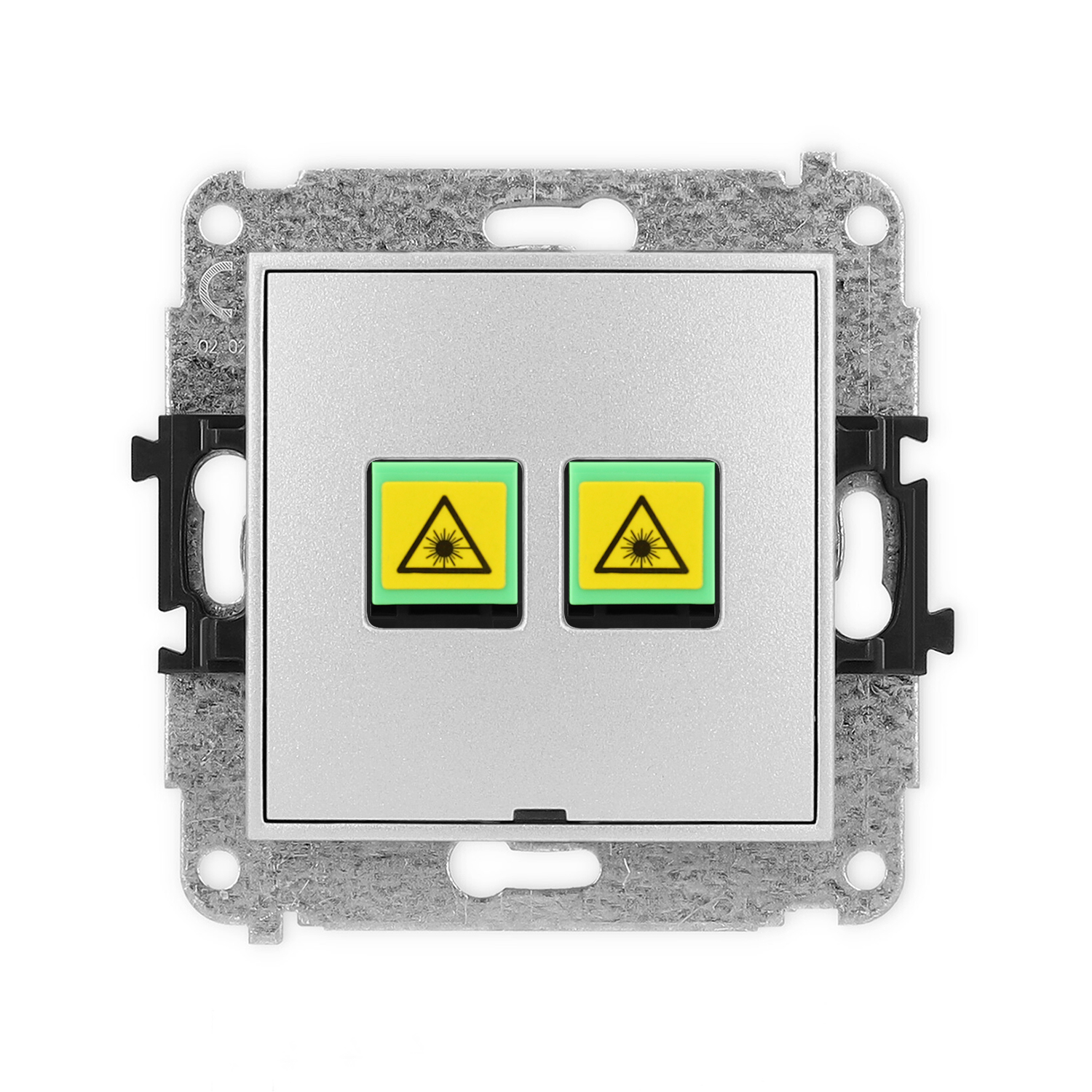

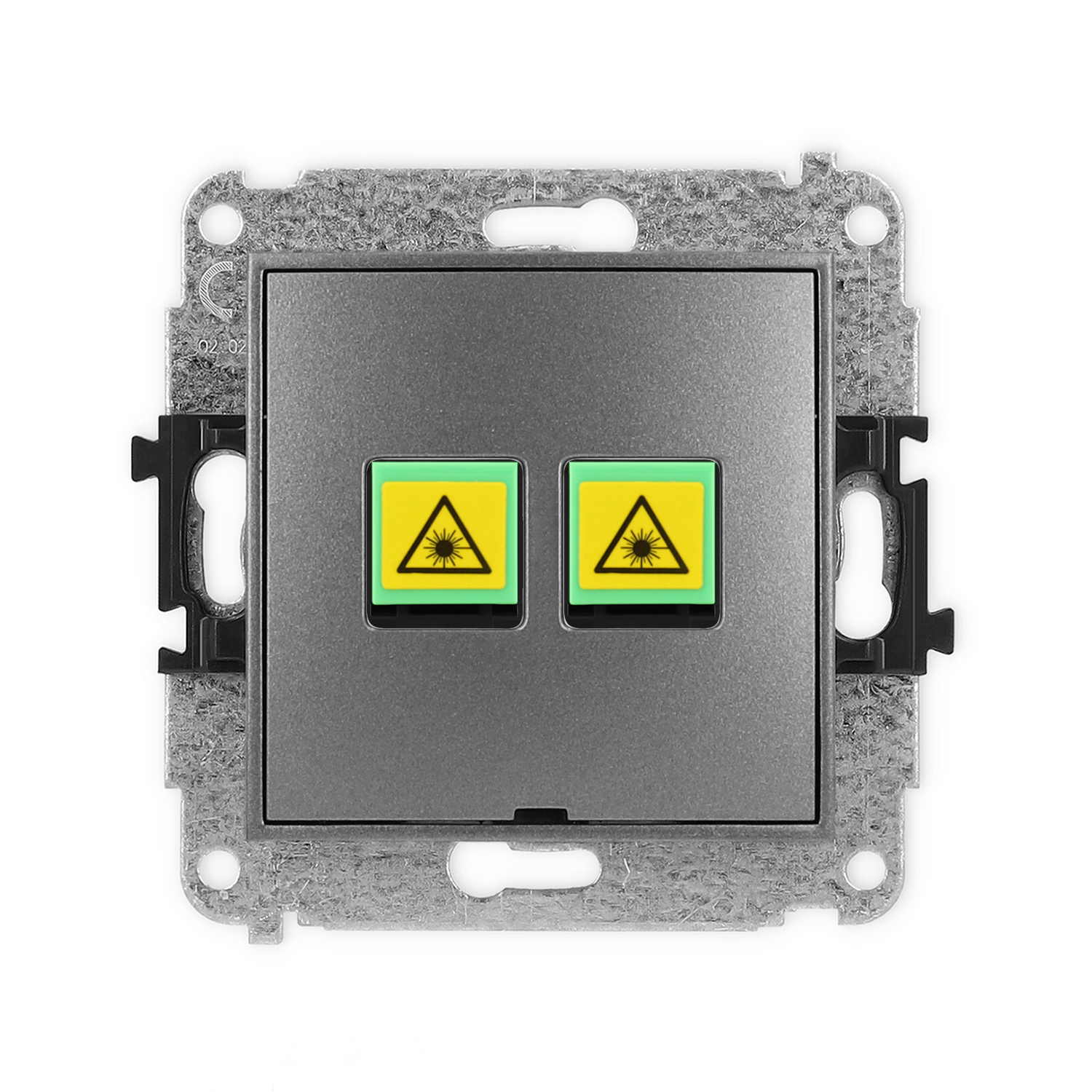

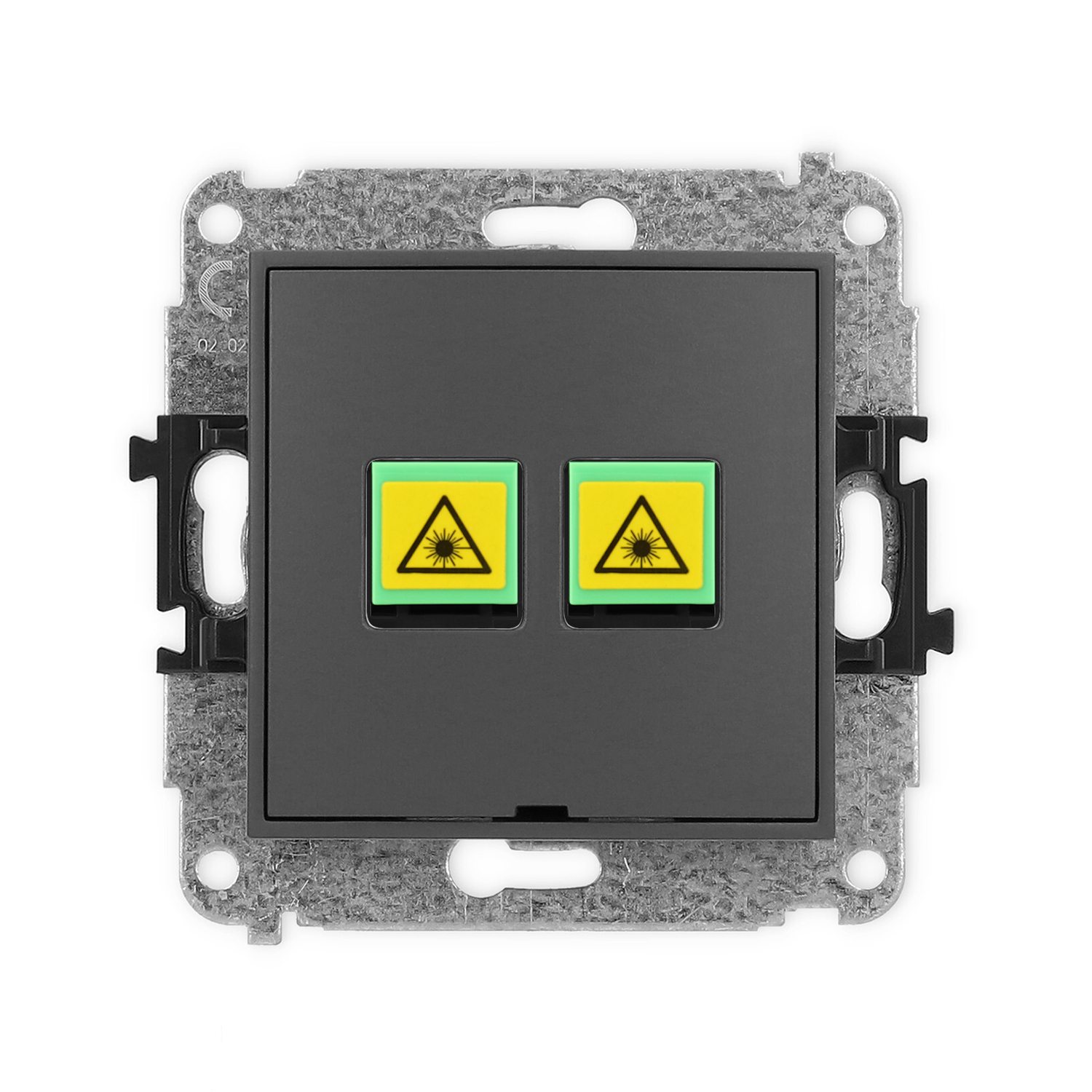

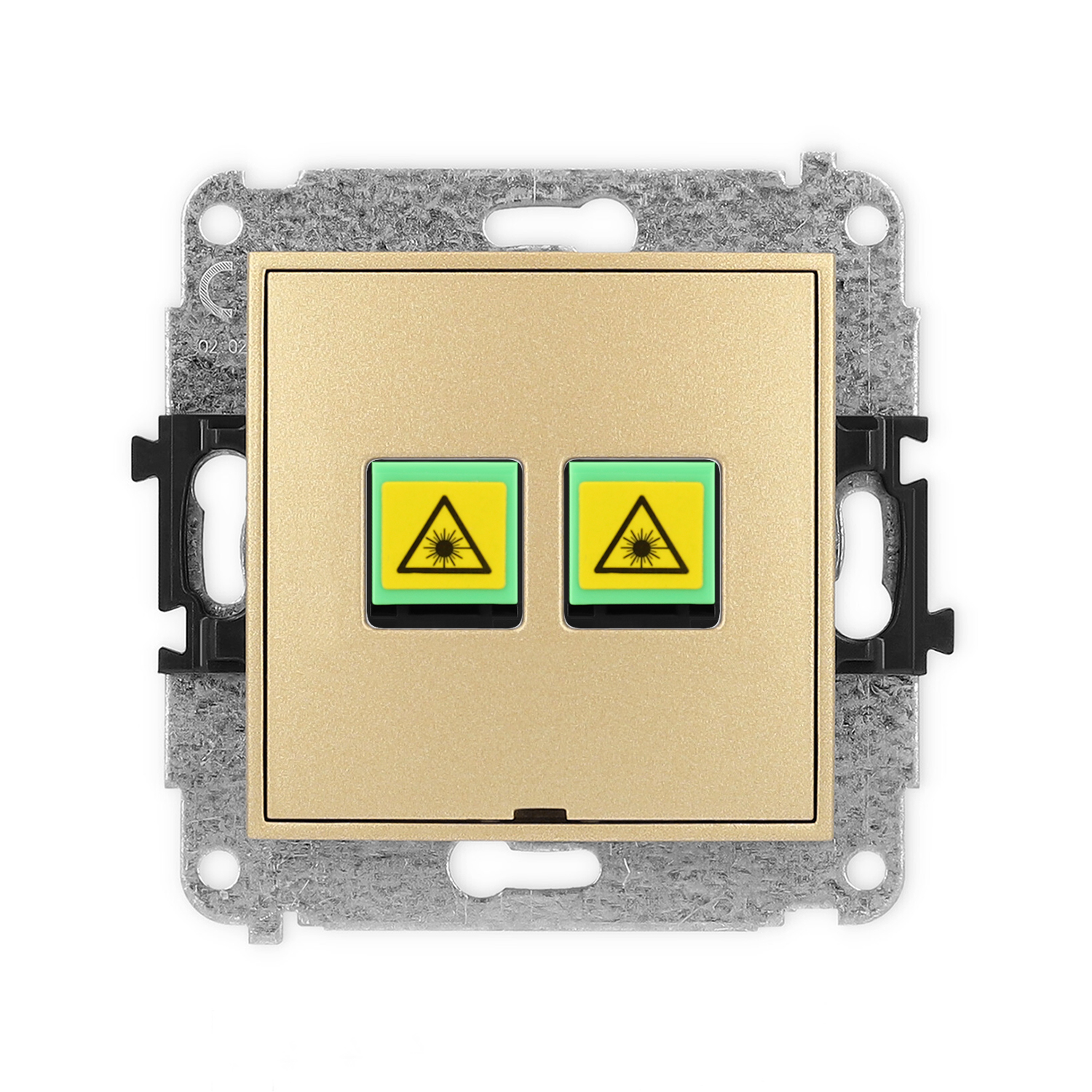

Double fibre/optical socket mechanism, without description field
white
IGOPBO-2
Product description
Downloads
ICON mechanisms and frames are sold separately.

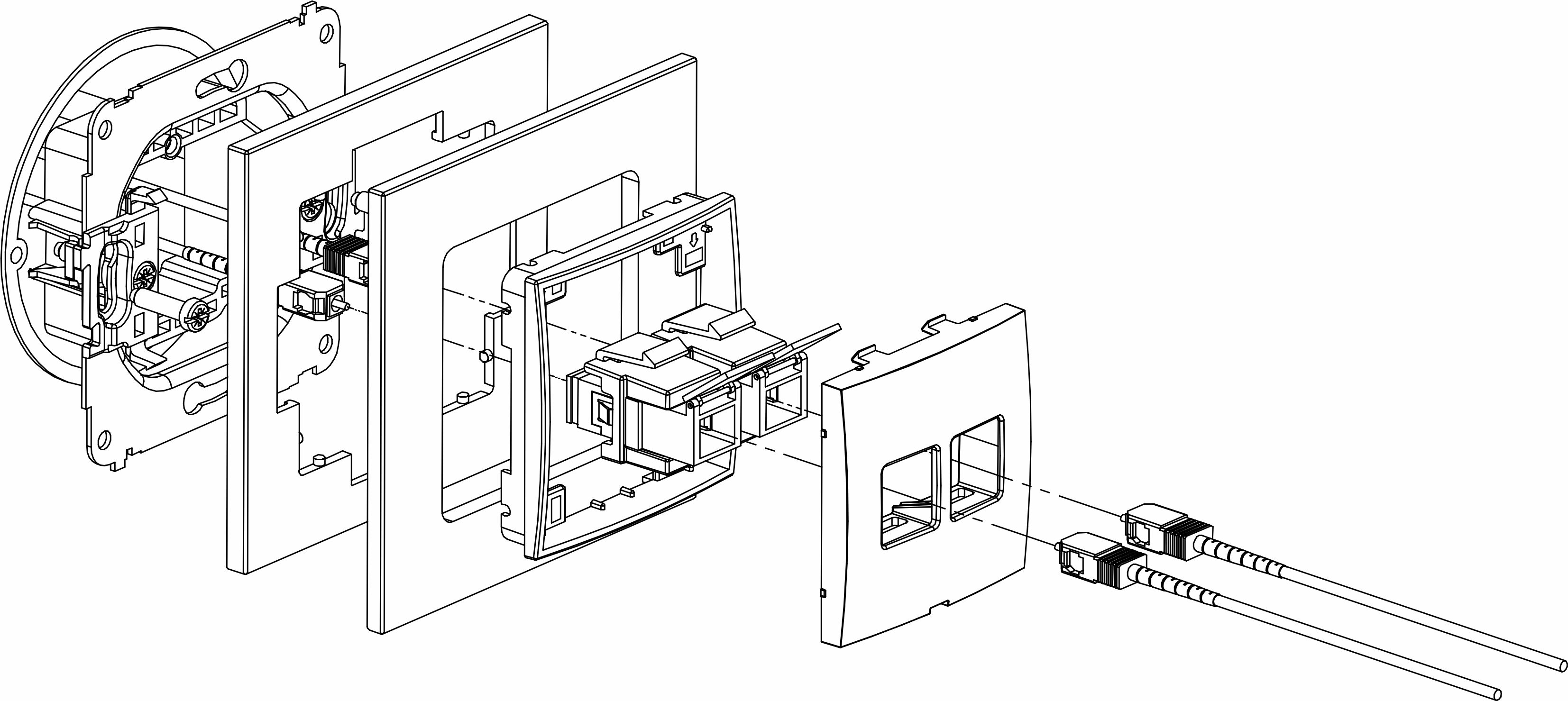

The way of connecting double ICON series fibre optic/optical sockets.
Note!

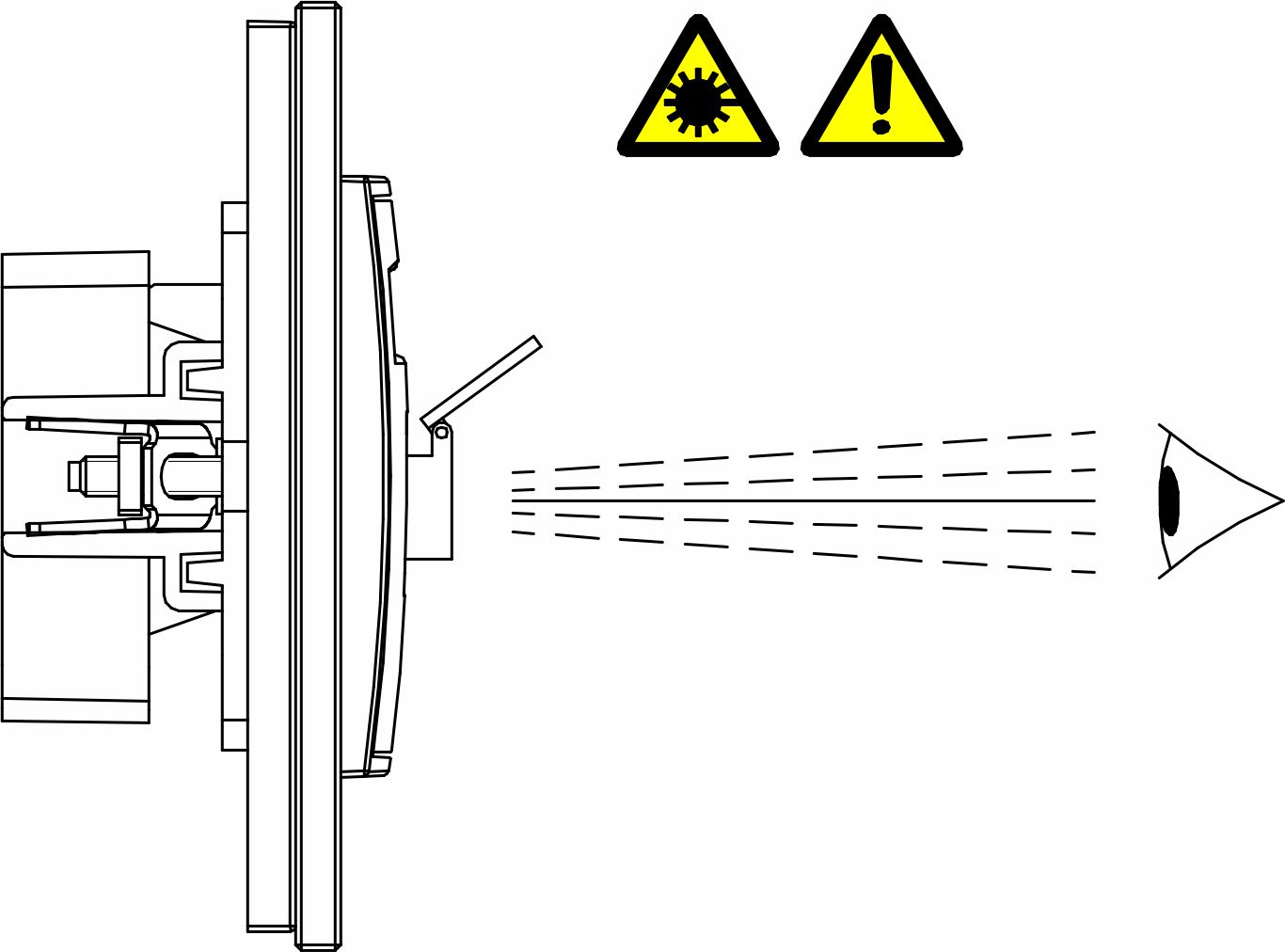

Operating fibre optic devices requires special care, improper handling may damage the product and/or cause health injuries.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Connector type | 2 x SC / APC |
Podłączenie | push-pull |
Fibre support | single-mode |
Safety cover with lettering | “laser” |
Box assembly | We recommend assembly in installation boxes with a depth of 80 mm. |
Product variants
Complementary products
Related products
-
1-gang square universal frame - glass effect
white frame / black rear
0-12-IRSK-1
-
BNC single socket mechanism
matt black
12IGBNC-1
-

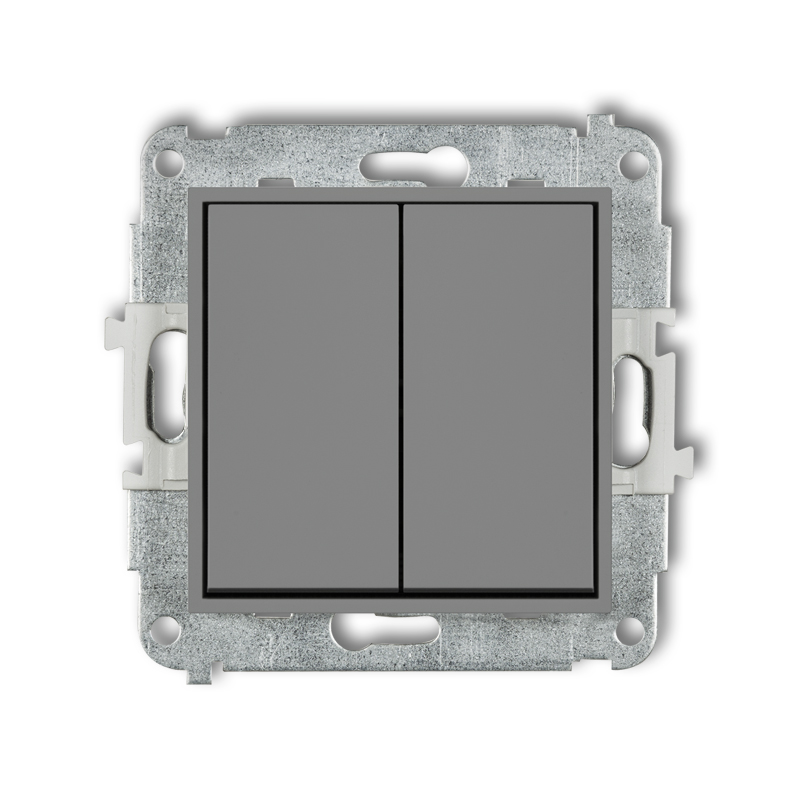

Single pole with two-way switch mechanism (double push button without pictograms, common power supply)
matt grey
27IWP-10.11
-
Single antenna TV socket mechanism
matt graphite
28IGTV-1
-

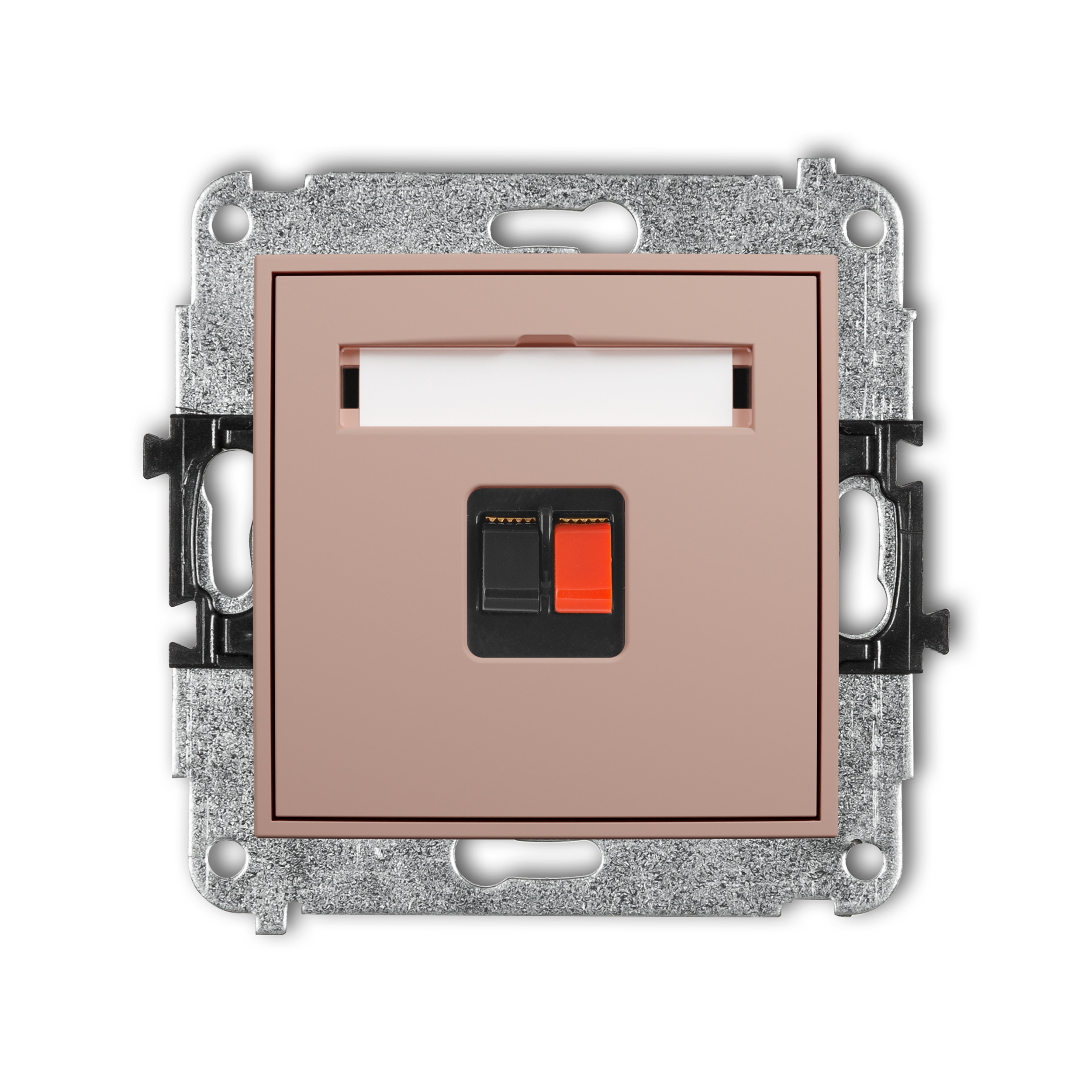

Single loudspeaker socket (2,5 mm2) mechanism
salmon
62IGG-1
-

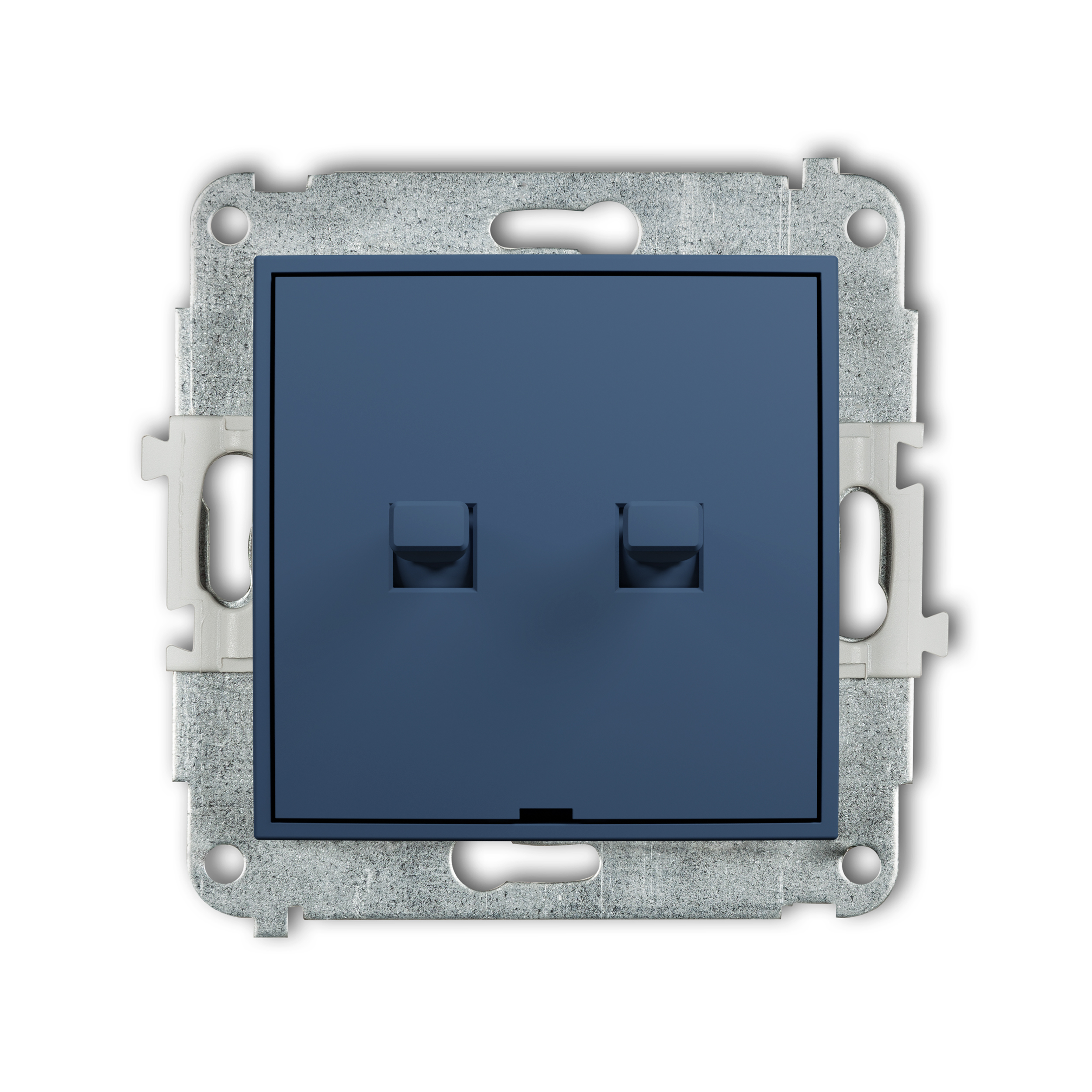

American-style roller blind switch mechanism (double push button without pictograms)
