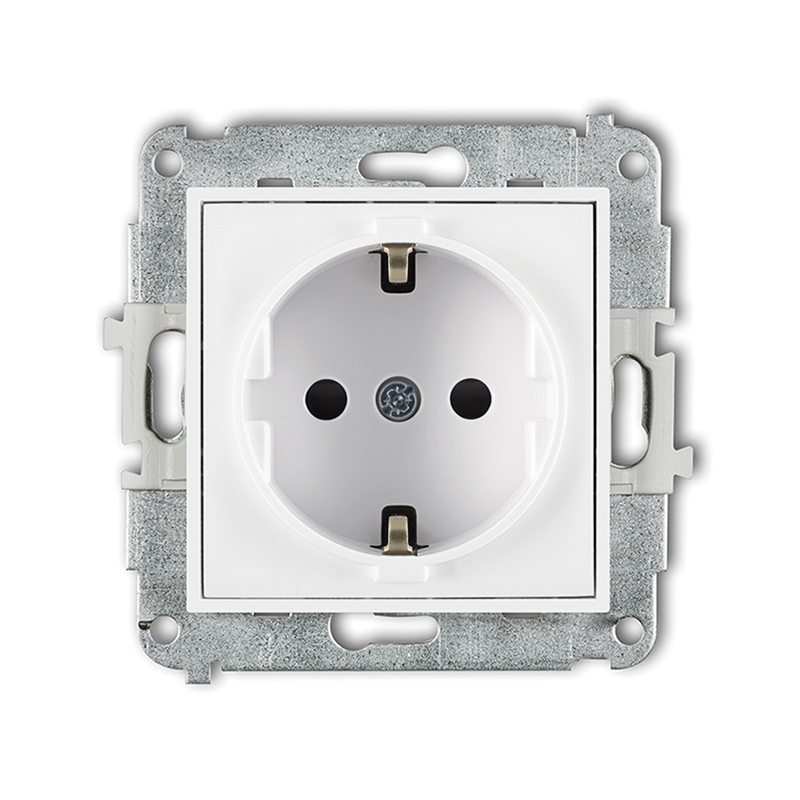

Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
white
IGP-1sp
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON single sockets are available with embedded circuit current casings, that protect children against access to dangerous parts of electrical wiring. ICON single sockets do not require any additional external coverage.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Rated current | 16 A |
Rated voltage | 250 V~ |
Increased contact protection/shutter | YES |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Splash proof socket with the 2P+Z earth mechanism (white cover, with increased contact protection/shutter)
white
IGPB-1zp
-
Splash proof socket with the 2P+Z earth mechanism (shaded transparent cover, with increased contact protection/shutter)
silver metallic
7IGPB-1zdp
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
matt black
12IGP-1zp
-
Double socket to a frame without the 2x2P earth mechanism (without increased contact protection/shutter)
matt grey
27IGPR-2
-
Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
sage
61IGPR-2z
-

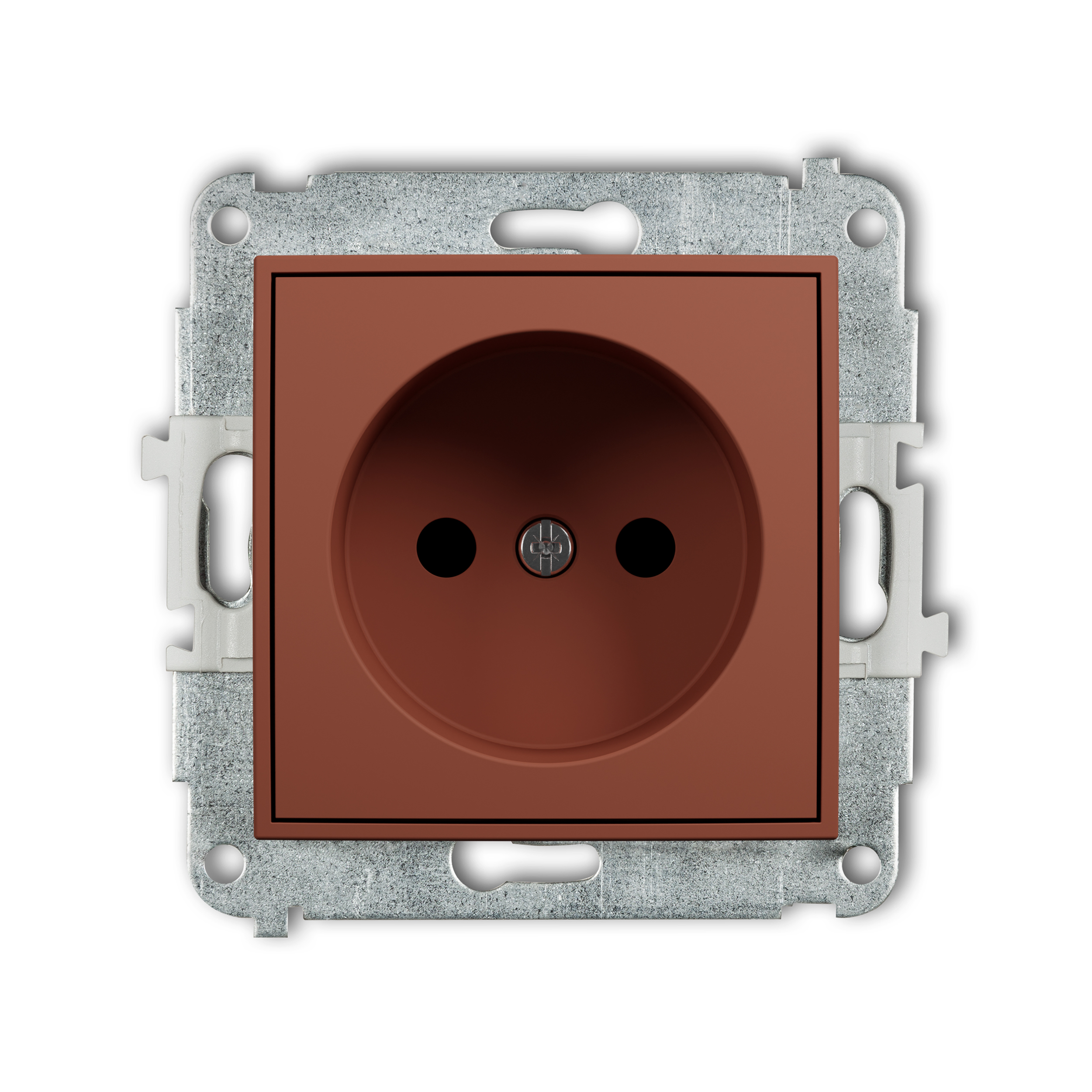

Single socket without the 2P earth mechanism (with increased contact protection/shutter)
terracotta
63IGP-1p
Complementary products
Related products
-

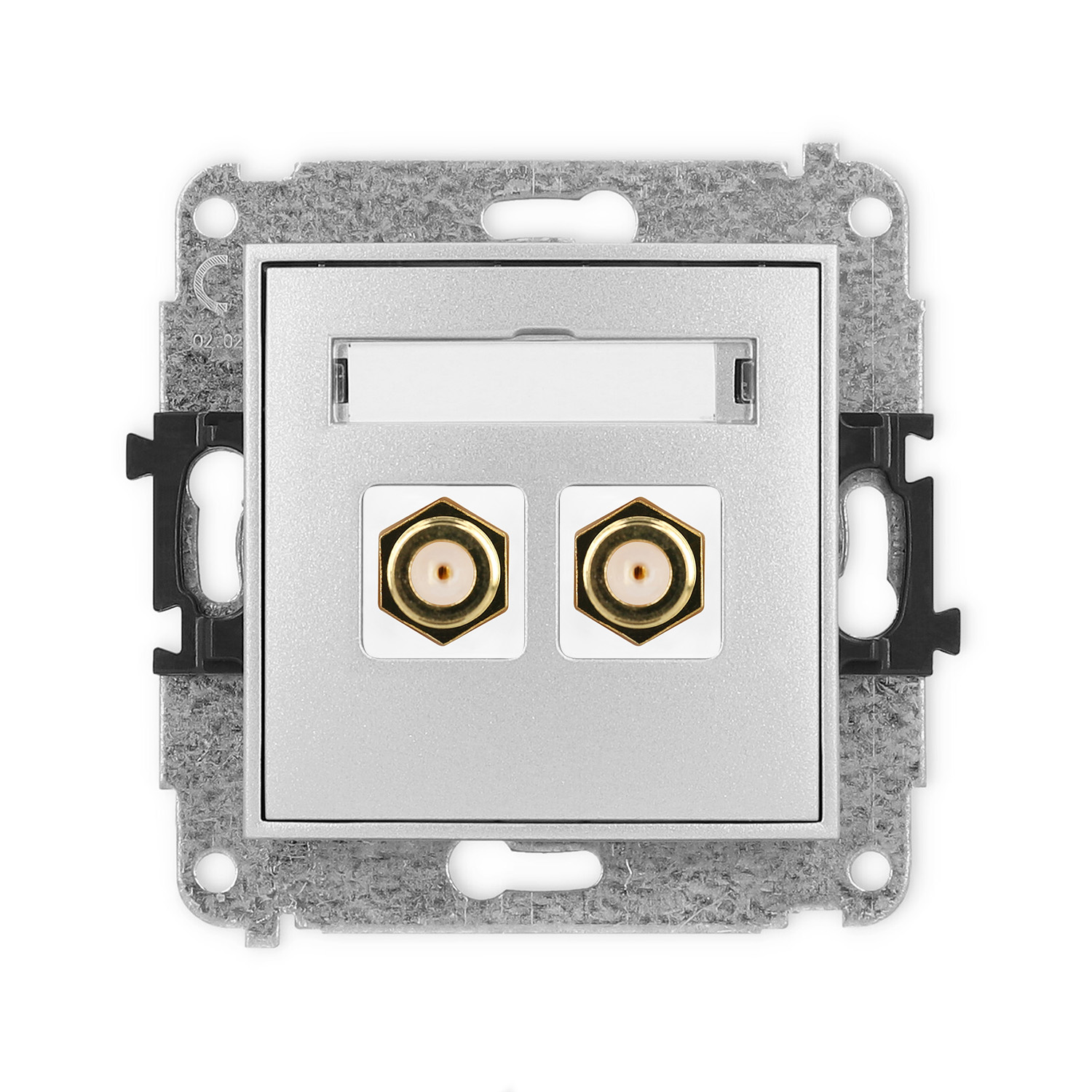

Double antenna F type socket (SAT) mechanism - gold-plated
silver metallic
7IGF-2.1
-

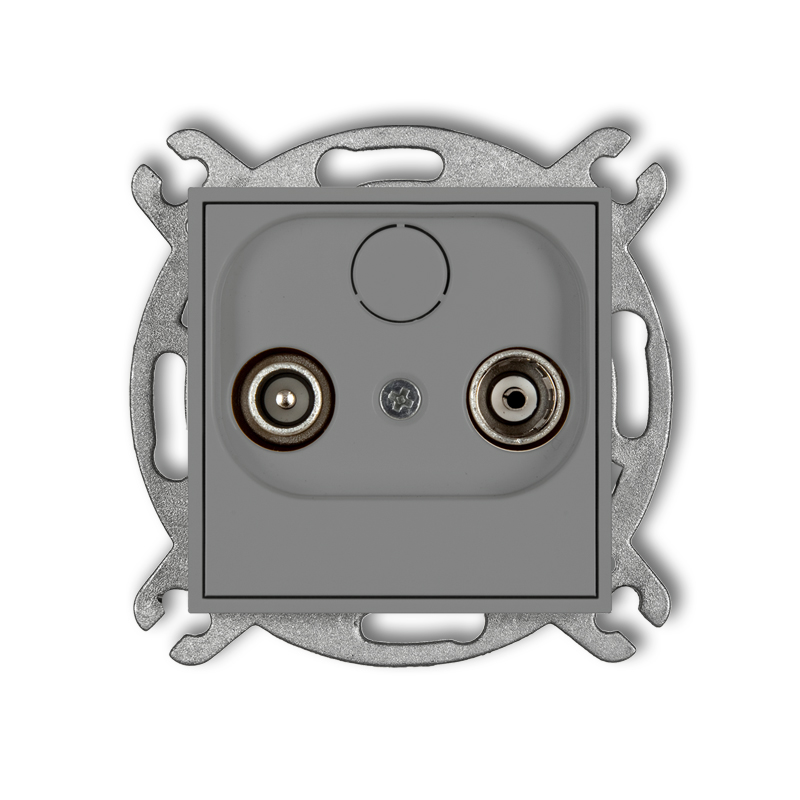

Radio/TV final socket (in series of through sockets) mechanism the 6 dB
matt grey
27IG6K
-

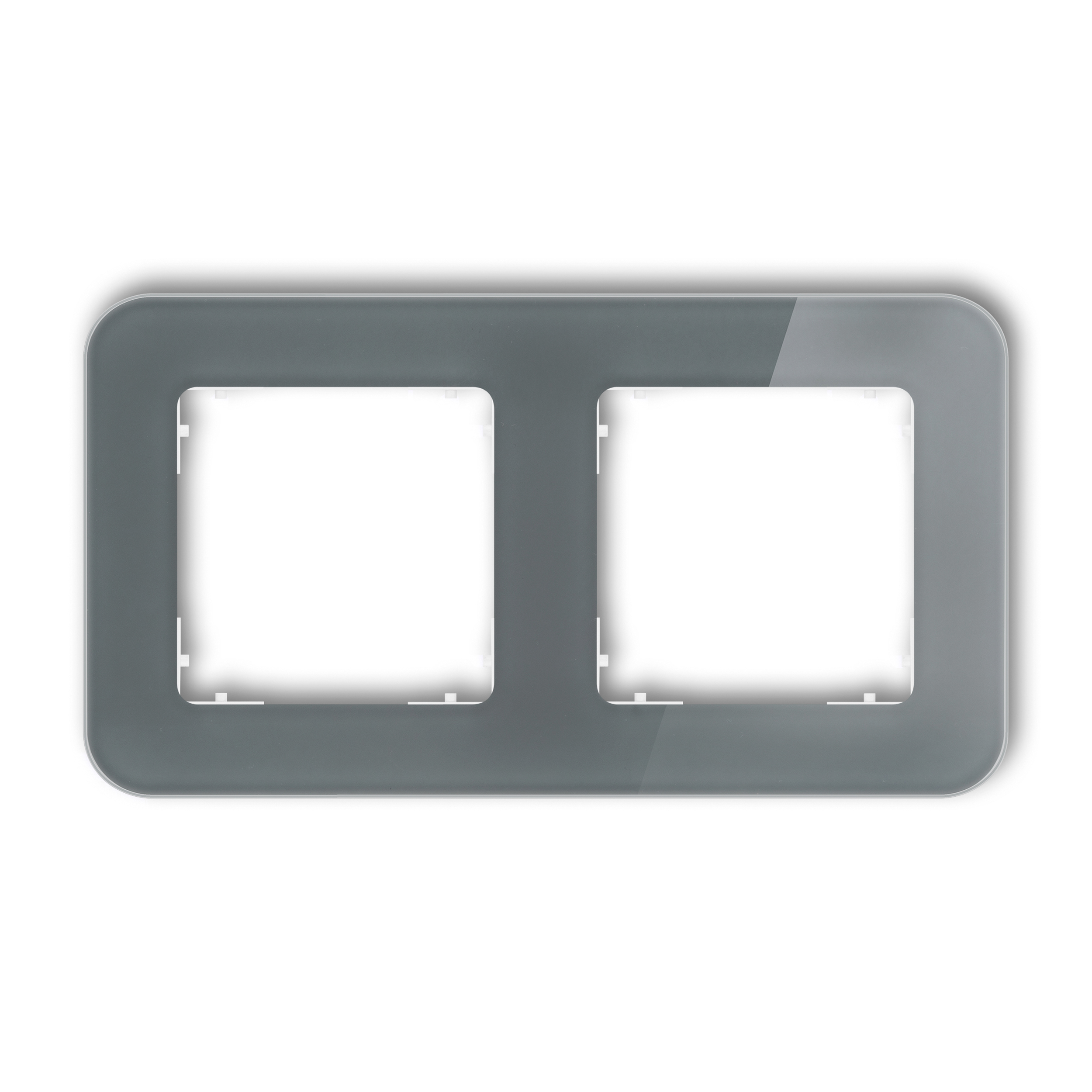

2-gang universal frame with rounded edges - glass effect
graphite frame / white rear
28-0-IRSZ-2
-

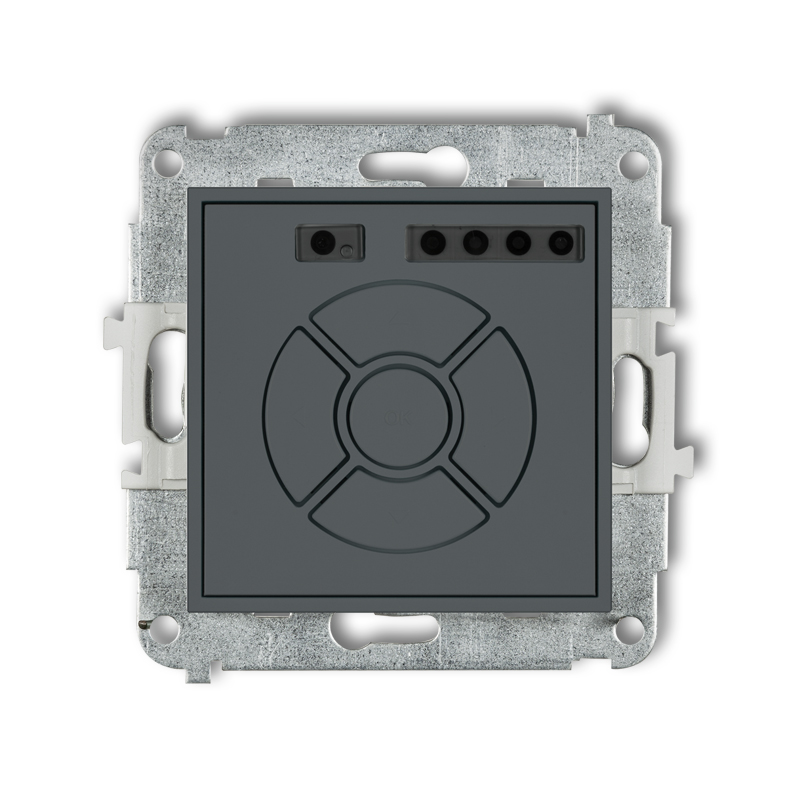

Electronic control roller shutter mechanism (zone button function)
matt graphite
28ISR-5
-
Single antenna TV socket mechanism
sage
61IGTV-1
-

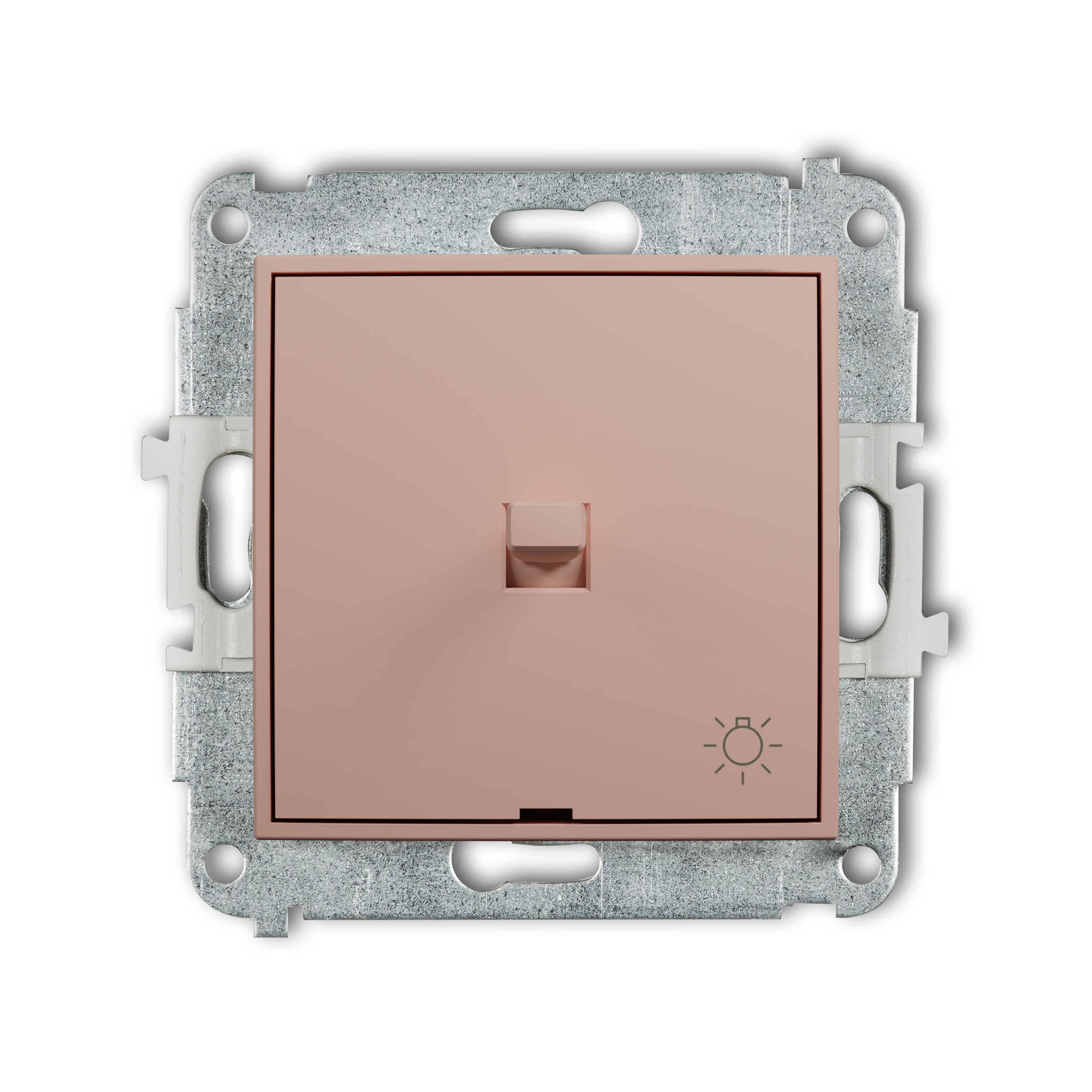

American-style single push button "light" mechanism
