Single socket with the 2P+Z earth mechanism (without increased contact protection/shutter)
white
IGP-1z
-
white
IGP-1z
-

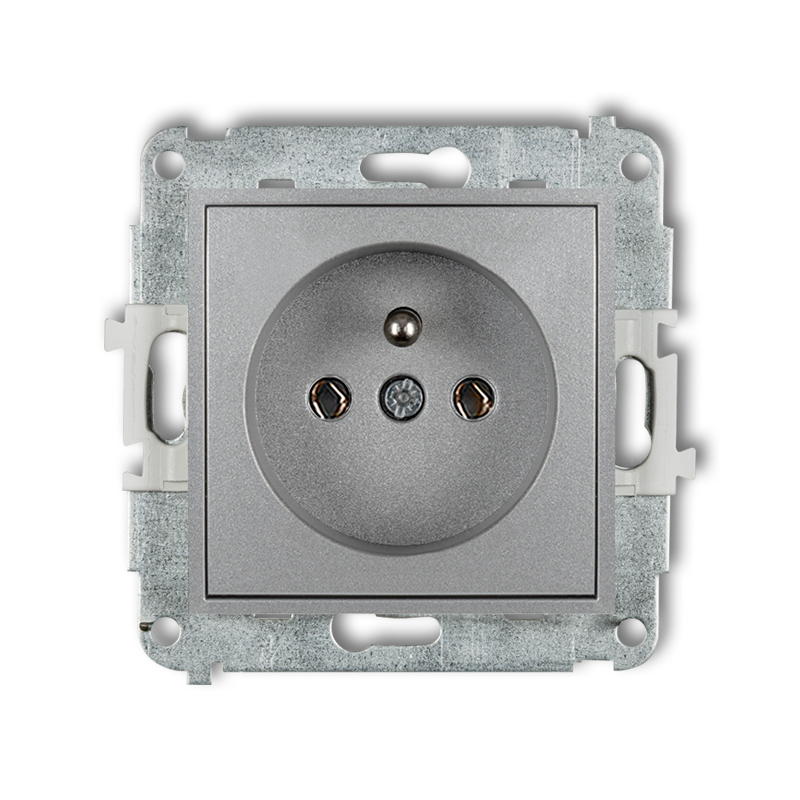

silver metallic
7IGP-1z
-

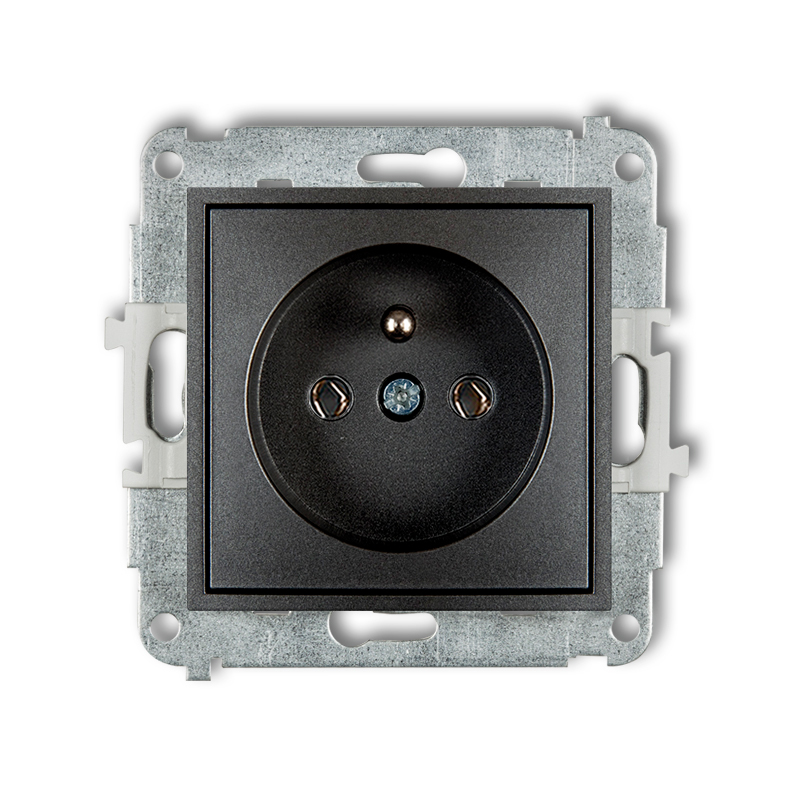

graphite
11IGP-1z
-
matt black
12IGP-1z
-
matt white
25IGP-1z
-
matt grey
27IGP-1z
-
matt graphite
28IGP-1z
-
gold
29IGP-1z
-
taupe
60IGP-1z
-
sage
61IGP-1z
-
salmon
62IGP-1z
-
terracotta
63IGP-1z
-
navy blue
64IGP-1z
Product description
Downloads
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 16 A |
| Rated voltage | 250 V~ |
| Increased contact protection/shutter | NO |
| Connection | Screw terminals |
| UV resistance | Resistant |
Product variants
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
white
IGP-1zp
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
matt black
12IGP-1sp
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
matt grey
27IGP-1sp
-
Single socket without the 2P earth mechanism (with increased contact protection/shutter)
matt graphite
28IGP-1p
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
salmon
62IGP-1sp
-
Single socket without the 2P earth mechanism (with increased contact protection/shutter)
navy blue
64IGP-1p
