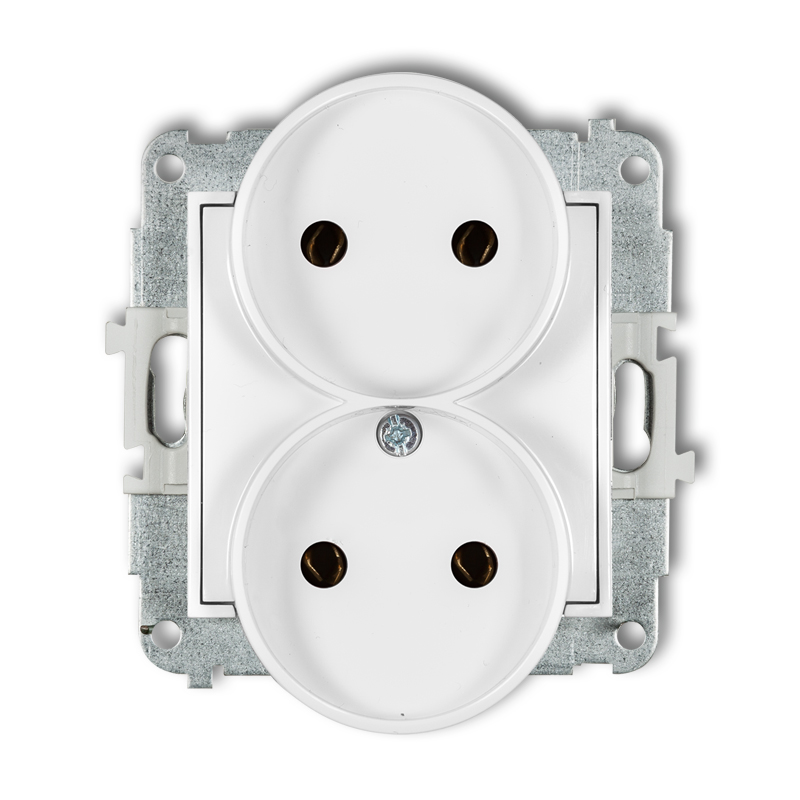

Double socket to a frame without the 2x2P earth mechanism (without increased contact protection/shutter)
white
IGPR-2
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON sockets are available with embedded circuit current casings, that protect children against access to dangerous parts of electrical wiring. ICON switches do not require any additional external coverage.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Rated current | 16 A |
Rated voltage | 250 V~ |
Increased contact protection/shutter | NO |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
white
IGPR-2z
-
Double socket to a frame without the 2x2P earth mechanism (with increased contact protection/shutter)
matt black
12IGPR-2p
-
Double socket to a frame without the 2x2P earth mechanism (with increased contact protection/shutter)
matt grey
27IGPR-2p
-
Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
taupe
60IGPR-2z
-
Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
sage
61IGPR-2z
-

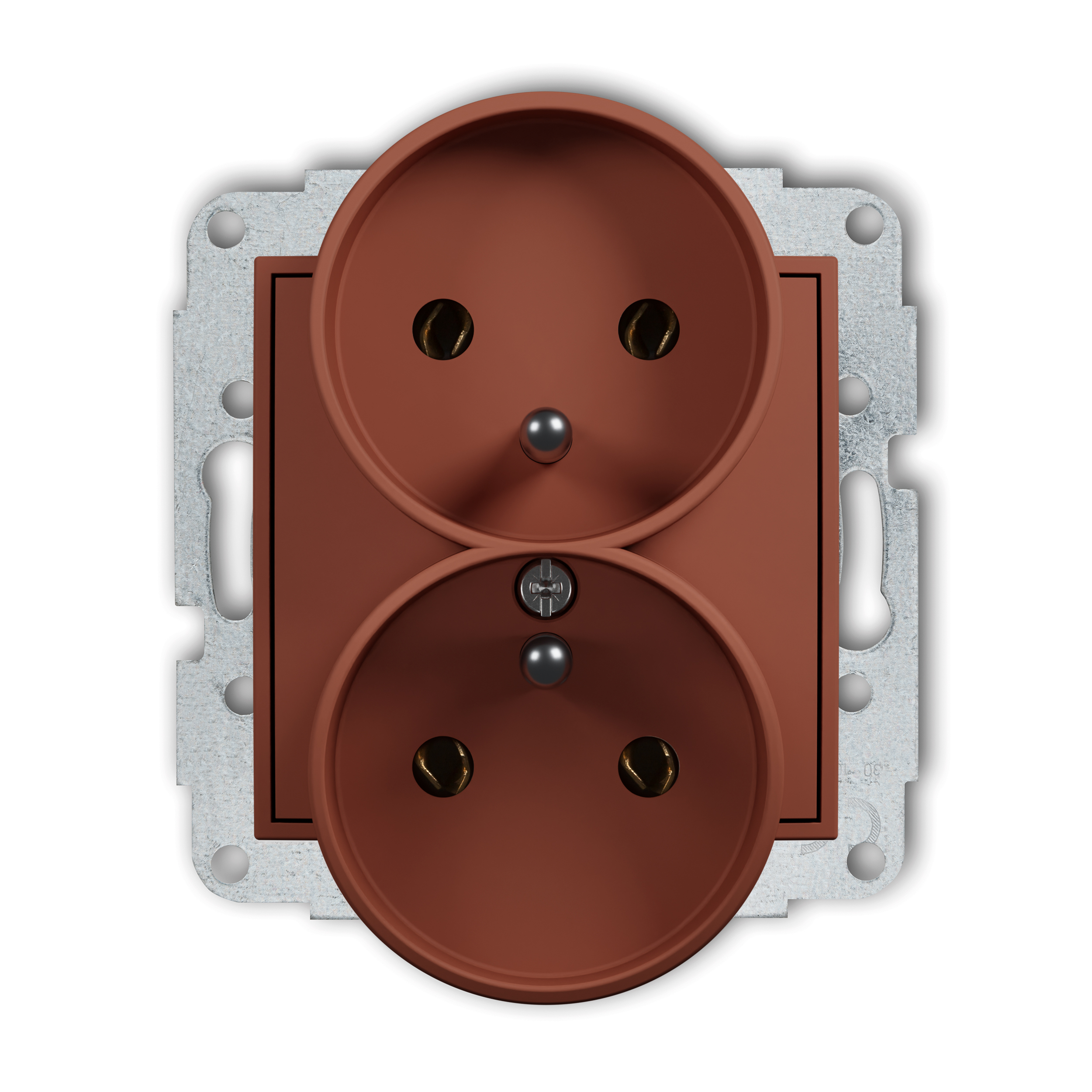

Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
terracotta
63IGPR-2z
Complementary products
-
The intermediate frame for double socket mechanisms
white
IRP-2
-
The intermediate frame for double socket mechanisms
matt black
12IRP-2
-
The intermediate frame for double socket mechanisms
matt grey
27IRP-2
-
The intermediate frame for double socket mechanisms
matt graphite
28IRP-2
-
The intermediate frame for double socket mechanisms
salmon
62IRP-2
-
The intermediate frame for double socket mechanisms
navy blue
64IRP-2
Related products
-

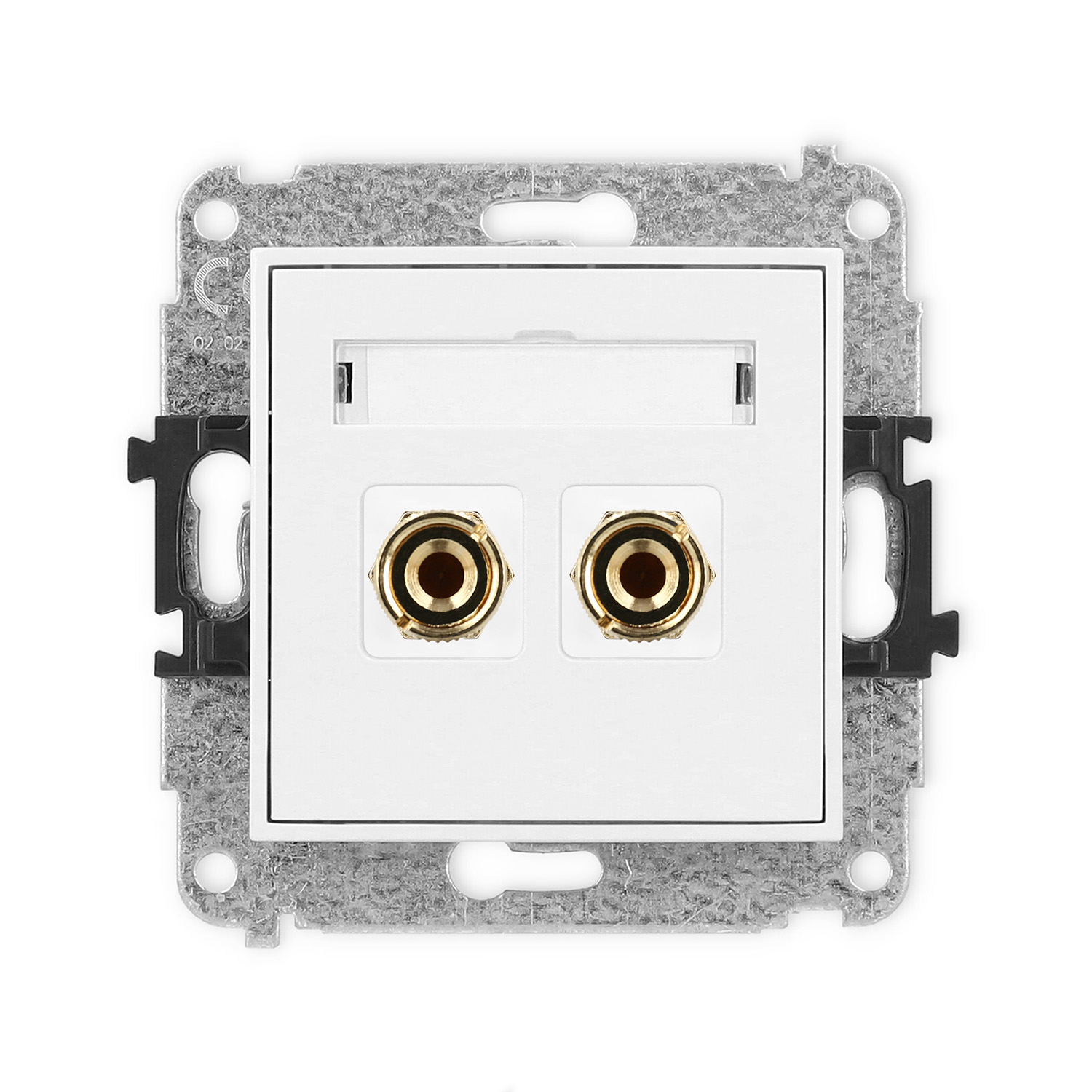

Single loudspeaker socket (banana type- red and black, gold-plated, 4mm2, soldering) mechanism
white
IGG-3
-

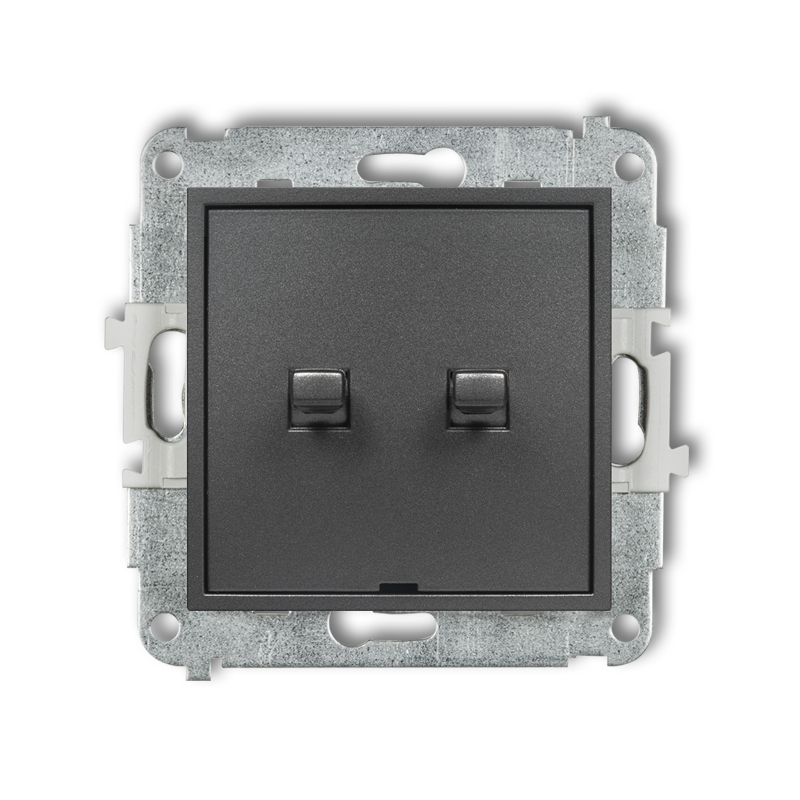

American-style two-circuit switch mechanism
graphite
11IWPUS-2
-
1-gang round universal frame - glass effect
grey frame / white rear
15-0-IRSO-1
-

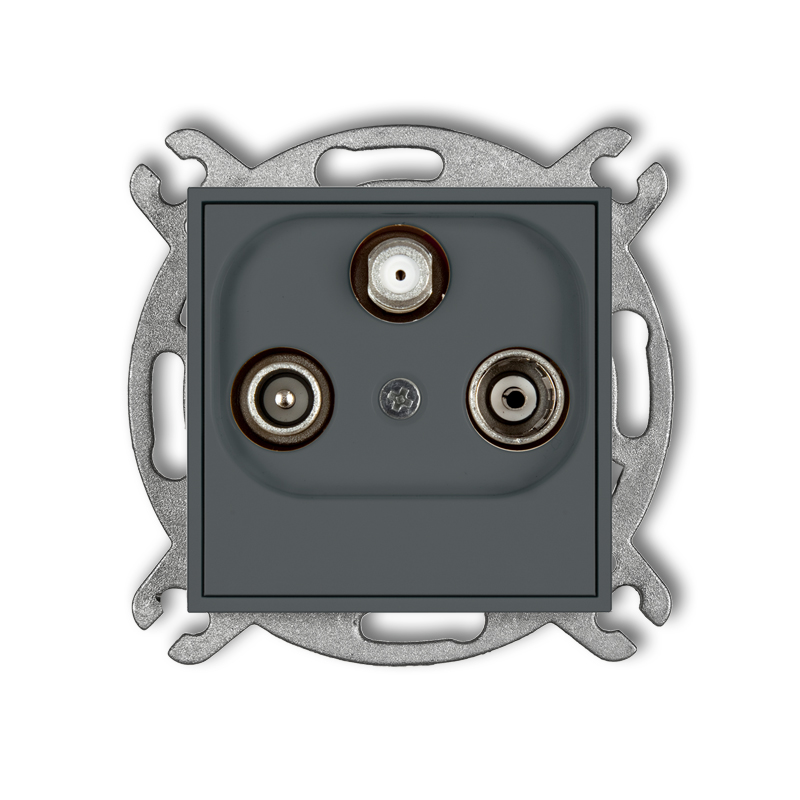

Radio/TV/SAT final socket mechanism the 1,5 dB
