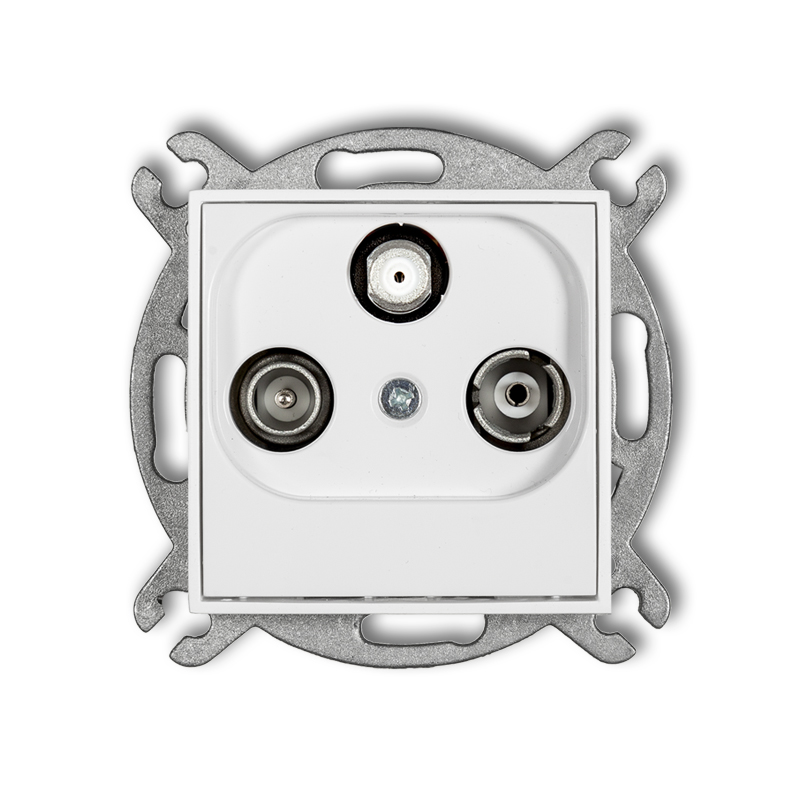

Radio/TV/SAT final socket mechanism the 1,5 dB
white
IGS
Product description
Downloads
Technical data
Protection index | IP 20 |
Input circuit fraquency range 1 | 5 ÷ 2400 MHz |
TV circuit fraquency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circuit fraquency range | 88 ÷ 108 MHz |
SAT circuit fraquency range | 950 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Radio/TV through socket mechanism the 12 dB
white
IG12P
-

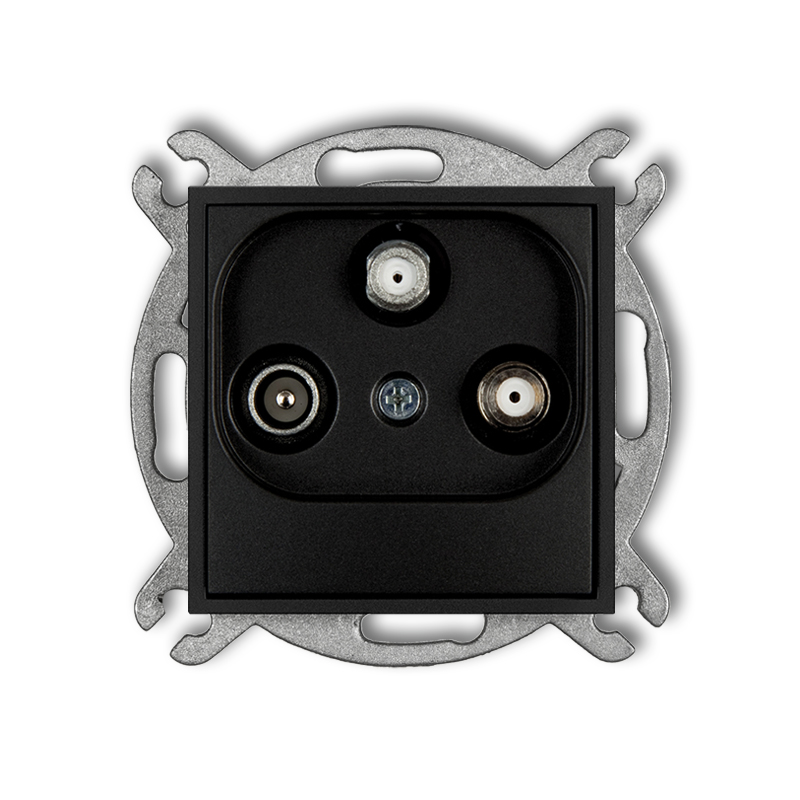

TV/SAT with two satellite inputs socket mechanism
matt black
12IGSN
-
Radio/TV/SAT multimedia socket mechanism (Internet)
matt grey
27IGM
-
3F DATA (UPC) multimedia socket mechanism
matt graphite
28IGMU
-

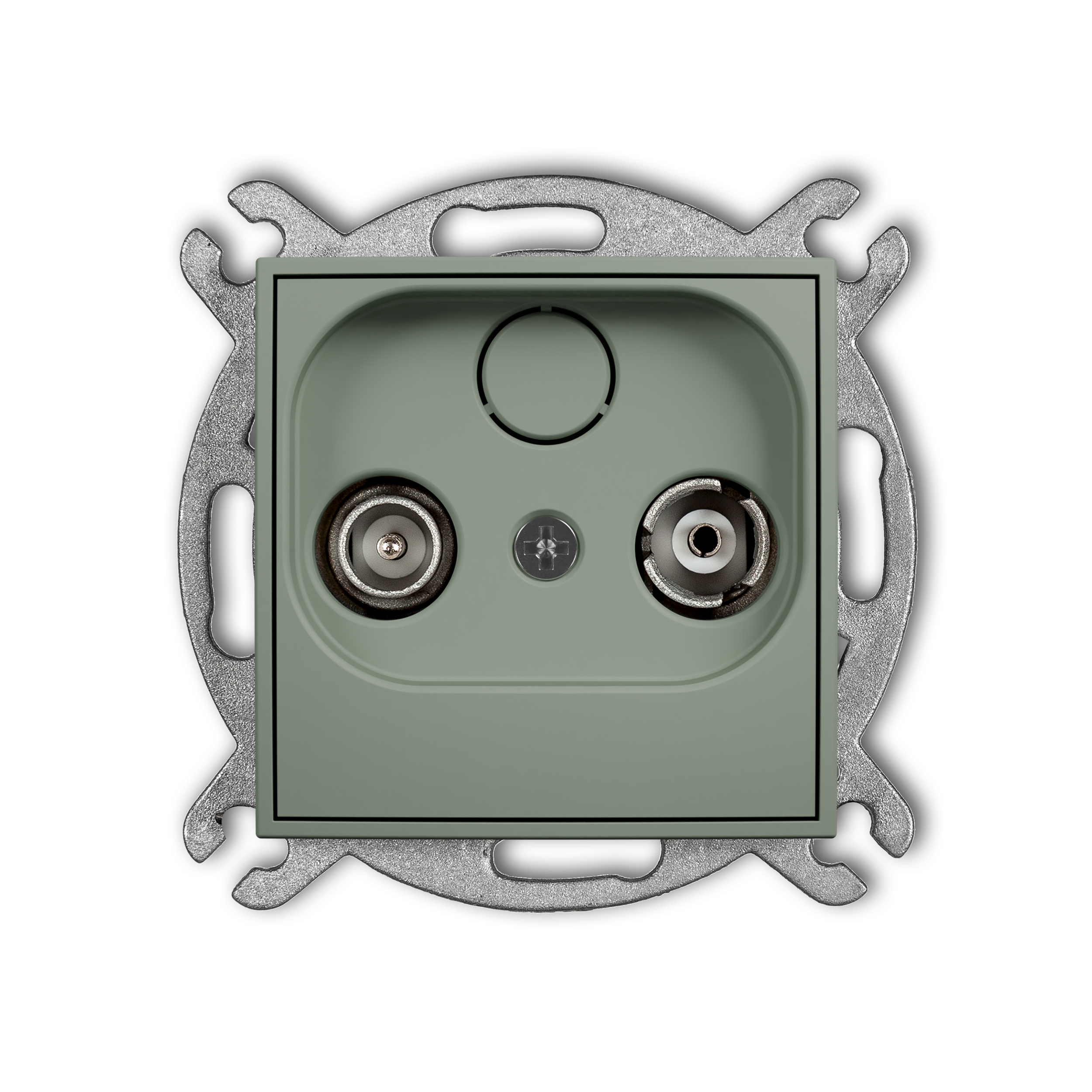

Radio/TV final socket mechanism the 2 dB
sage
61IG2K
-

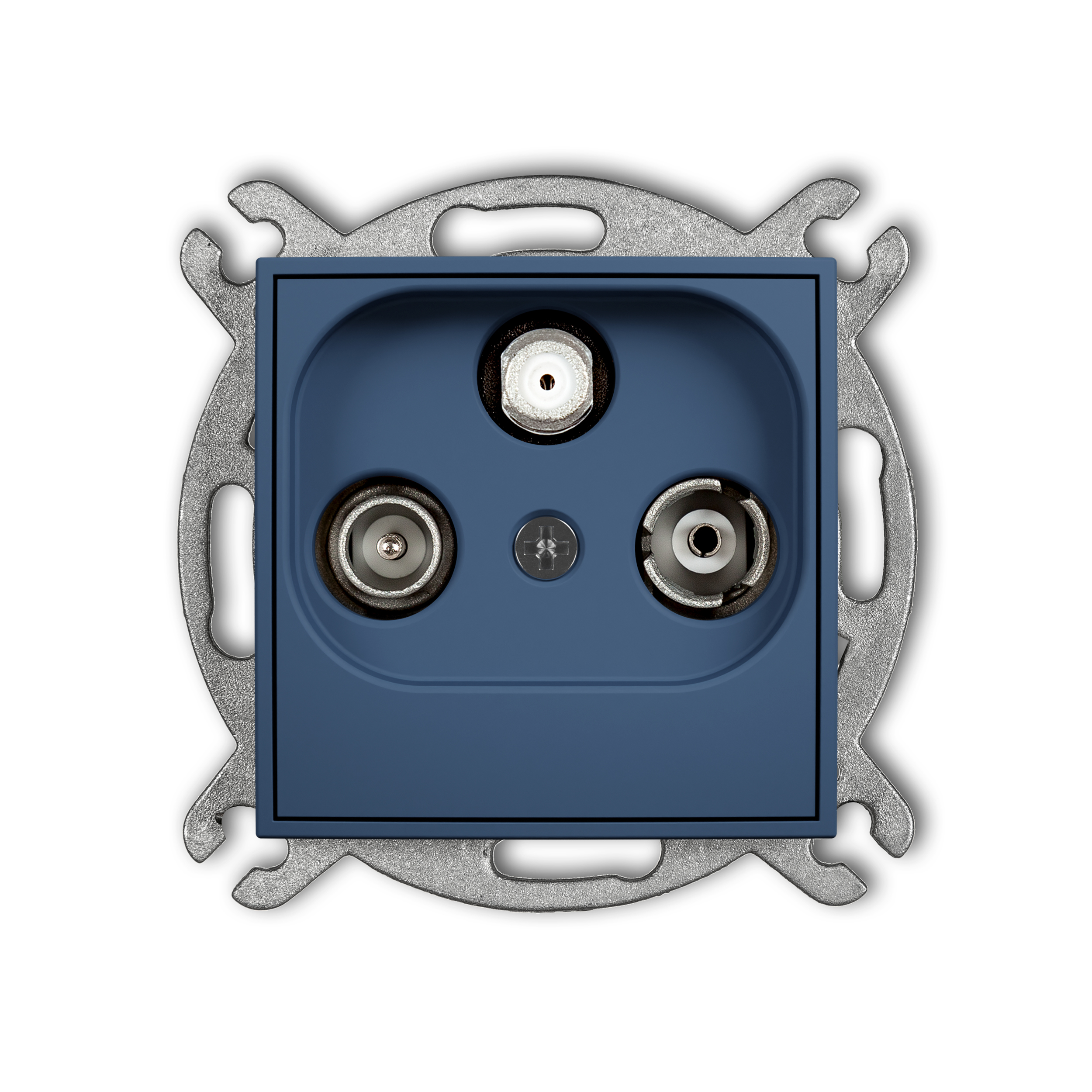

Radio/TV/SAT final socket (two antenna inputs) mechanism
navy blue
64IGST
Complementary products
Related products
-
Single push button mechanism (single push button without pictogram)
white
IWP-4.1
-
1-gang round universal frame - glass effect
white frame / black rear
0-12-IRSO-1
-

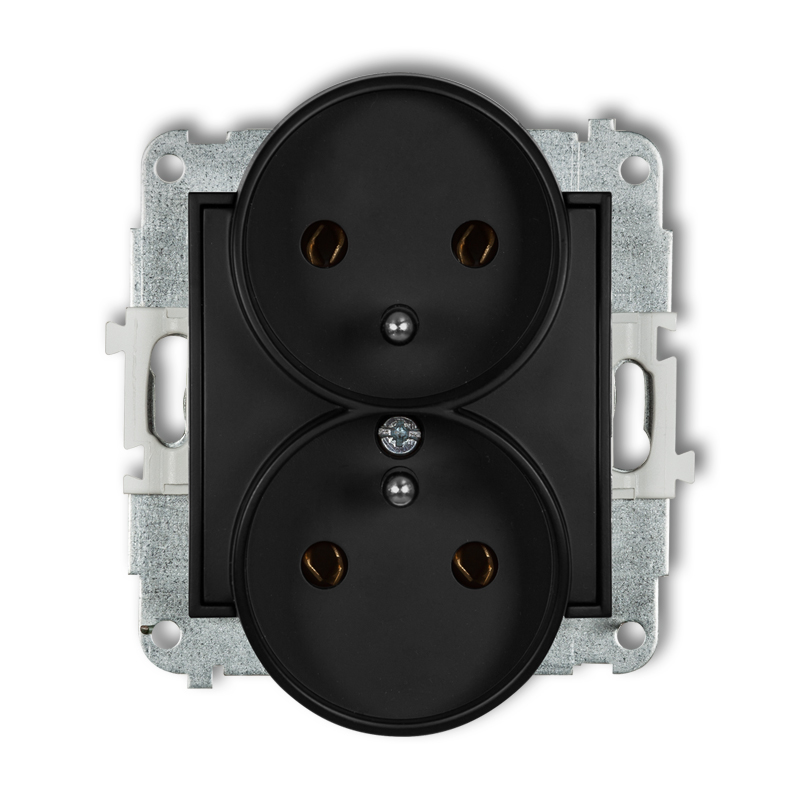

Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
matt black
12IGPR-2z
-
1-gang universal frame with rounded edges - glass effect
grey frame / matt graphite rear
15-28-IRSZ-1
-
Single push button mechanism (single push button without pictogram)
terracotta
63IWP-4.1
-

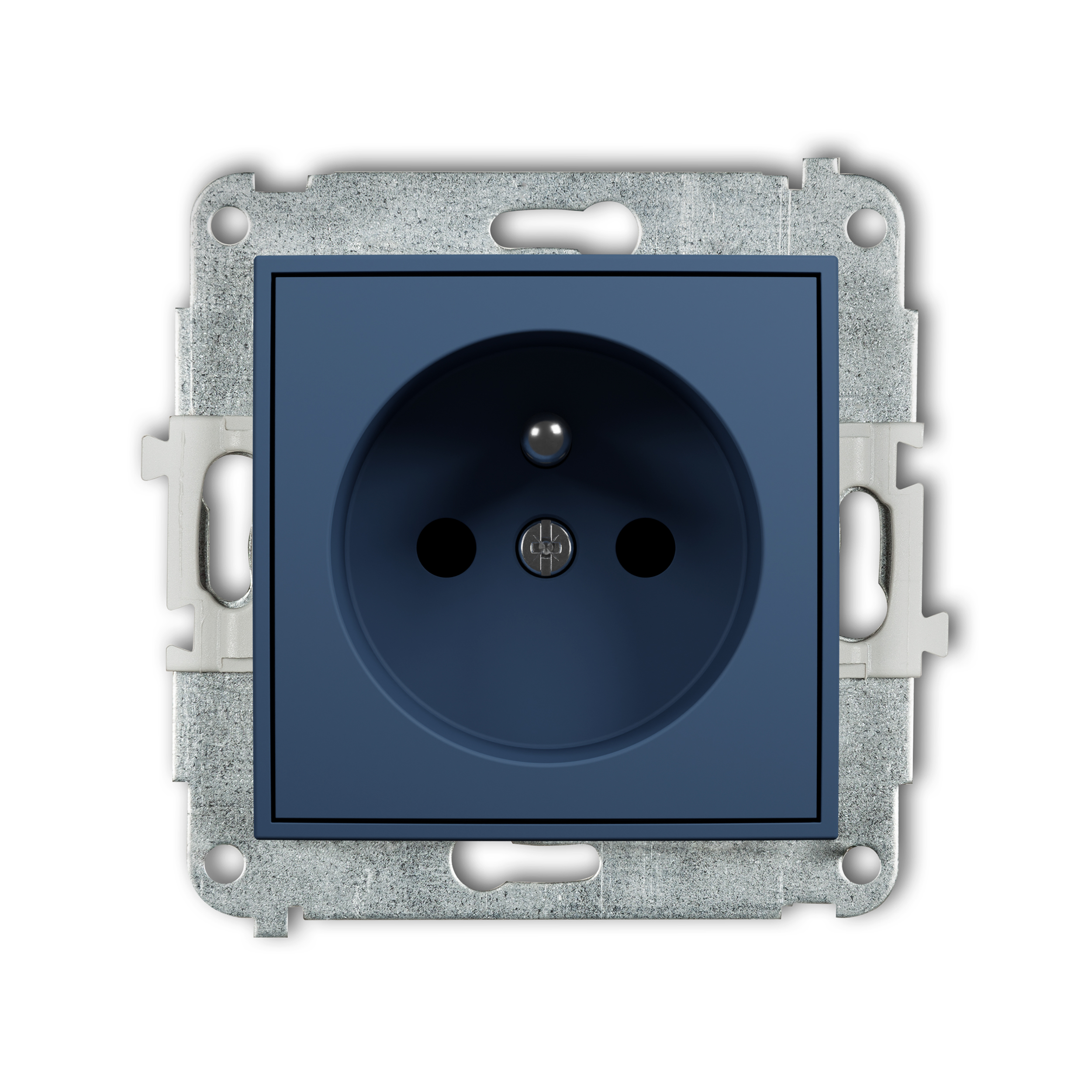

Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
