Universal electronic weekly temperature controller mechanism (blue backlight)
white
IRT-3.2
Product description
Downloads
ICON mechanisms and frames are sold separately.
The electronic weekly temperature controller is universal, i.e. it can be used as:
> a room thermostat,
> a floor heating thermostat,
> a room thermostat with a limiter.
For underfloor heating, it is necessary to purchase a probe (SO-1). The probe is only compatible with:
> .DRT-3.1 and .DRT-3.2 in the DECO series,
> .IRT-3.1 and .IRT-3.2 in the ICON series,
> .MRT-3.1 and .MRT-3.2 in the MINI series.
…RT-3.1 and …RT-3.2 they differ in display color: white backlight and blue backlight.
The thermostat has a remote control function (detachable front panel of the regulator); this allows the user to configure the device in comfortable conditions, away from where the device is installed.
The menu is available in the following languages English, Russian, French, Hungarian, Czech, and Polish (default).
The actual appearance of product may be different from the presented photographs.
Technical data
Supply voltage | 230 V AC 50 Hz (195-253 V) |
Temperature setting range | 5 °C-30 °C; in intervals of 0.5 °C |
Temperature regulation in intervals after | 0,1 °C |
Connection current | 10mA… 16(4)A*; 230 V~ |
Output signal | pulse width modulation PWM or ON/OFF |
PWM time intervals | adjustable |
Hysteresis | adjustable |
The shortest time frame | 10 minutes |
Power consumption | ~ 1,2 W |
Clock accuracy | < 4 minutes / year |
Action reserve | ~ 10 years |
Probe (optional) | SO-1, length 4 m, can be extended to 50 m |
Ambient temperature during operation | 0 °C-40 °C (no moisture) |
Ambient temperature during storage | –20 °C-70 °C (no moisture) |
Rated surge voltage | 4 kV |
Head testing temperature | 115 °C |
Voltage and current for interference measurements | 230 V, 0,1A |
Protection index | IP 30 |
Protection class of the cover | II |
Software class | A |
Degree of pollution | 2 |
Display color | IRT-3.1 - white backlight; IRT-3.2 - blue backlight |
Relay | Output, 230 V |
Product variants
-
Universal electronic weekly temperature controller mechanism (white backlight)
white
IRT-3.1
-
Universal electronic weekly temperature controller mechanism (white backlight)
matt black
12IRT-3.1
-
Electronic temperature controller mechanism with underfloor sensor
matt grey
27IRT-1
-
Electronic temperature regulator mechanism with air sensor
matt graphite
28IRT-2
-
Universal electronic weekly temperature controller mechanism (blue backlight)
gold
29IRT-3.2
-
Universal electronic weekly temperature controller mechanism (white backlight)
terracotta
63IRT-3.1
Complementary products
Related products
-
Single loudspeaker socket (banana type- red and black, gold-plated,4mm) mechanism, without description field
white
IGGBO-3
-

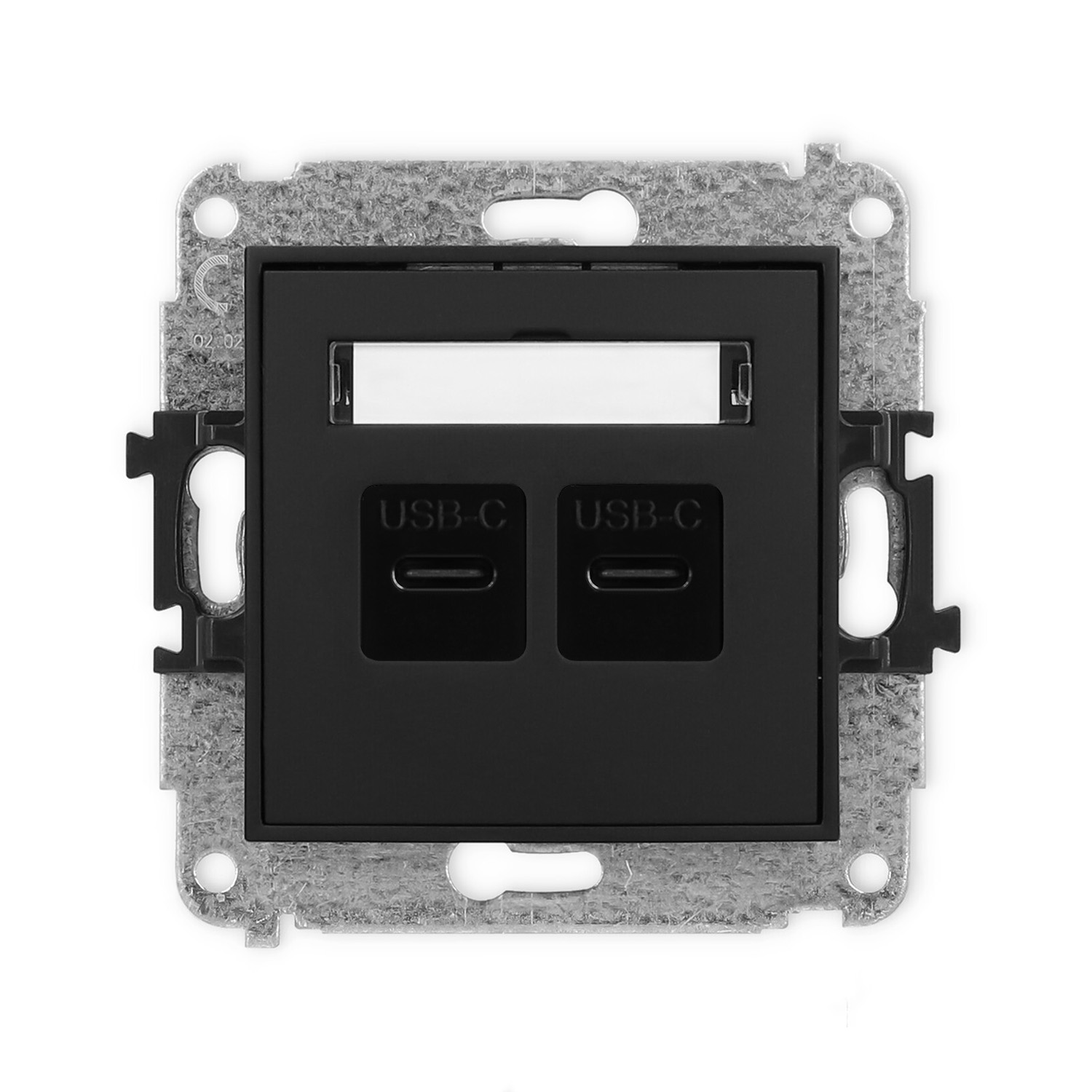

2xUSB C-C 2.0 double socket mechanism
