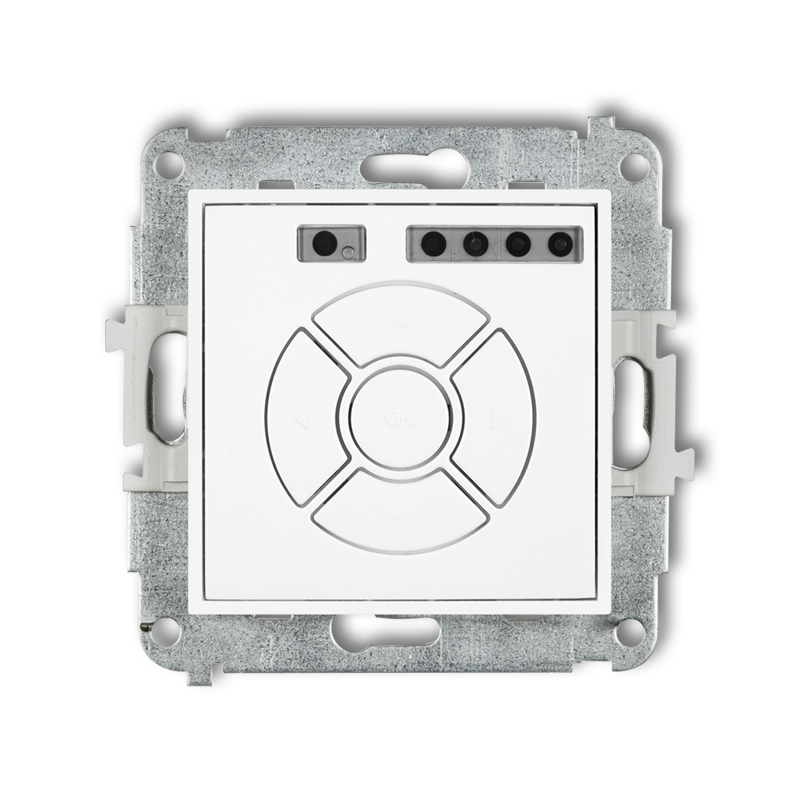

Electronic control roller shutter mechanism (local control and remote control)
white
ISR-2
Product description
Downloads
ICON mechanisms and frames are sold separately.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Power supply | 230 V~ 50 Hz |
Load range | max 150 W |
Type of load | Inductive – single phase motor 230 V~ 50 Hz |
Type of work | Intermittent |
Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
UV resistance | Resistant |
Product variants
-
Electronic control roller shutter mechanism (local control)
white
ISR-1
-

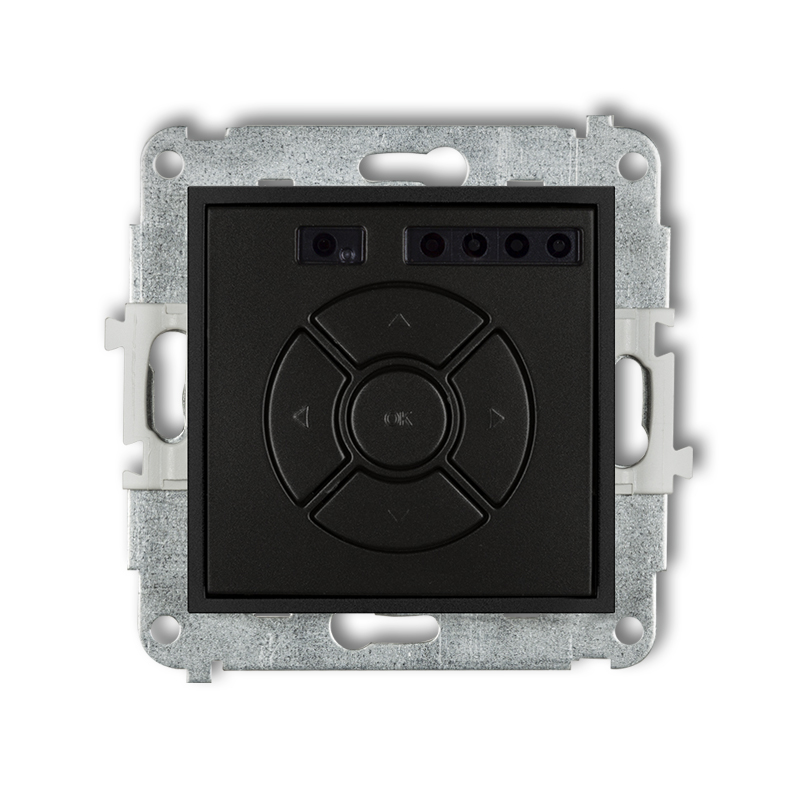

Electronic control roller shutter mechanism (central/additional button)
matt black
12ISR-6
-
Electronic control roller shutter mechnism (local control, remote control, zone control, central/additional button)
matt grey
27ISR-3A
-
Electronic control roller shutter mechanism (local control)
matt graphite
28ISR-1
-

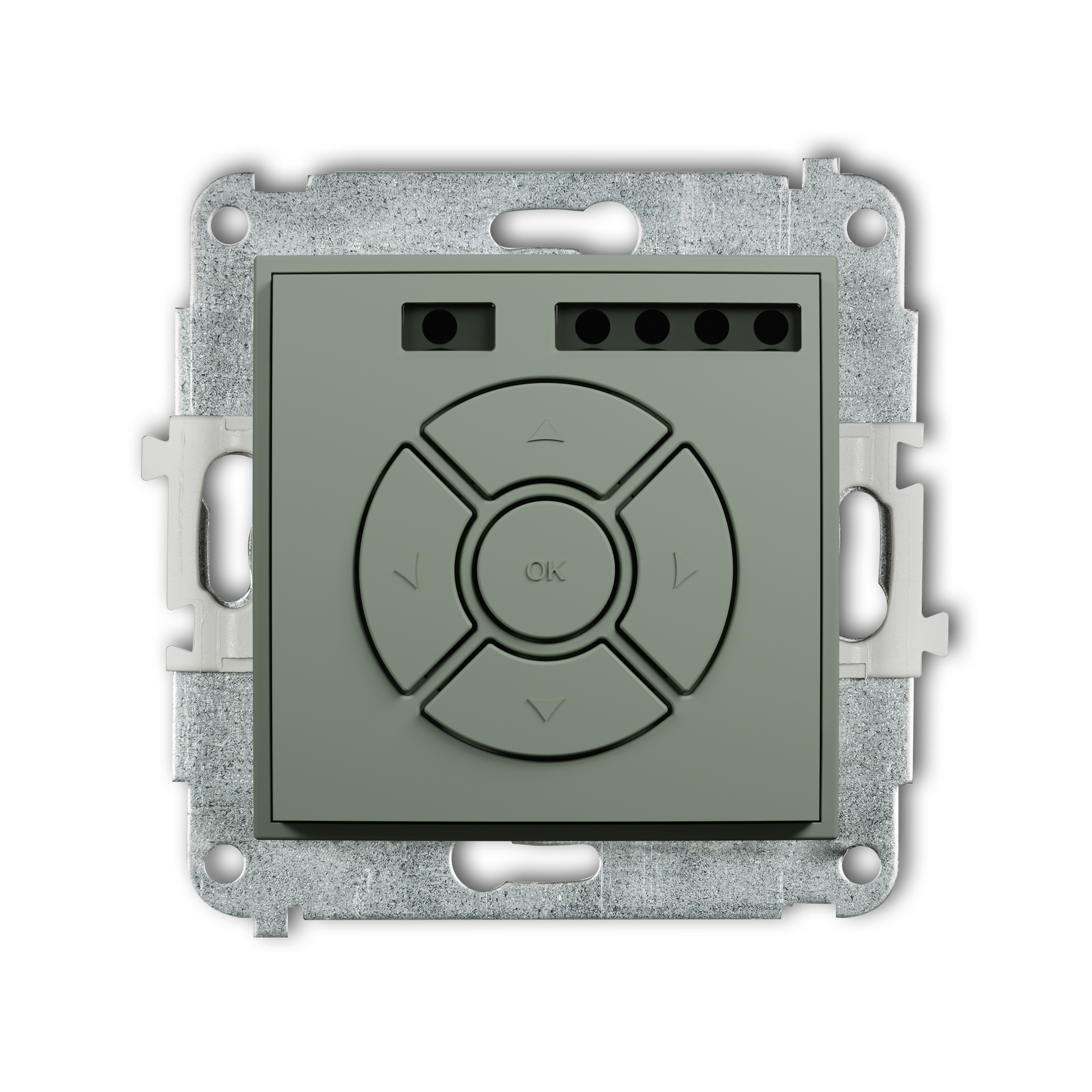

Electronic control roller shutter (local control, remote control, zone control)
sage
61ISR-3
-
Electronic control roller shutter mechnism (local control, remote control, zone control, central/additional button)
salmon
62ISR-3A
Complementary products
Related products
-
Triple switch mechanism
white
IWP-7
-

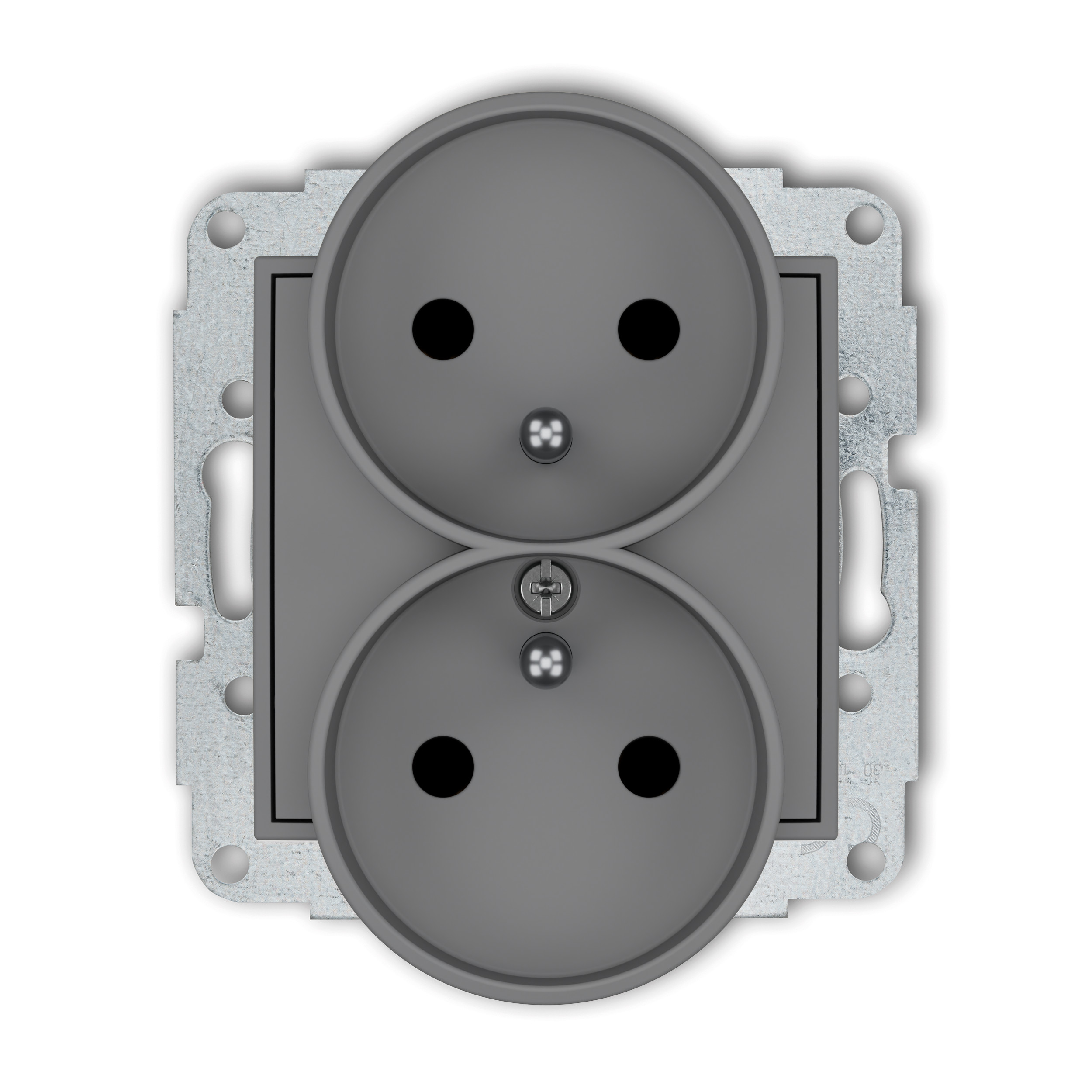

Double socket to a frame with the 2x(2P+Z) earth mechanism (with increased contact protection/shutter)
matt grey
27IGPR-2zp
-

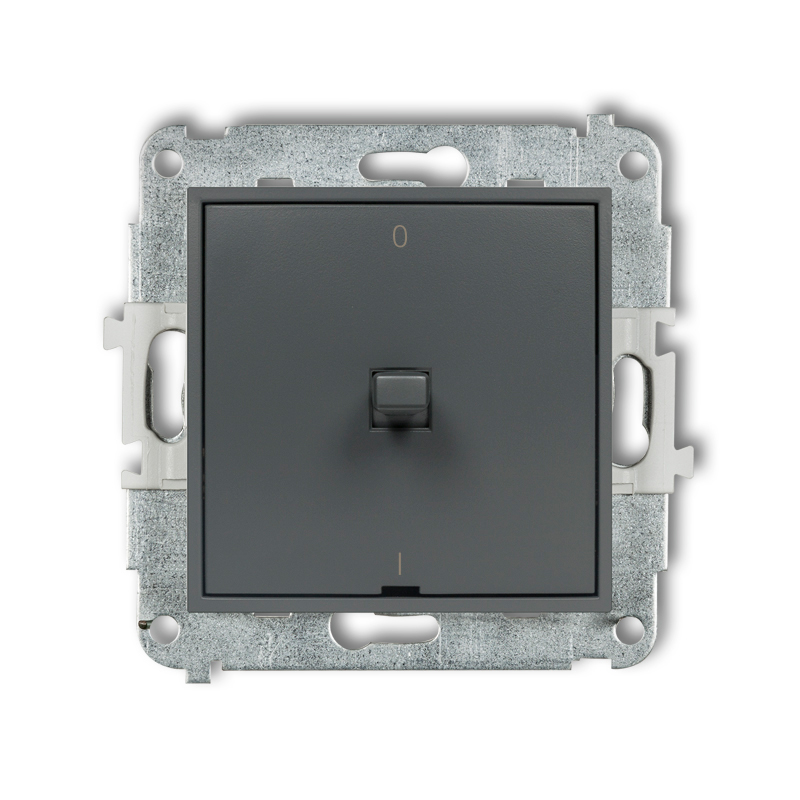

American-style double pole switch mechanism
matt graphite
28IWPUS-9
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
sage
61IGP-1sp
-

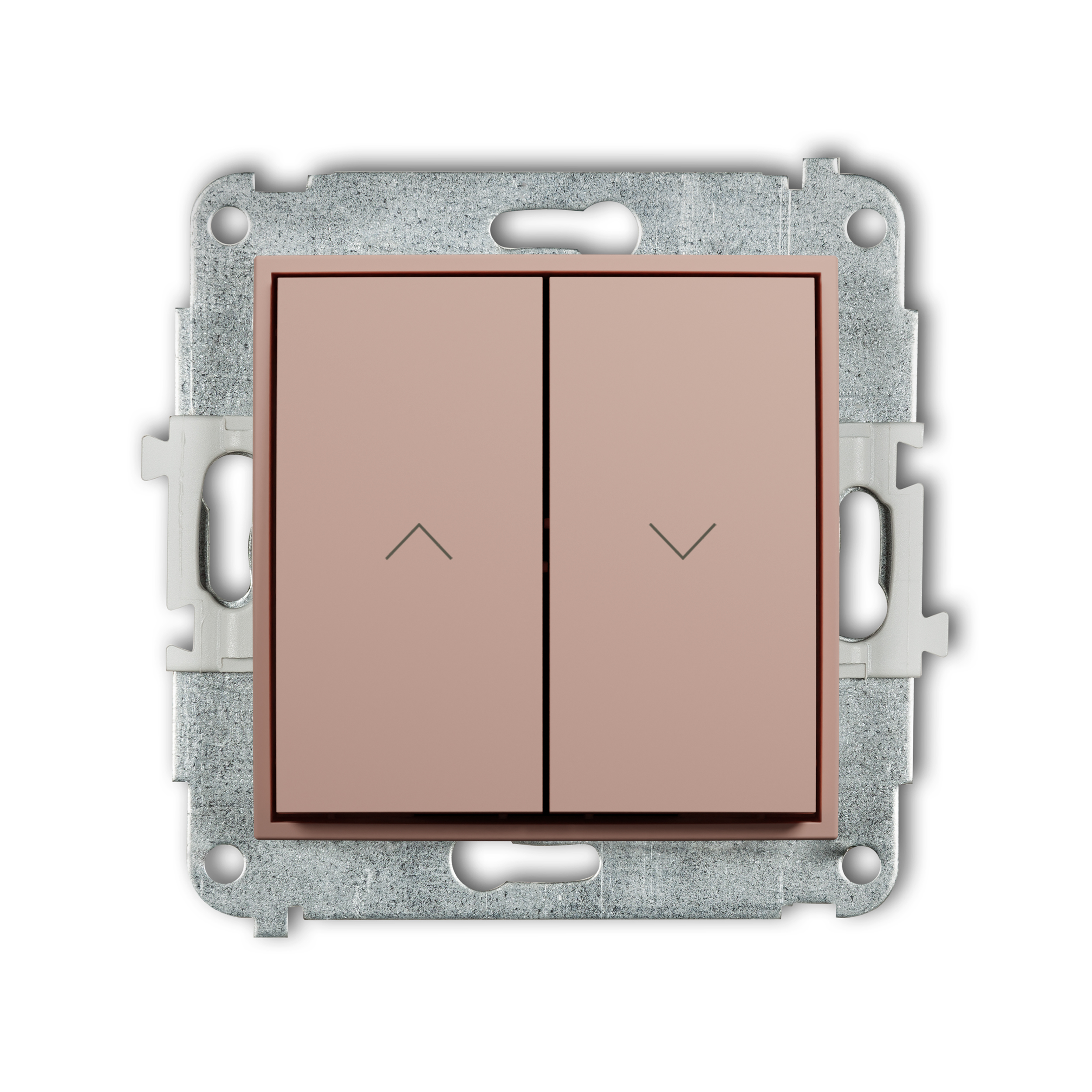

Roller blind switch mechanism with mechanical lock
