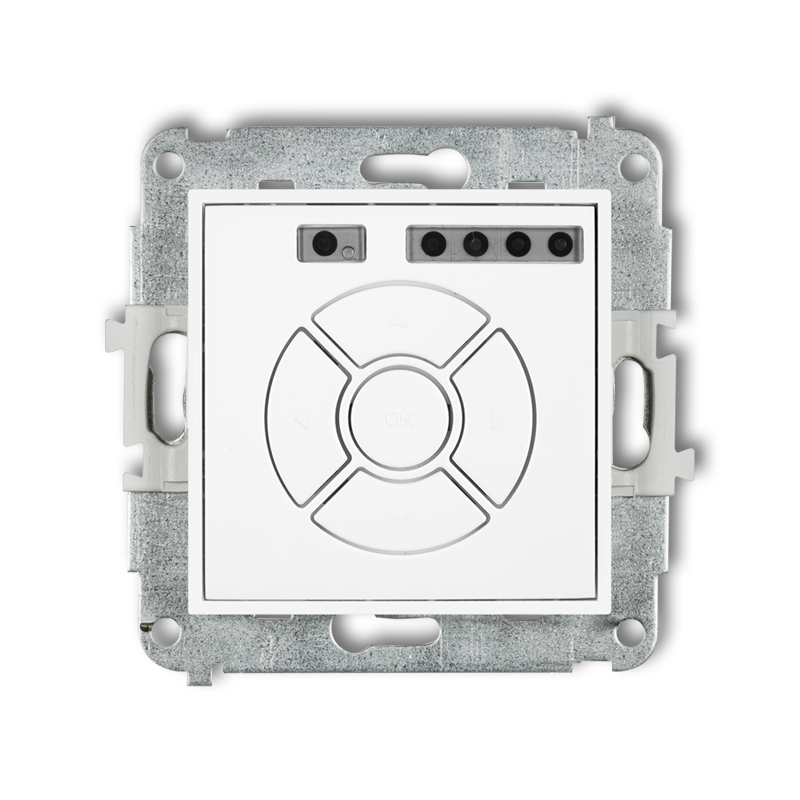

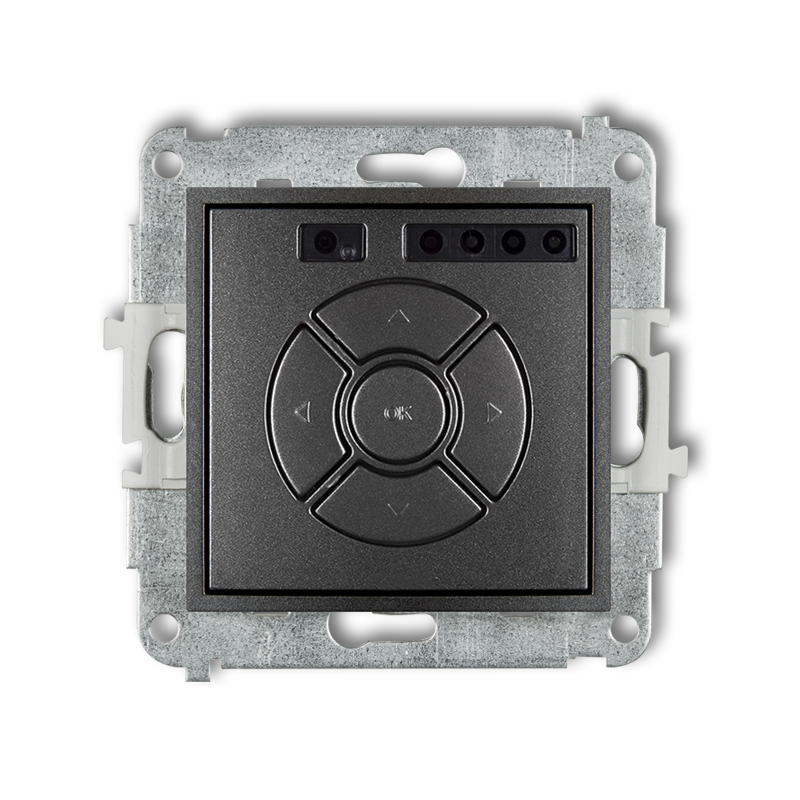

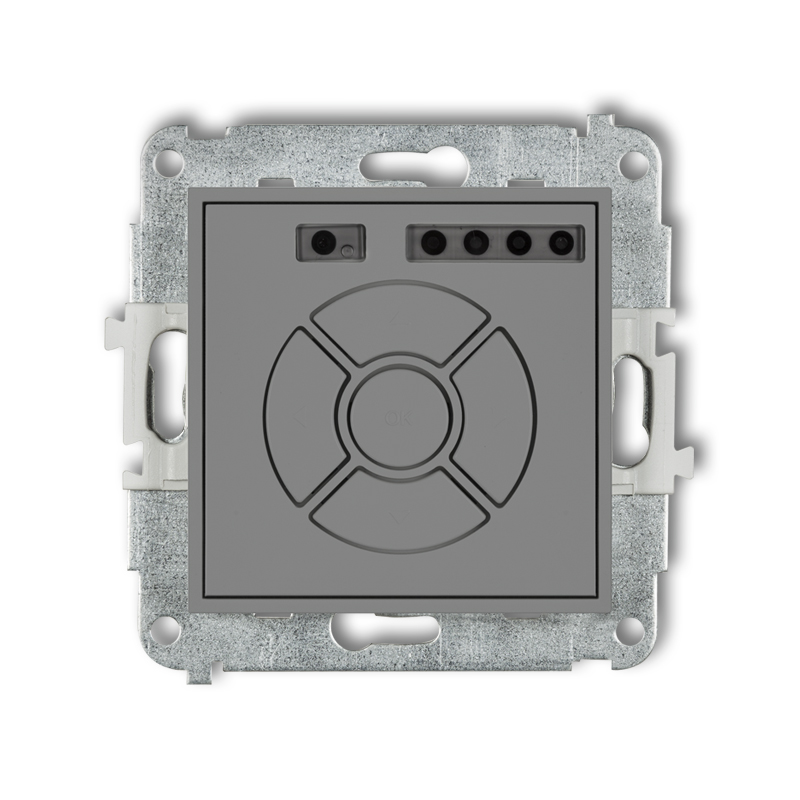

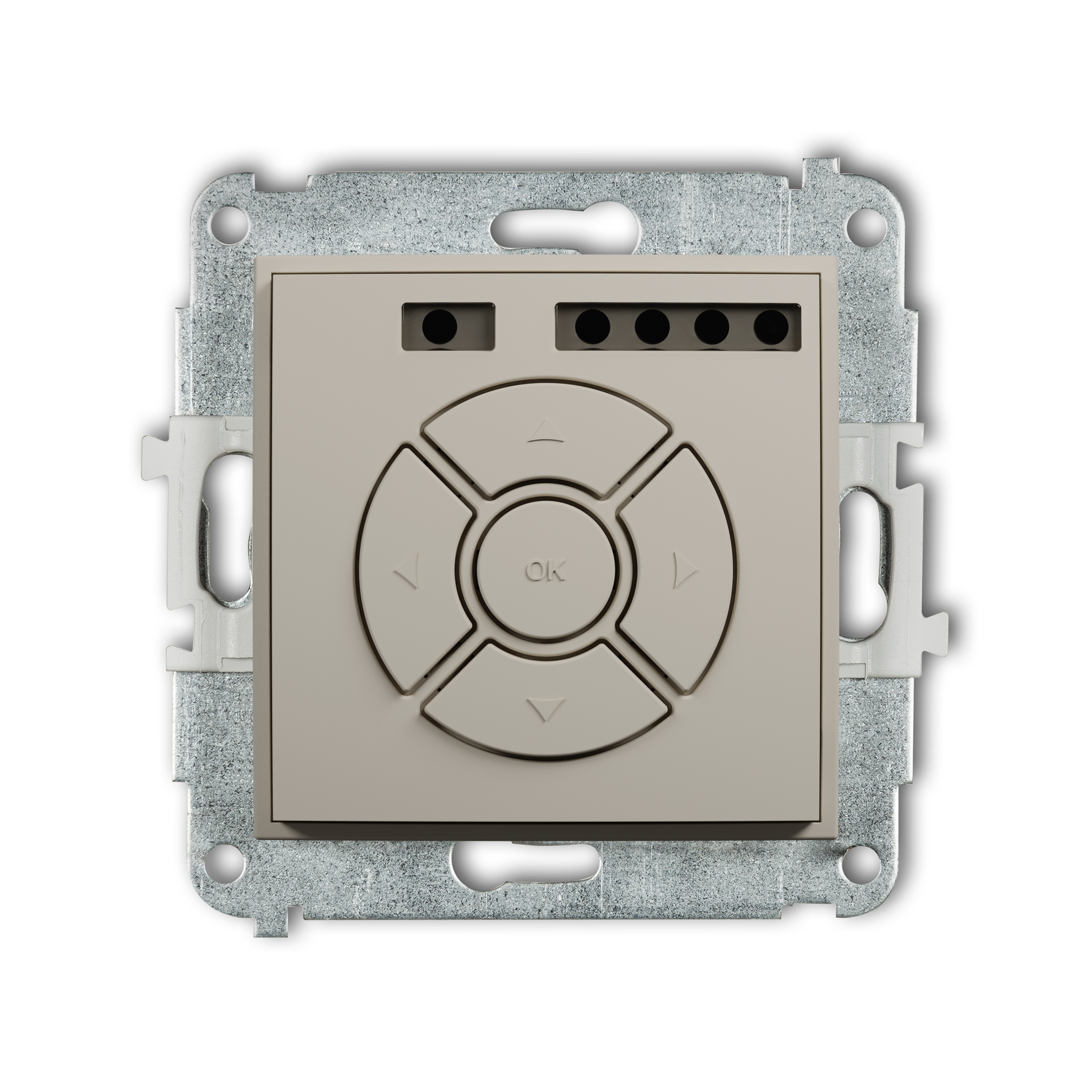

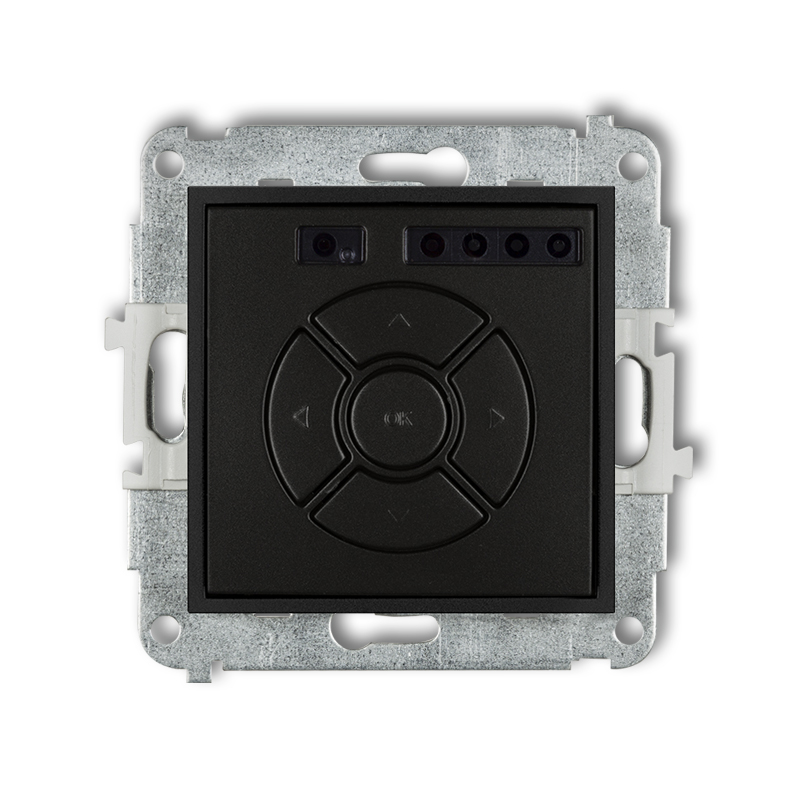

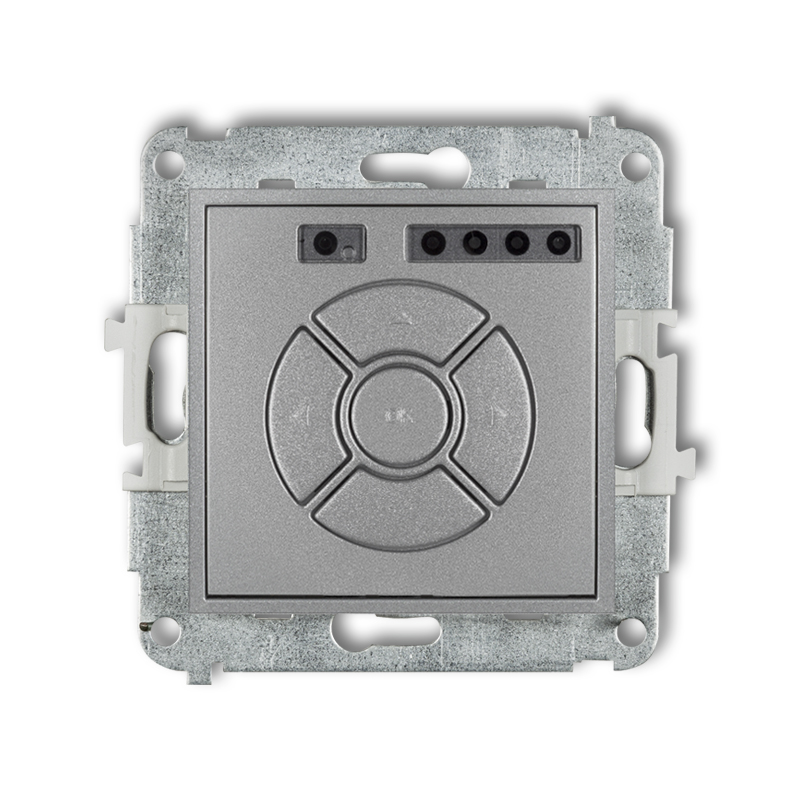

Electronic control roller shutter mechnism (local control, remote control, zone control, central/additional button)
white
ISR-3A
Product description
Downloads
ICON mechanisms and frames are sold separately.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Power supply | 230 V~ 50 Hz |
Load range | max 150 W |
Type of load | Inductive – single phase motor 230 V~ 50 Hz |
Type of work | Intermittent |
Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
UV resistance | Resistant |
Product variants
-
Electronic control roller shutter mechanism (local control)
white
ISR-1
-
Electronic control roller shutter (local control, remote control, zone control)
matt black
12ISR-3
-
Electronic control roller shutter (local control, remote control, zone control)
matt grey
27ISR-3
-

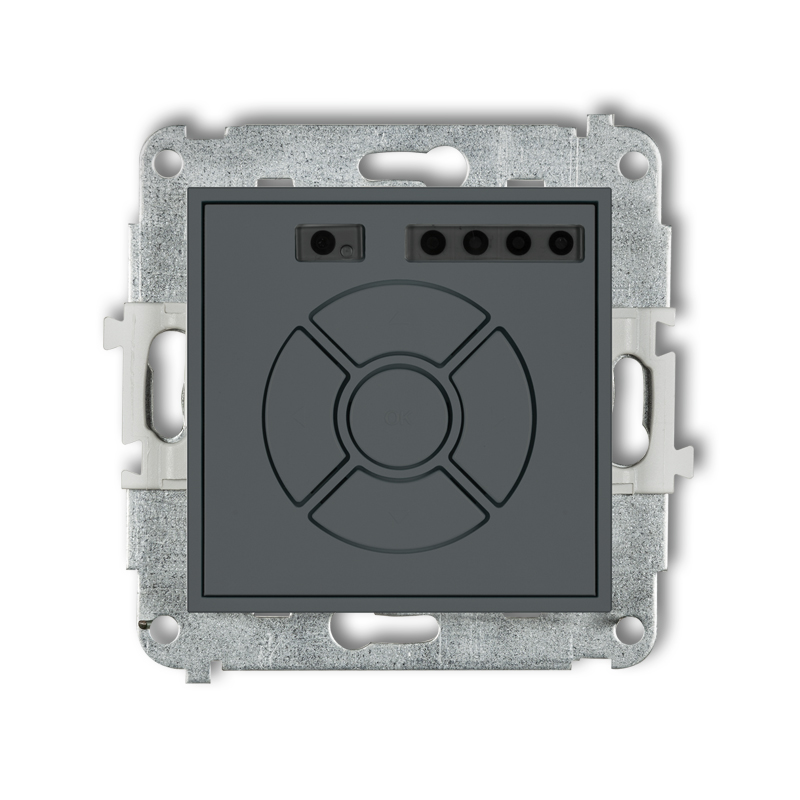

Electronic control roller shutter (local control, remote control, zone control)
matt graphite
28ISR-3
-

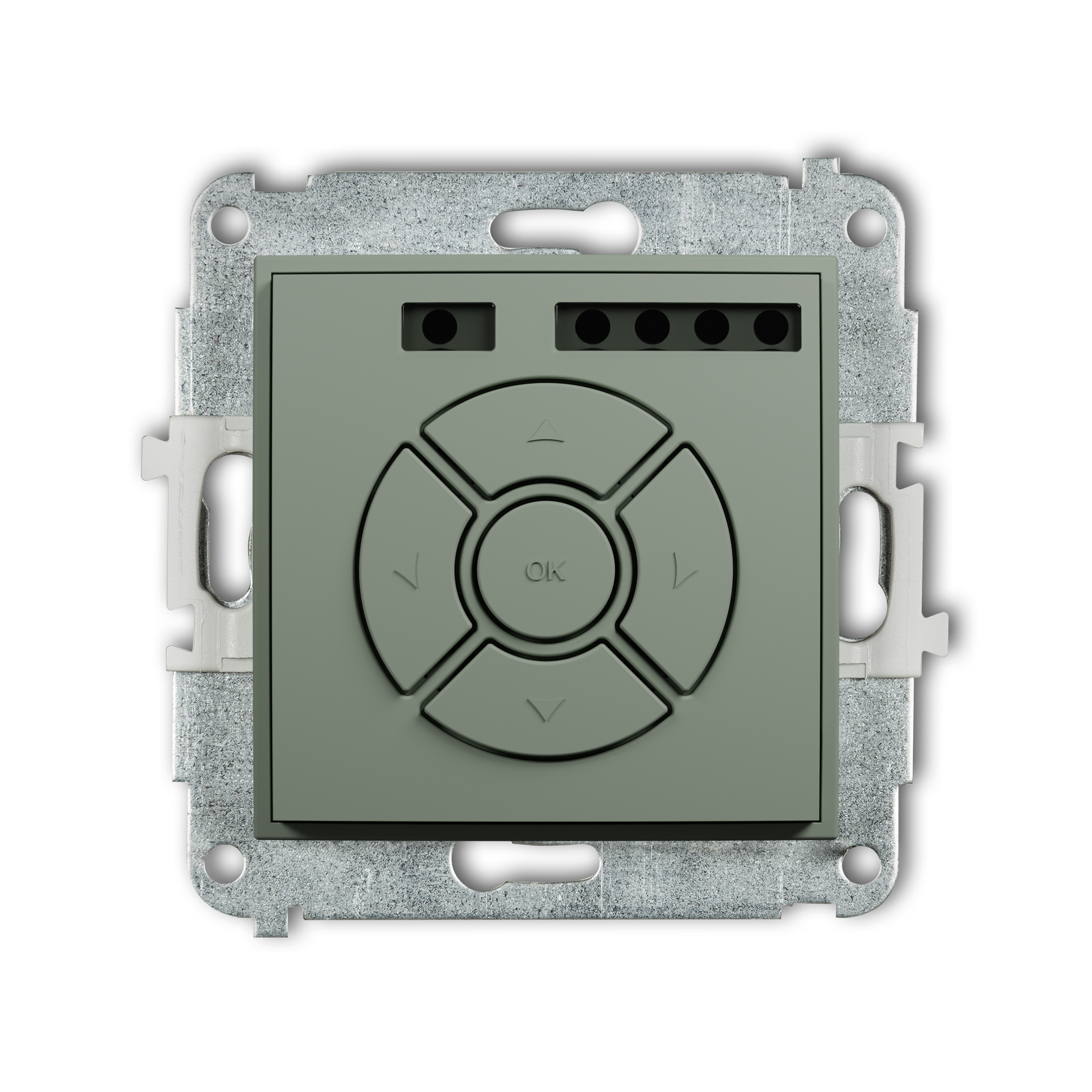

Electronic control roller shutter mechanism (local control and remote control)
sage
61ISR-2
-

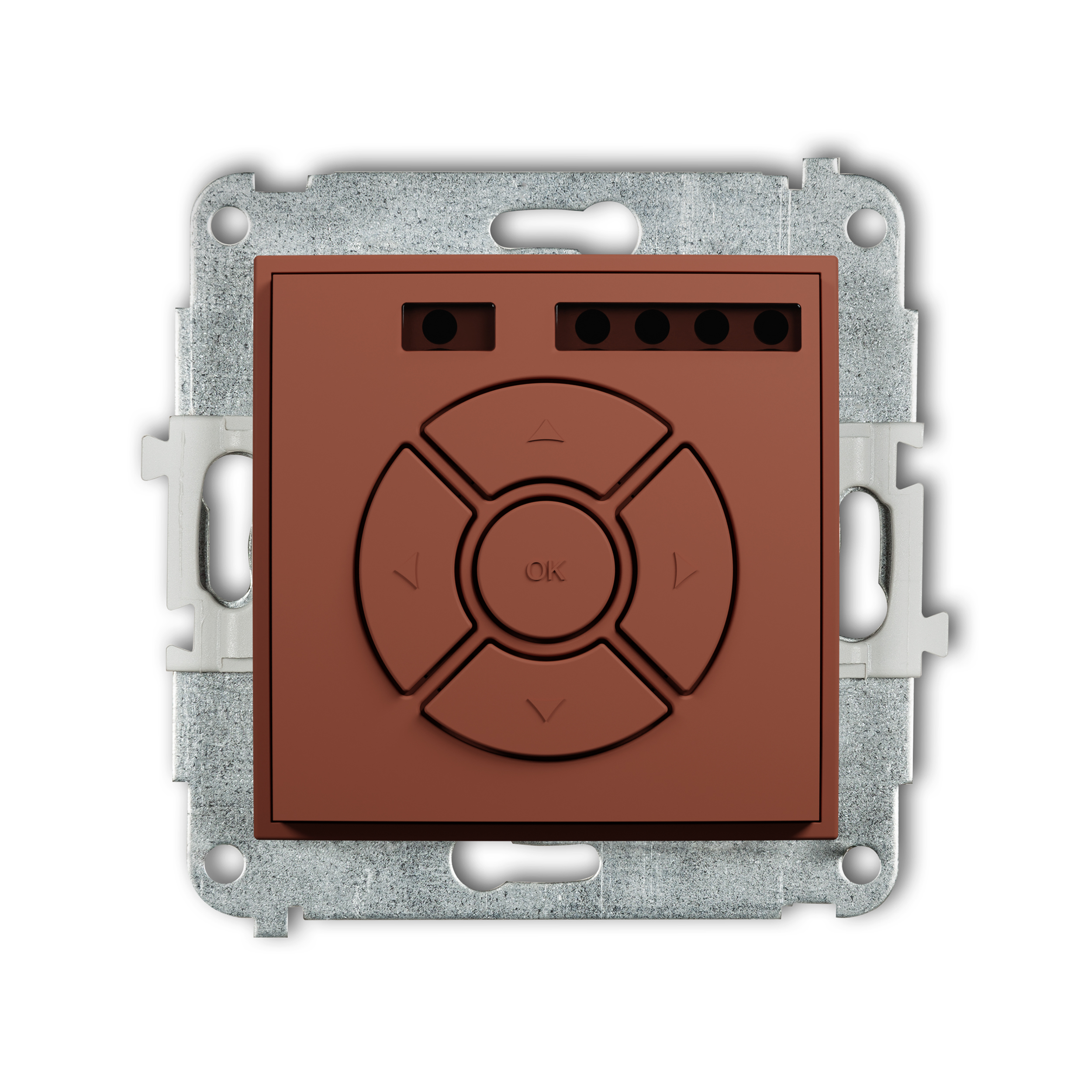

Electronic control roller shutter (local control, remote control, zone control)
terracotta
63ISR-3
Complementary products
Related products
-
Single loudspeaker socket (2,5 mm2) mechanism
white
IGG-1
-
Single socket without the 2P earth mechanism (with increased contact protection/shutter)
matt black
12IGP-1p
-
American-style single push button "bell" mechanism (single push button without pictogram)
matt grey
27MWPUS-4.1
-
BNC single socket mechanism
matt graphite
28MGBNC-1
-

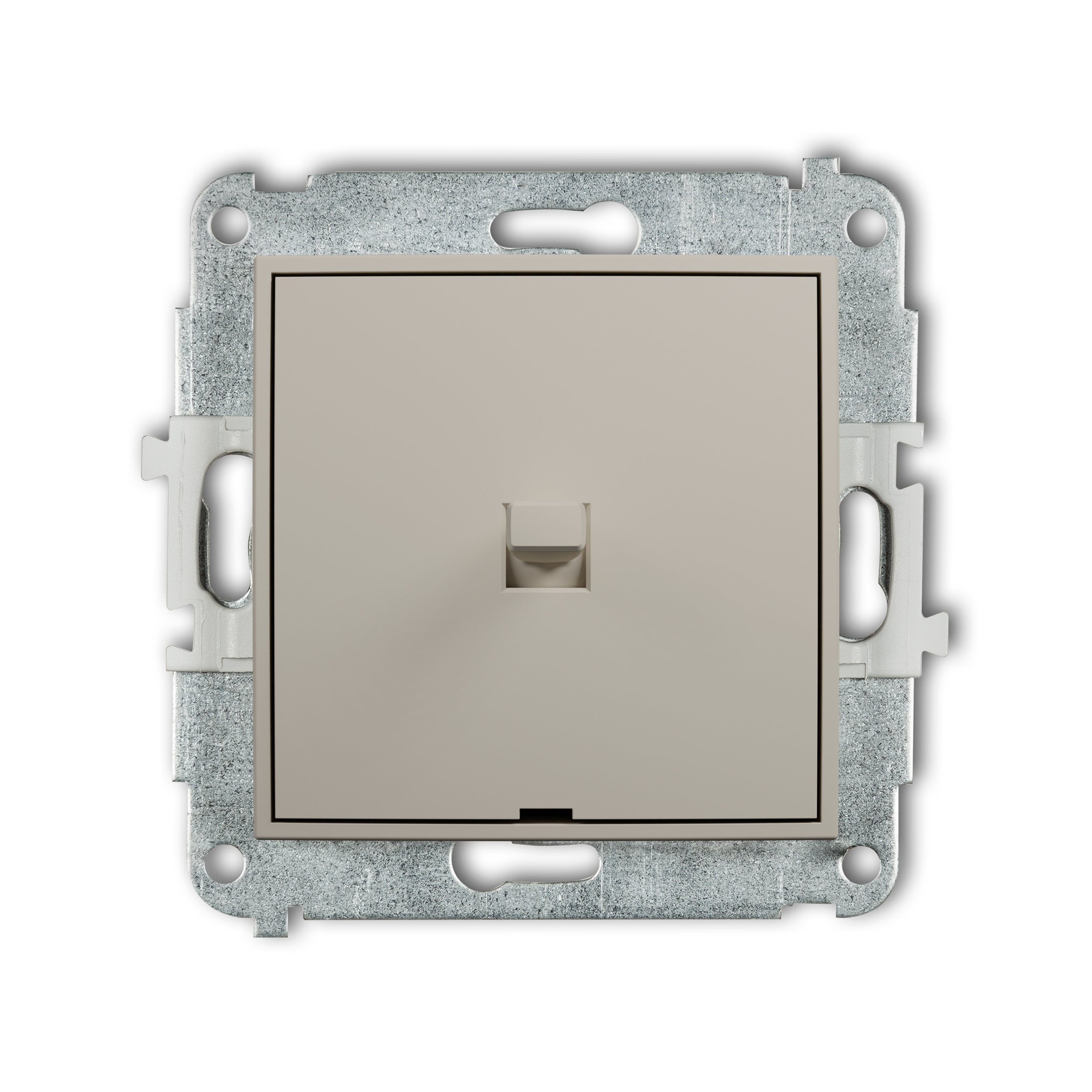

American-style single switch mechanism
taupe
60IWPUS-1
-

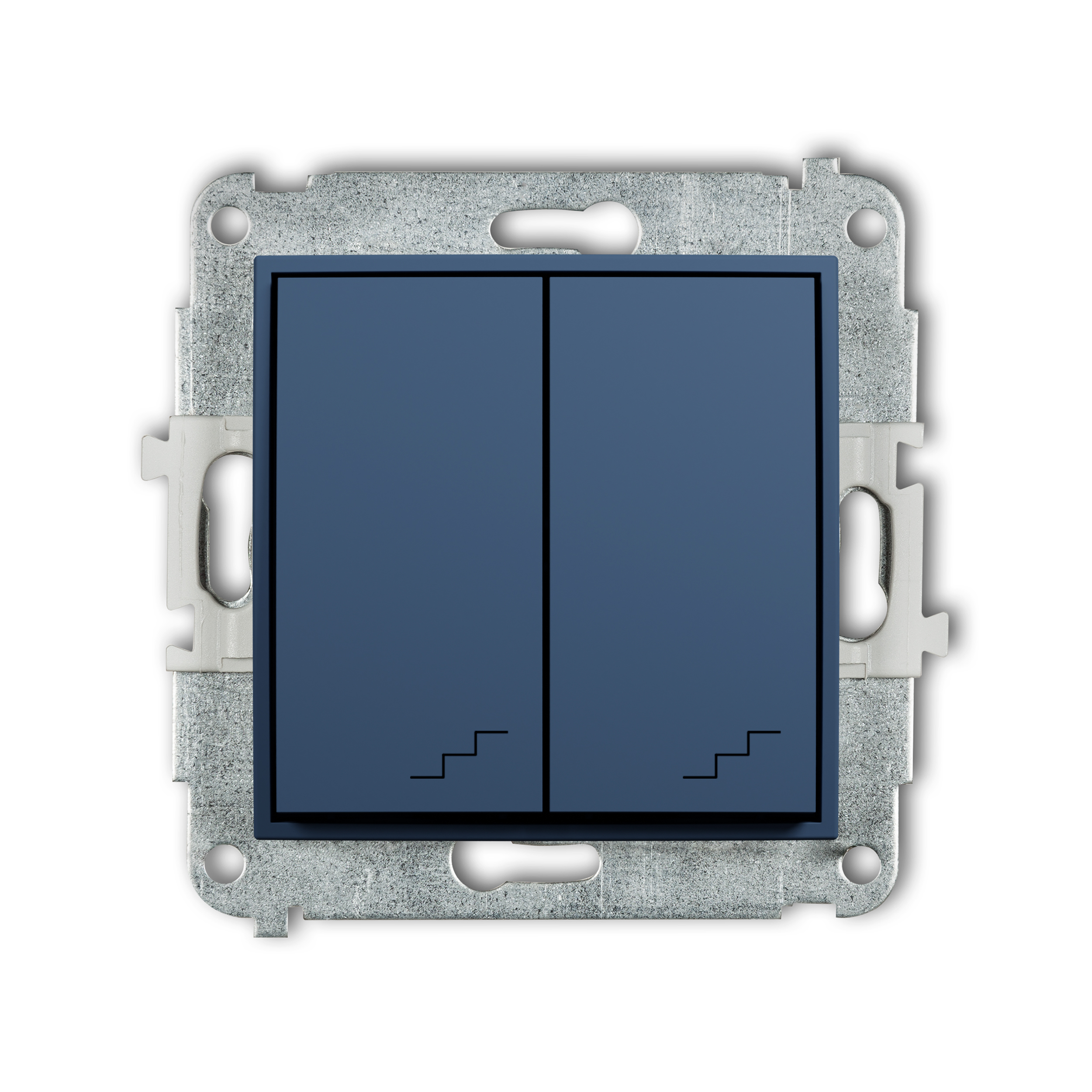

Double two-way switch mechanism
