Double intermediate switch mechanism
white
IWP-66
-
white
IWP-66
-

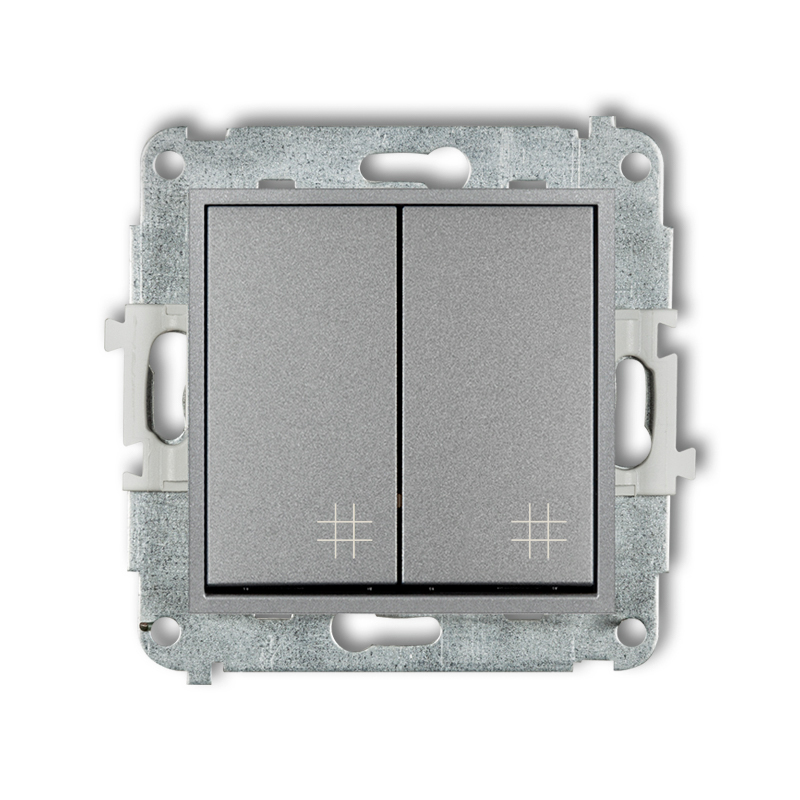

silver metallic
7IWP-66
-

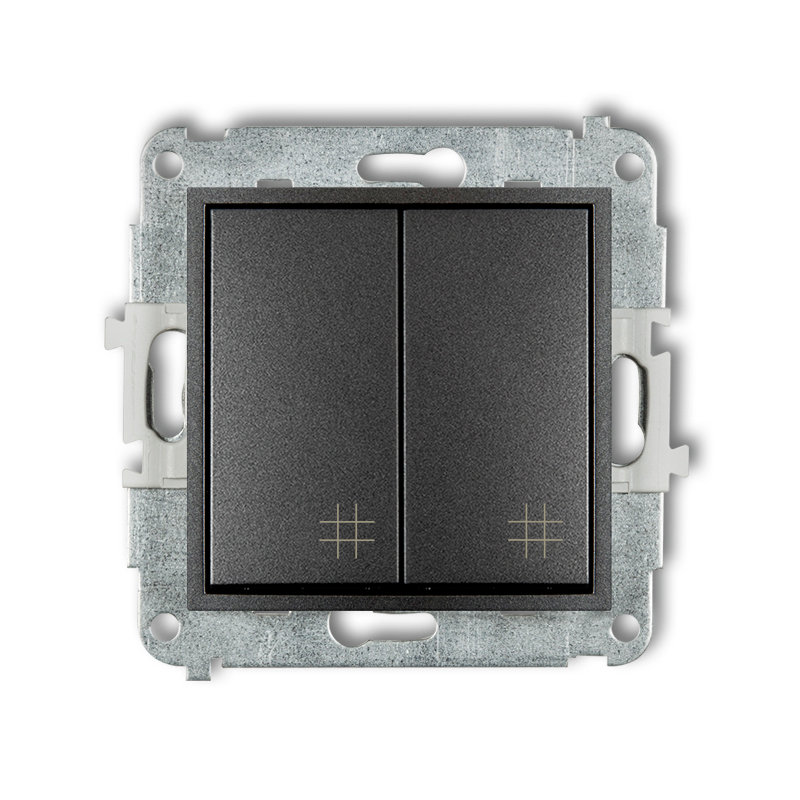

graphite
11IWP-66
-
matt black
12IWP-66
-

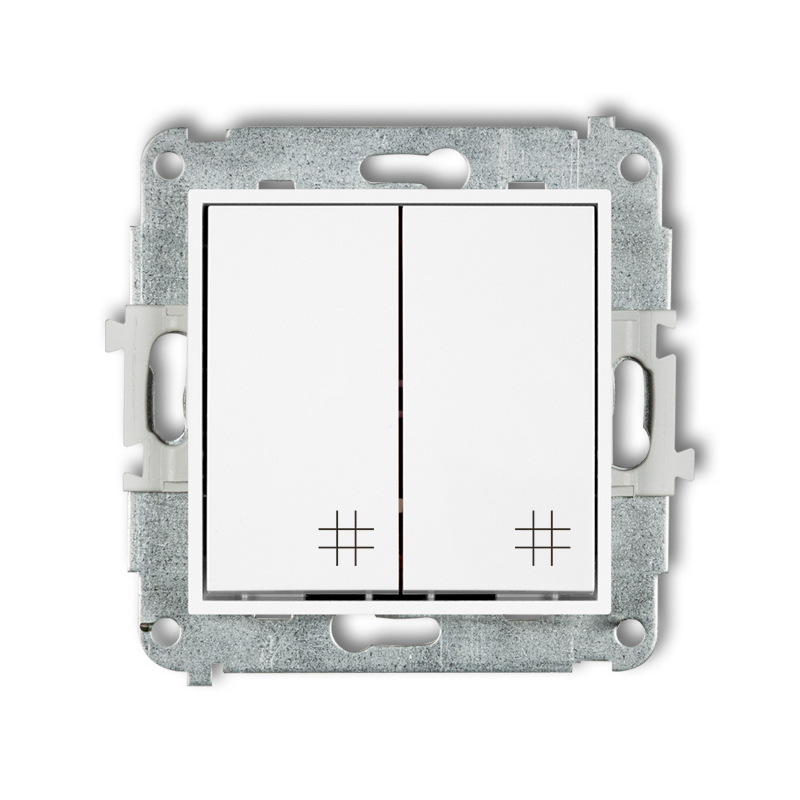

matt white
25IWP-66
-
matt grey
27IWP-66
-
matt graphite
28IWP-66
-
gold
29IWP-66
-

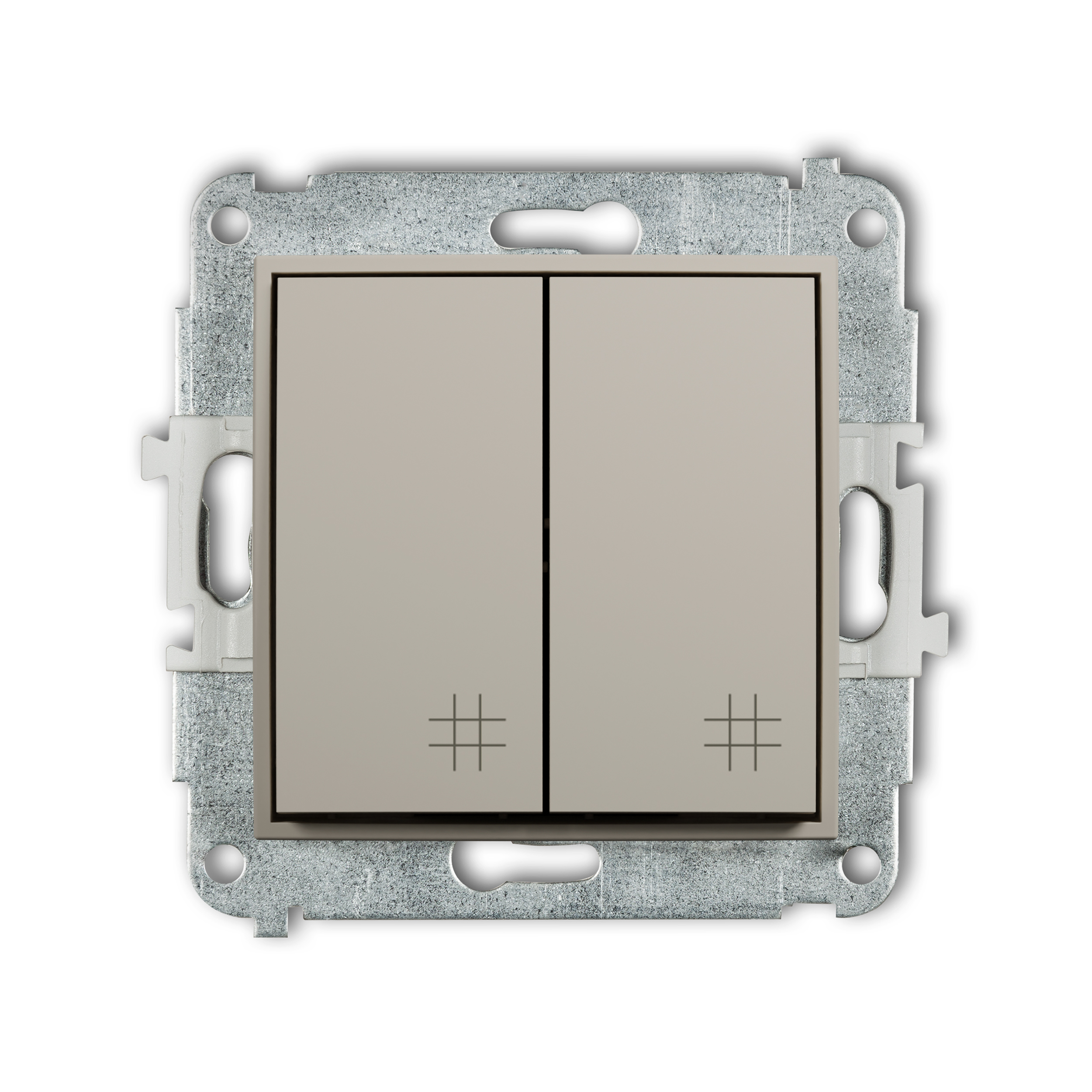

taupe
60IWP-66
-
sage
61IWP-66
-
salmon
62IWP-66
-
terracotta
63IWP-66
-

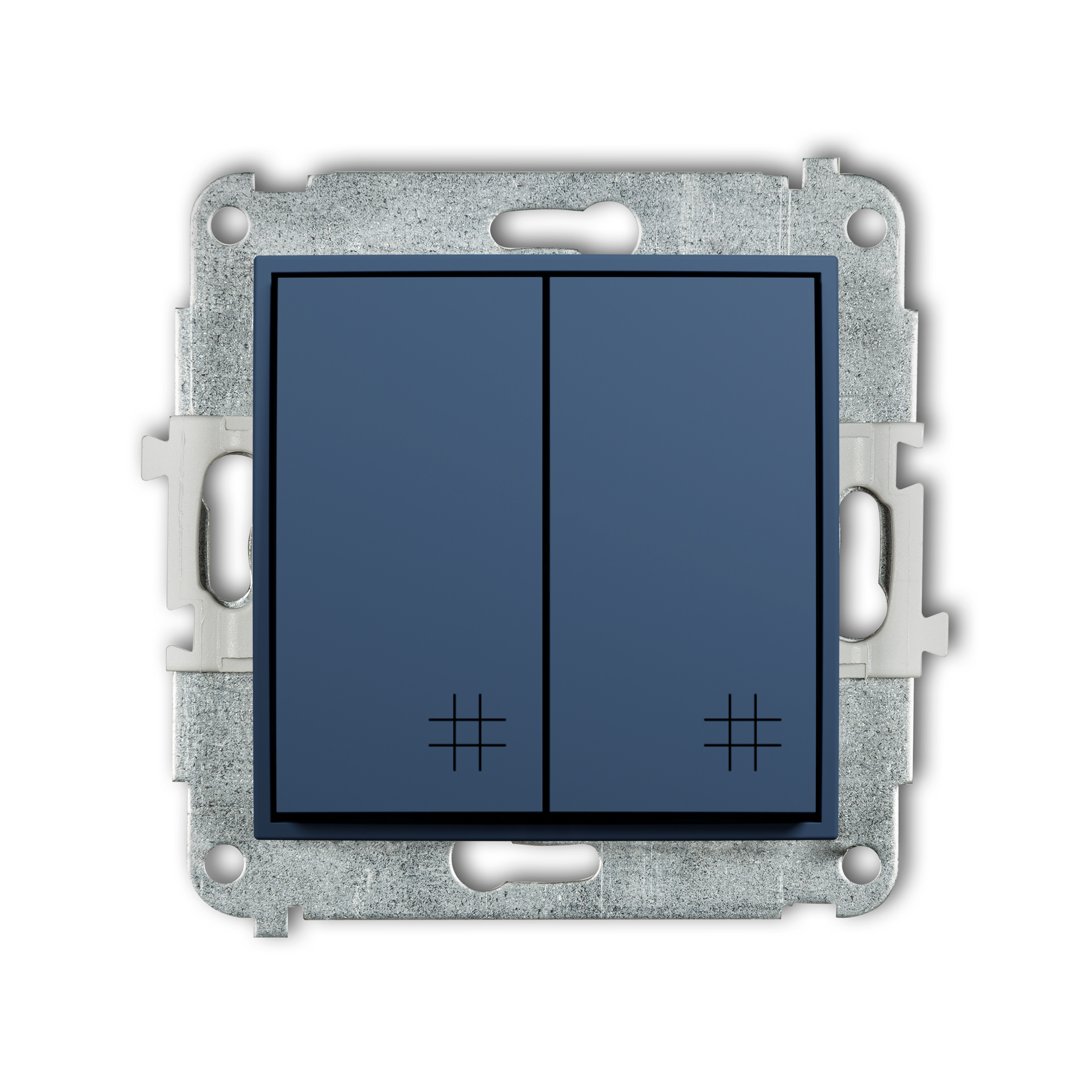

navy blue
64IWP-66
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all ICON switches besides the following switches: IWP-7, IWP-8, IWP-8.1, IWP-44.2, IWP-66, IWP-66.1, IWP-88, IWP-88.1, IWP-10.2, IWP-10.21.
ICON switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all ICON switches besides the following switches: IWP-66, IWP-66.1, IWP-7, IWP-8, IWP-8.1, IWP-88, IWP-88.1.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| UV resistance | Resistant |
Product variants
-
Intermediate switch mechanism
white
IWP-6
-
Intermediate switch mechanism
matt black
12IWP-6
-
Intermediate switch mechanism
matt grey
27IWP-6
-

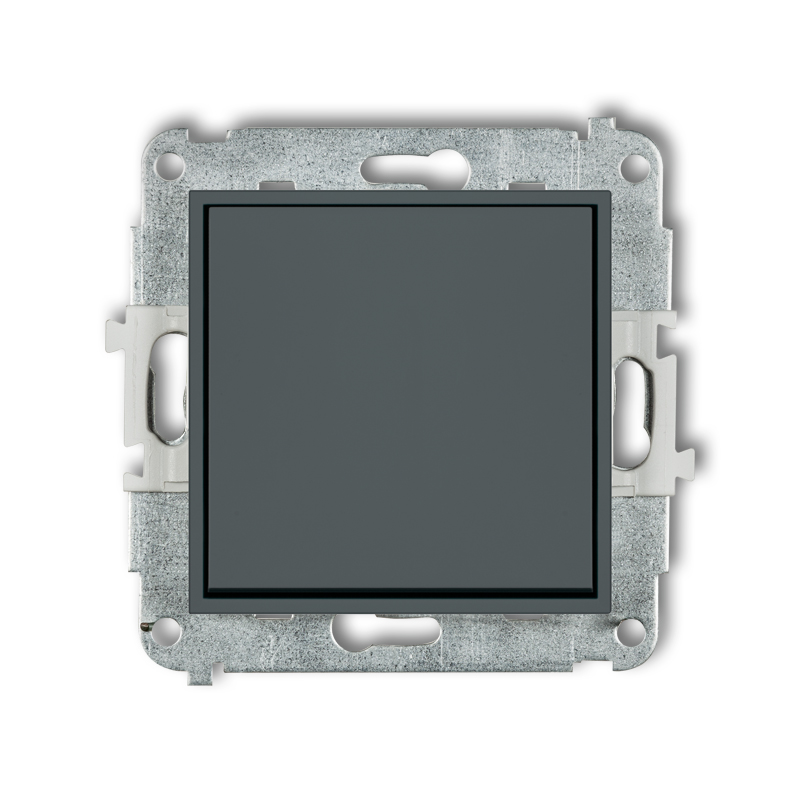

Intermediate switch mechanism (single push button without pictogram)
matt graphite
28IWP-6.1
-
Intermediate switch mechanism (single push button without pictogram)
taupe
60IWP-6.1
-
Intermediate switch mechanism
terracotta
63IWP-6
