Roller blind switch mechanism with mechanical lock (double push button without pictograms)
white
IWP-88.1
-
white
IWP-88.1
-

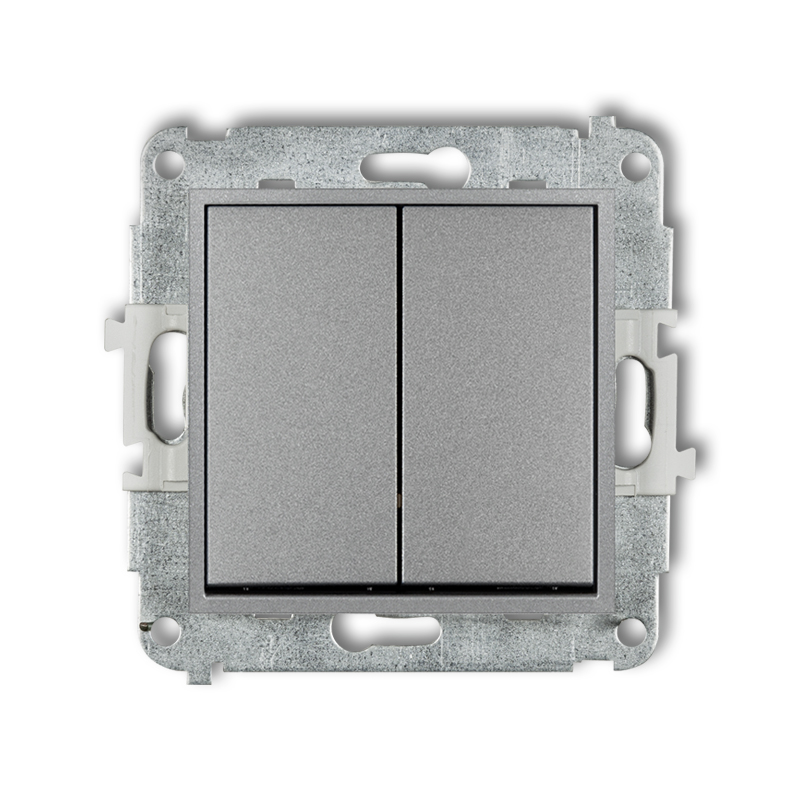

silver metallic
7IWP-88.1
-

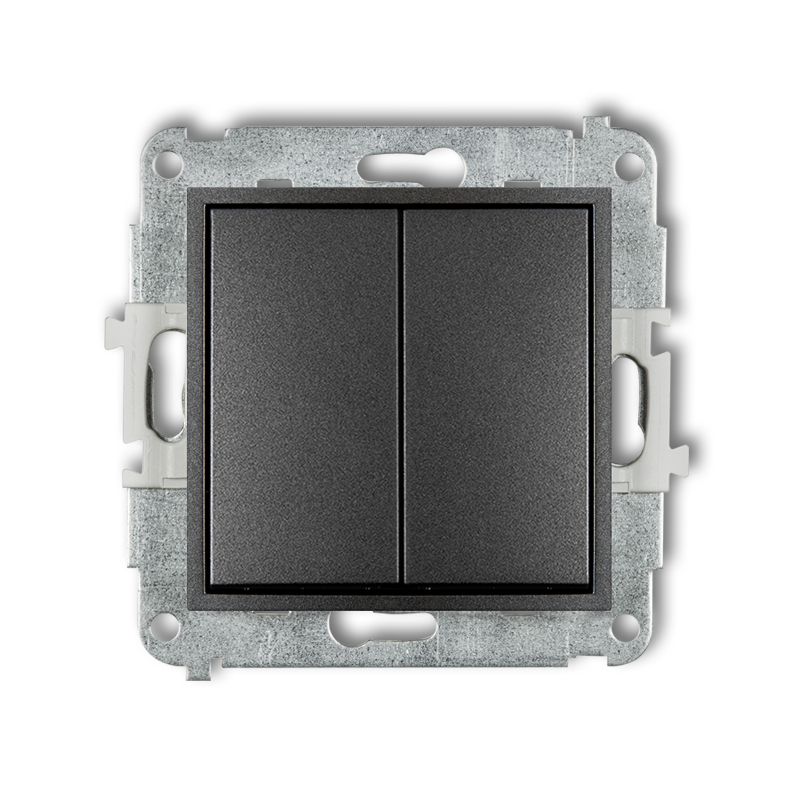

graphite
11IWP-88.1
-
matt black
12IWP-88.1
-
matt white
25IWP-88.1
-
matt grey
27IWP-88.1
-

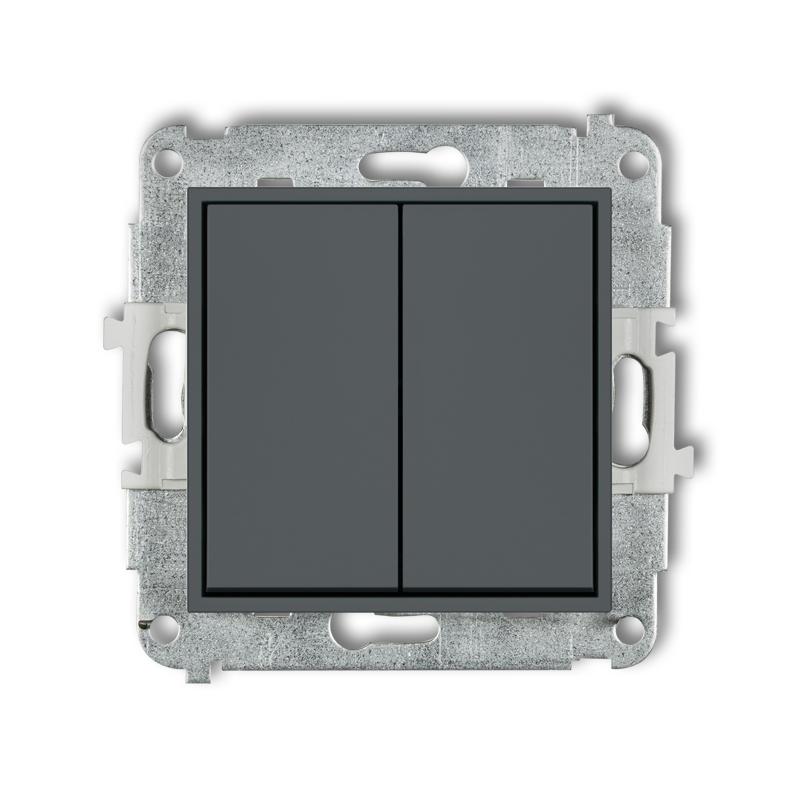

matt graphite
28IWP-88.1
-

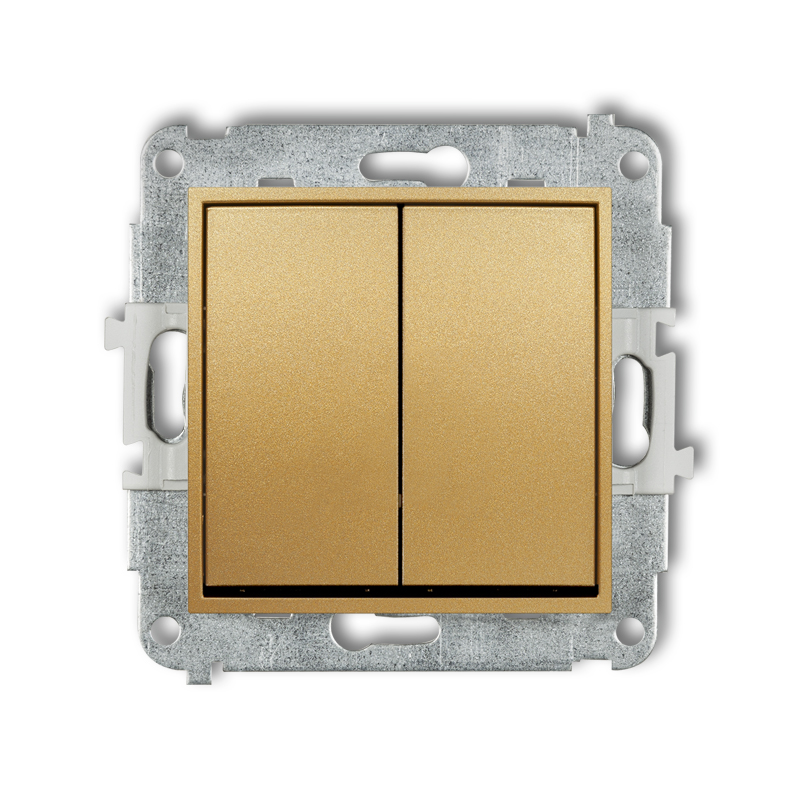

gold
29IWP-88.1
-

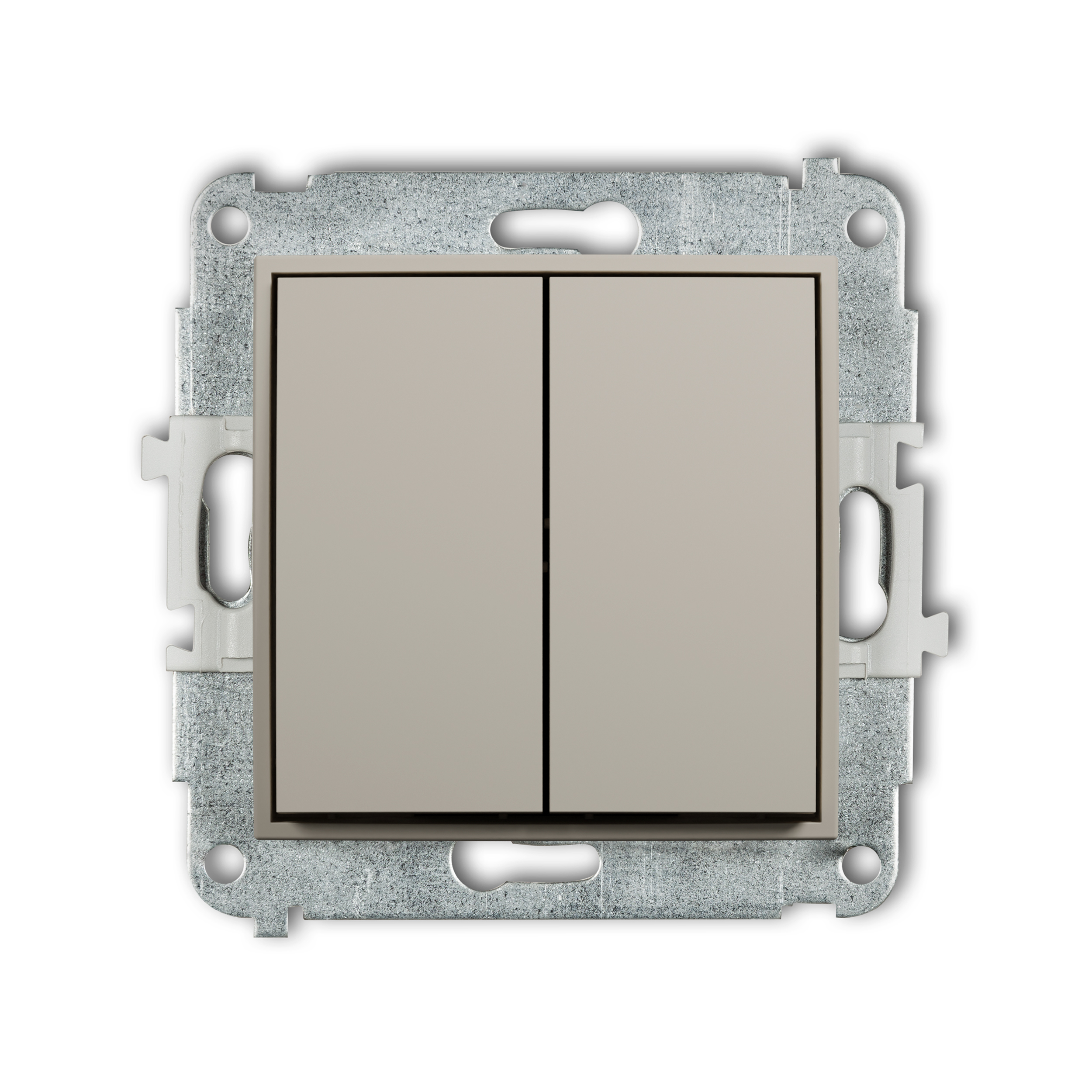

taupe
60IWP-88.1
-
sage
61IWP-88.1
-
salmon
62IWP-88.1
-
terracotta
63IWP-88.1
-
navy blue
64IWP-88.1
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all ICON switches besides the following switches: IWP-7, IWP-8, IWP-8.1, IWP-44.2, IWP-66, IWP-66.1, IWP-88, IWP-88.1, IWP-10.2, IWP-10.21.
ICON switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all ICON switches besides the following switches: IWP-66, IWP-66.1, IWP-7, IWP-8, IWP-8.1, IWP-88, IWP-88.1.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Podłączenie | Screw terminals |
| UV resistance | Resistant |
