American-style single pole with two-way switch mechanism (double push button without pictograms, common power supply)
white
IWPUS-10.11
-
white
IWPUS-10.11
-
silver metallic
7IWPUS-10.11
-

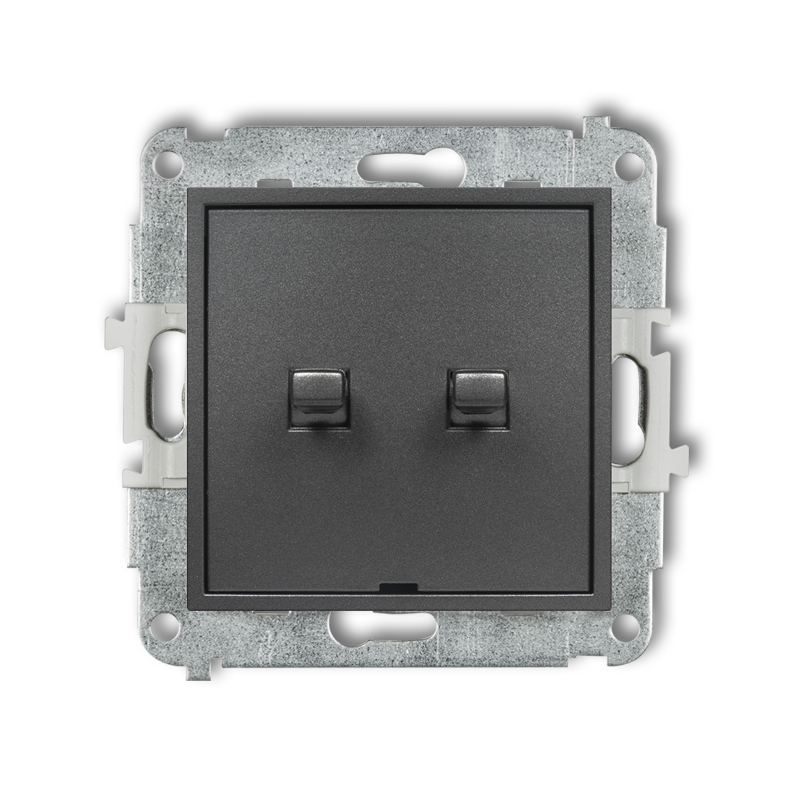

graphite
11IWPUS-10.11
-
matt black
12IWPUS-10.11
-

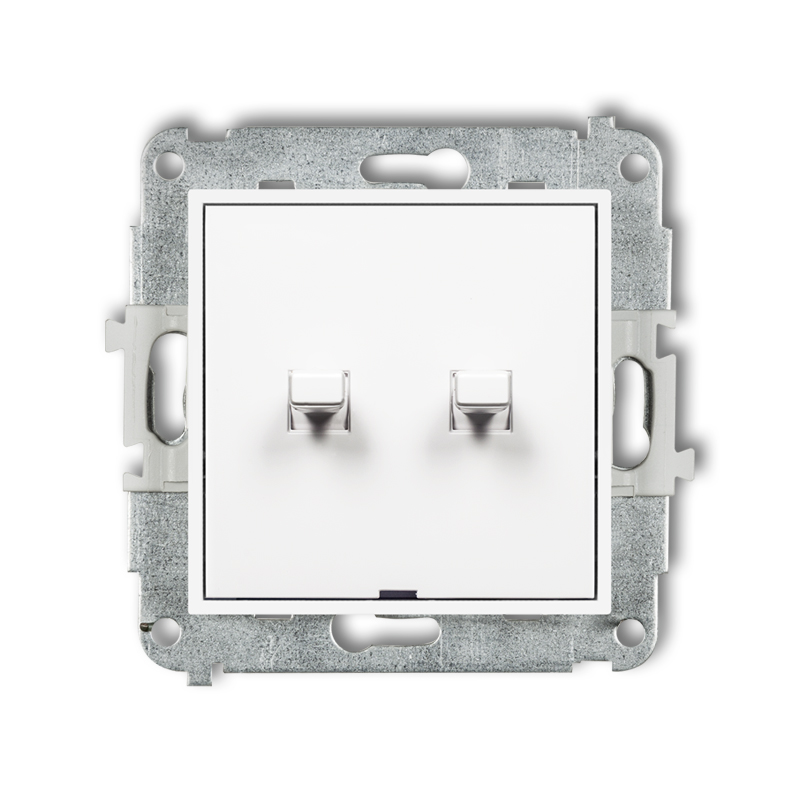

matt white
25IWPUS-10.11
-
27IWPUS-10.11
-
matt graphite
28IWPUS-10.11
-

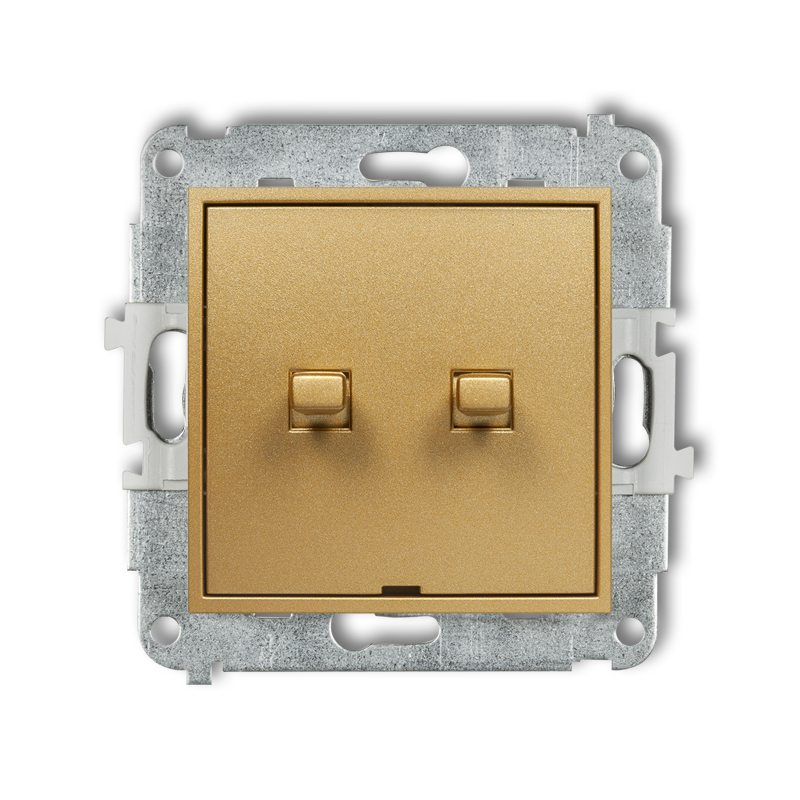

gold
29IWPUS-10.11
-
taupe
60IWPUS-10.11
-

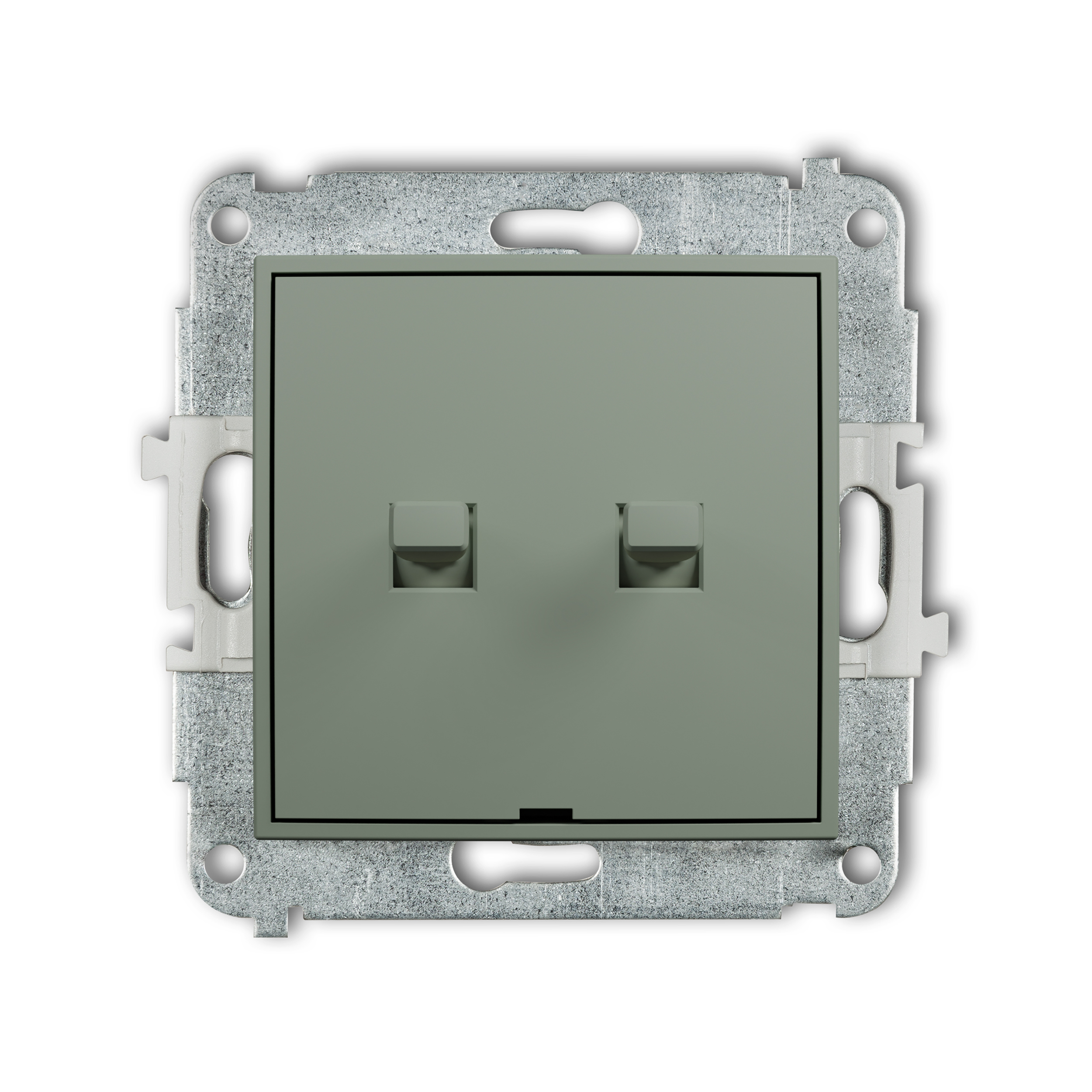

sage
61IWPUS-10.11
-

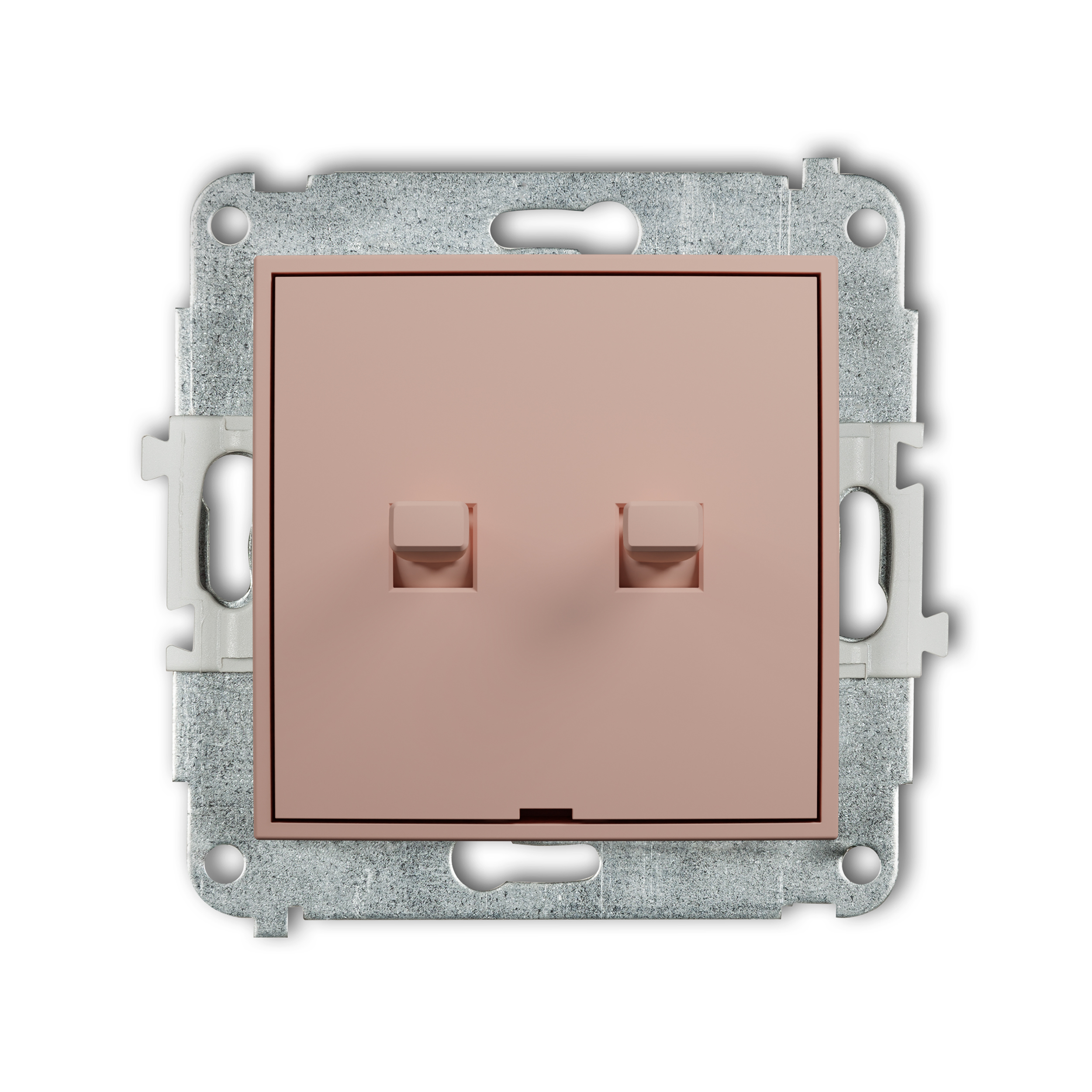

salmon
62IWPUS-10.11
-
terracotta
63IWPUS-10.11
-
navy blue
64IWPUS-10.11
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all ICON switches besides the following switches: IWPUS-8, IWPUS-44.2, IWPUS-33, IWPUS-33.1, IWPUS-10.2, IWPUS-10.21.
ICON switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Podłączenie | Screw terminals |
| UV resistance | Resistant |
Product variants
-
American-style single pole with two-way switch mechanism (separate power supply)
white
IWPUS-10.2
-
American-style single switch mechanism
matt grey
27IWPUS-1
-

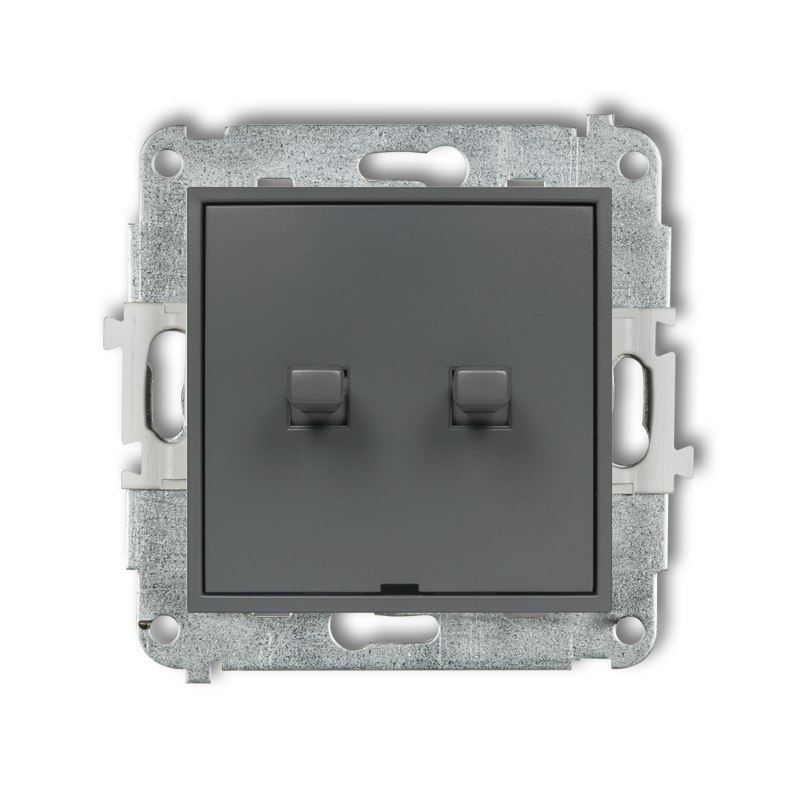

American-style two-circuit switch mechanism
