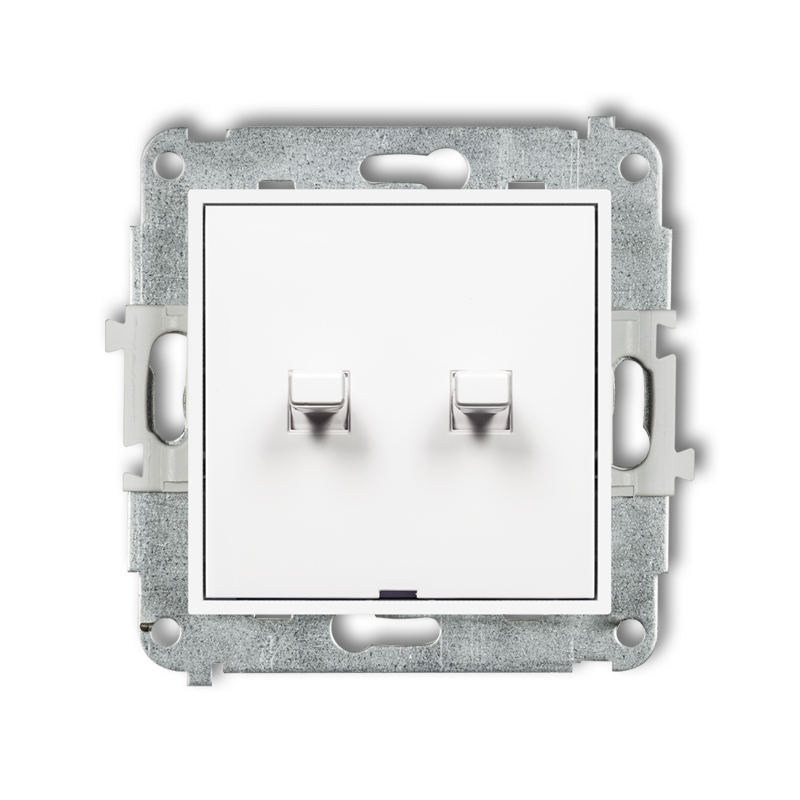

American-style two-circuit switch mechanism
white
IWPUS-2
-
white
IWPUS-2
-
silver metallic
7IWPUS-2
-
graphite
11IWPUS-2
-
matt black
12IWPUS-2
-
matt white
25IWPUS-2
-
matt grey
27IWPUS-2
-
matt graphite
28IWPUS-2
-

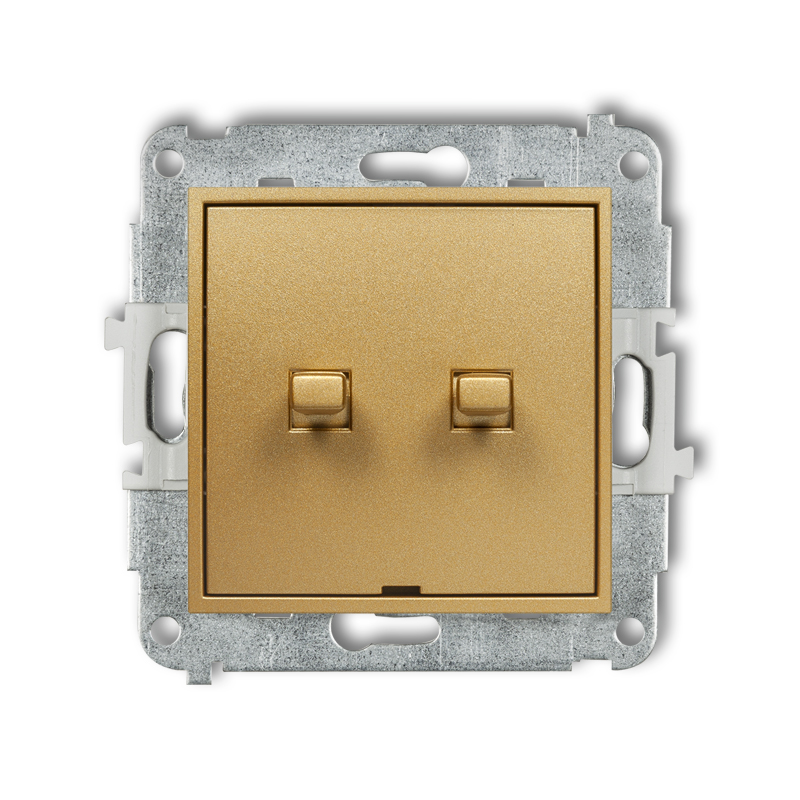

gold
29IWPUS-2
-
taupe
60IWPUS-2
-
sage
61IWPUS-2
-
salmon
62IWPUS-2
-
terracotta
63IWPUS-2
-

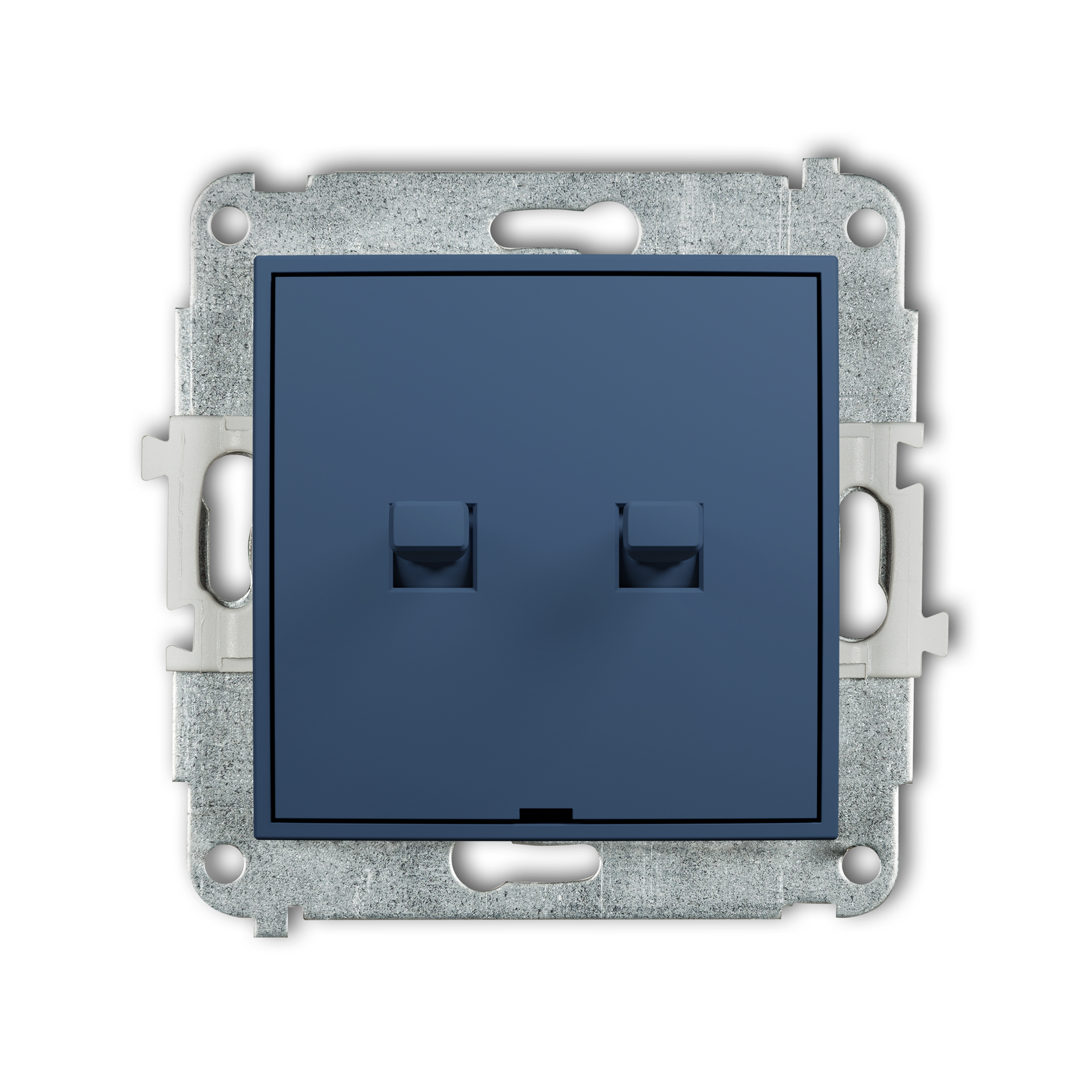

navy blue
64IWPUS-2
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all ICON switches besides the following switches: IWPUS-8, IWPUS-44.2, IWPUS-33, IWPUS-33.1, IWPUS-10.2, IWPUS-10.21.
ICON switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Podłączenie | Screw terminals |
| UV resistance | Resistant |
Product variants
-
American-style single pole with two-way switch mechanism (double push button without pictograms, common power supply)
white
IWPUS-10.11
-

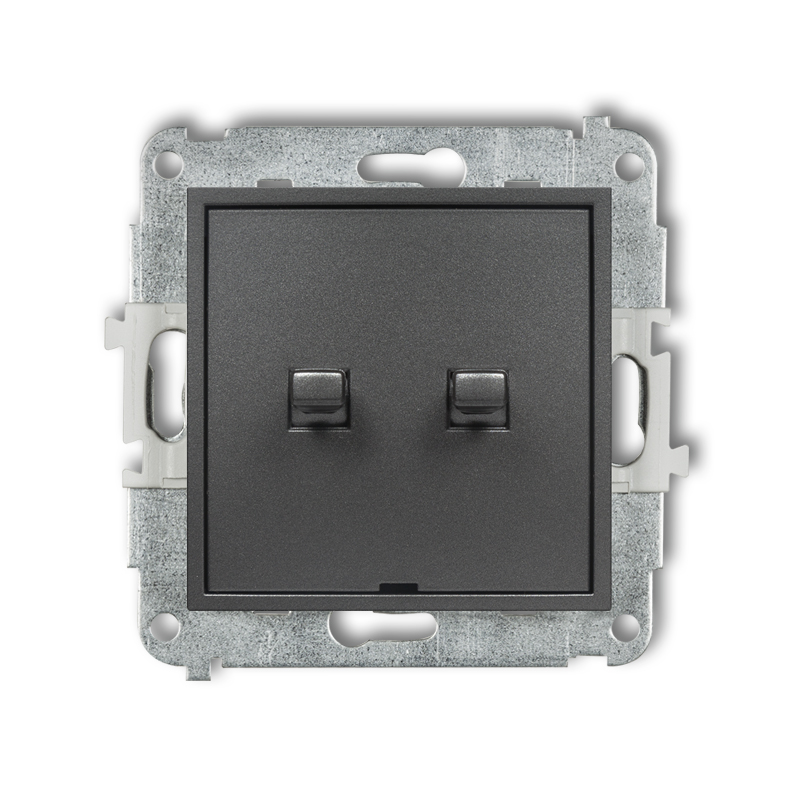

American-style two-circuit push button mechanism (double push button without pictograms, common power supply)
graphite
11IWPUS-44.1
-
American-style two-way switch mechanism (single push button without pictogram)
matt black
12IWPUS-3.1
-
American-style single pole with two-way switch mechanism (common power supply)
matt graphite
28IWPUS-10.1
-
American-style roller blind switch mechanism (double push button without pictograms)
taupe
60IWPUS-8
-
American-style double pole switch mechanism
terracotta
63IWPUS-9
