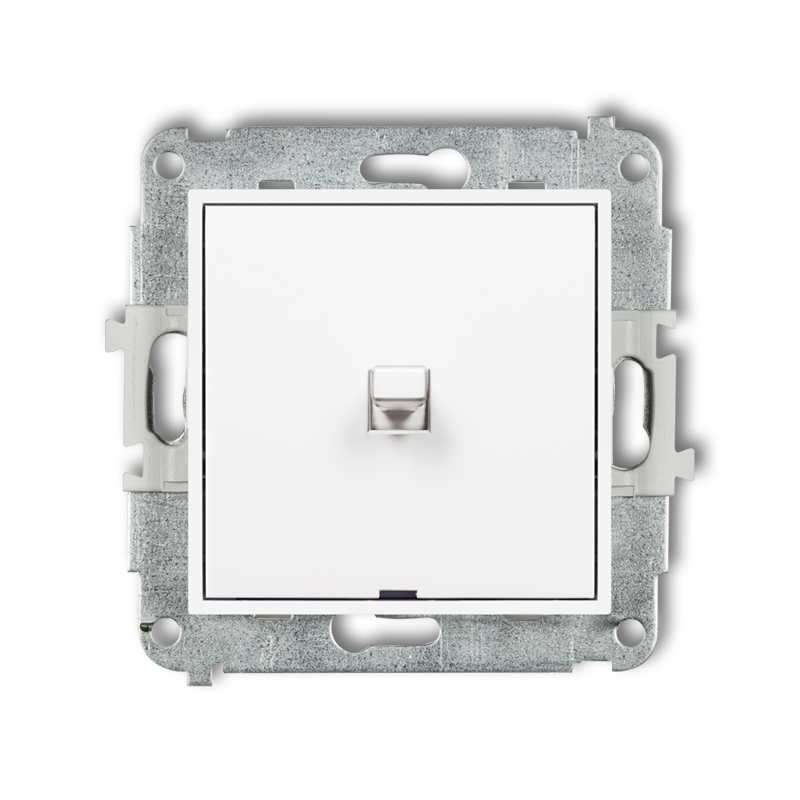

American-style intermediate switch mechanism (single push button without pictogram)
white
IWPUS-6.1
-
white
IWPUS-6.1
-

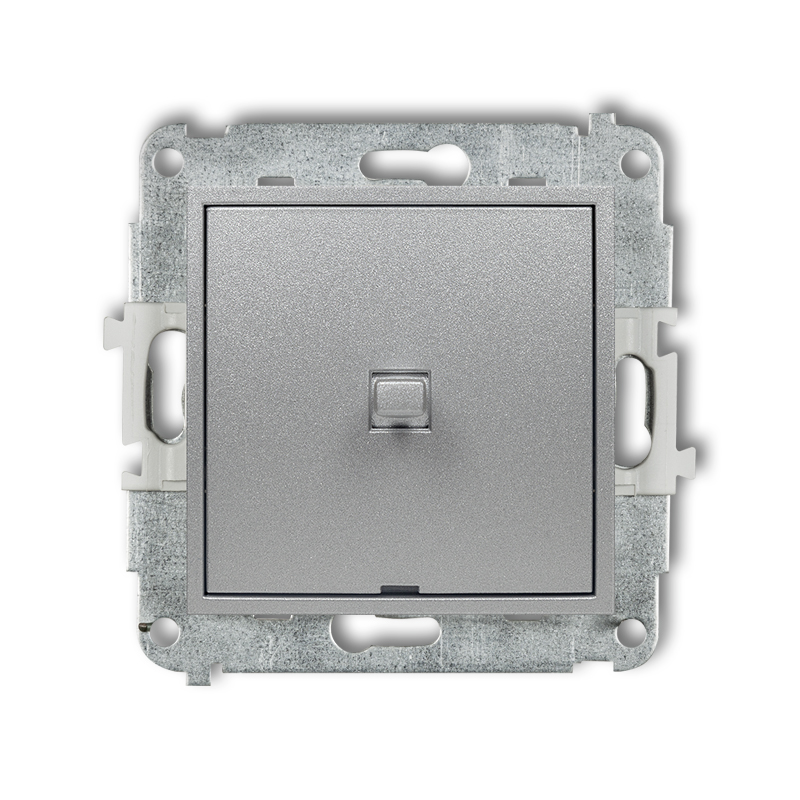

silver metallic
7IWPUS-6.1
-

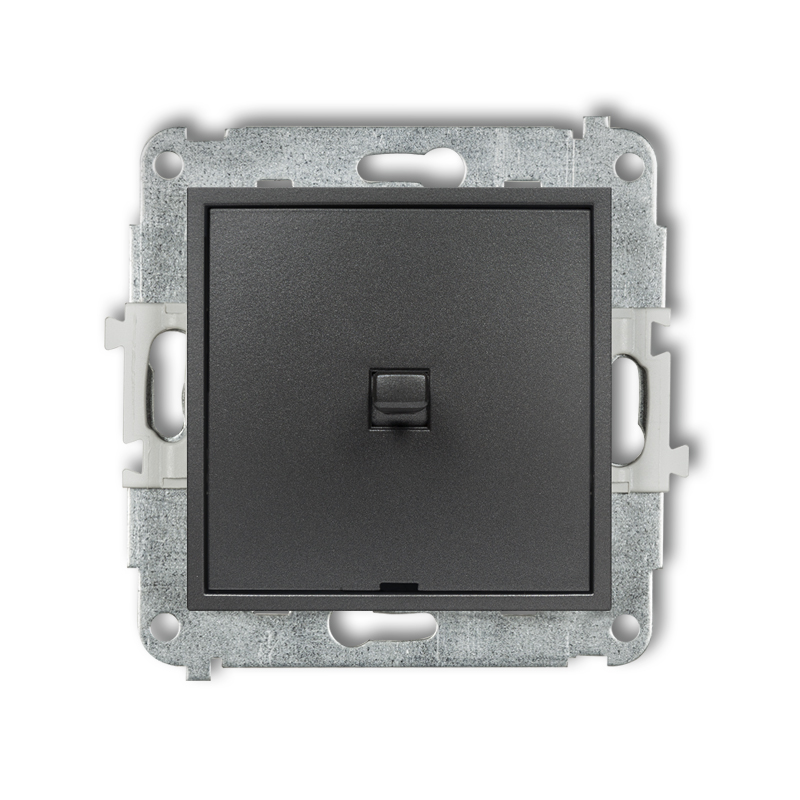

graphite
11IWPUS-6.1
-

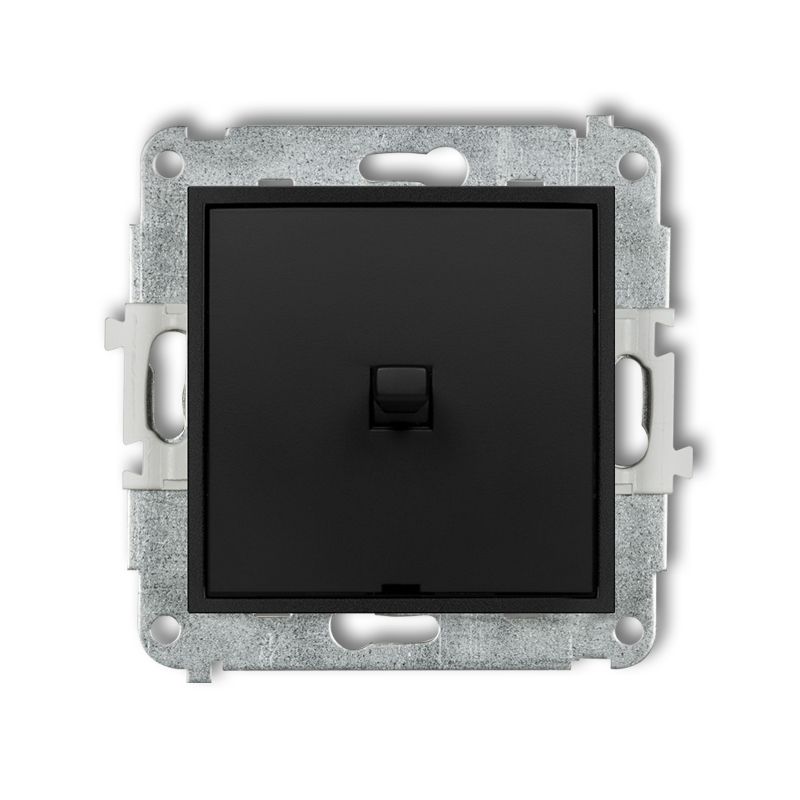

matt black
12IWPUS-6.1
-
matt white
25IWPUS-6.1
-

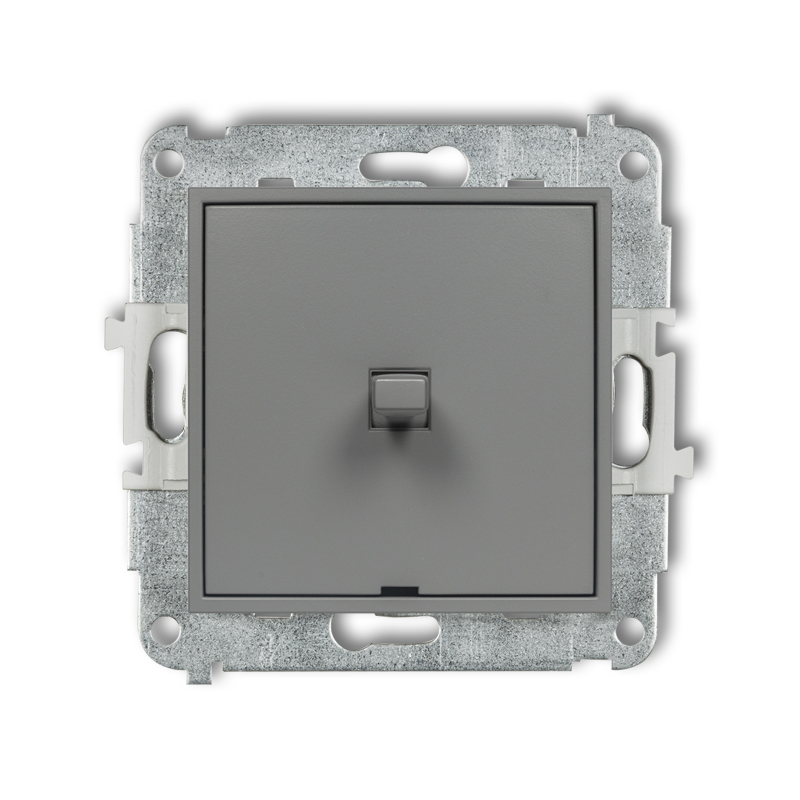

matt grey
27IWPUS-6.1
-
matt graphite
28IWPUS-6.1
-
29IWPUS-6.1
-

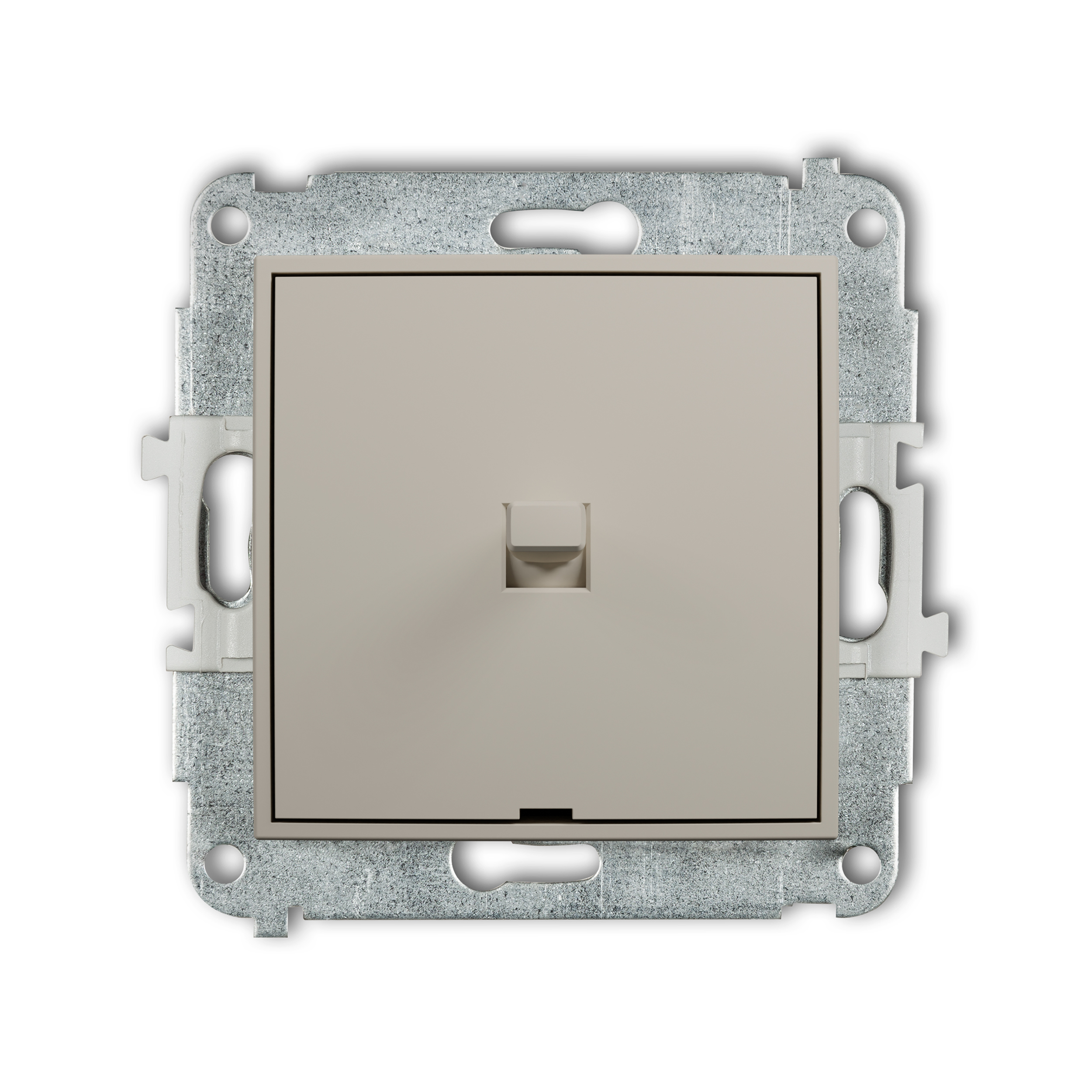

taupe
60IWPUS-6.1
-
sage
61IWPUS-6.1
-

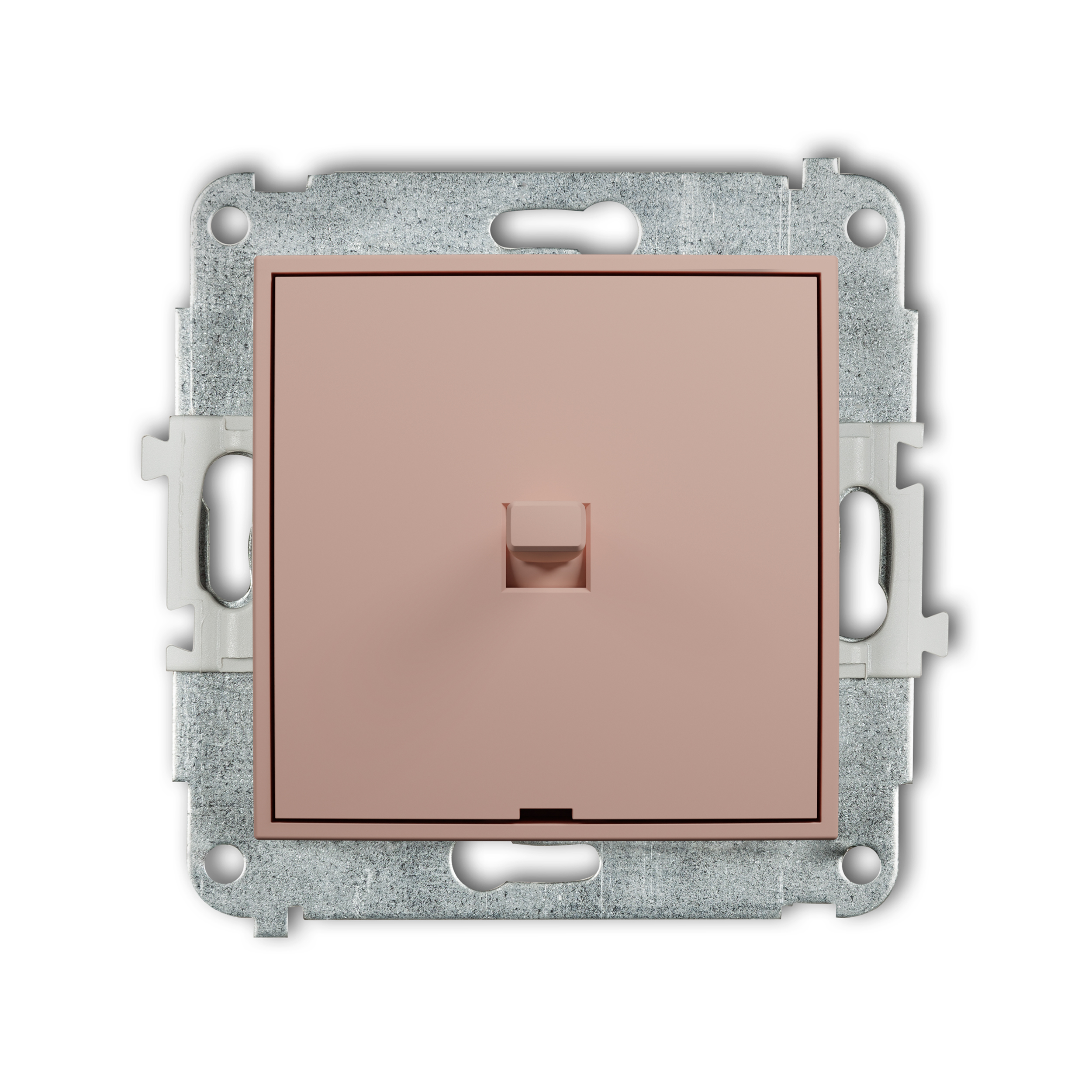

salmon
62IWPUS-6.1
-

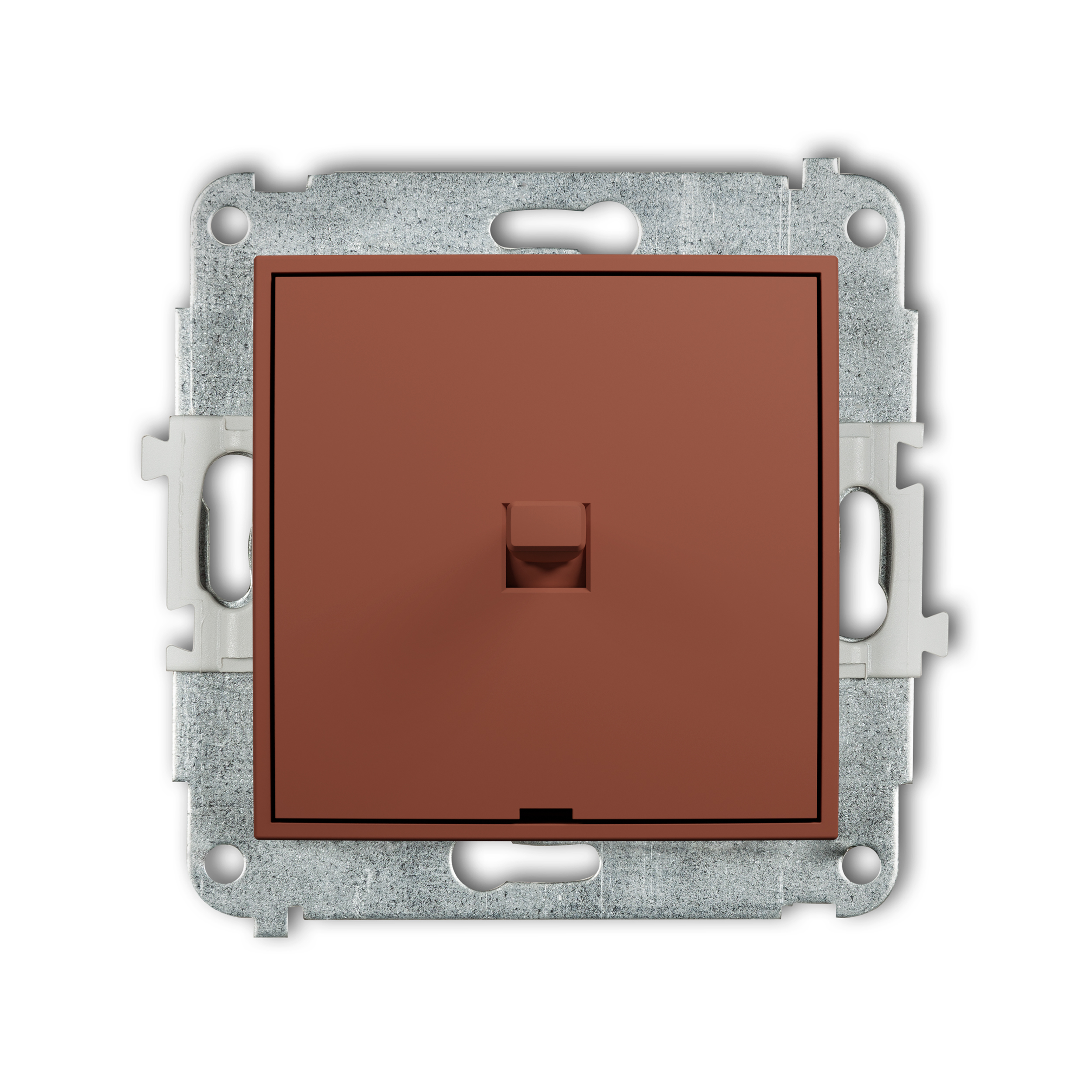

terracotta
63IWPUS-6.1
-

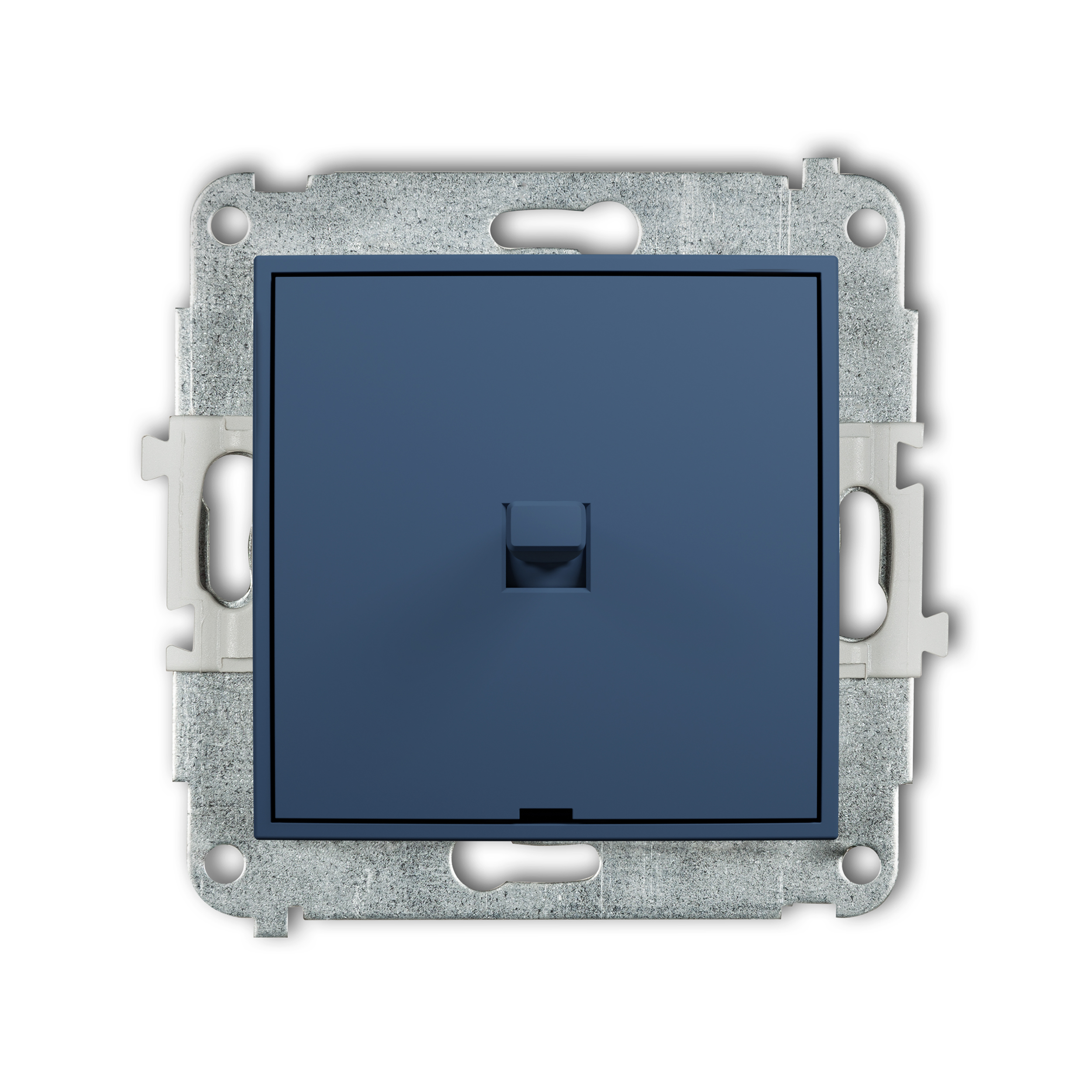

navy blue
64IWPUS-6.1
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON switches in American style are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all ICON switches besides the following switches: IWPUS-8, IWPUS-44.2, IWPUS-33, IWPUS-33.1, IWPUS-10.2, IWPUS-10.21.
ICON switches in american style are not available in hermetic type (IP44) - sealant can not be used with the American style switches mechanisms.
The actual appearance of product may be different from the presented photographs.
Technical data
| Protection index | IP 20 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |
Product variants
-
Two-way switch mechanism (single push button without pictogram)
white
IWP-3.1
-
American-style two-way switch mechanism
silver metallic
7IWPUS-3
-
American-style intermediate switch mechanism
matt black
12IWPUS-6
-
Two-way switch mechanism
matt grey
27IWP-3
-

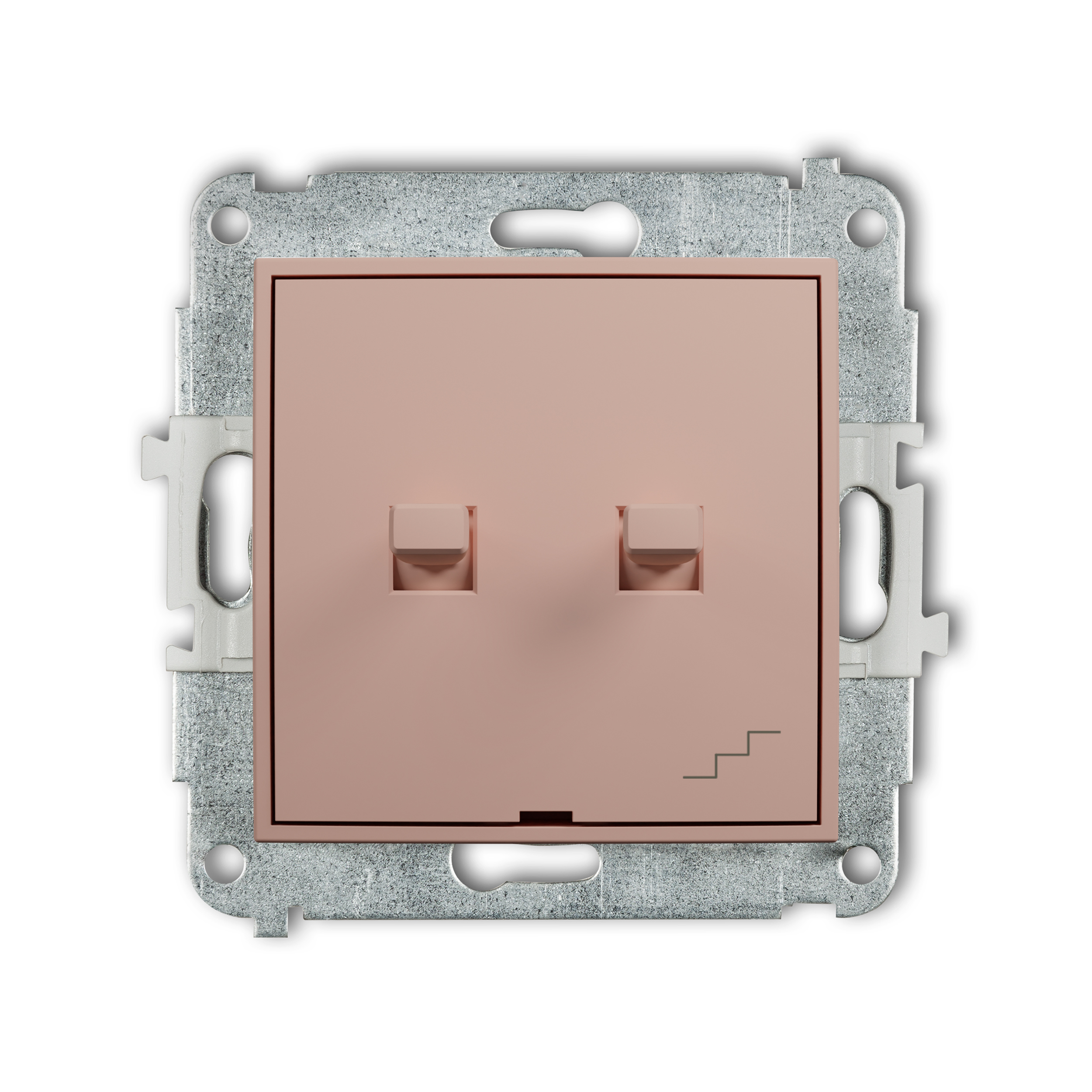

American-style double two-way switch mechanism
