Two-key four-channel transmitter for Exta Free system
white
DEF-2
-
white
DEF-2
-
beige
1DEF-2
-
silver metallic
7DEF-2
-
gold metallic
8DEF-2
-
brown metallic
9DEF-2
-
graphite
11DEF-2
-
matt black
12DEF-2
-
matt grey
27DEF-2
-
matt graphite
28DEF-2
-
gold
29DEF-2
Product description
Downloads
Configurator
DECO Smart key transmitters for wireless system light controlling system, heating system, air conditioning system, window blinds system, etc., for Exta Free or Exta Life systems.
You do not need wiring to use the key transmitters. You can fix them in any place (e.g. with use of strong double-sided strip type) on any kind of surface excluding metal one. As they are decided to particular system it is advisable to choose system of Zamel Sp. z o.o. prior to purchase of DECO Smart key transmitters.
Unlike Exta Free system, Exta Life system ebables two-way communication between the controller and the receivers, which provides the user with information about recent state of the devices.
DECO Smart key transmitters are available in all colours of DECO series mechanisms and are compatible with all types of DECO frames, both single and multiple frames. DECO Smart key transmitters and universal DECO frames are sold separately.
Technical data
| Nominal supply voltage | 3 V DC |
| Type of battery | CR 2032 |
| Battery life | 3–5 years (depending on usage) |
| Number of channels | 4 |
| Transmission | radio 868.32 MHz |
| Method of transmission | one-way |
| Encoding | transmission with addressing |
| Range | up to 250 m in open space |
| Visual indication of transmission / battery condition | LED diode red |
| Operation temperature | -10 ÷ +55 °C |
| Operation position | any |
| Method of installation | anchors, double-sided tape |
| Ingress protection of enclosure | IP 20 (PN-EN 60529) |
| Appliance class | III |
| Contamination level | 2 |

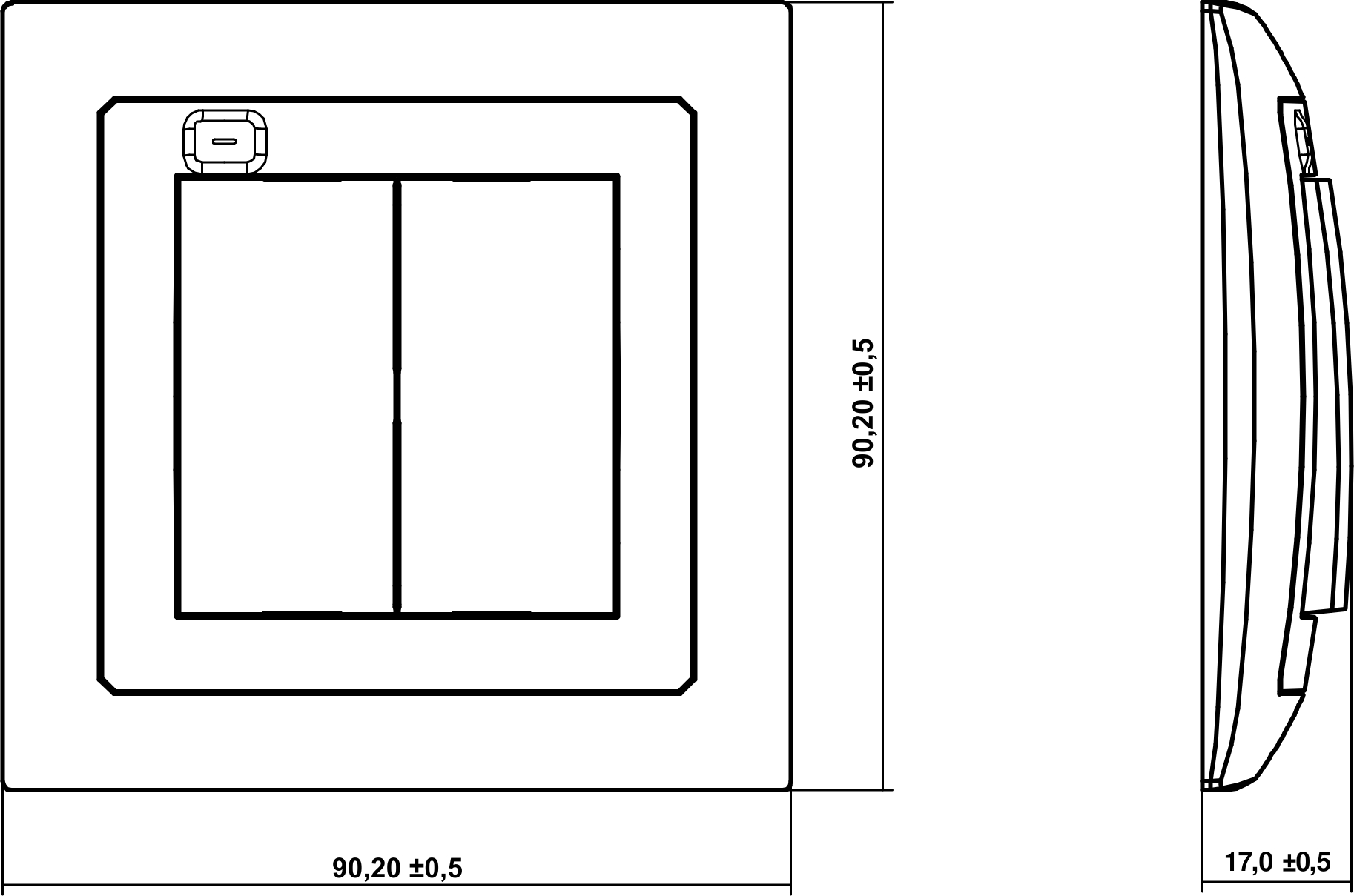

| Dimensions | 67x67x17 mm |
| Weight | 0,032 kg |
| Compliance with standards |
