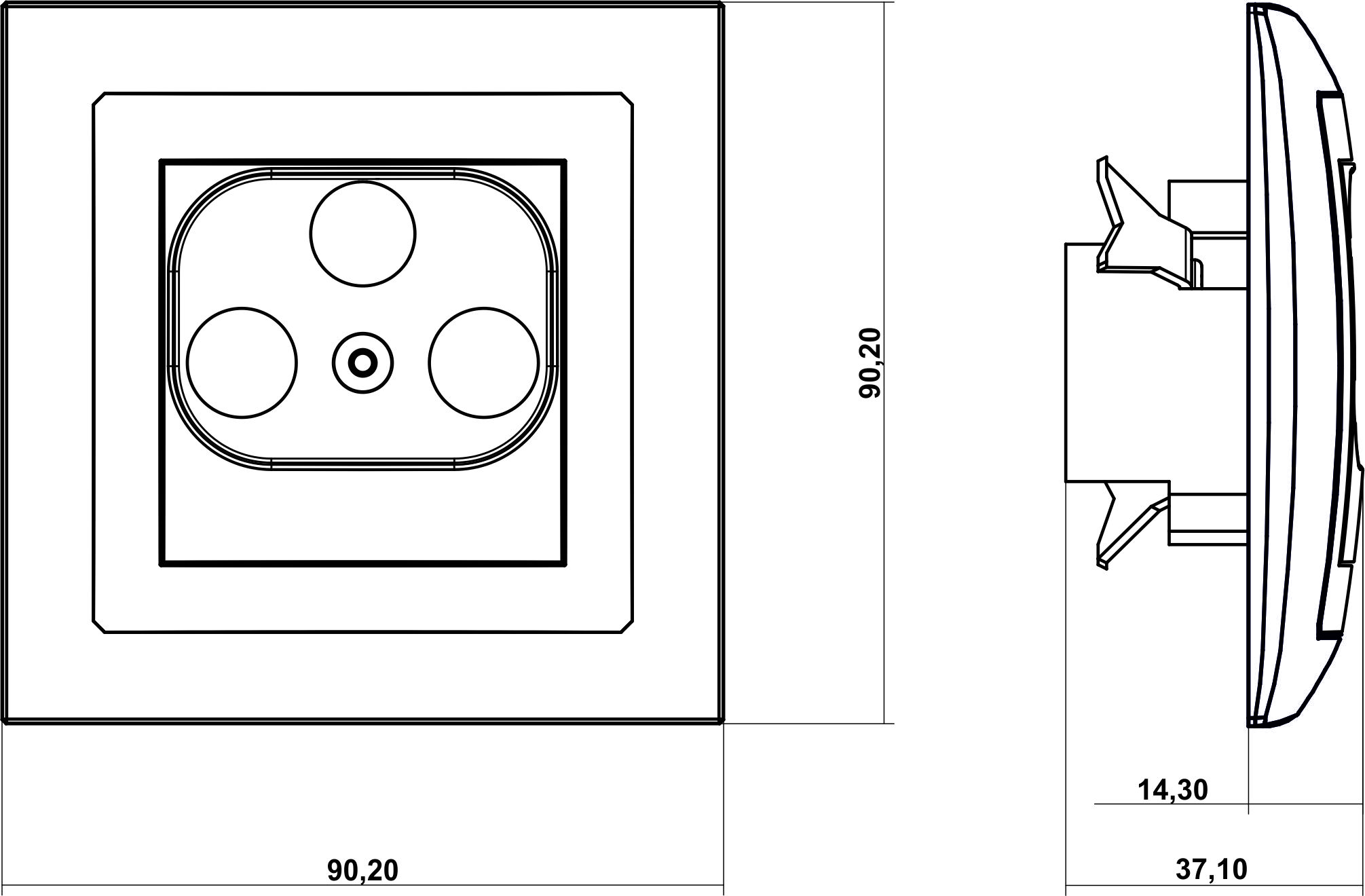

Radio/TV/SAT final socket (two antenna inputs) mechanism
white
DGST
Product description
Downloads
Configurator
DECO mechanisms and frames are sold separately.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
SAT circut frequency range | 5 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |
