Double loudspeaker socket (2,5 mm2) mechanism
white
IGG-2
Product description
Downloads
ICON mechanisms and frames are sold separately.
ICON series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Cross section of cable | 2,5 mm2 |
Connection type | Terminal |
Podłączenie | Screw terminals |
UV resistance | Resistant |
Product variants
-
Single loudspeaker socket (banana type- red and black, gold-plated, 4mm2, soldering) mechanism
matt black
12IGG-3
-
Single loudspeaker socket (2,5 mm2) mechanism
matt white
25IGG-1
-
Single loudspeaker socket (banana type- red and black, gold-plated, 4mm2, soldering) mechanism
matt grey
27IGG-3
-

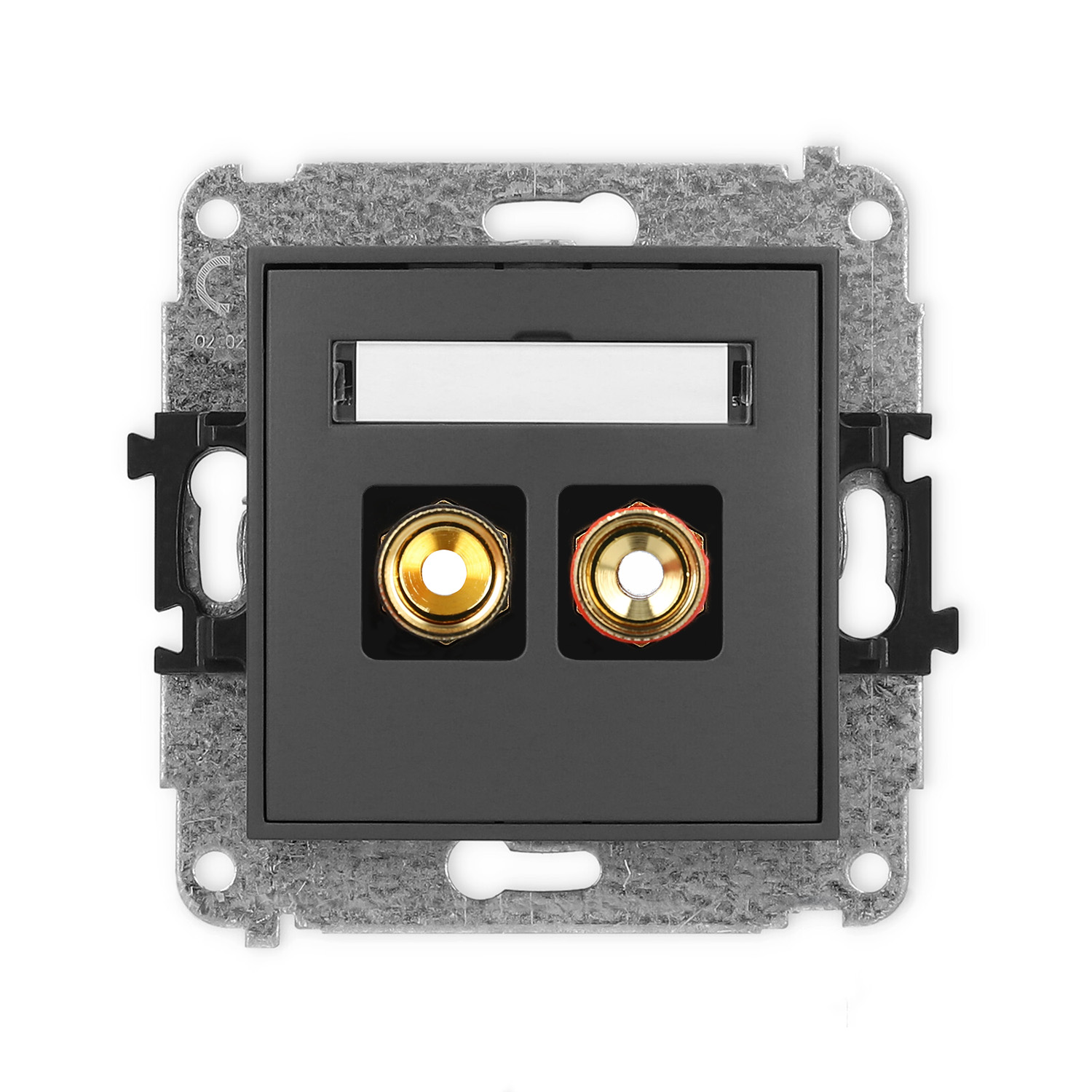

Single loudspeaker socket (banana type- red and black, gold-plated, 4mm2, twisted ) mechanism
matt graphite
28IGG-4
-

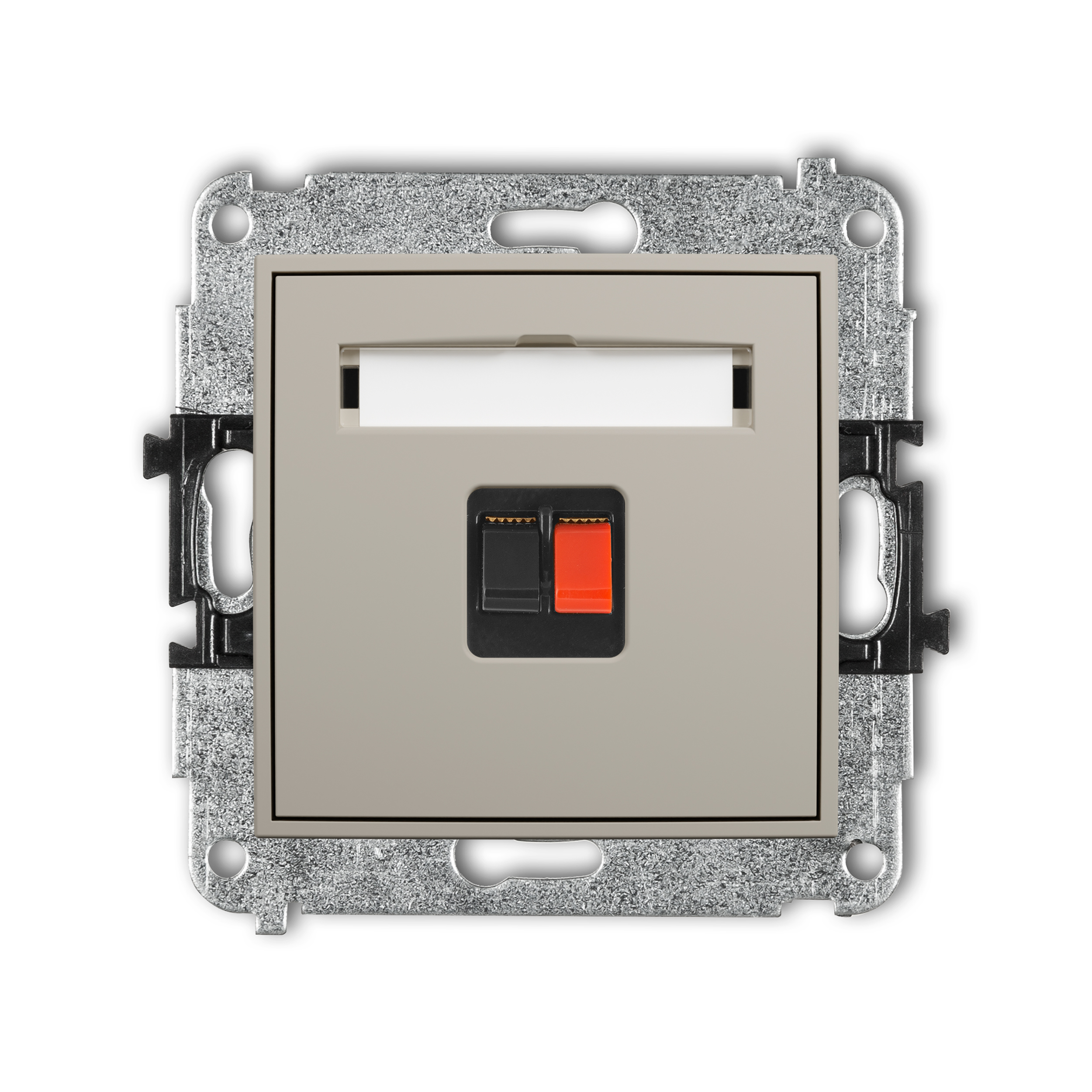

Single loudspeaker socket (2,5 mm2) mechanism
taupe
60IGG-1
-
Single loudspeaker socket (2,5 mm2) mechanism
sage
61IGG-1
