Electronic dimmer push - rotary mechanism for LED lamps

Electronic dimmer push-rotary mechanism for LED lamps

white

IRO-2

white

IRO-2

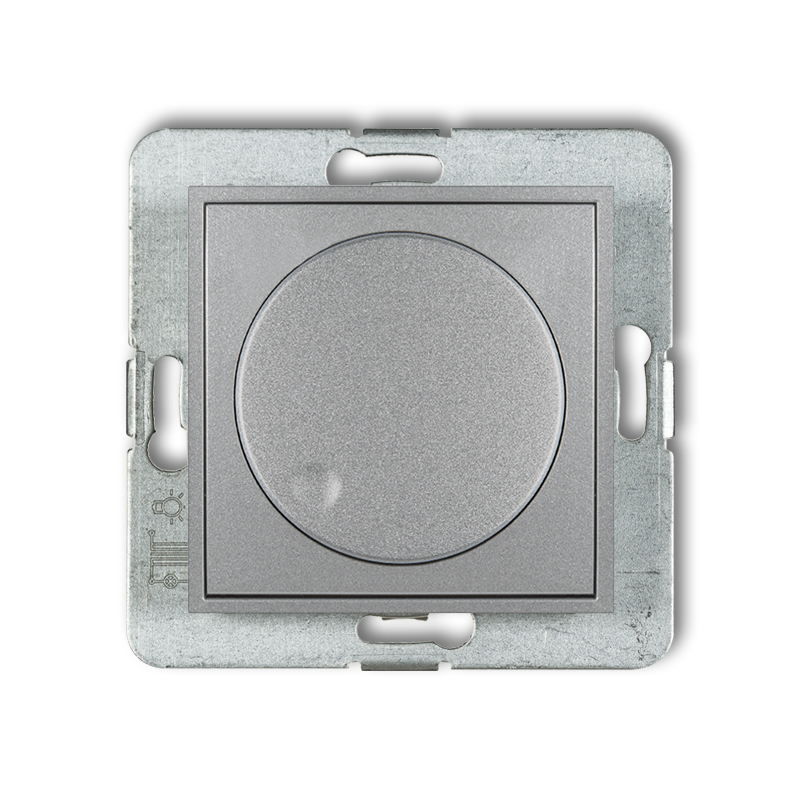

silver metallic

7IRO-2

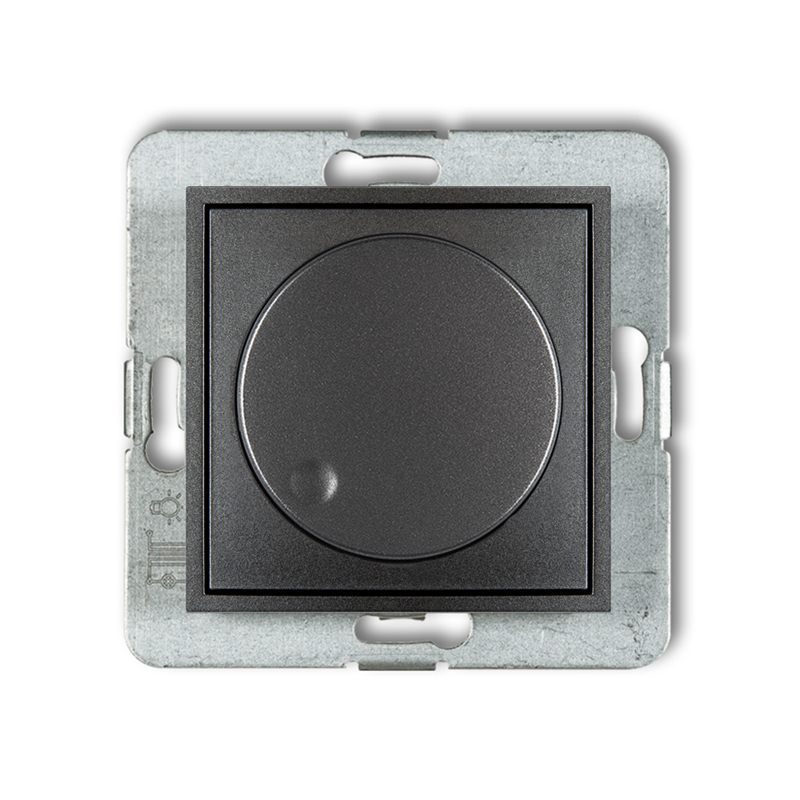

graphite

11IRO-2
matt black

12IRO-2

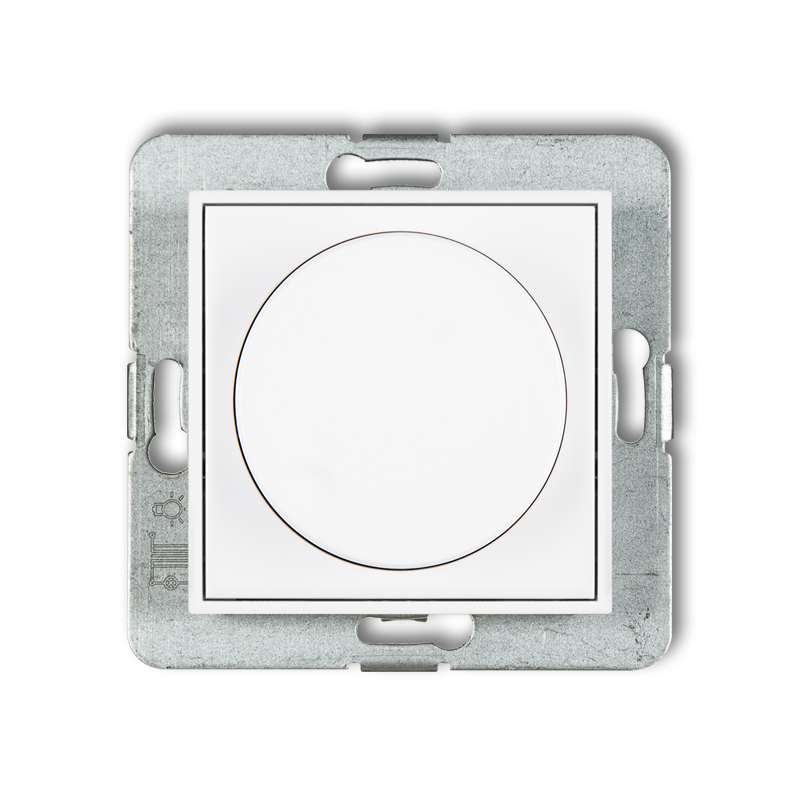

matt white

25IRO-2

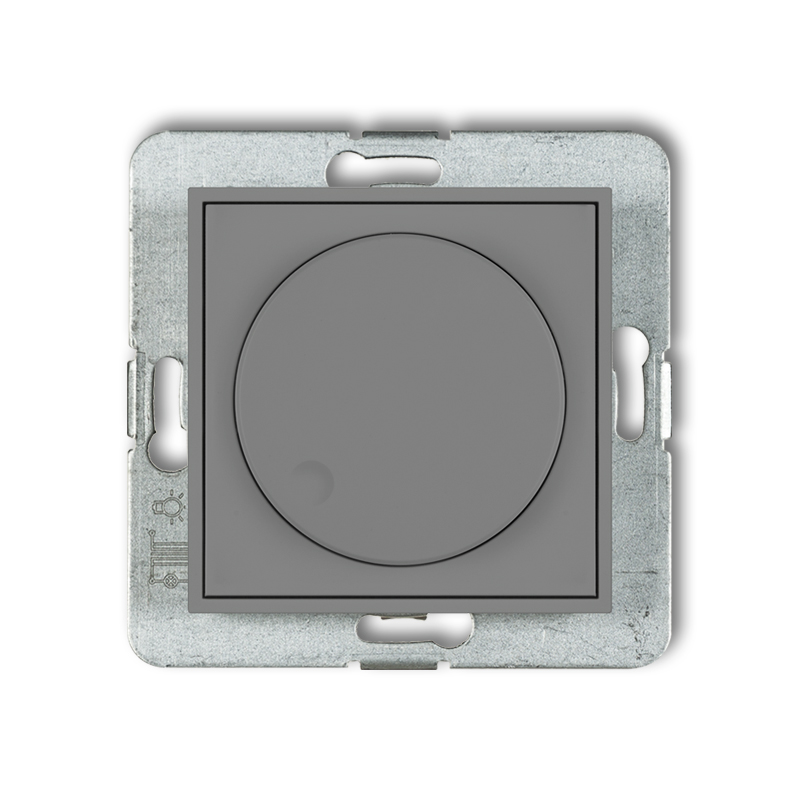

matt grey

27IRO-2

matt graphite

28IRO-2

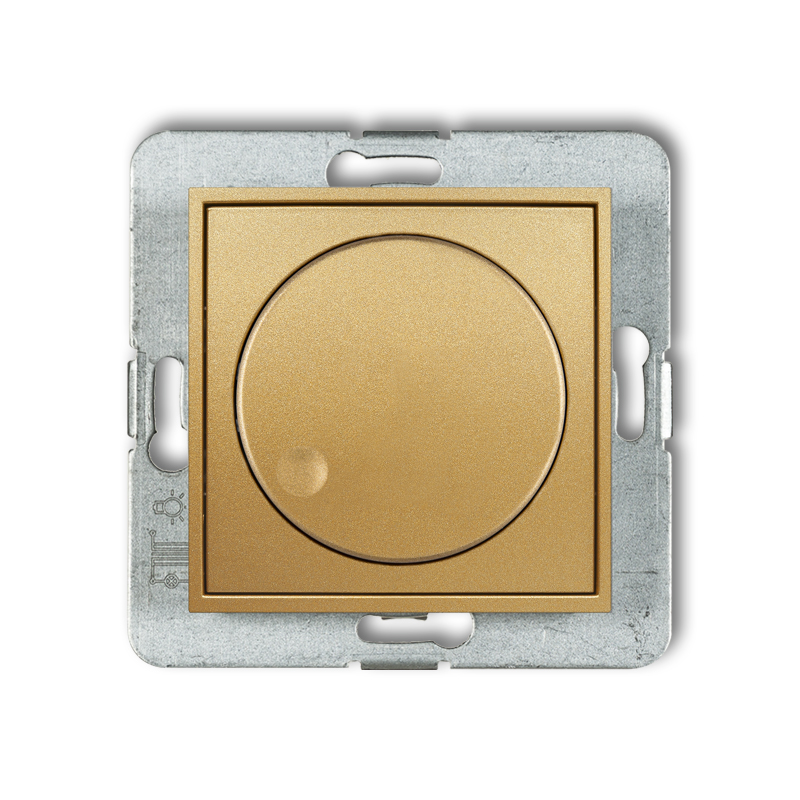

gold

29IRO-2

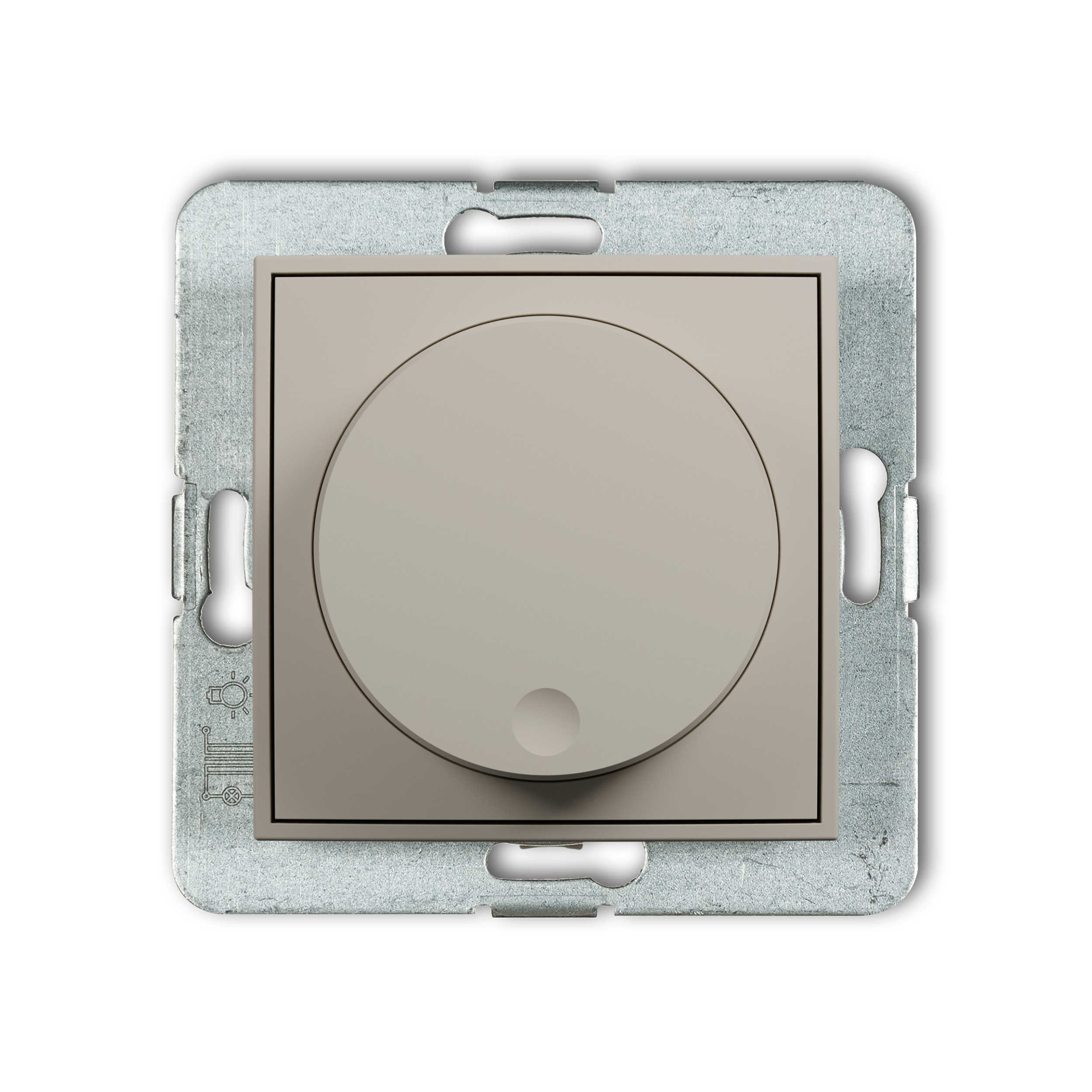

taupe

60IRO-2

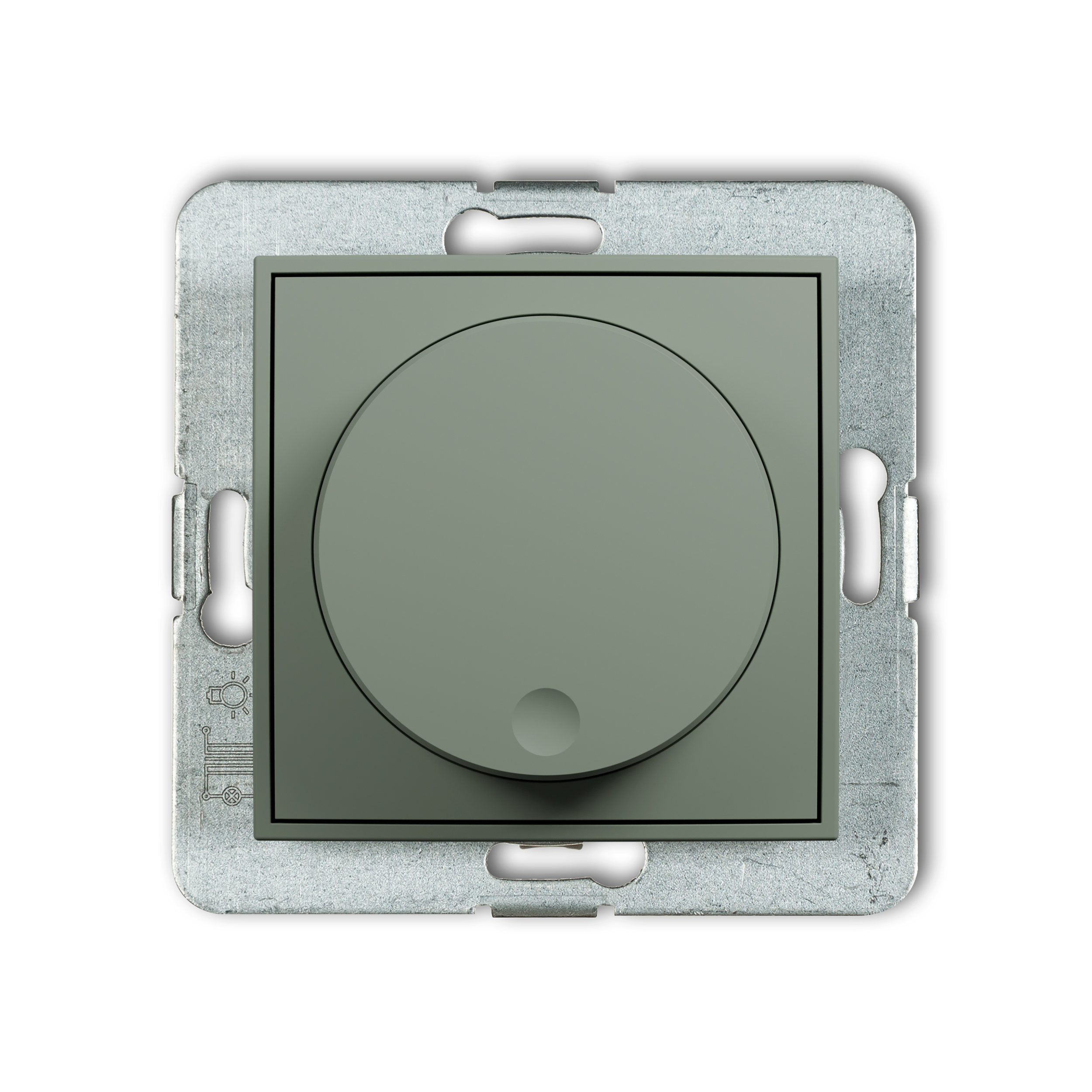

sage

61IRO-2

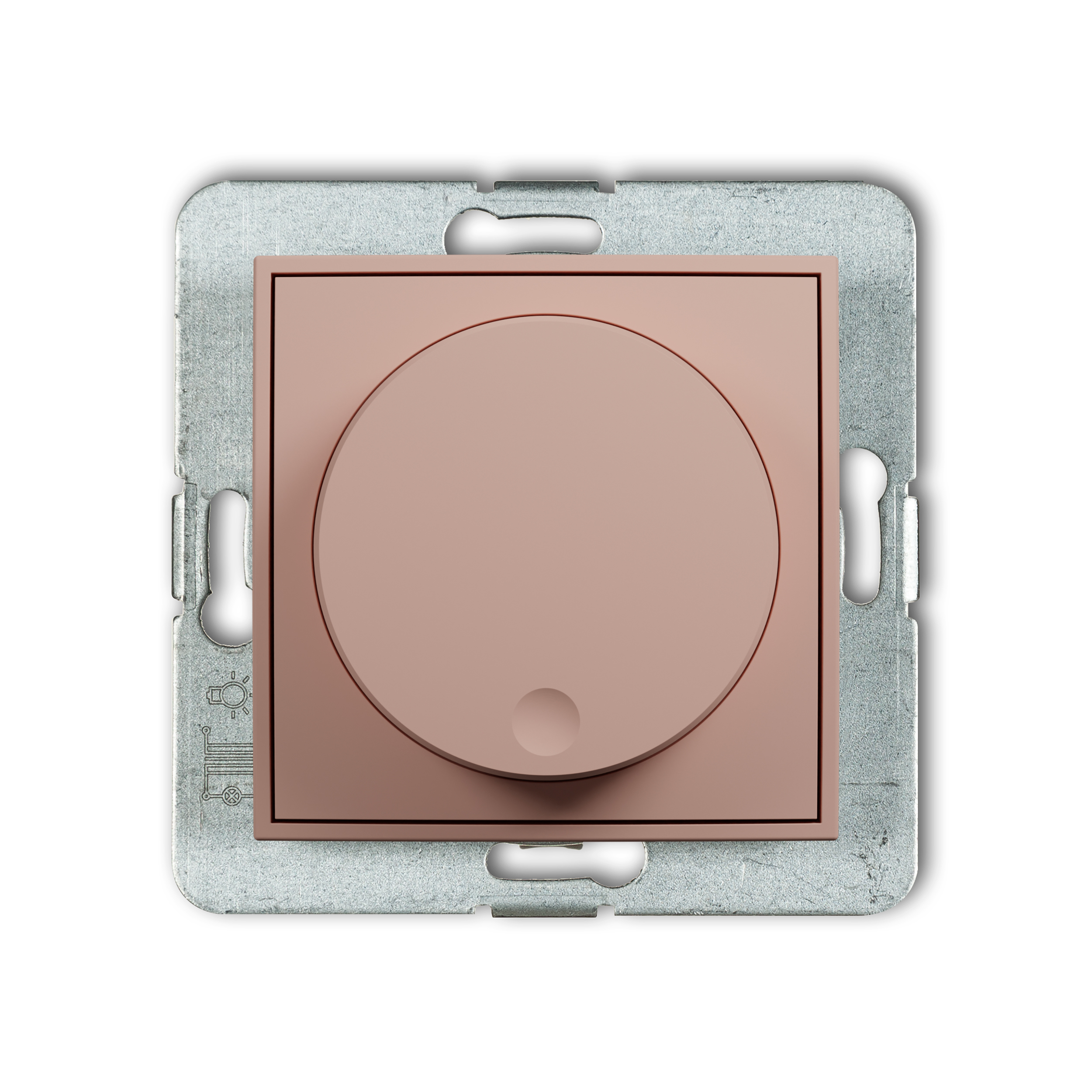

salmon

62IRO-2

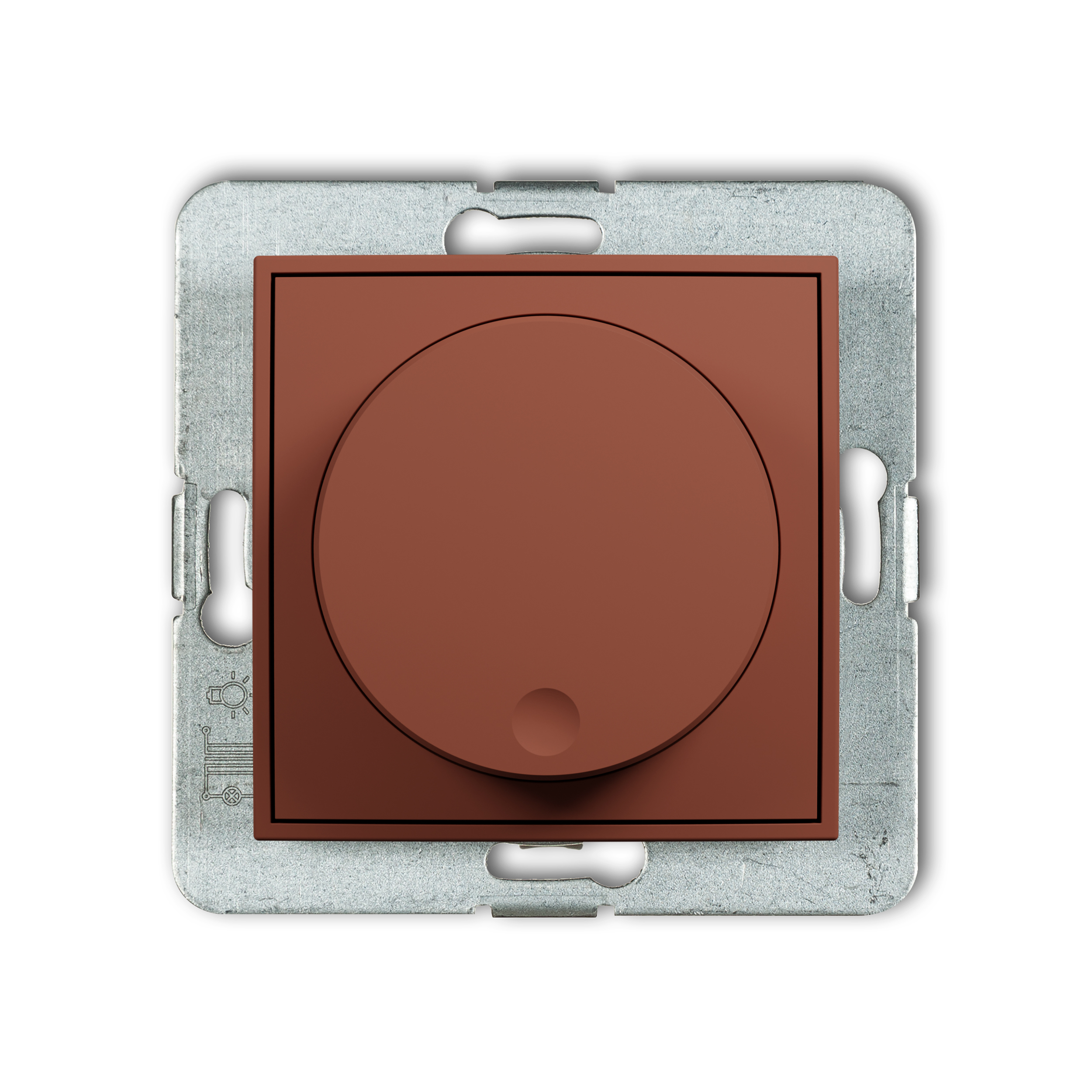

terracotta

63IRO-2

navy blue

64IRO-2

Product description
Downloads

ICON mechanisms and frames are sold separately.

Electronic lightning controller with push and rotary button (dimmer switch) for LED lamps enables adjustment of LED dimmable light, halogen light supplied by electronic transformer and incandescent light. Use of the controller increases comfort and daily savings in electricity which consumption is proportionate to the light intensity. Electronic lightning controller with push and rotary button for LED lamps is an intelligent device, that can be programmed to be individually set according to minimal light level and operational mode.

Controlling involves the use of potentiometer with switch. The controller is equipped with overload and short-circuit protection. In case of overload occurrence the controller will switch off automatically.

Note!
1. The device does not cooperate with halogen light powered by magnetic transformer, e.g. toroidal one. In case of light level adjustment of several light source, the same powers and bulb types shall be used.
2. Connecting two regulators in a two-way system may damage regulators.
3. In order for the regulator to function correctly, it has to be configured before the first start-up (see programming instructions in Operating Manual). With the configuration, the regulator "learns" how to cooperate with the lighting connected to it.

More information in the DOWNLOADS section.

The actual appearance of product may be different from the presented photographs.

Technical data

Protection index	IP 20
Tolerance of voltage supply	-15 ÷ +10%
Light control	switch and regulation on potentiometer
Cooperation with load	LED dimmed, halogen powered by electronic transformer, incandescent
LED load capacity	0 ÷ 100 W (max. 10 x LED dimmed)
Halogen and incandescent load capacity	10 ÷ 250 W
Cross section of connection cables	max 1,5 mm2
Fixing of the casing	standard flush-mounted wall box ø 60 mm
Temperature operation range	-20°C - +45°C
Contamination level	2
Connection	Screw terminals
UV resistance	Resistant
