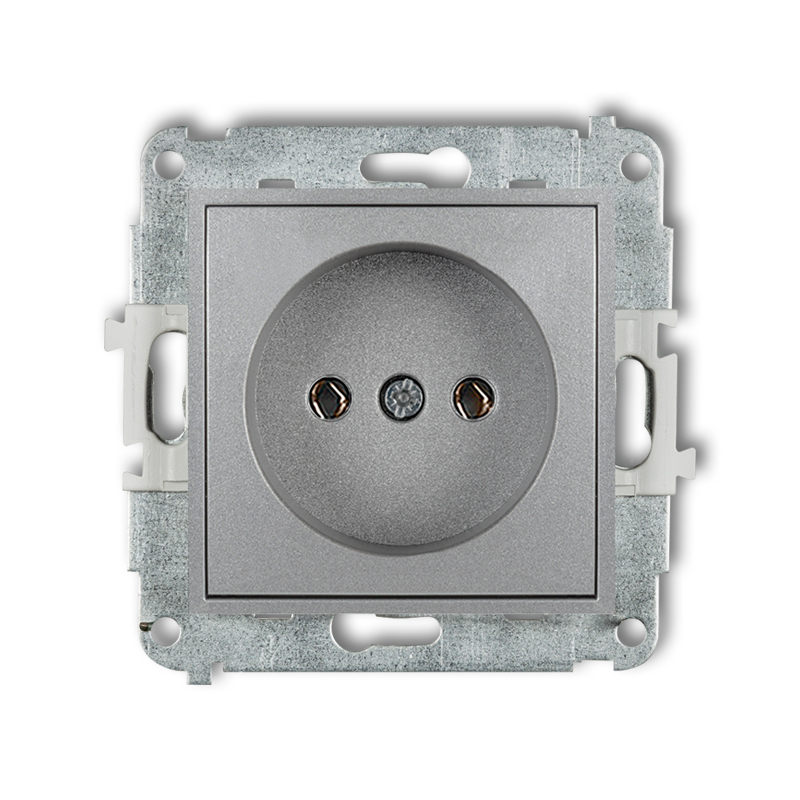

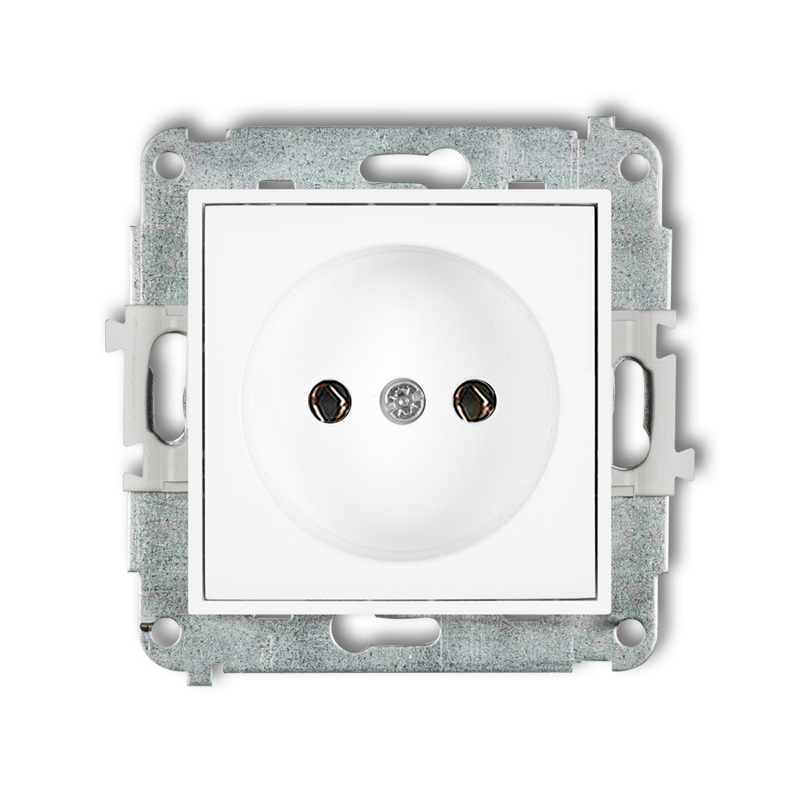

Single socket without the 2P earth mechanism (without increased contact protection/shutter)
white
IGP-1
Product description
Downloads
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Rated current | 16 A |
Rated voltage | 250 V~ |
Increased contact protection/shutter | NO |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
white
IGP-1zp
-

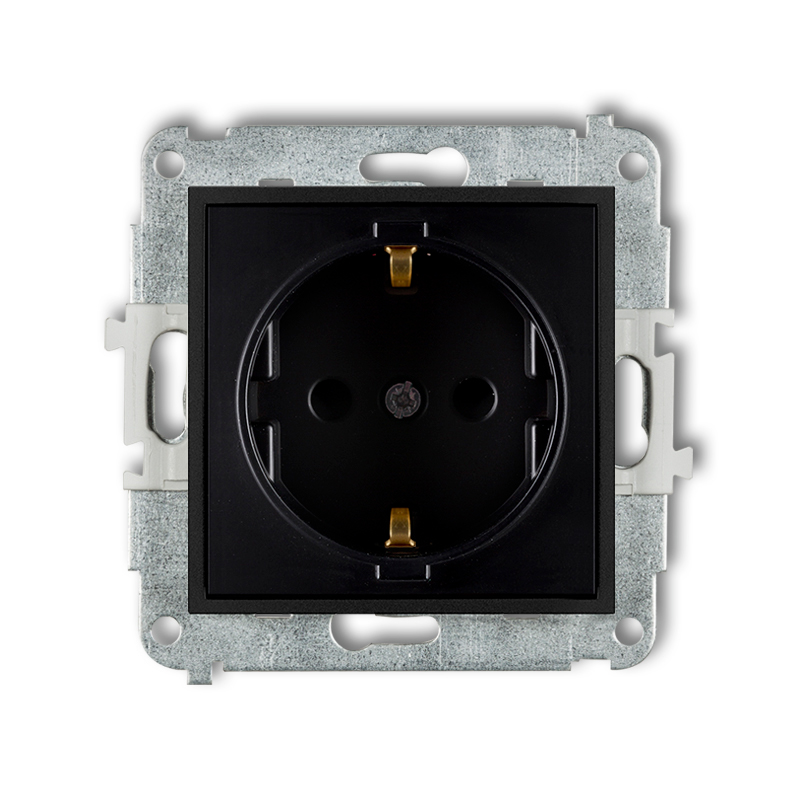

Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
matt black
12IGP-1sp
-

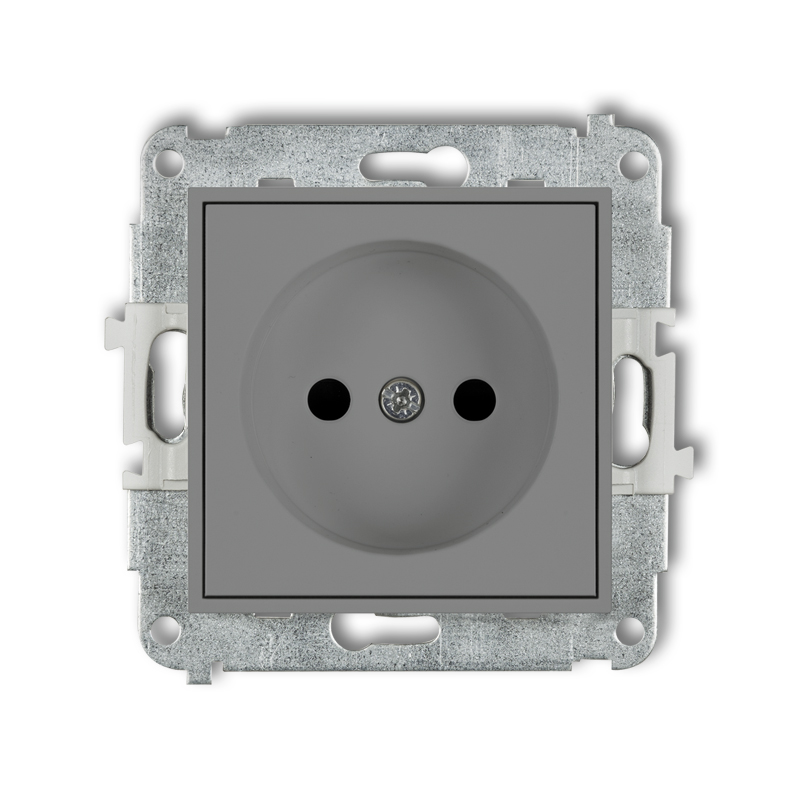

Single socket without the 2P earth mechanism (with increased contact protection/shutter)B
matt grey
27IGP-1p
-

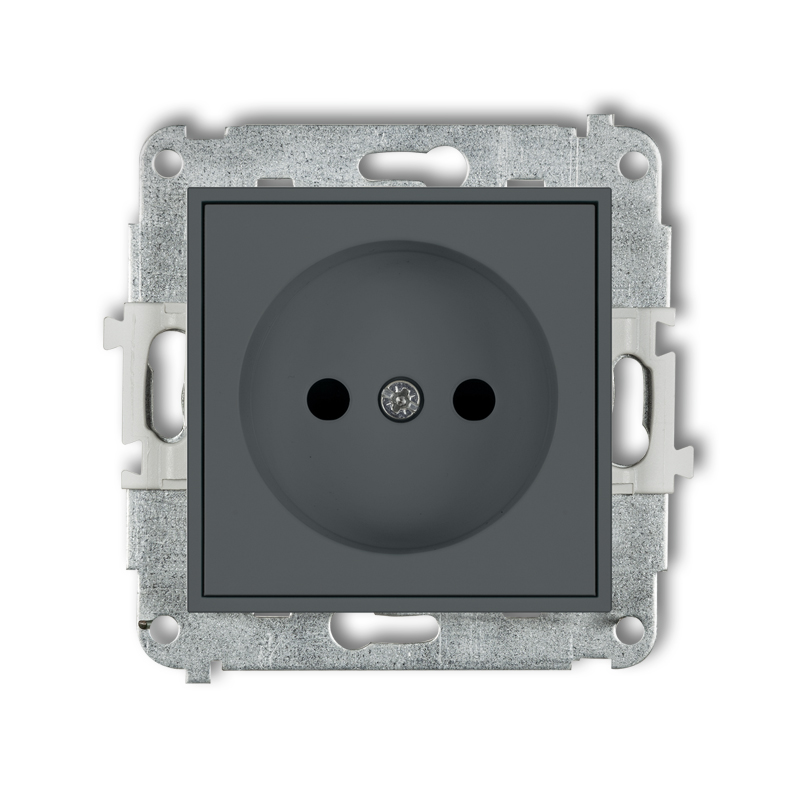

Single socket without the 2P earth mechanism (with increased contact protection/shutter)
matt graphite
28IGP-1p
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
sage
61IGP-1sp
-

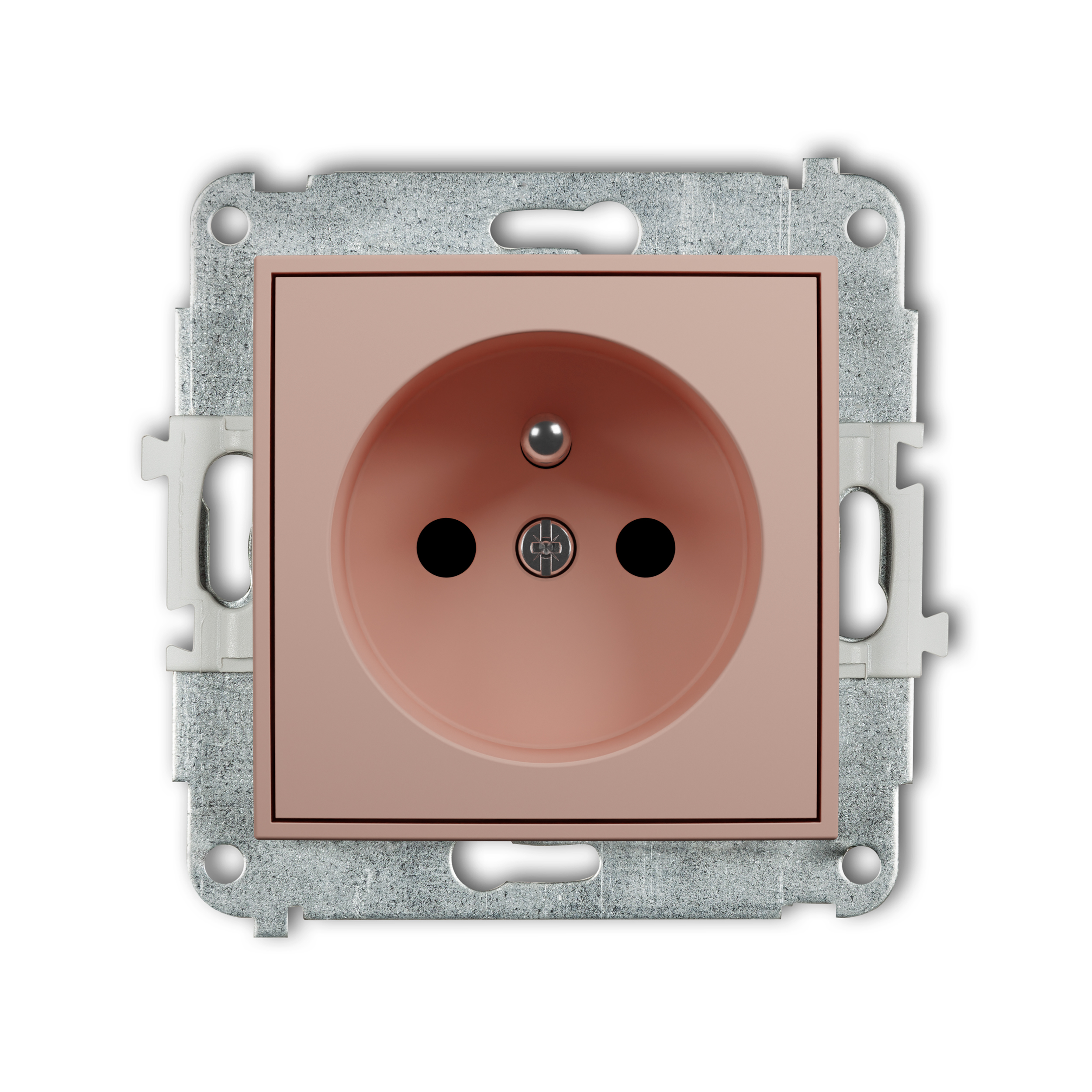

Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
salmon
62IGP-1zp
Complementary products
Related products
-
Double socket to a frame without the 2x2P earth mechanism (without increased contact protection/shutter)
white
IGPR-2
-

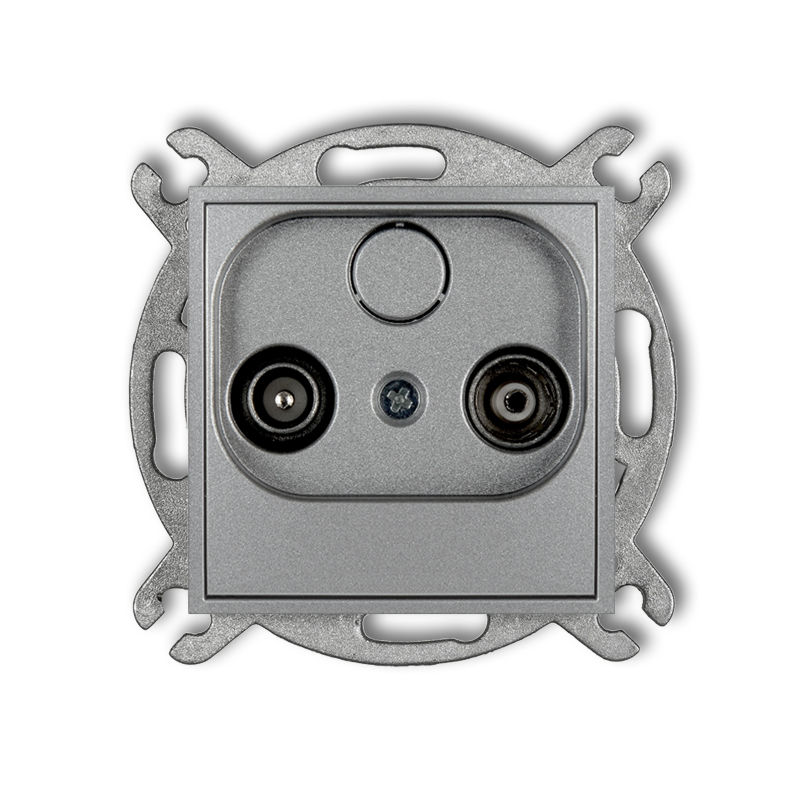

Radio/TV final socket mechanism the 2 dB
silver metallic
7IG2K
-
Single push button "light" mechanism
matt black
12IWP-5
-

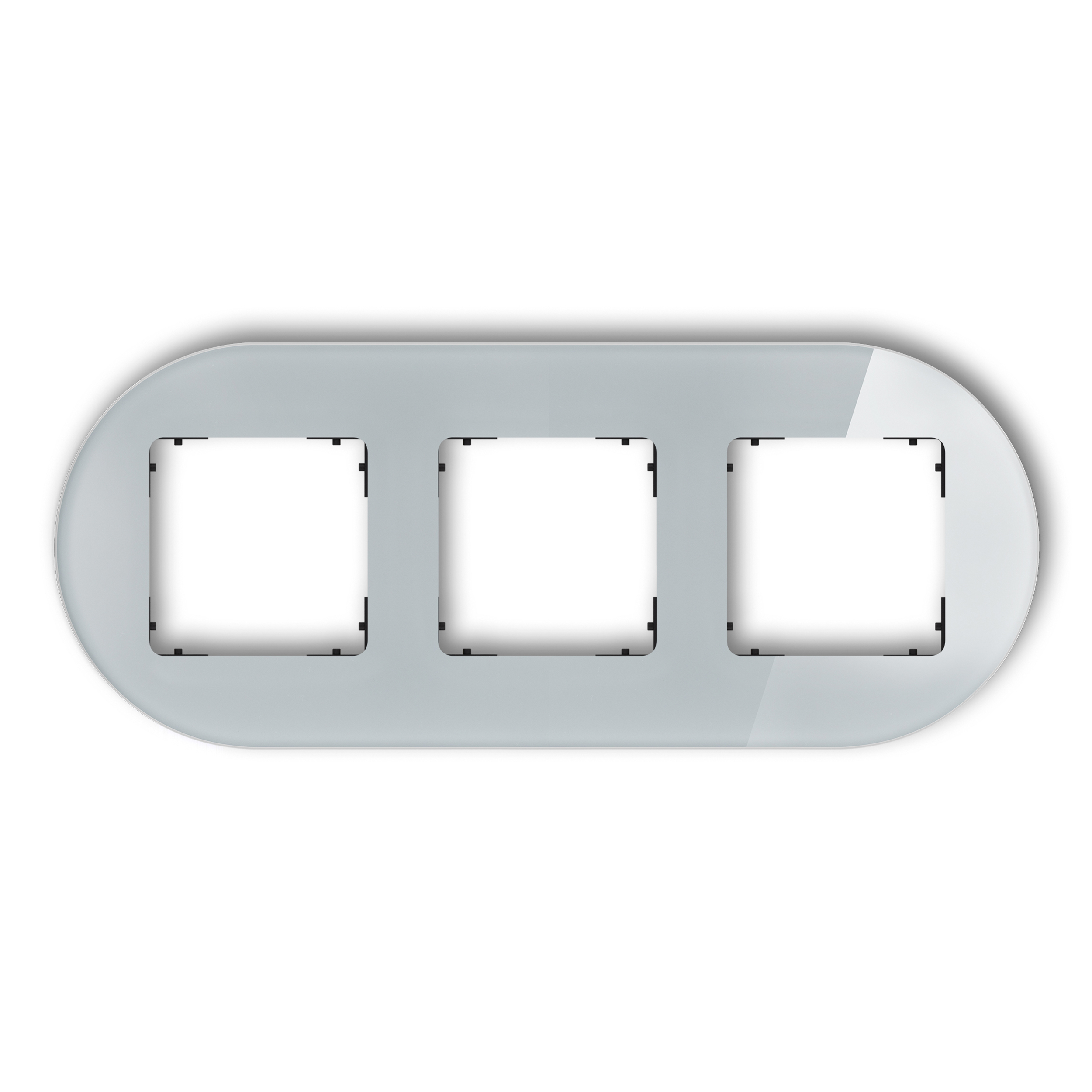

3-gang round universal frame - glass effect
grey frame / black rear
15-12-IRSO-3
-
Triple switch mechanism
sage
61IWP-7
-

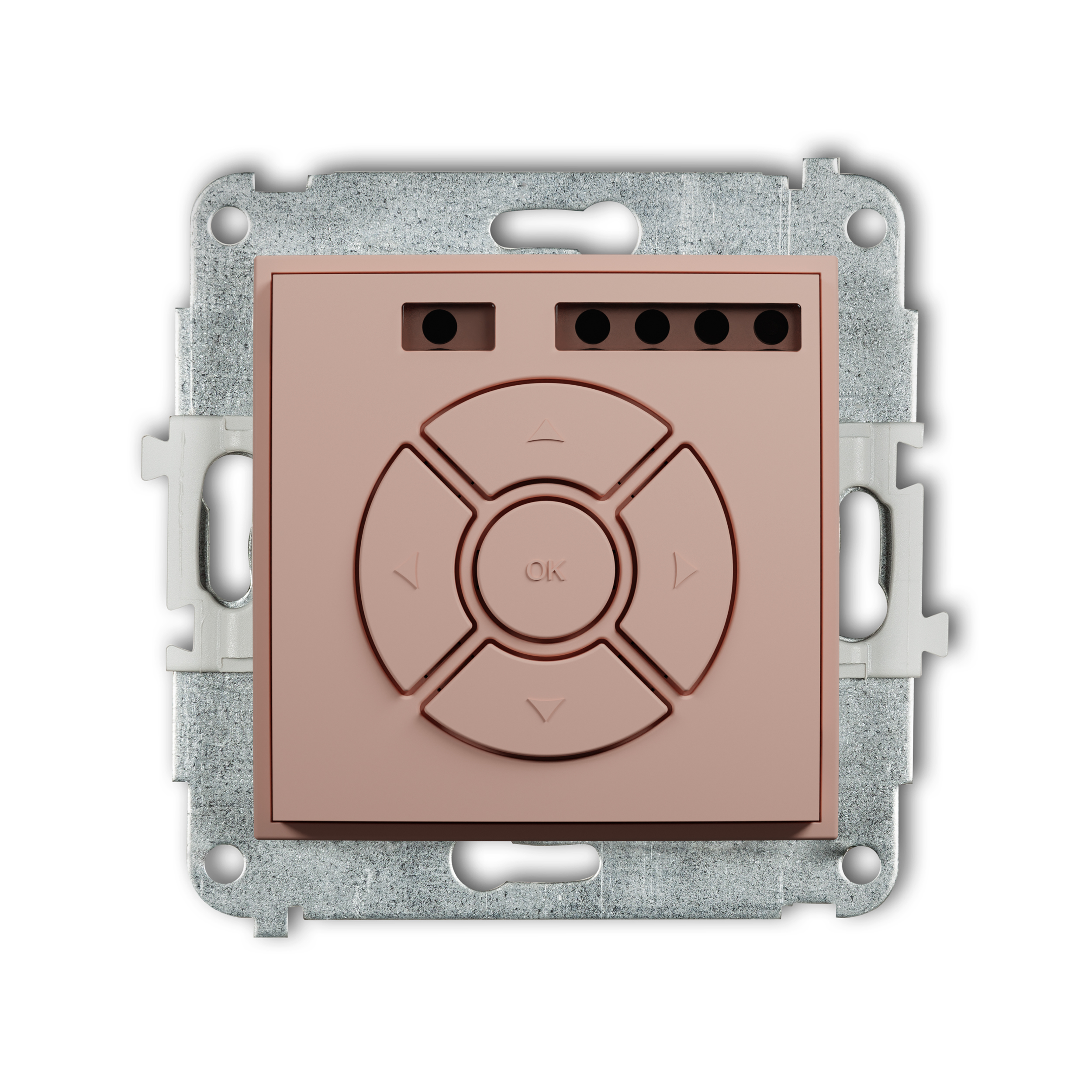

Electronic control roller shutter mechanism (local control)
