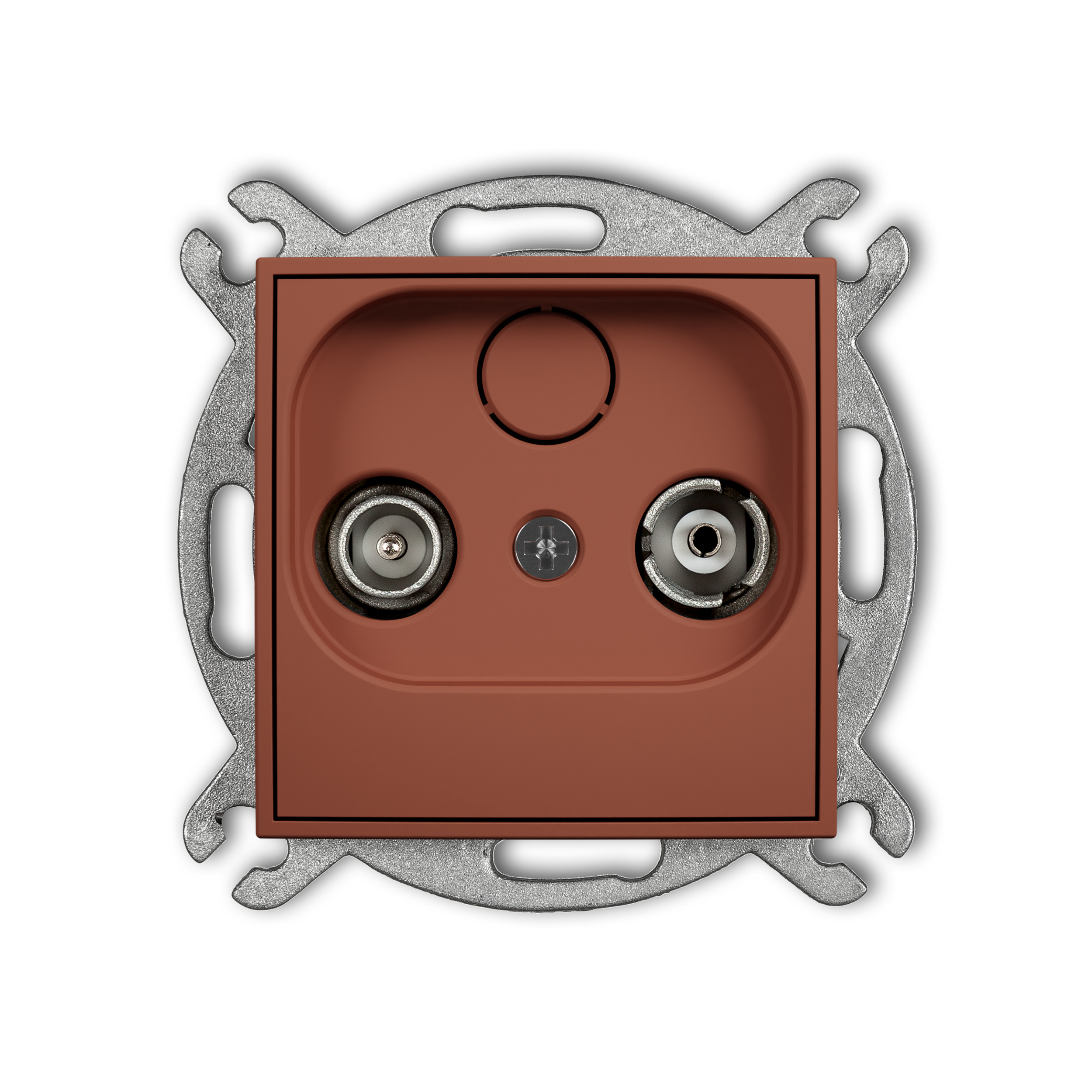

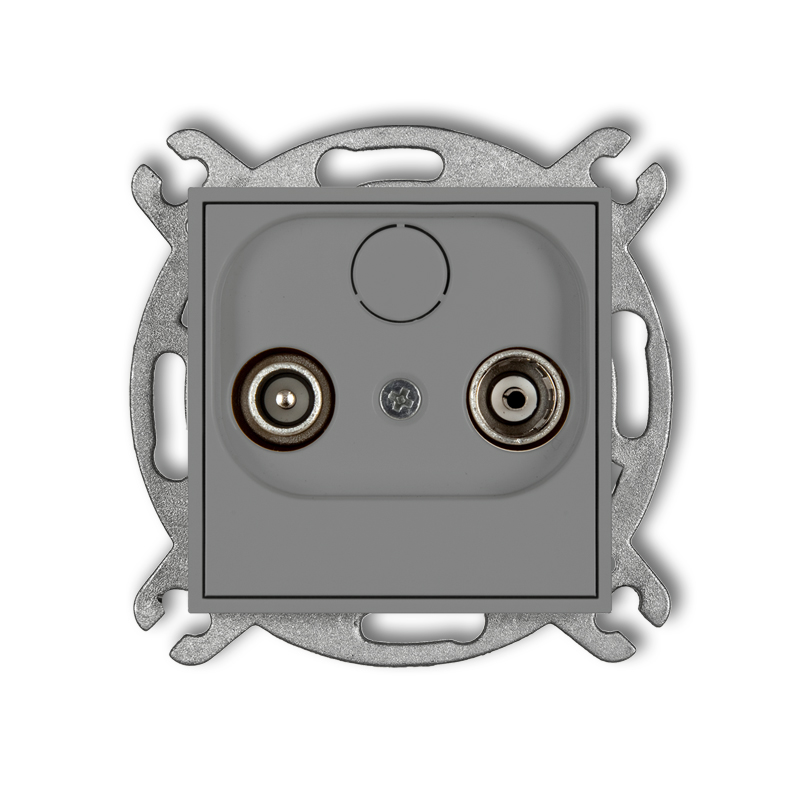

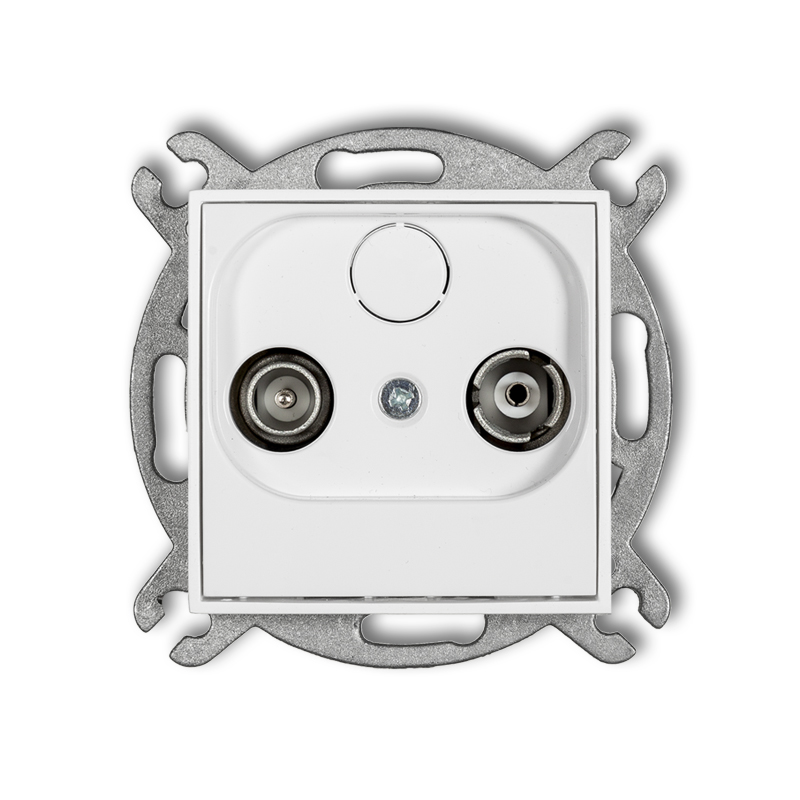

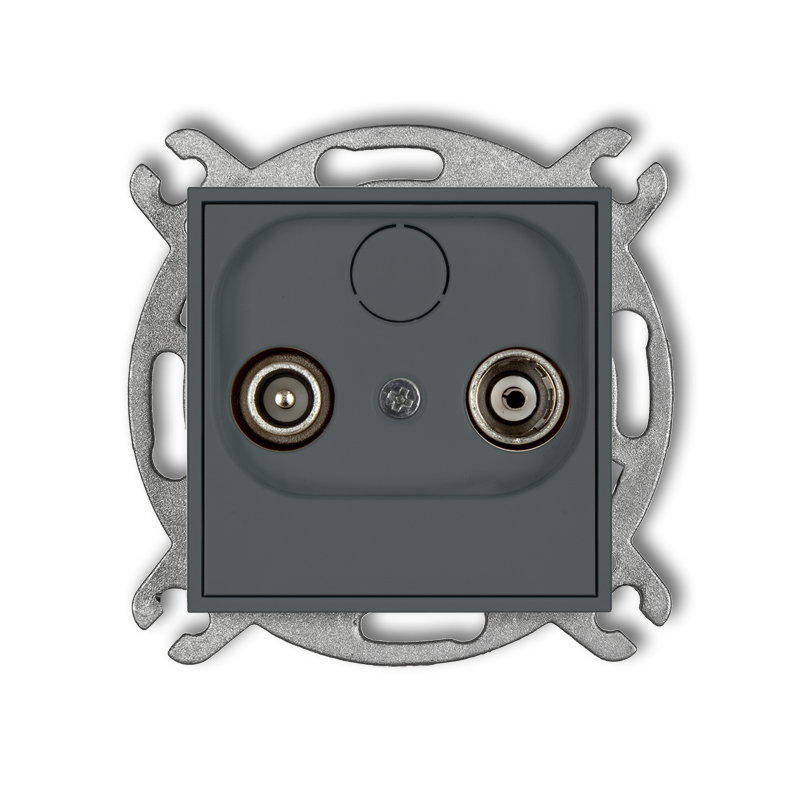

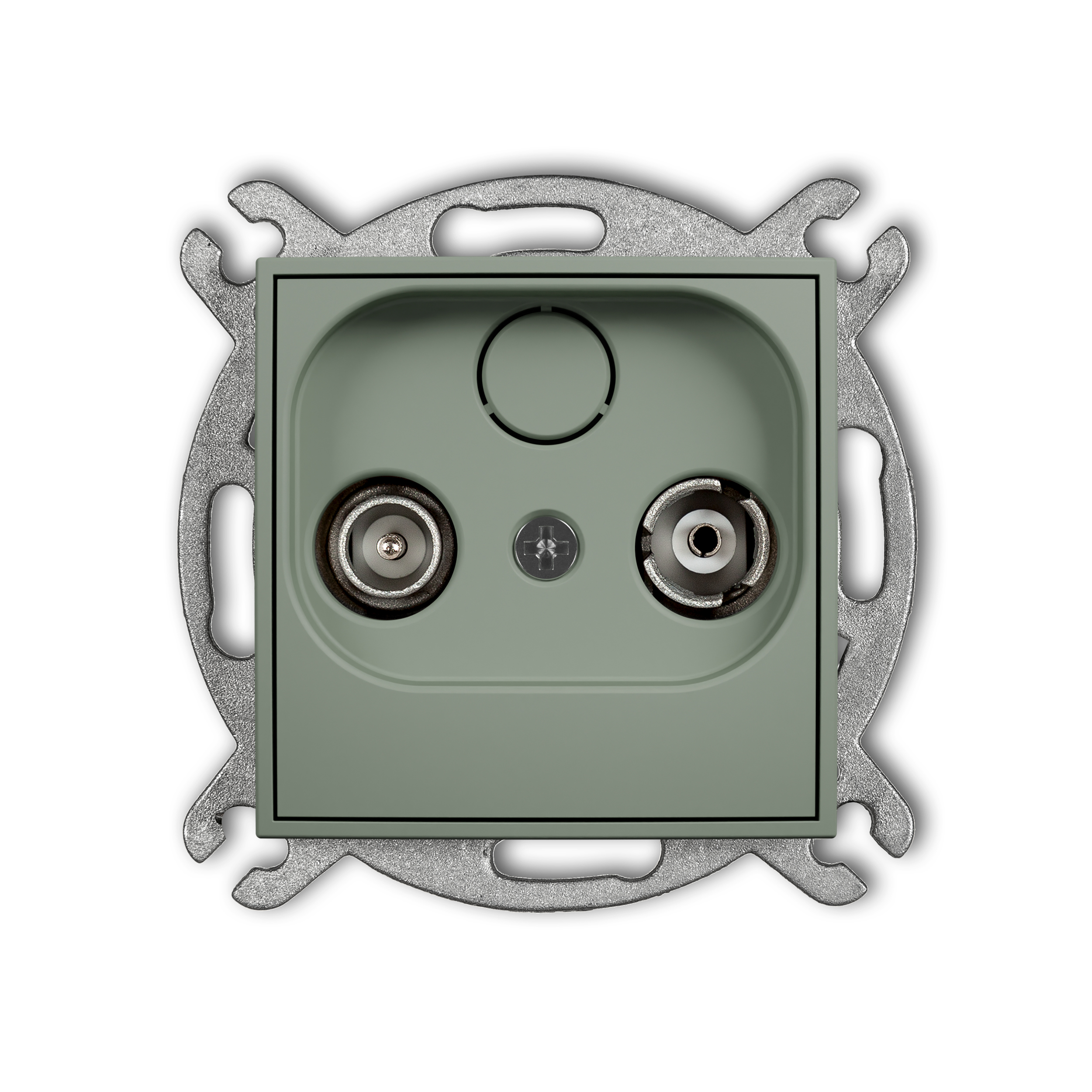

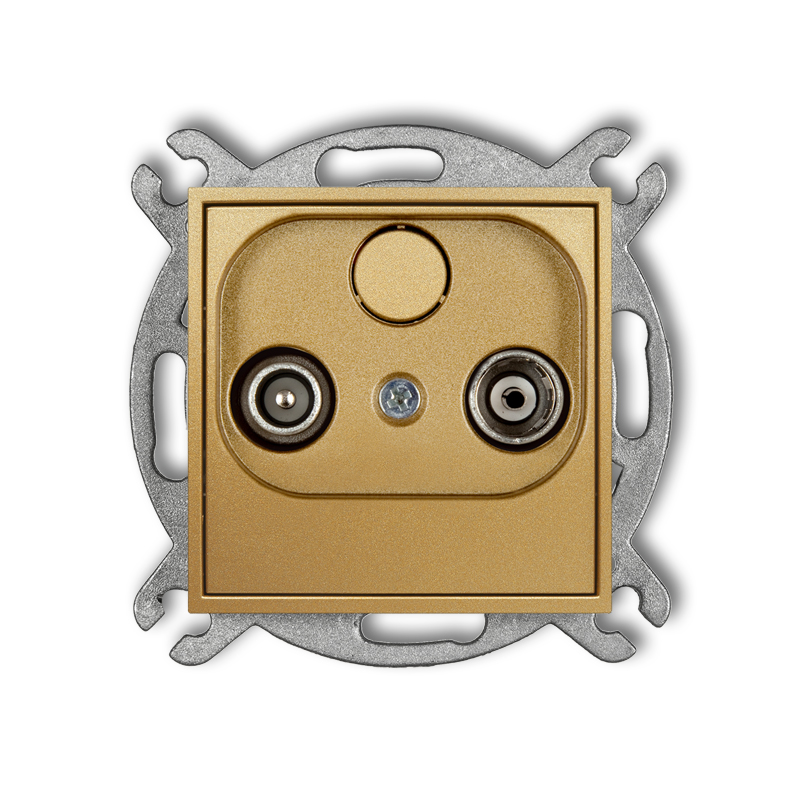

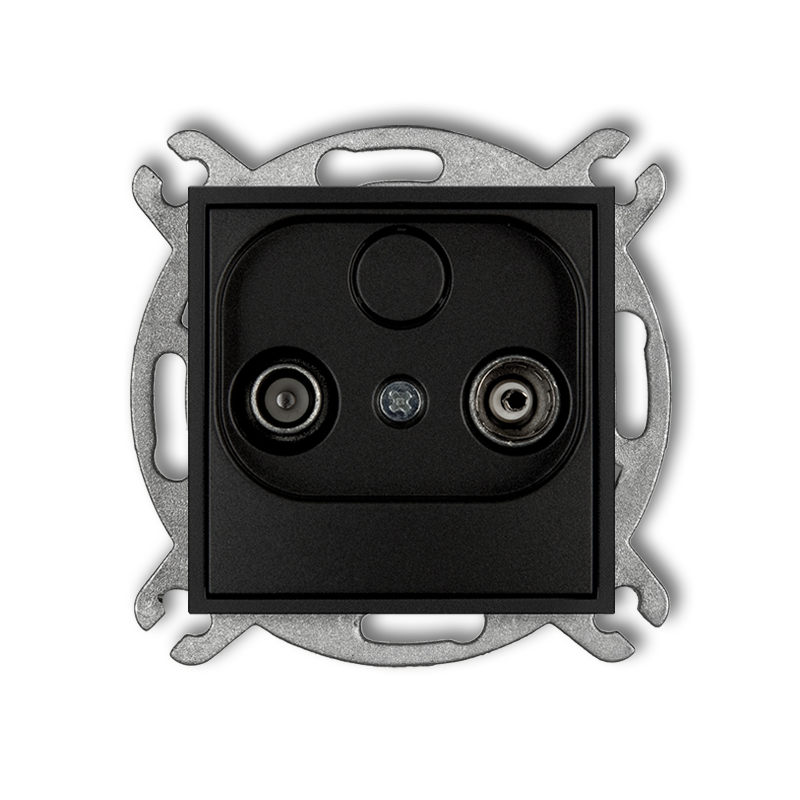

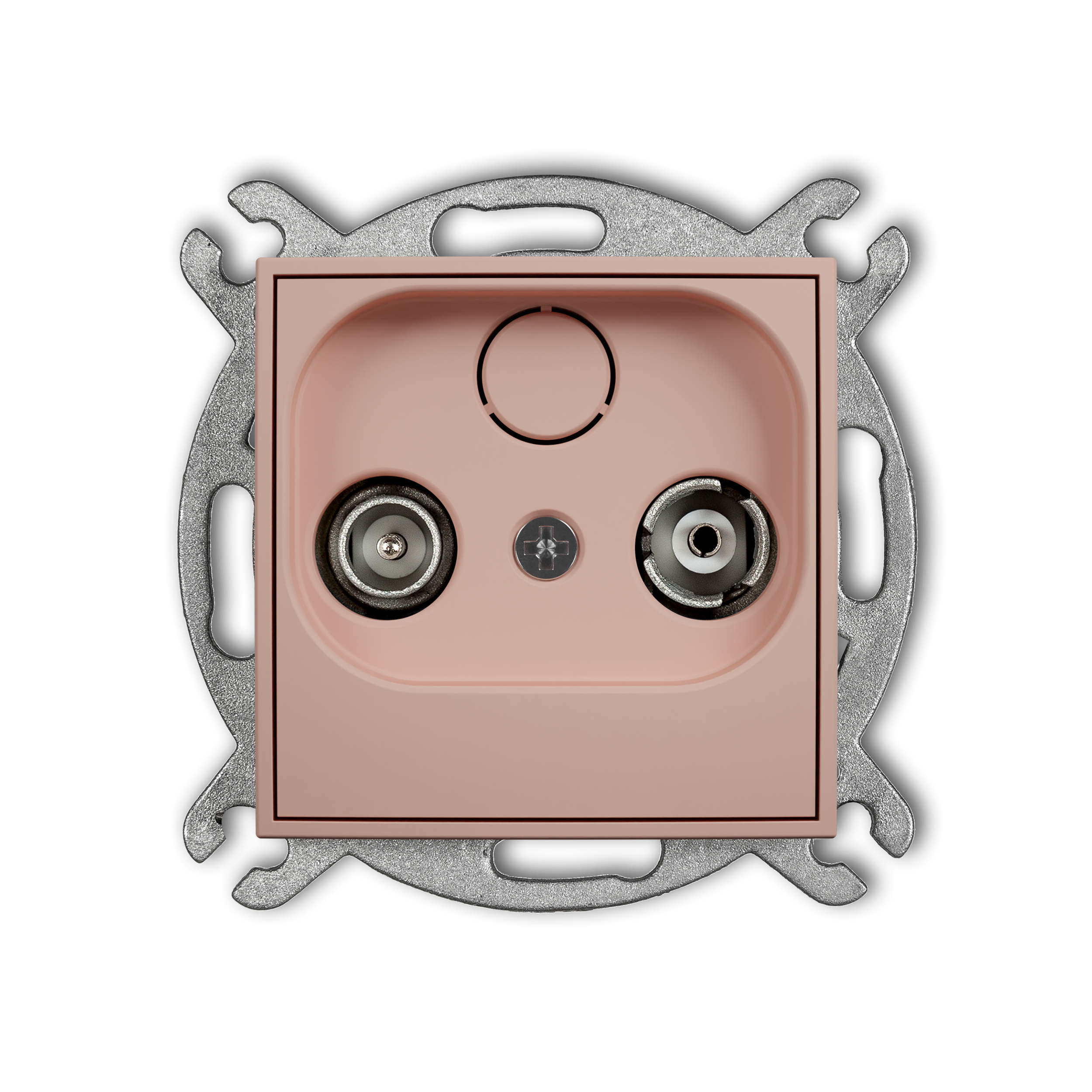

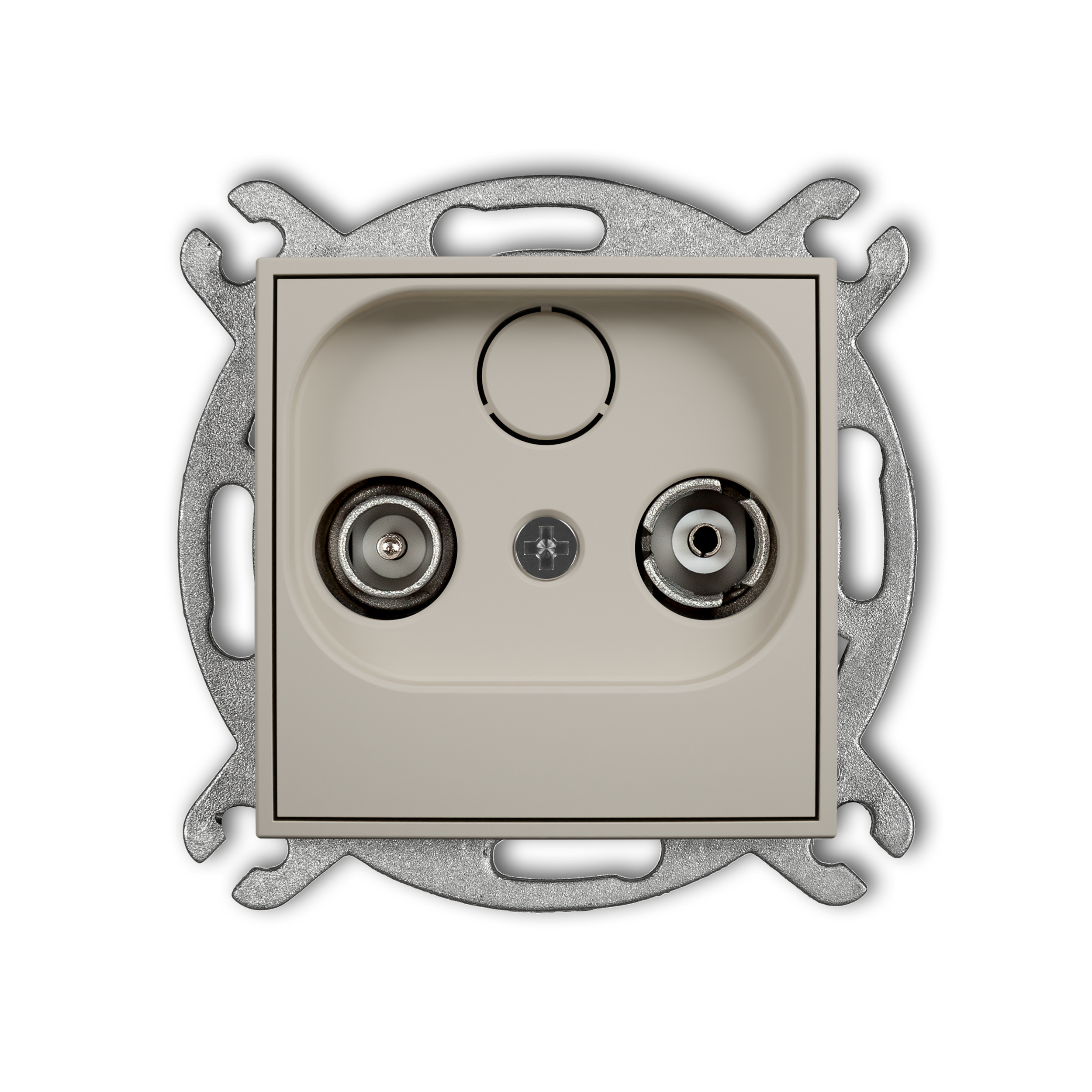

Radio/TV through socket mechanism the 12 dB
![MINI](/media/filer_public/b2/bb/b2bba406-3ab0-4e32-9ada-768043bb15e0/mg12p.jpg)
white
MG12P
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 12 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |

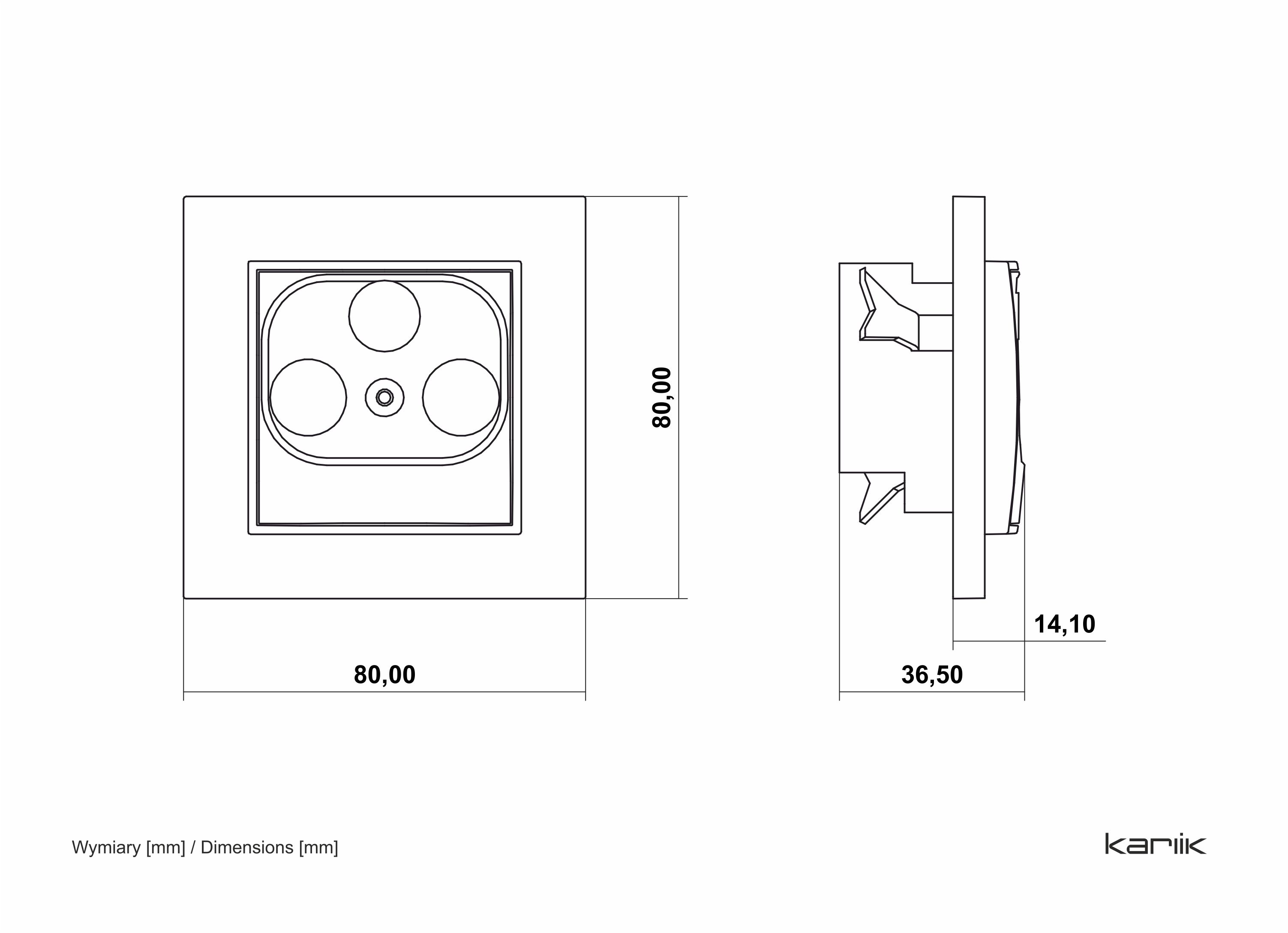

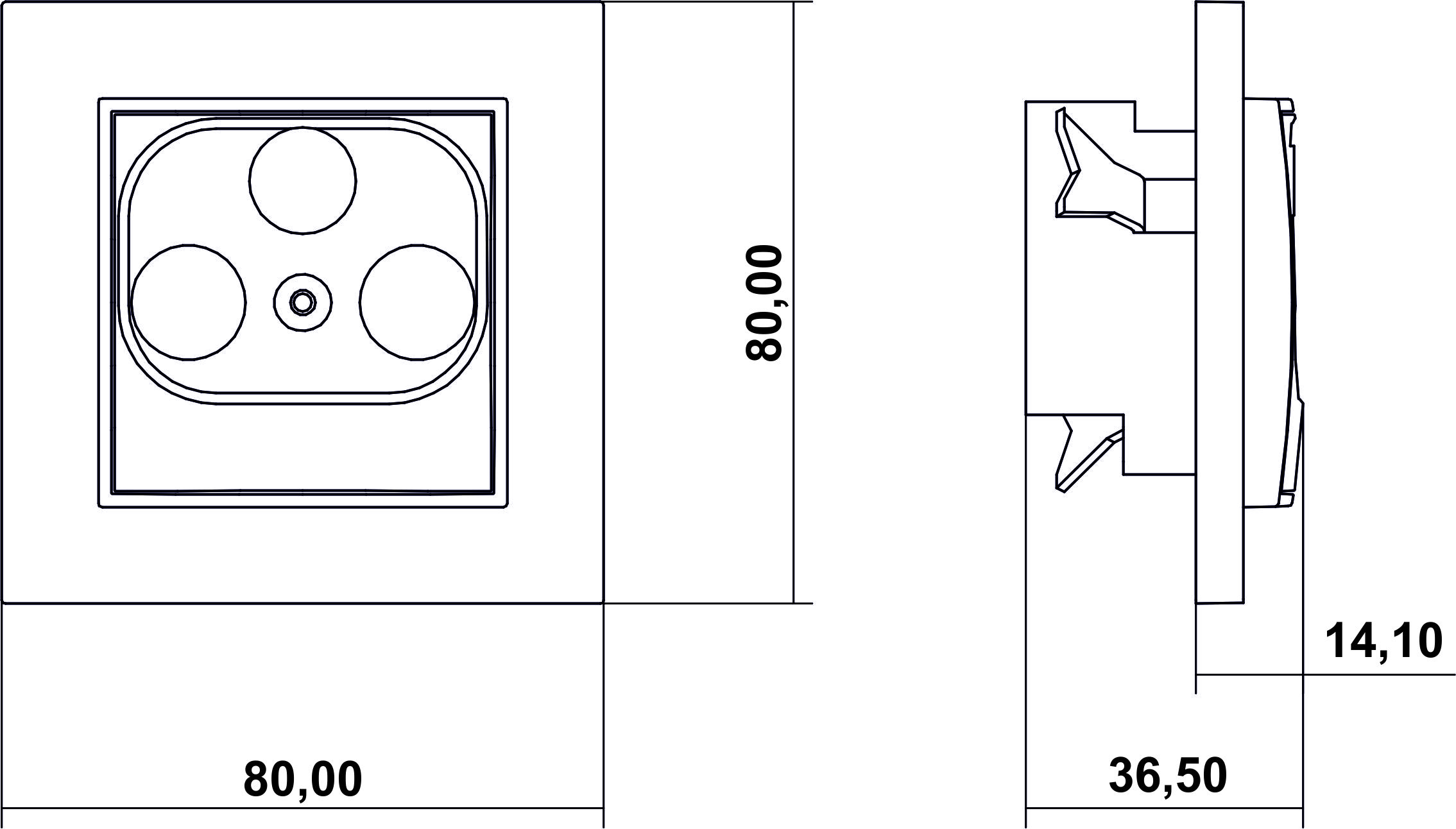

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat_BG2QFqj.jpg)
Product variants
-
Radio/TV final socket mechanism the 2 dB
white
MG2K
-

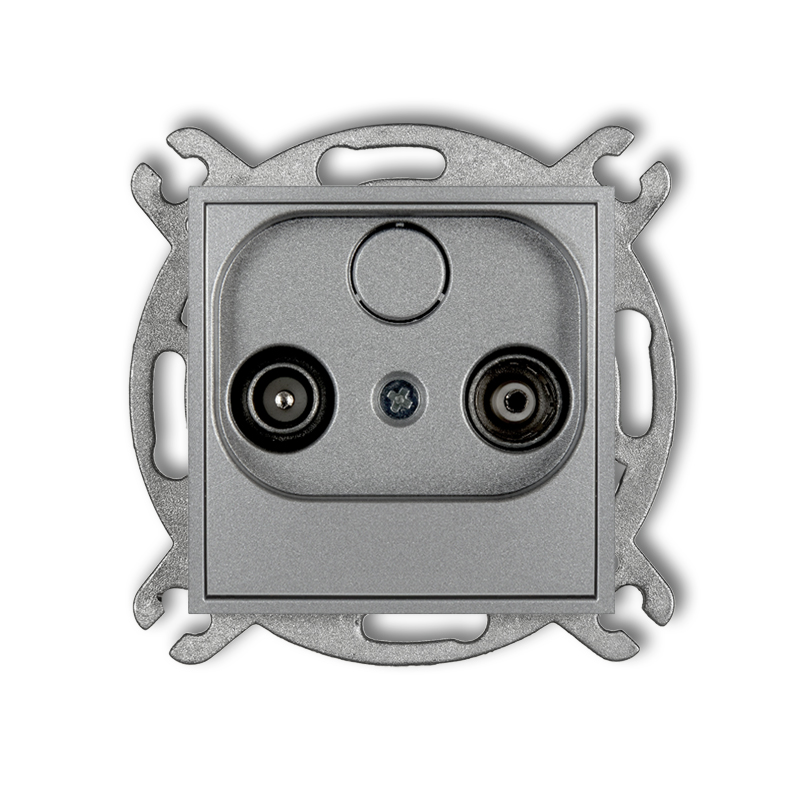

Radio/TV through socket mechanism the 9 dB
silver metallic
7MG9P
-

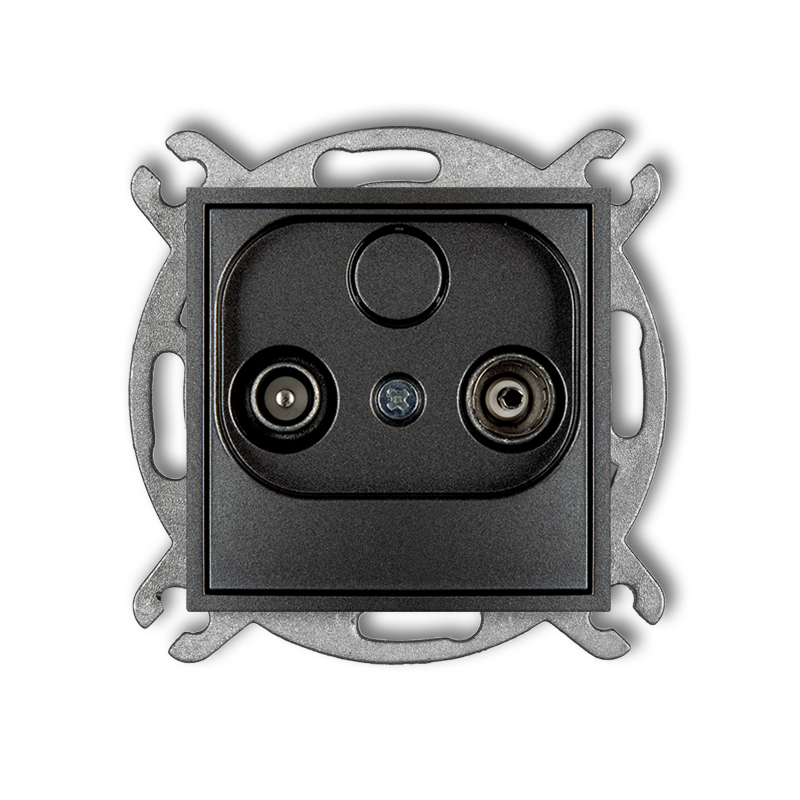

Radio/TV/SAT final socket mechanism the 1,5 dB
graphite
11MGS
-

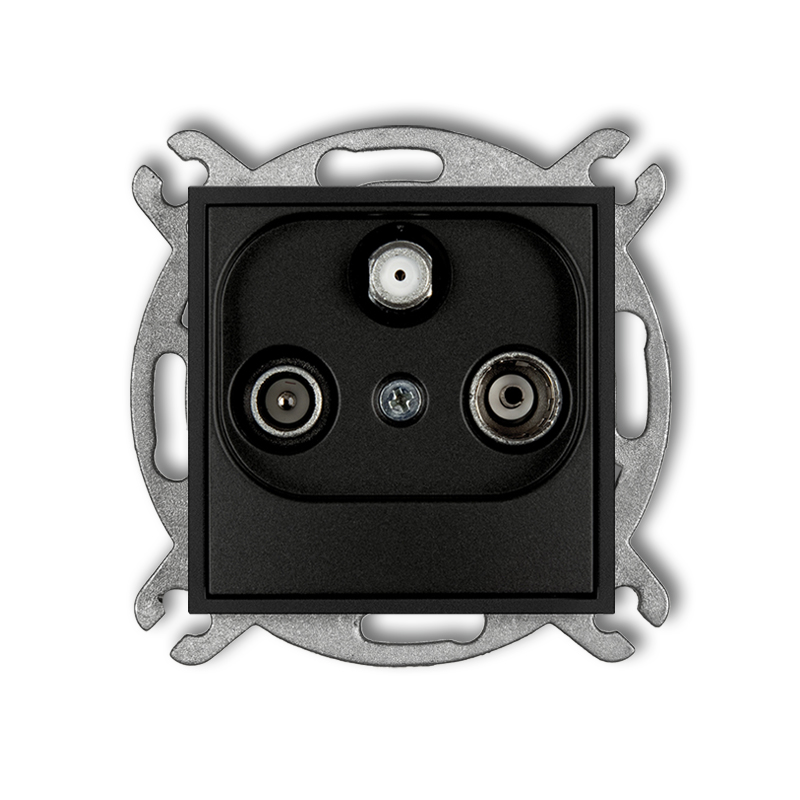

Radio/TV/SAT through socket mechanism the 10 dB
