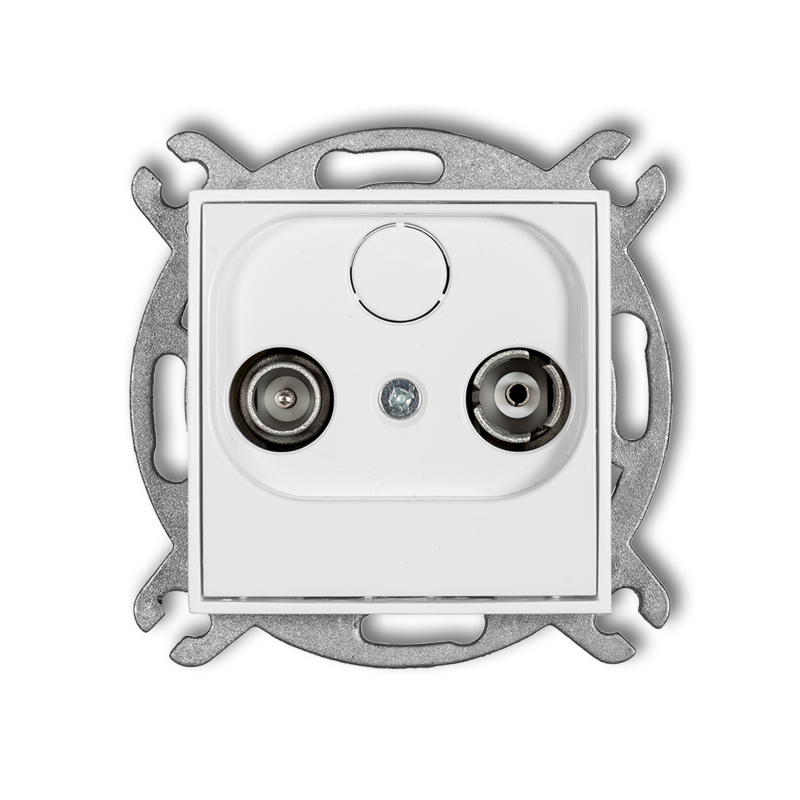

Radio/TV through socket mechanism the 15 dB
white
MG15P
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 16 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Radio/TV final socket mechanism the 2 dB
white
MG2K
-
3F DATA (UPC) multimedia socket mechanism
matt black
12MGMU
-
Radio/TV/SAT final socket mechanism the 1,5 dB
matt grey
27MGS
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
matt graphite
28MGST
-

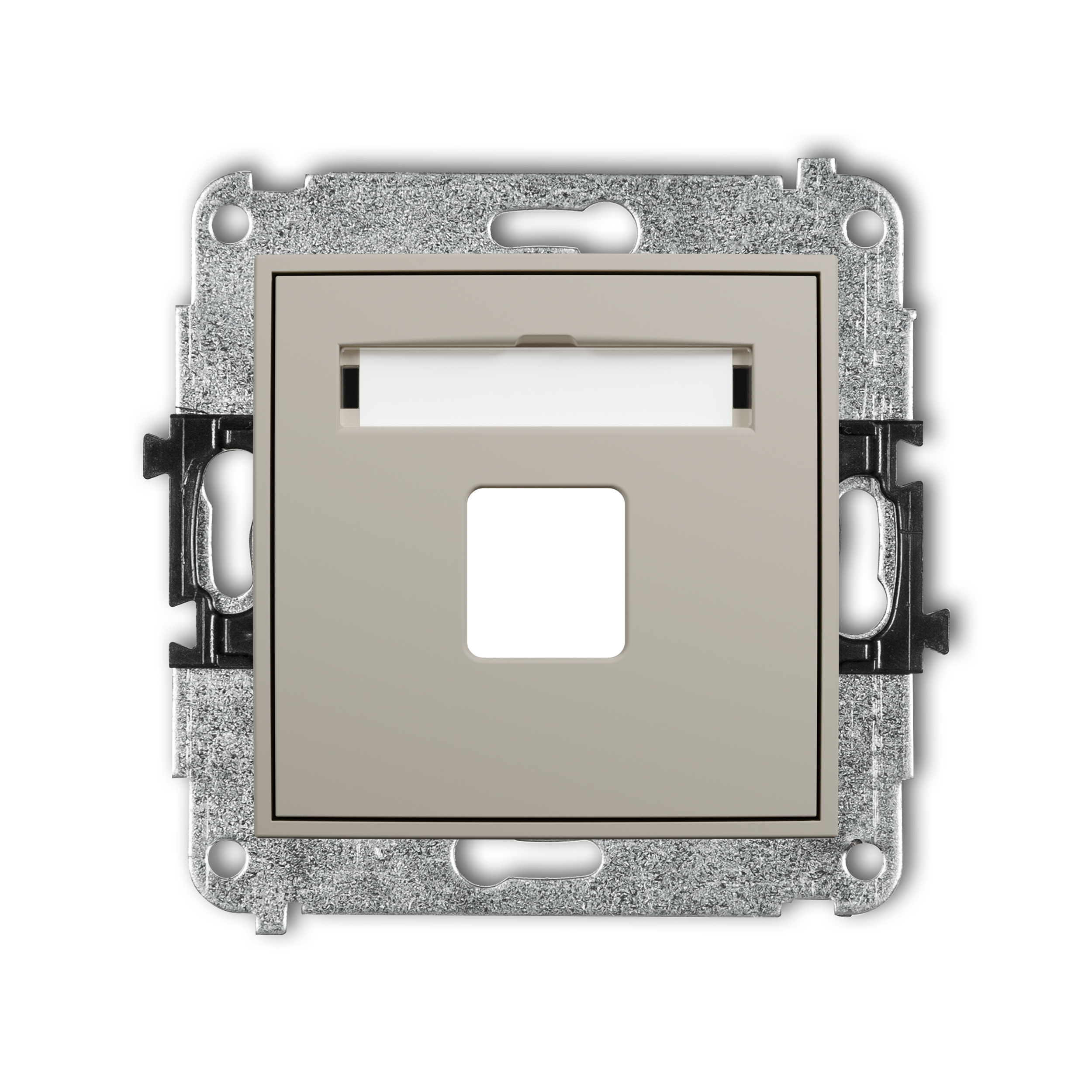

Single multimedia socket mechanism without module (Keystone standard)
taupe
60MGM-1P
-

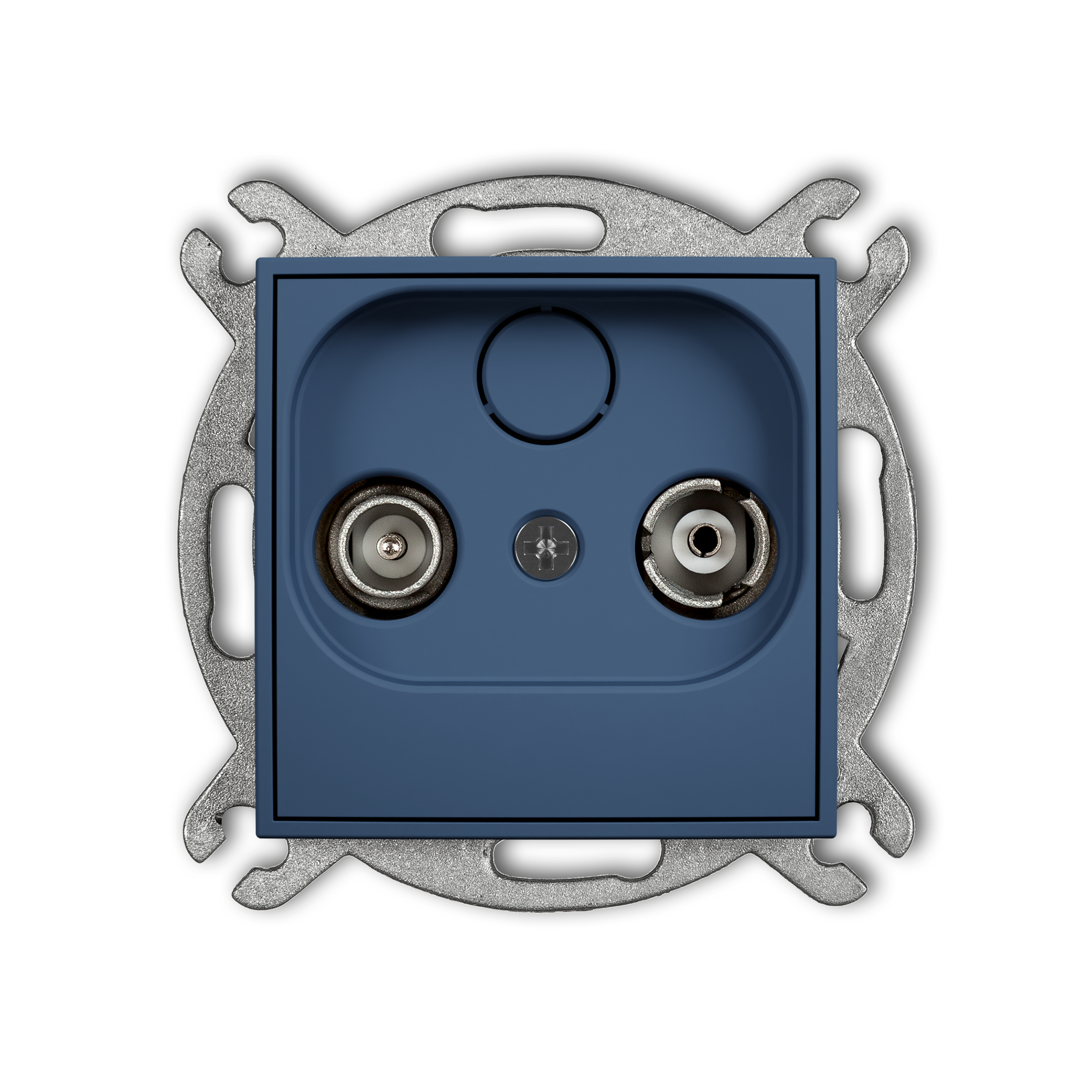

Radio/TV through socket mechanism the 9 dB
