Radio/TV final socket mechanism the 2 dB
white
MG2K
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Radio/TV final socket (in series of through sockets) mechanism the 6 dB
white
MG6K
-
TV/SAT with two satellite inputs socket mechanism
matt black
12MGSN
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
matt grey
27MGST
-
3F DATA (UPC) multimedia socket mechanism
matt graphite
28MGMU
-

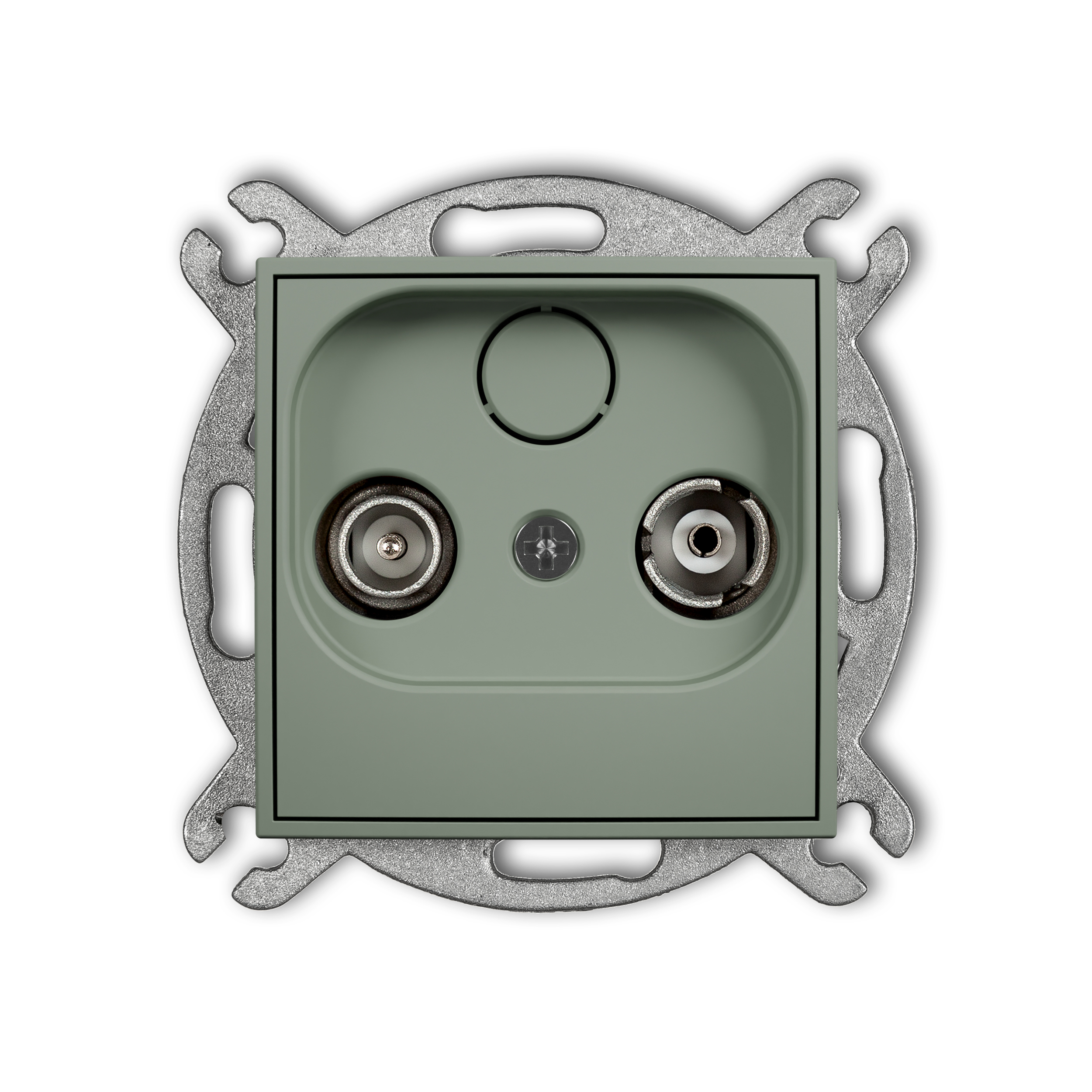

Radio/TV final socket mechanism the 2 dB
sage
61MG2K
-
Radio/TV/SAT final socket mechanism the 1,5 dB
navy blue
64MGS
