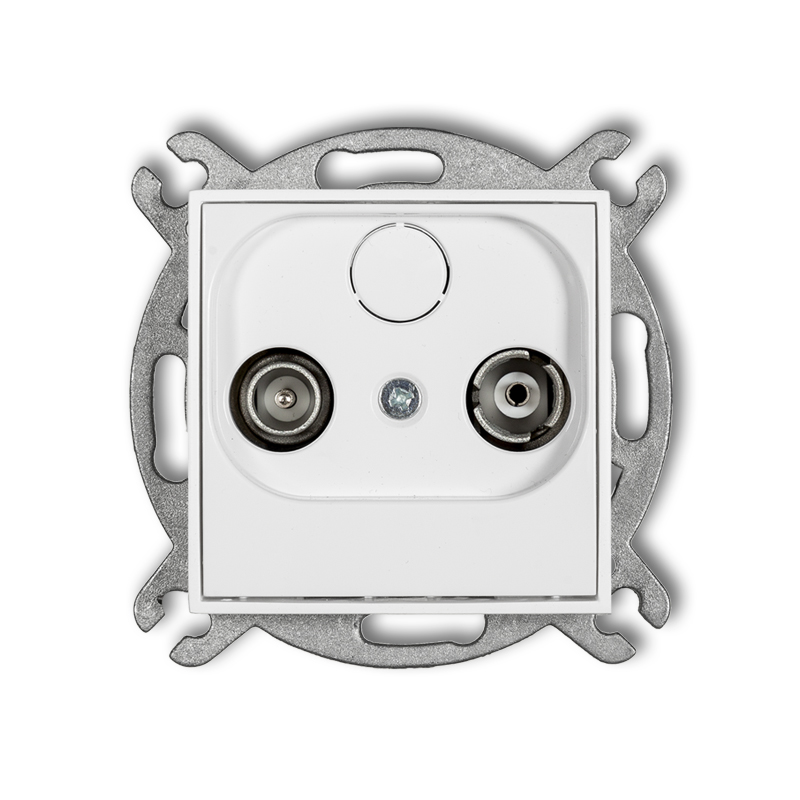

Radio/TV through socket mechanism the 9 dB
white
MG9P
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
Compression damping | 9,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
3F DATA (VECTRA) multimedia socket mechanism
white
MGMV
-
Radio/TV/SAT final socket mechanism the 1,5 dB
matt black
12MGS
-
Radio/TV through socket mechanism the 12 dB
matt grey
27MG12P
-
Radio/TV final socket mechanism the 2 dB
matt graphite
28MG2K
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
taupe
60MGST
-
Single multimedia socket mechanism without module (Keystone standard)
salmon
62MGM-1P
