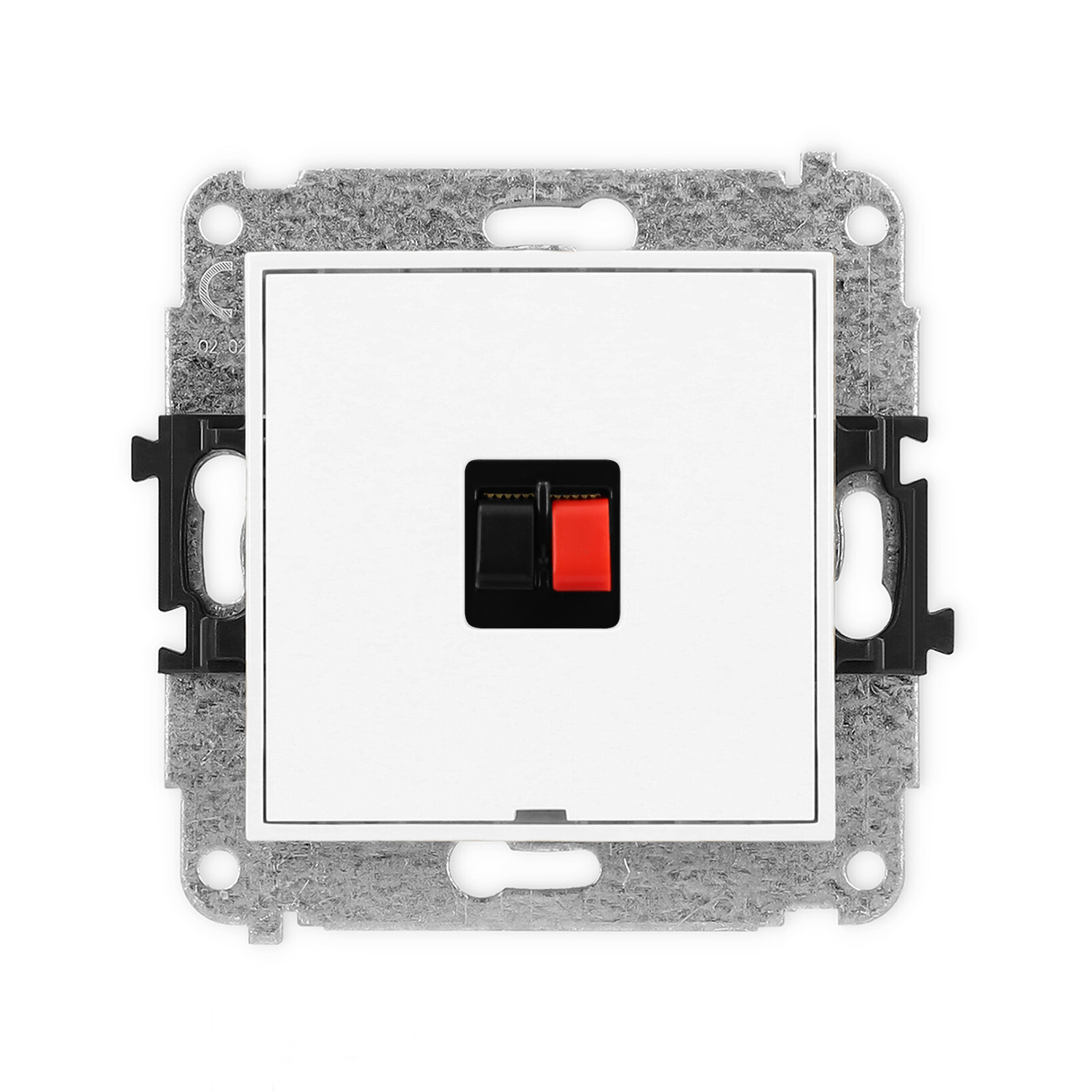

Single loudspeaker socket (2mm) mechanism, without description field
white
MGGBO-1
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI series multimedia sockets connection method you find here.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Cross section of cable | 2,5 mm2 |
Connection type | Terminal |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Single loudspeaker socket (2,5 mm2) mechanism
white
MGG-1
-
Double loudspeaker socket (2,5 mm2) mechanism
matt black
12MGG-2
-
Single loudspeaker socket (2,5 mm2) mechanism
matt grey
27MGG-1
-
Double loudspeaker socket (2,5 mm2) mechanism
matt graphite
28MGG-2
-
Single loudspeaker socket (2,5 mm2) mechanism
sage
61MGG-1
-
Single loudspeaker socket (2,5 mm2) mechanism
terracotta
63MGG-1
