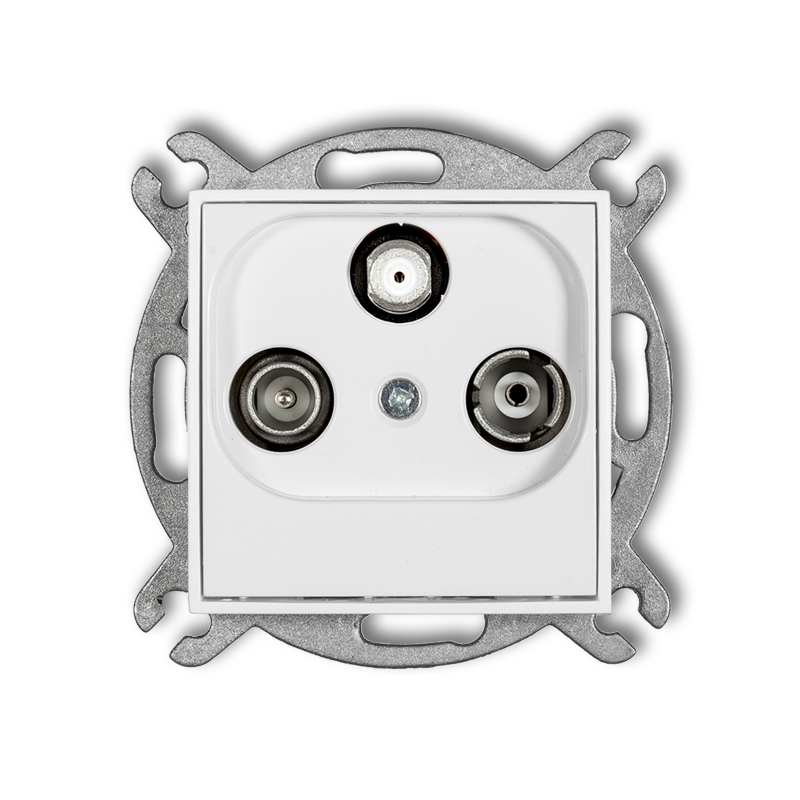

Radio/TV/SAT multimedia socket mechanism (Internet)
![MINI](/media/filer_public/97/45/9745a2a0-9ca5-42e8-b466-dd2e0b322a97/mgm.jpg)
white
MGM
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 88 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
DATA circut frequency range | 5 ÷ 862 MHz |
Compression damping | 13,2 ÷ 13,6 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |

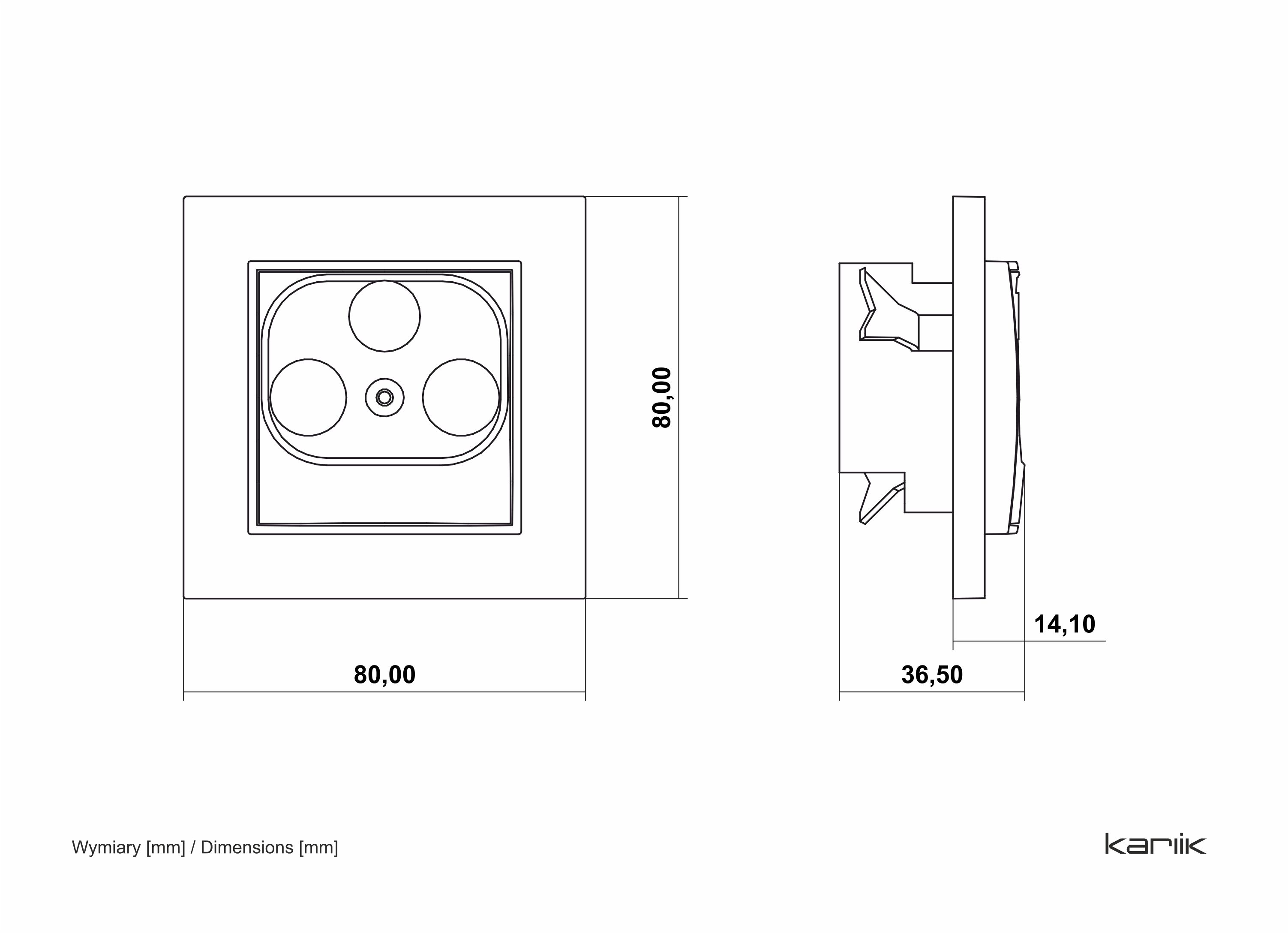

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat_qenUBRn.jpg)
Product variants
-
Radio/TV/SAT final socket mechanism the 1,5 dB
white
MGS
-
TV/SAT with two satellite inputs socket mechanism
white
MGSN
-
Radio/TV/SAT final socket mechanism the 1,5 dB
silver metallic
7MGS
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
graphite
11MGST
-
3F DATA (UPC) multimedia socket mechanism
matt grey
27MGMU
-
Radio/TV/SAT multimedia socket mechanism (Internet)
matt graphite
28MGM
Complementary products
Related products
-
American-style single push button "bell" mechanism (single push button without pictogram)
white
MWPUS-4.1
-
Electronic control roller shutter (local control, remote control, zone control)
white
MSR-3
-

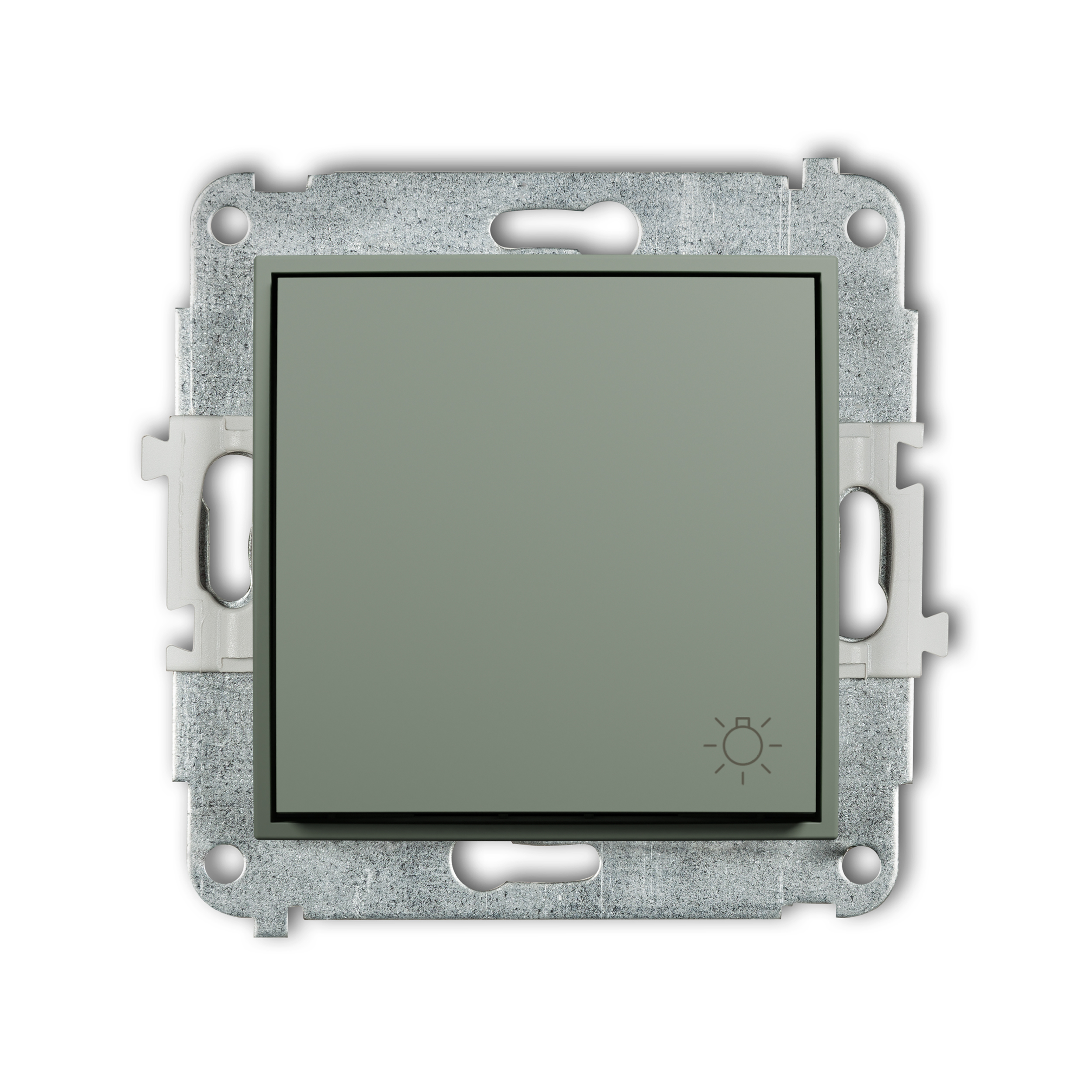

Single push button "light" mechanism
