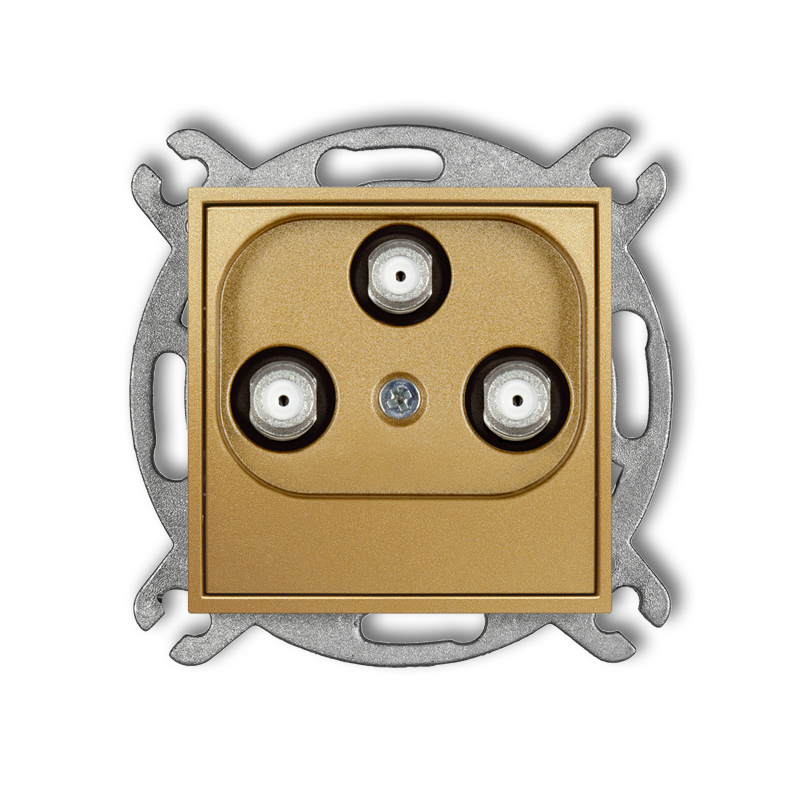

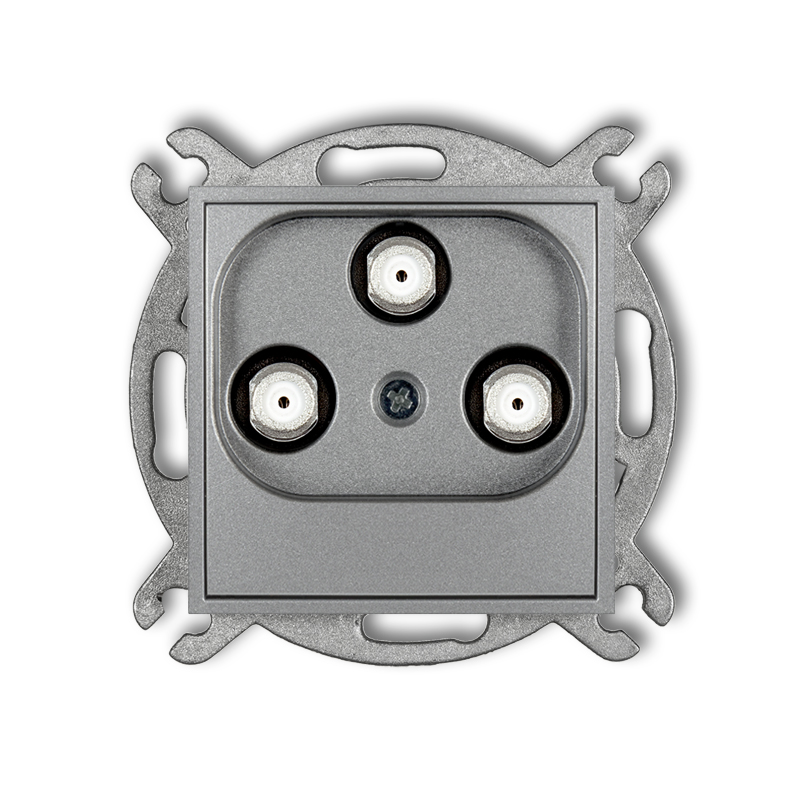

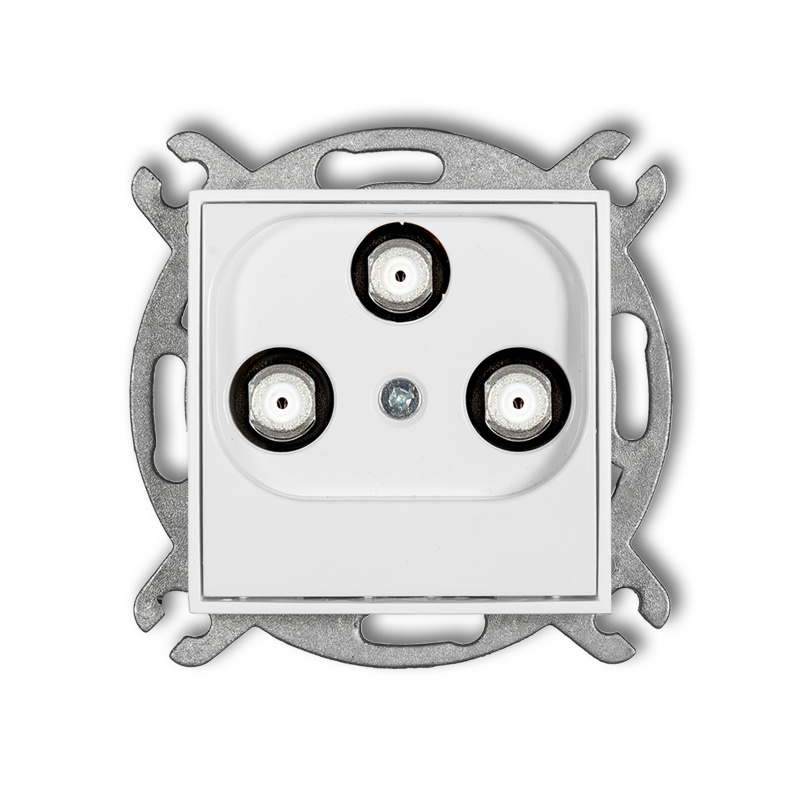

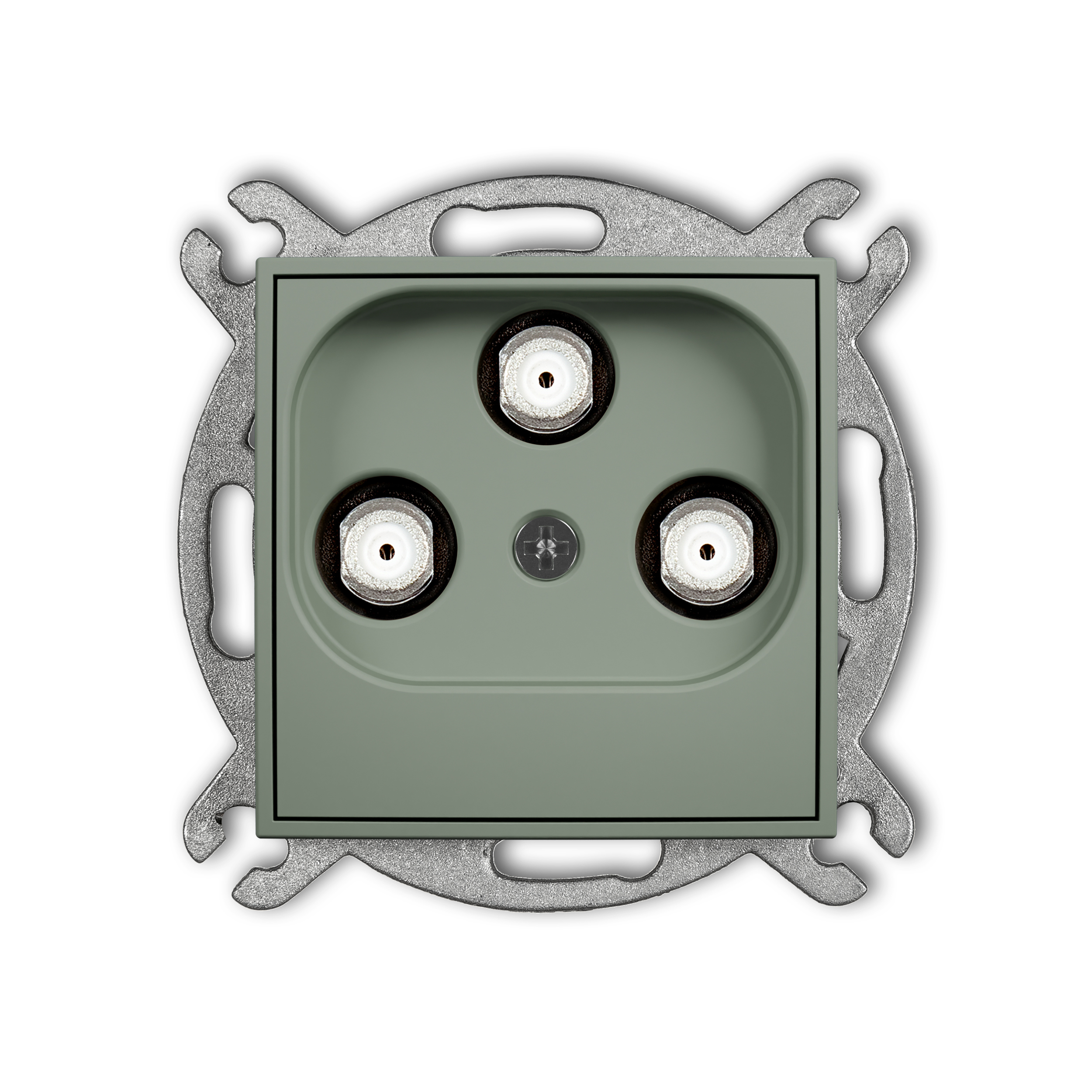

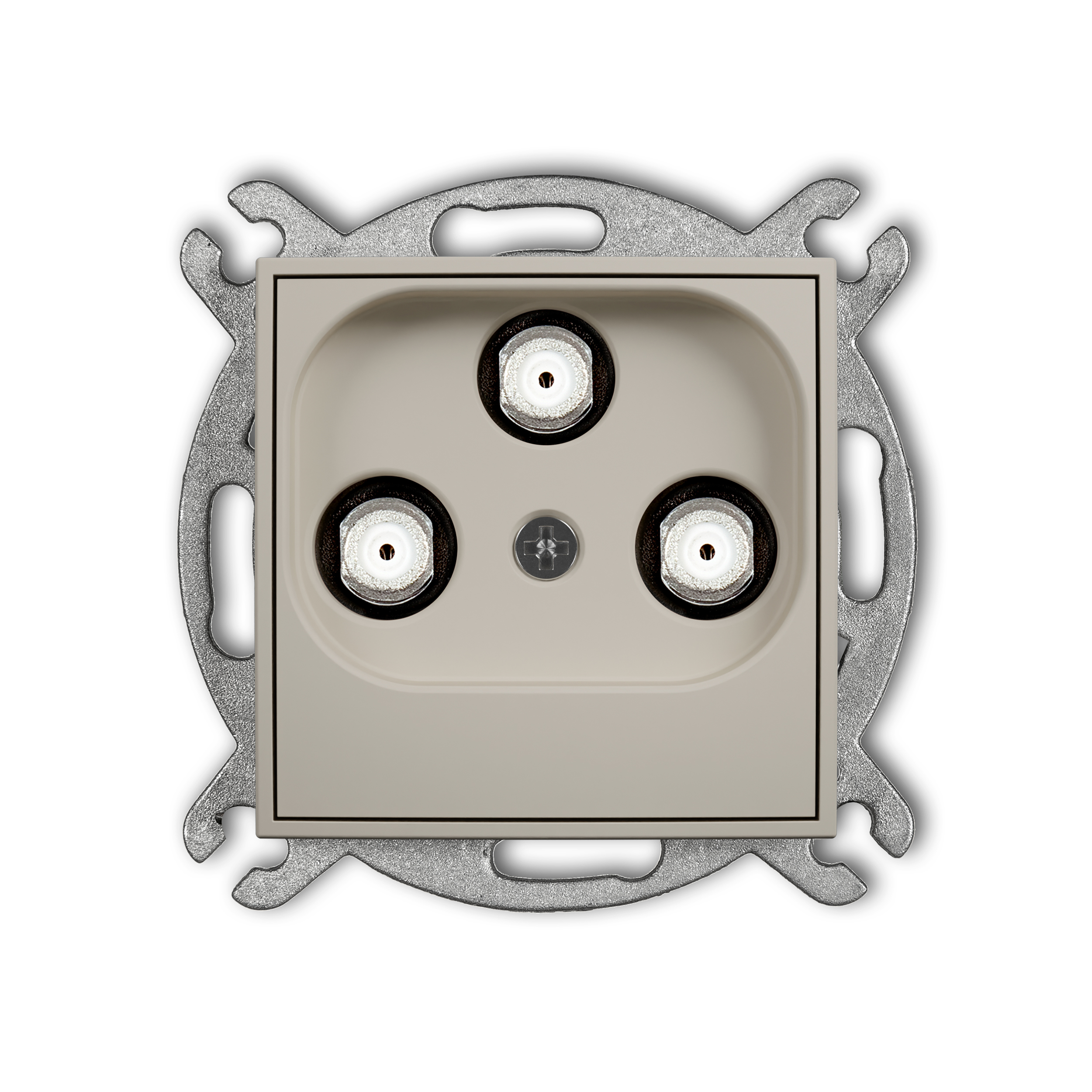

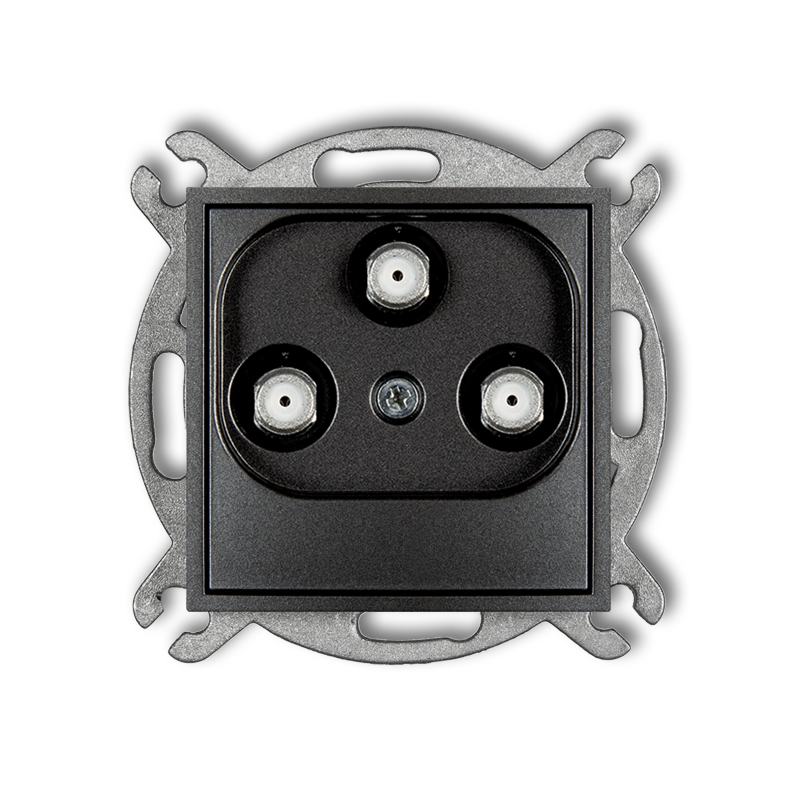

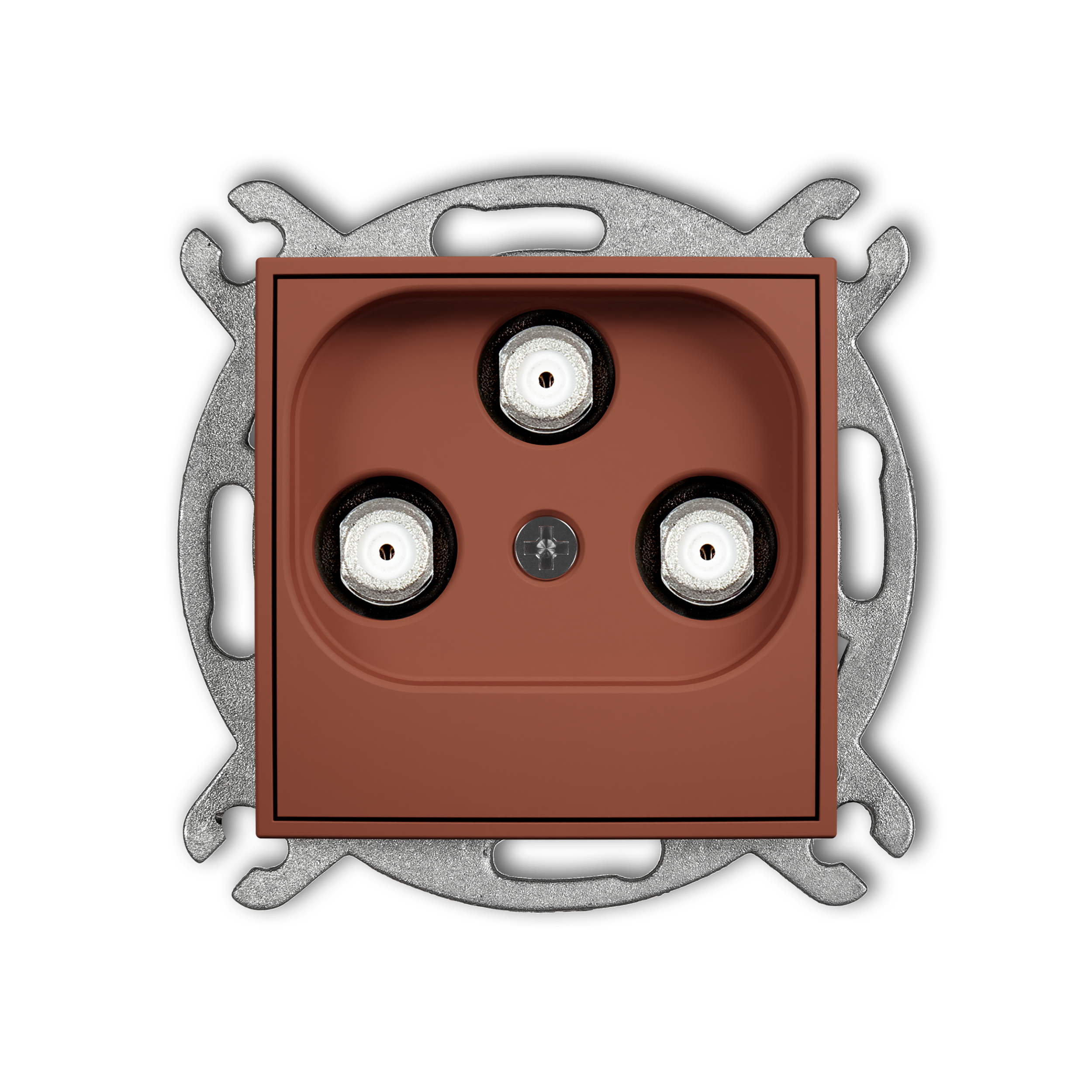

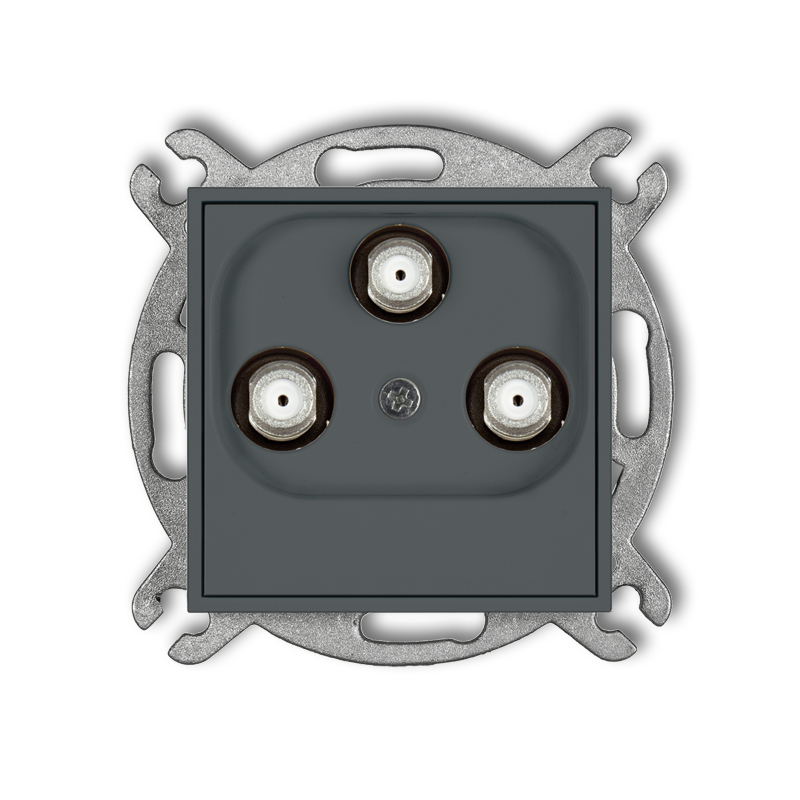

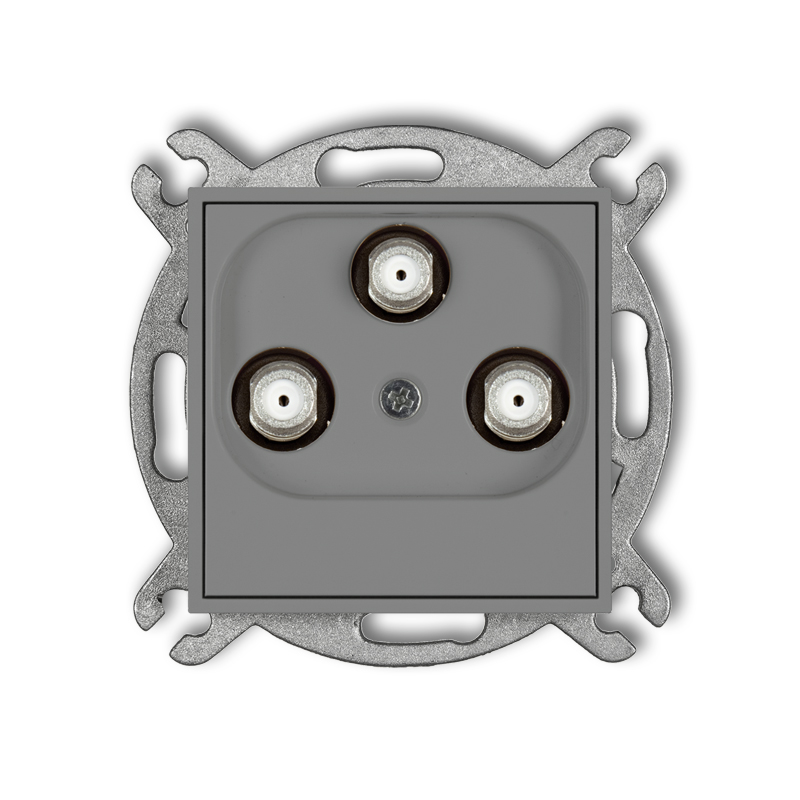

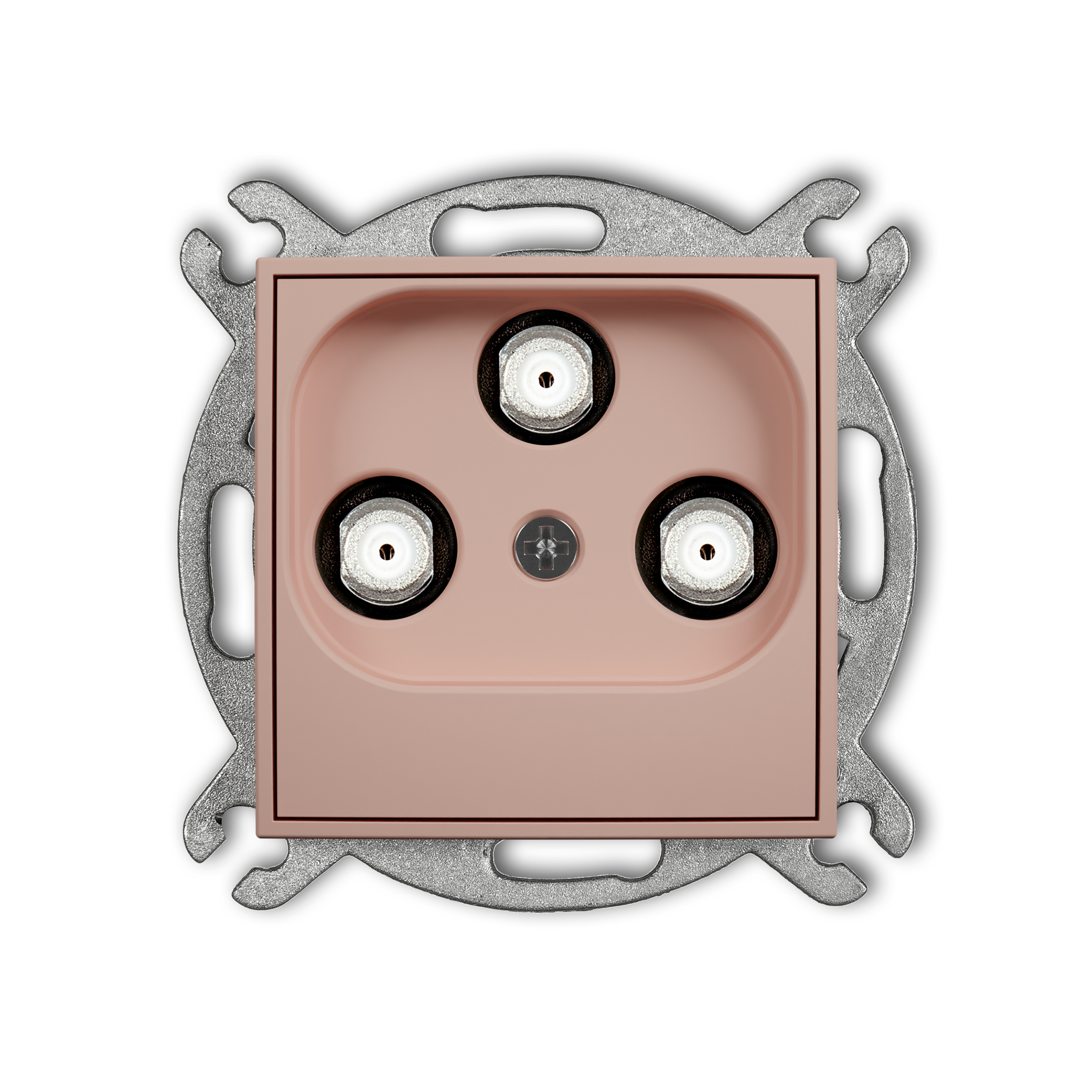

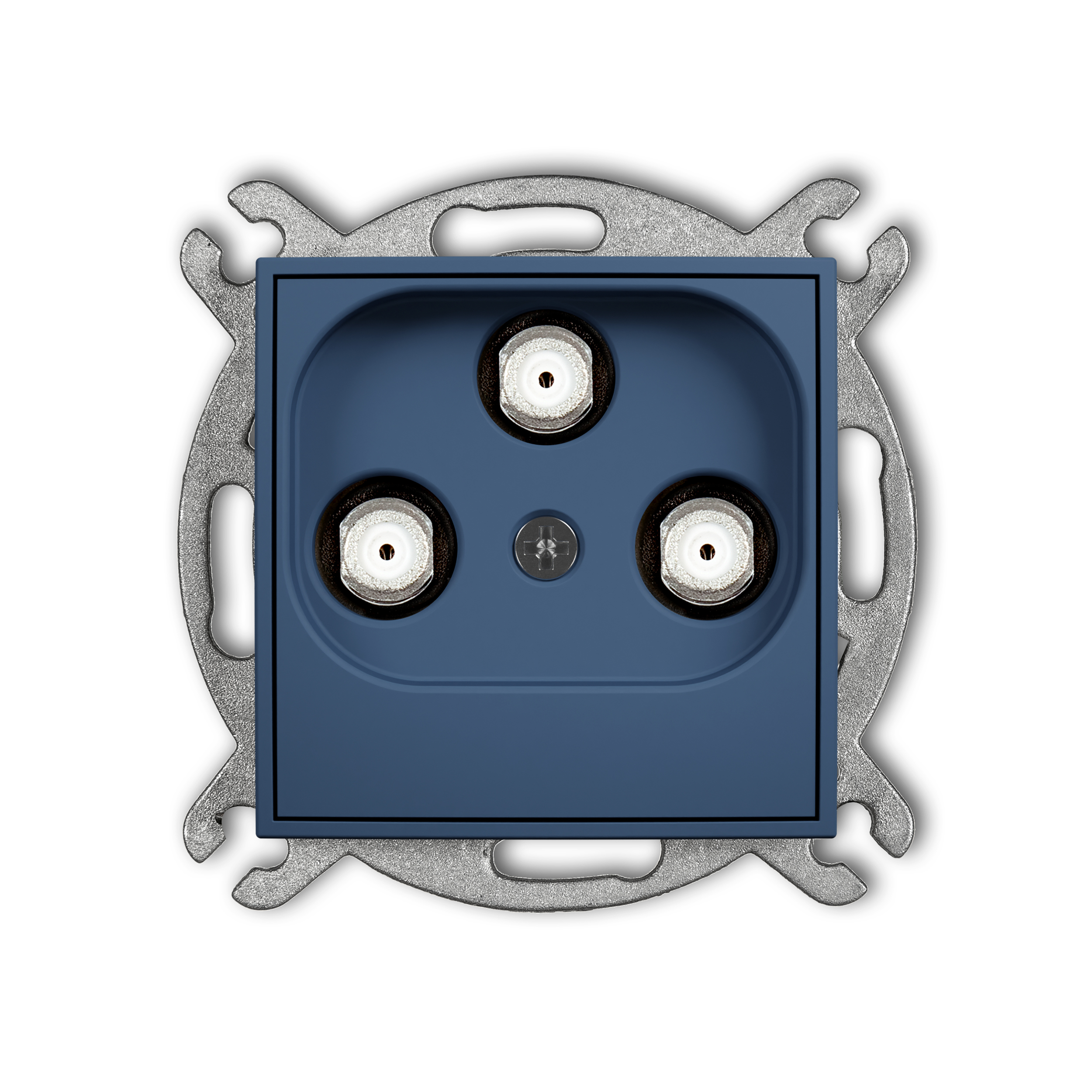

3F DATA (UPC) multimedia socket mechanism
![MINI](/media/filer_public/09/23/092359aa-7e47-49fc-85a7-773348728b5f/mgmu.jpg)
white
MGMU
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 87,5 ÷ 862 MHz |
Radio circut frequency range | |
DATA circut frequency range | 87,5 ÷ 862 MHz |
Compression damping | <13 dB (87,5 ÷ 139 MHz) >55dB (5 ÷ 65 MHz) |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |

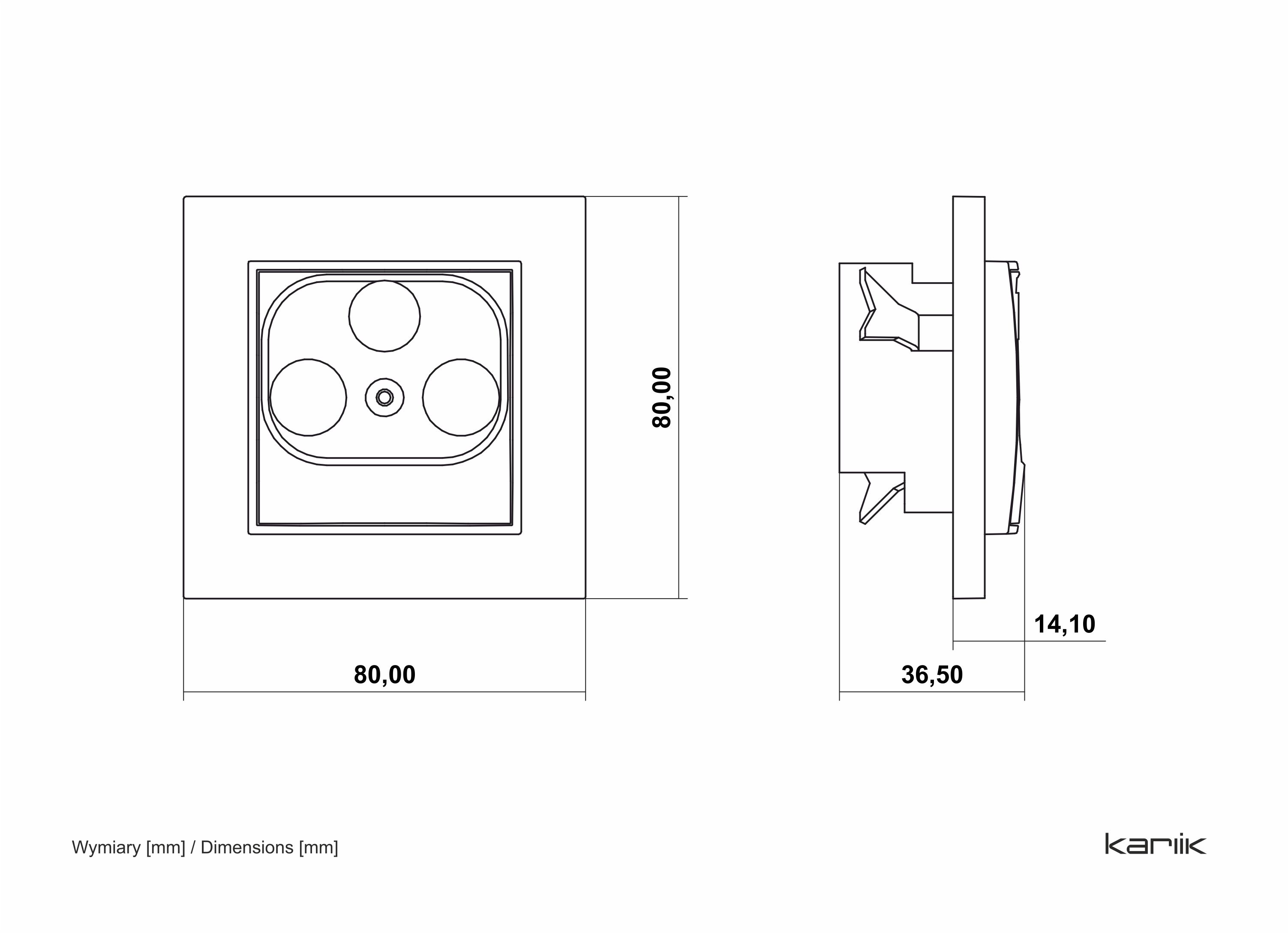

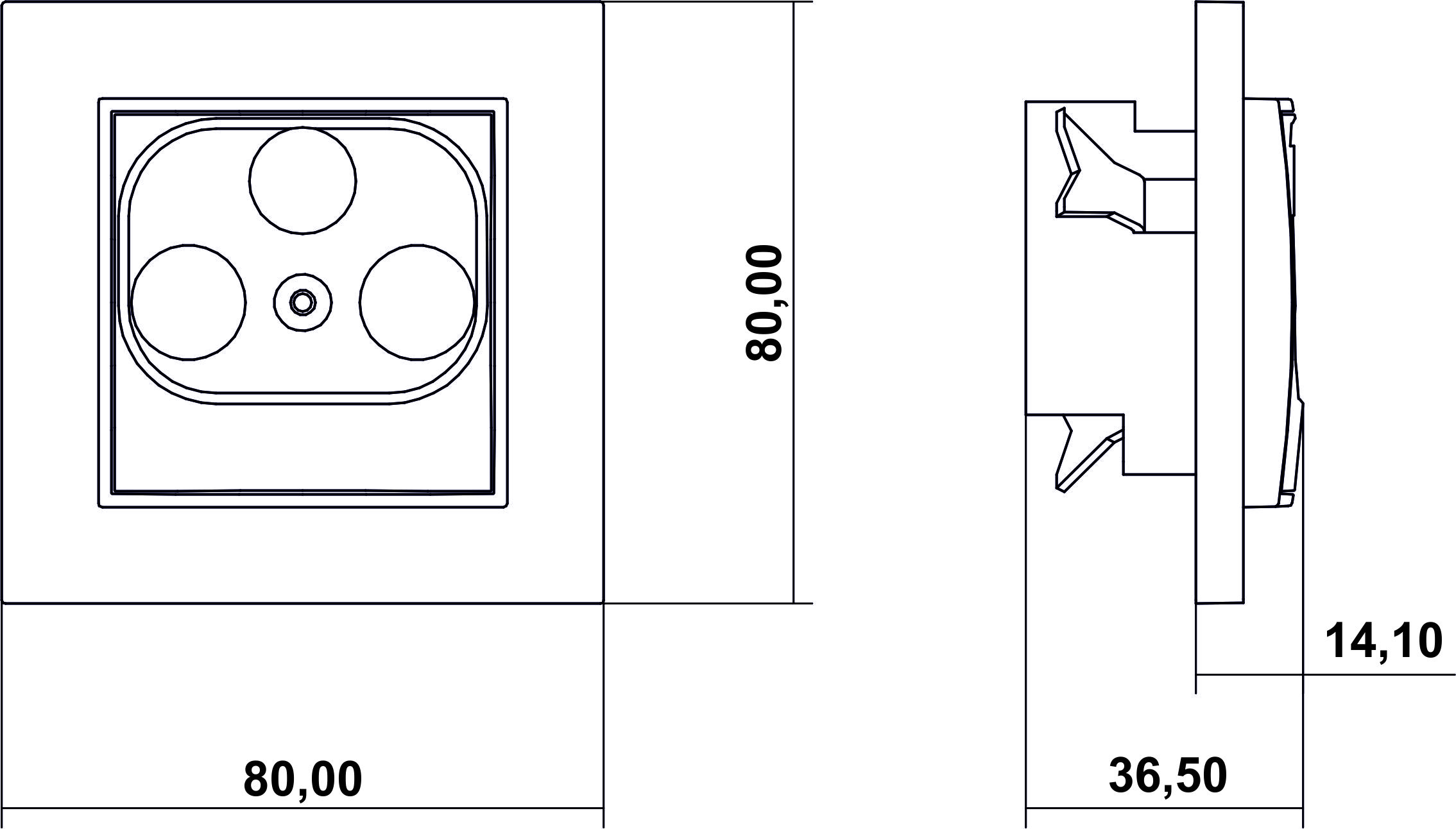

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat.jpg)
Product variants
-
3F DATA (VECTRA) multimedia socket mechanism
white
MGMV
-
3F DATA (VECTRA) multimedia socket mechanism
silver metallic
7MGMV
-
Radio/TV/SAT through socket mechanism the 10 dB
graphite
11MGSP
-

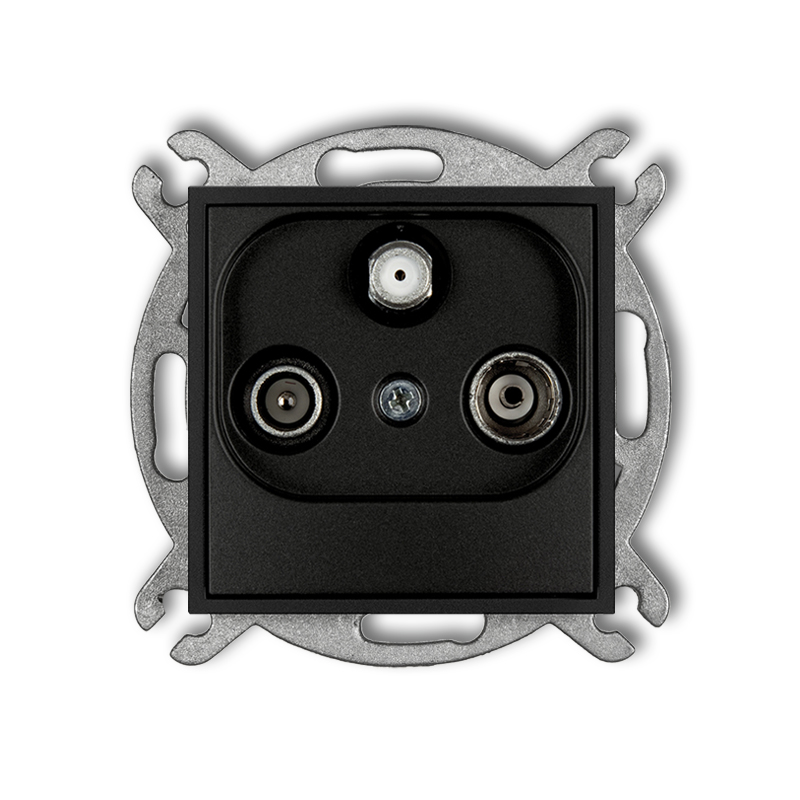

Radio/TV/SAT final socket mechanism the 1,5 dB
matt black
12MGS
-

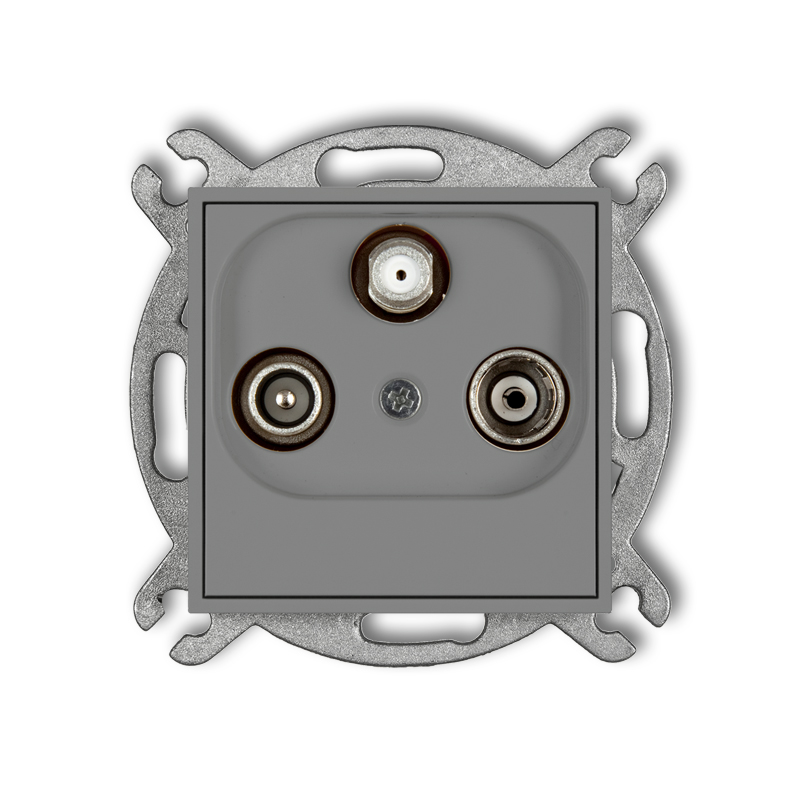

Radio/TV/SAT final socket mechanism the 1,5 dB
matt grey
27MGS
-

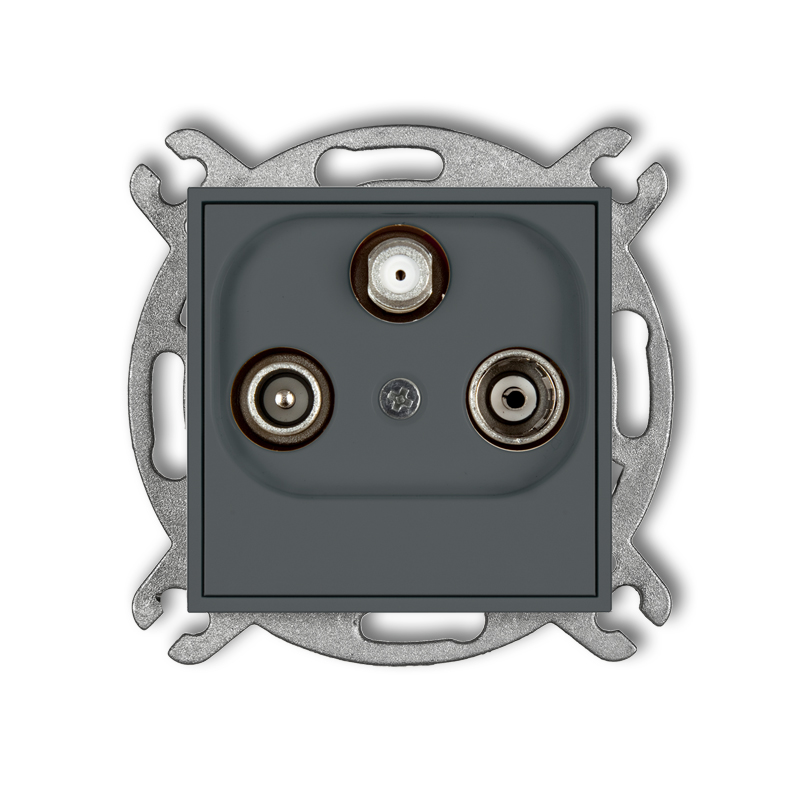

Radio/TV/SAT final socket (two antenna inputs) mechanism
