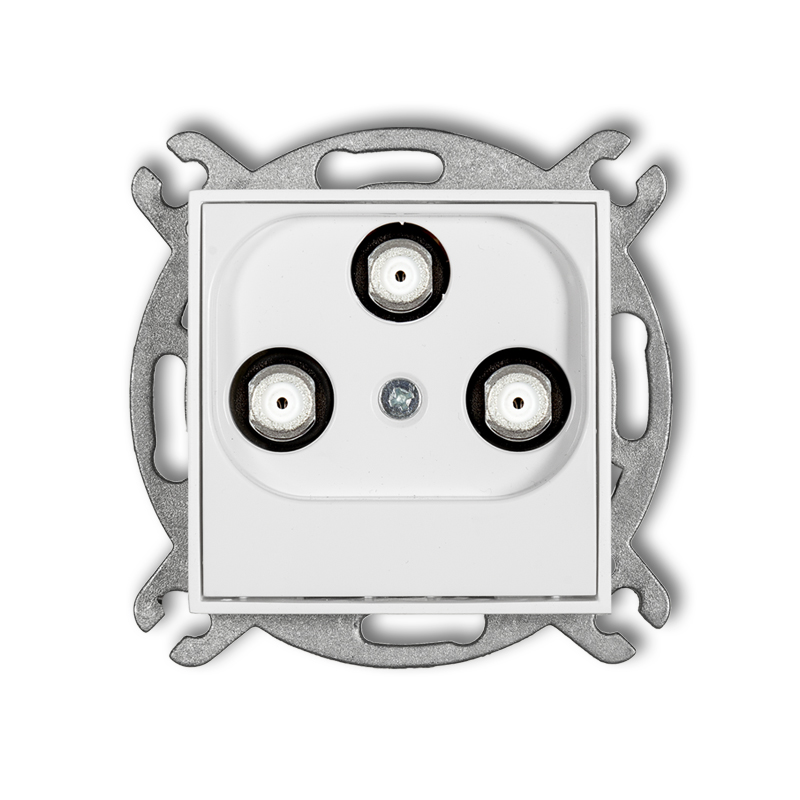

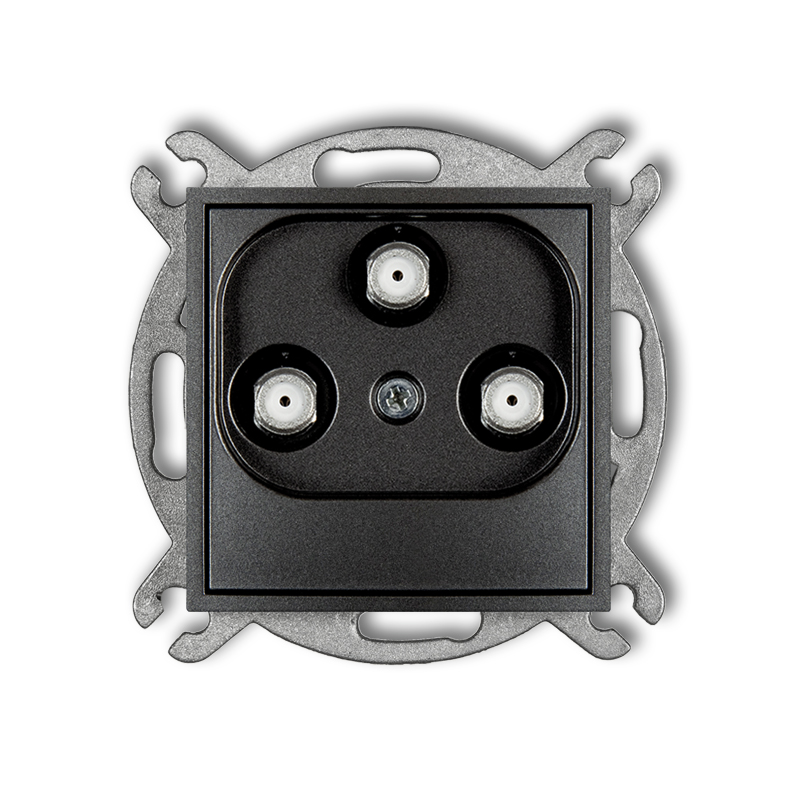

3F DATA (VECTRA) multimedia socket mechanism
![MINI](/media/filer_public/7b/b6/7bb687aa-29aa-4be6-8ea8-40d23038578a/mgmv.jpg)
white
MGMV
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 862 MHz |
TV circut frequency range | 88 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
DATA circut frequency range | 5 ÷ 862 MHz |
Compression damping | 12 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |

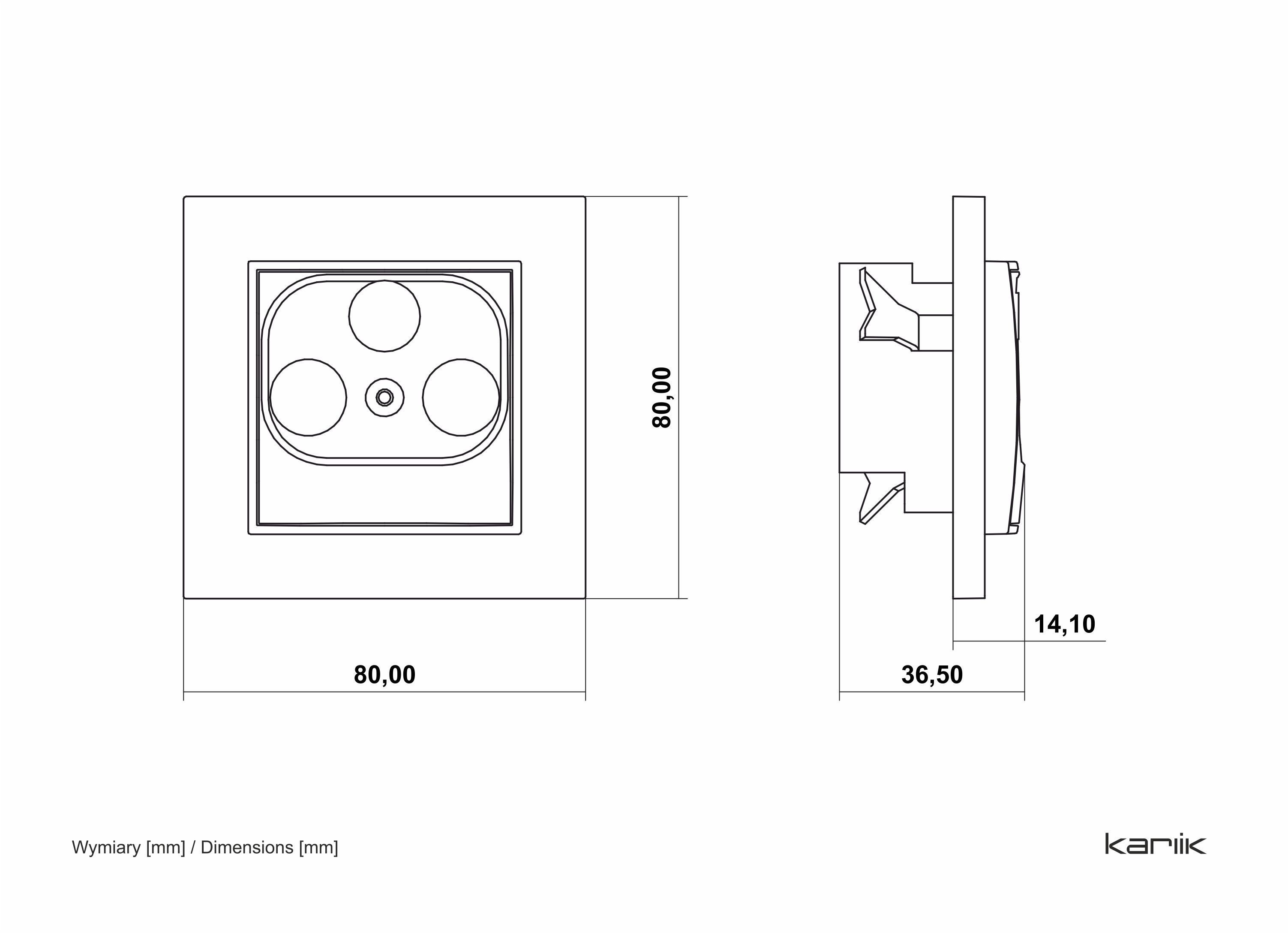

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat_uPgwpFz.jpg)
