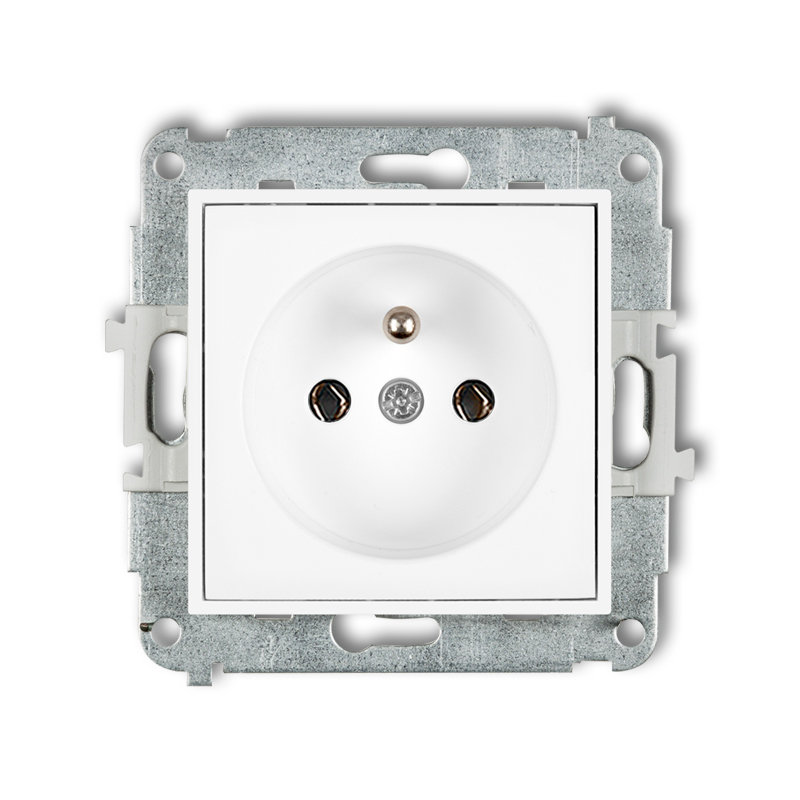

Single socket with the 2P+Z earth mechanism (without increased contact protection/shutter)
white
MGP-1z
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Rated current | 16 A |
Rated voltage | 250 V~ |
Increased contact protection/shutter | NO |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-
Single socket without the 2P earth mechanism (with increased contact protection/shutter)
white
MGP-1p
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
matt black
12MGP-1sp
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
matt grey
27MGP-1sp
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
matt graphite
28MGP-1zp
-
Single socket with the 2P+Z earth SCHUKO mechanism (child protection)
sage
61MGP-1sp
-

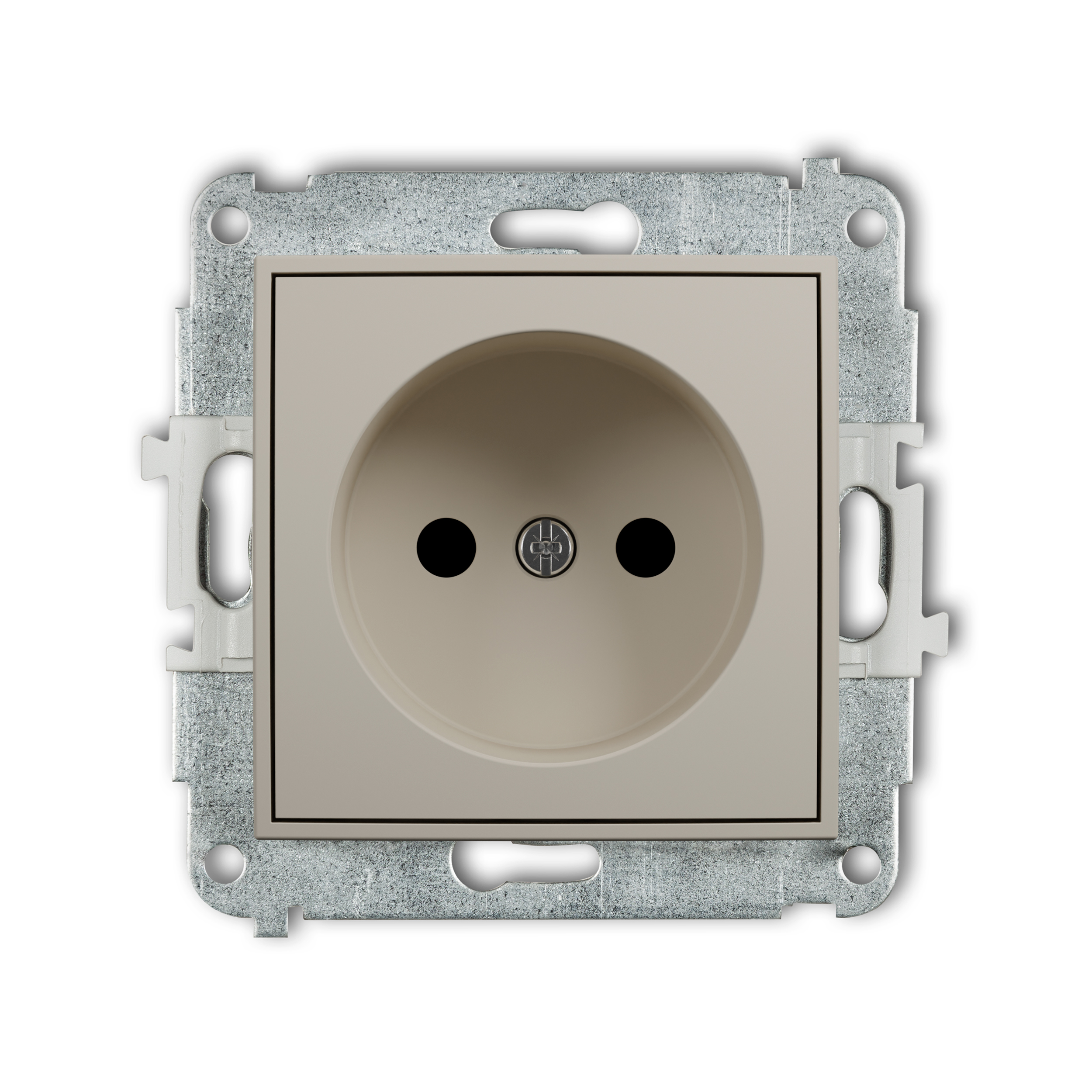

Single socket without the 2P earth mechanism (with increased contact protection/shutter)
taupe
60MGP-1p
Complementary products
Related products
-

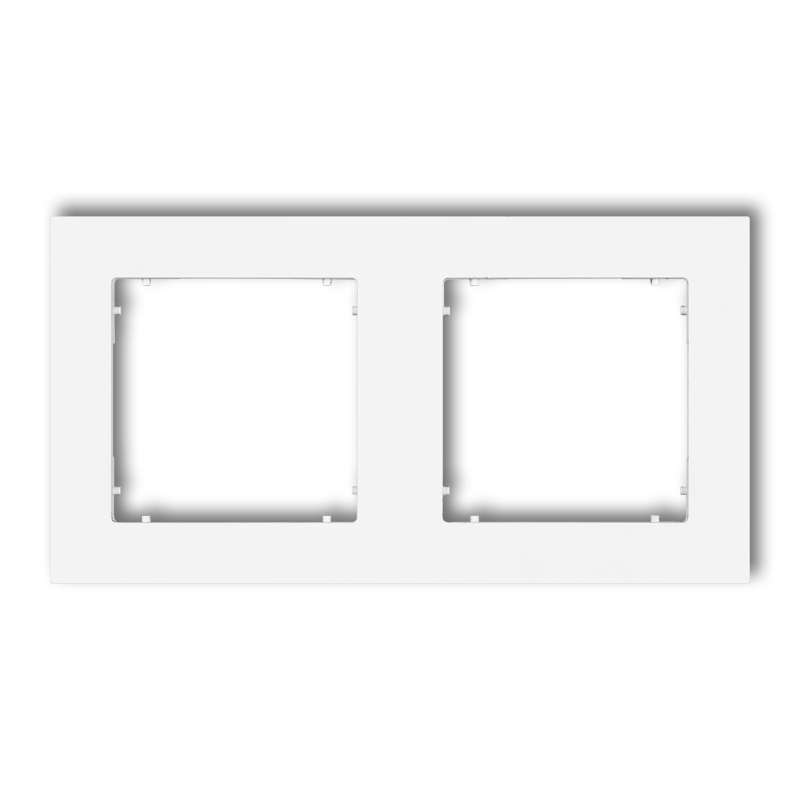

2-gang universal square plastic frame
white
MR-2
-

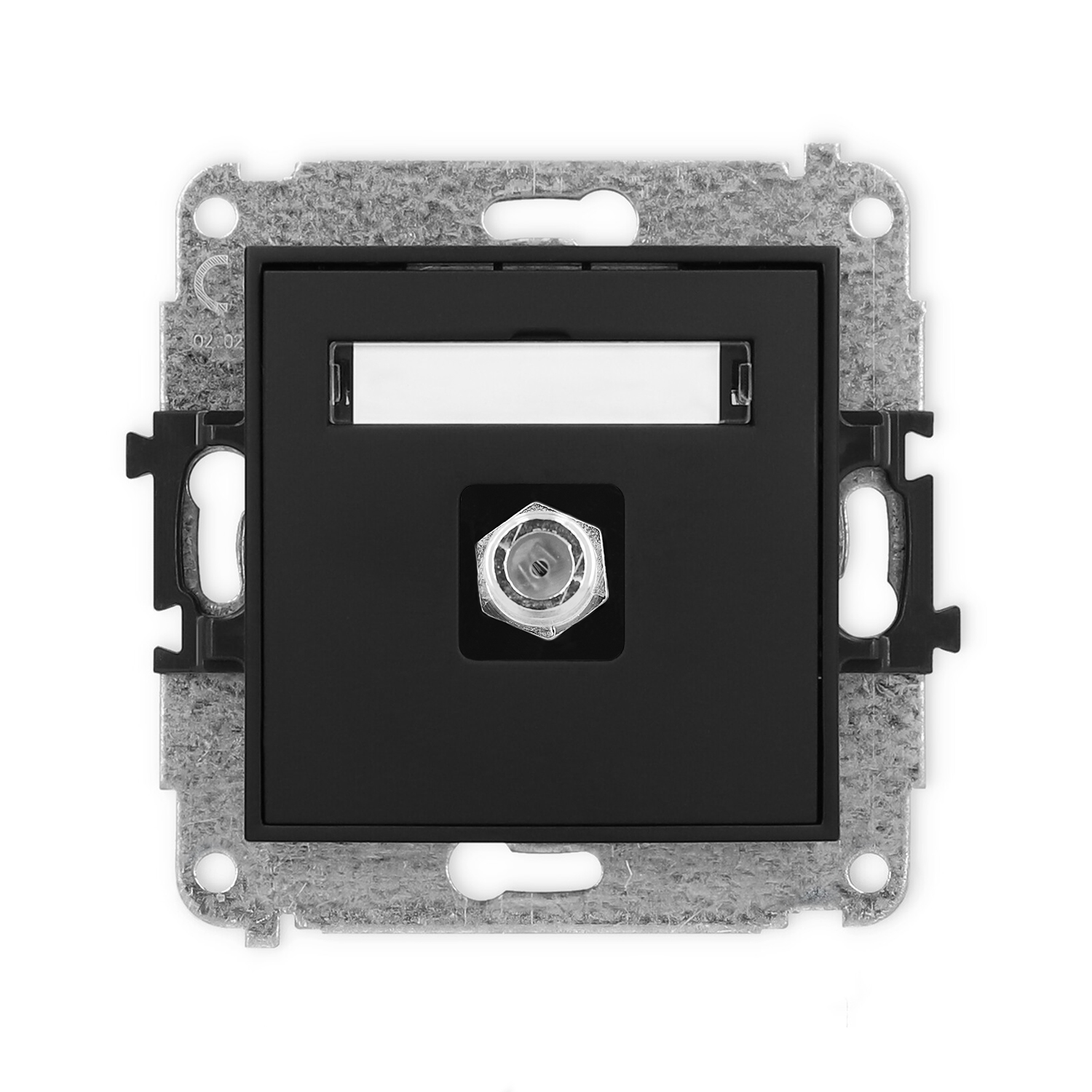

Single antenna F type socket (SAT) mechanism - nickel
matt black
12MGF-1
-

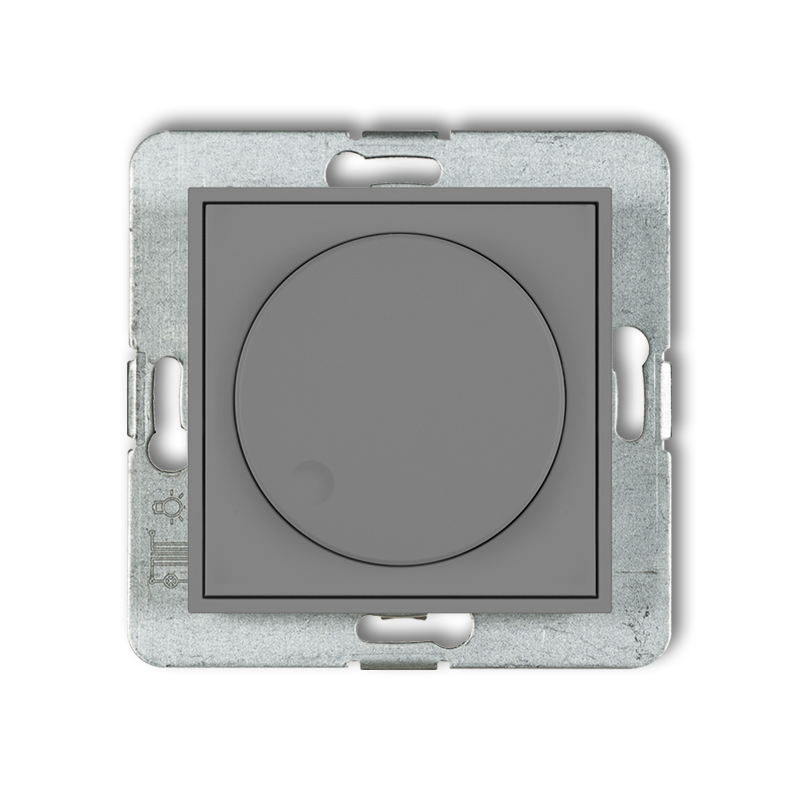

Electronic dimmer push-rotary mechanism
matt grey
27MRO-1
-
Single loudspeaker socket (2,5 mm2) mechanism
matt graphite
28MGG-1
-
Double socket to a frame without the 2x2P earth mechanism (without increased contact protection/shutter)
taupe
60MGPR-2
-

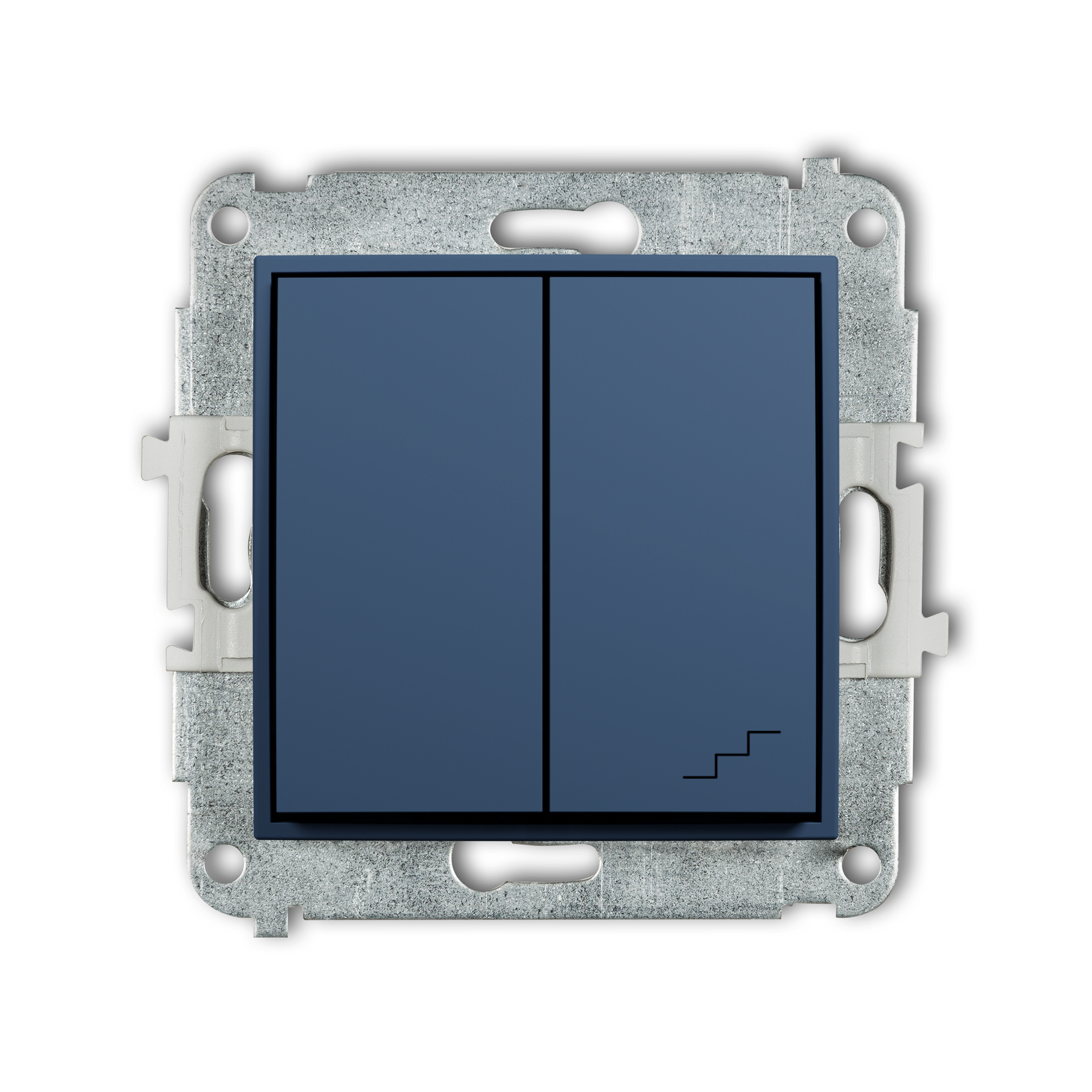

Single pole with two-way switch mechanism (common power supply)
