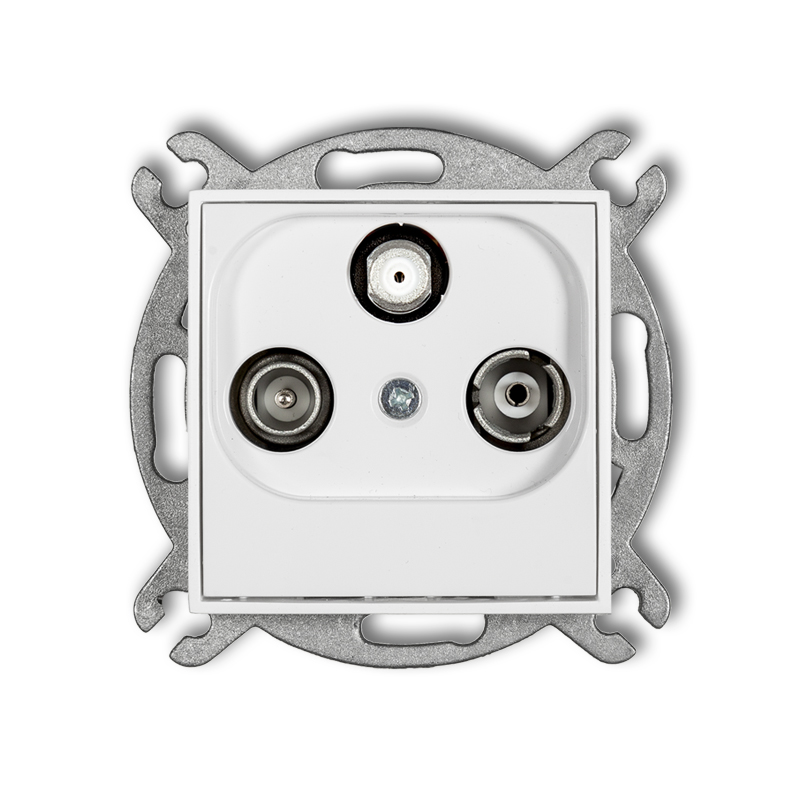

Radio/TV/SAT final socket mechanism the 1,5 dB
white
MGS
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circuit fraquency range 1 | 5 ÷ 2400 MHz |
TV circuit fraquency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circuit fraquency range | 88 ÷ 108 MHz |
SAT circuit fraquency range | 950 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw terminals |
UV resistance | Resistant |
Product variants
-

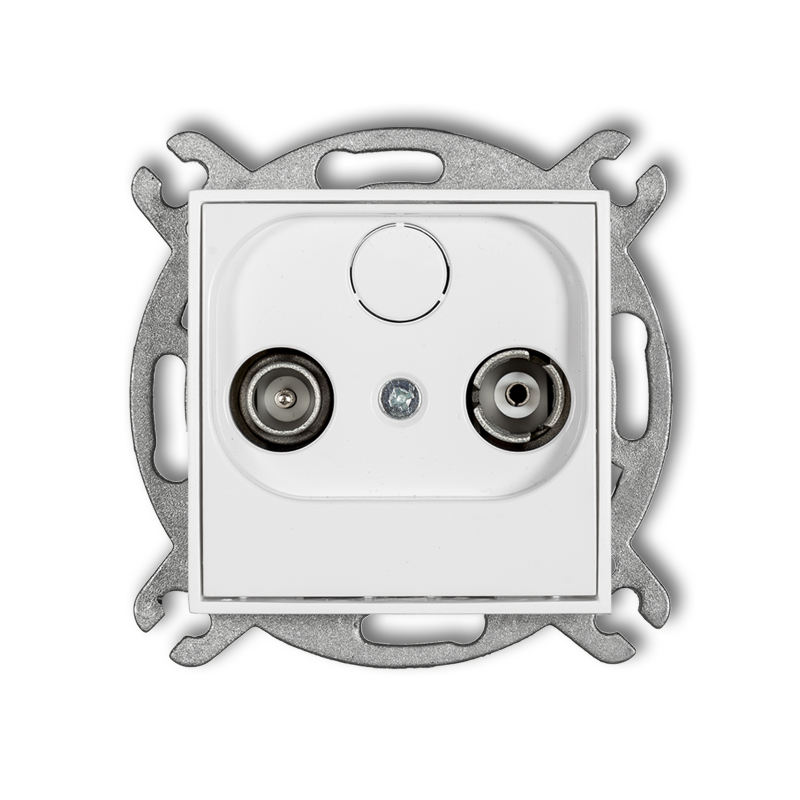

Radio/TV through socket mechanism the 12 dB
white
MG12P
-

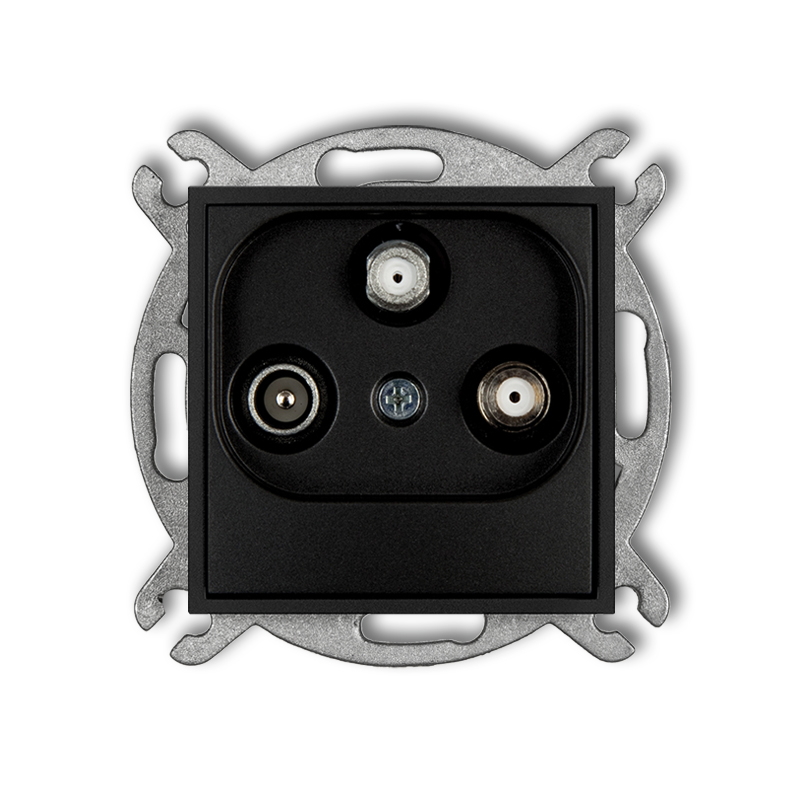

TV/SAT with two satellite inputs socket mechanism
matt black
12MGSN
-

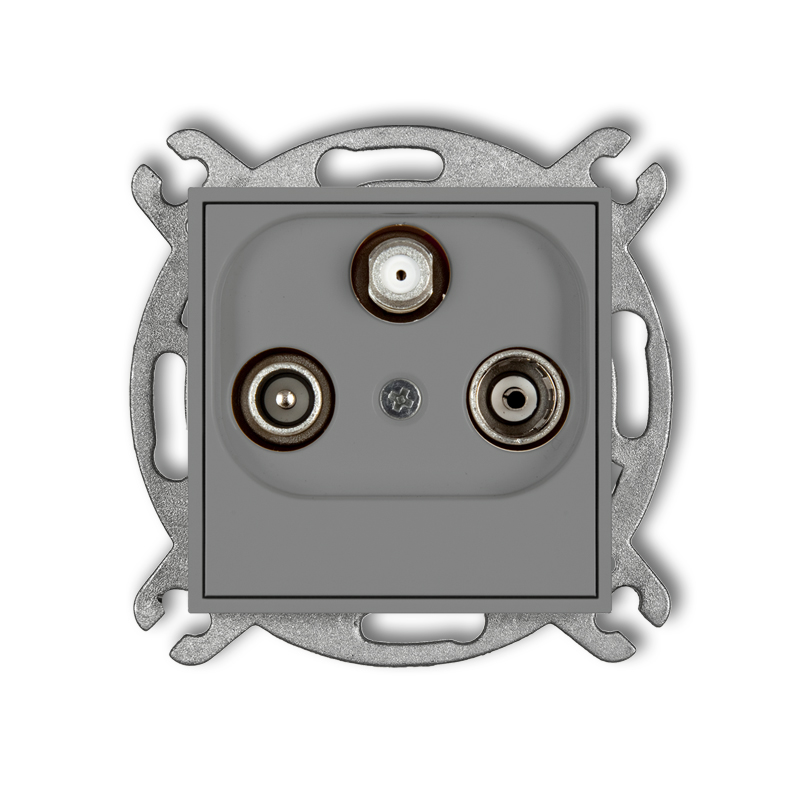

Radio/TV/SAT multimedia socket mechanism (Internet)
matt grey
27MGM
-
3F DATA (UPC) multimedia socket mechanism
matt graphite
28MGMU
-

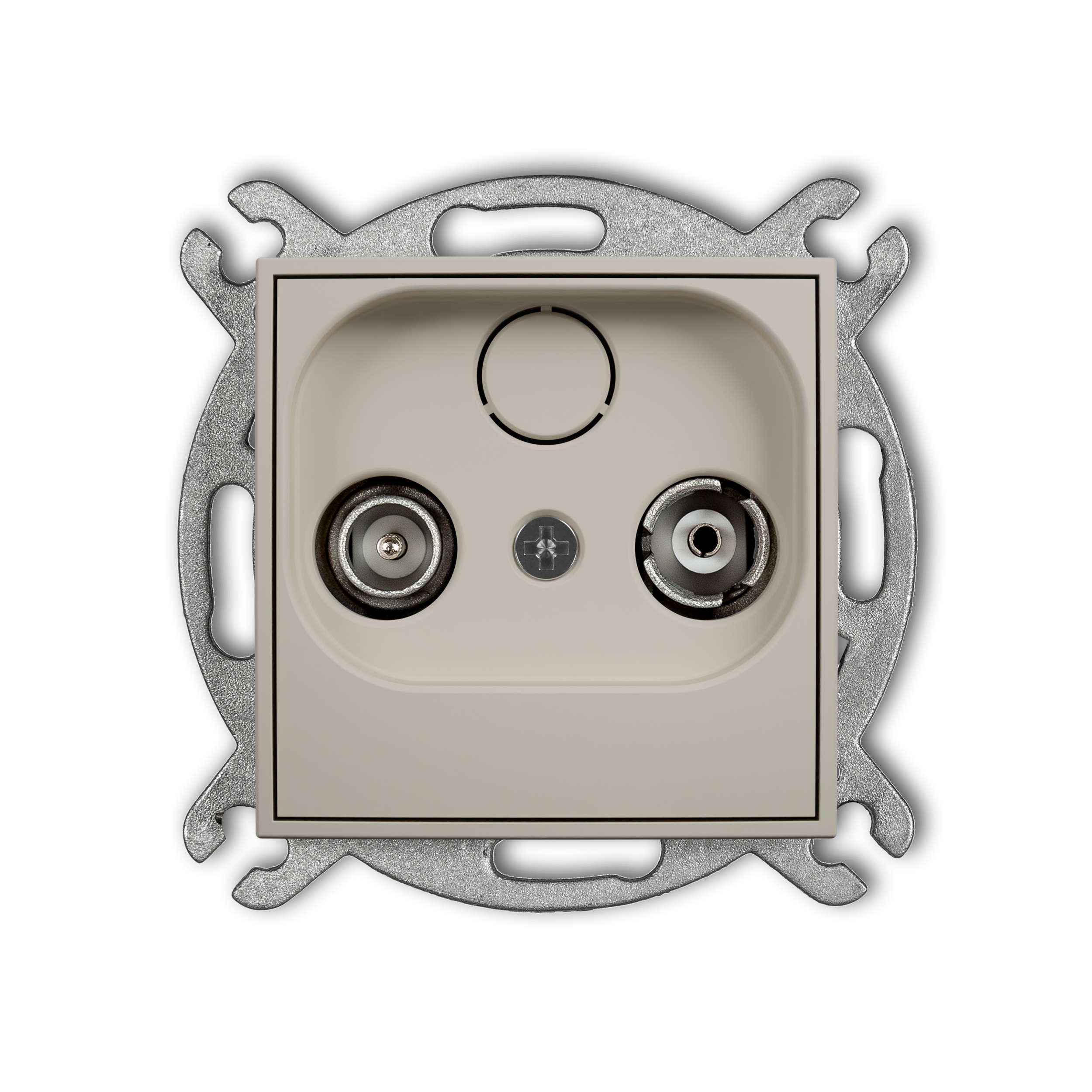

Radio/TV final socket mechanism the 2 dB
taupe
60MG2K
-

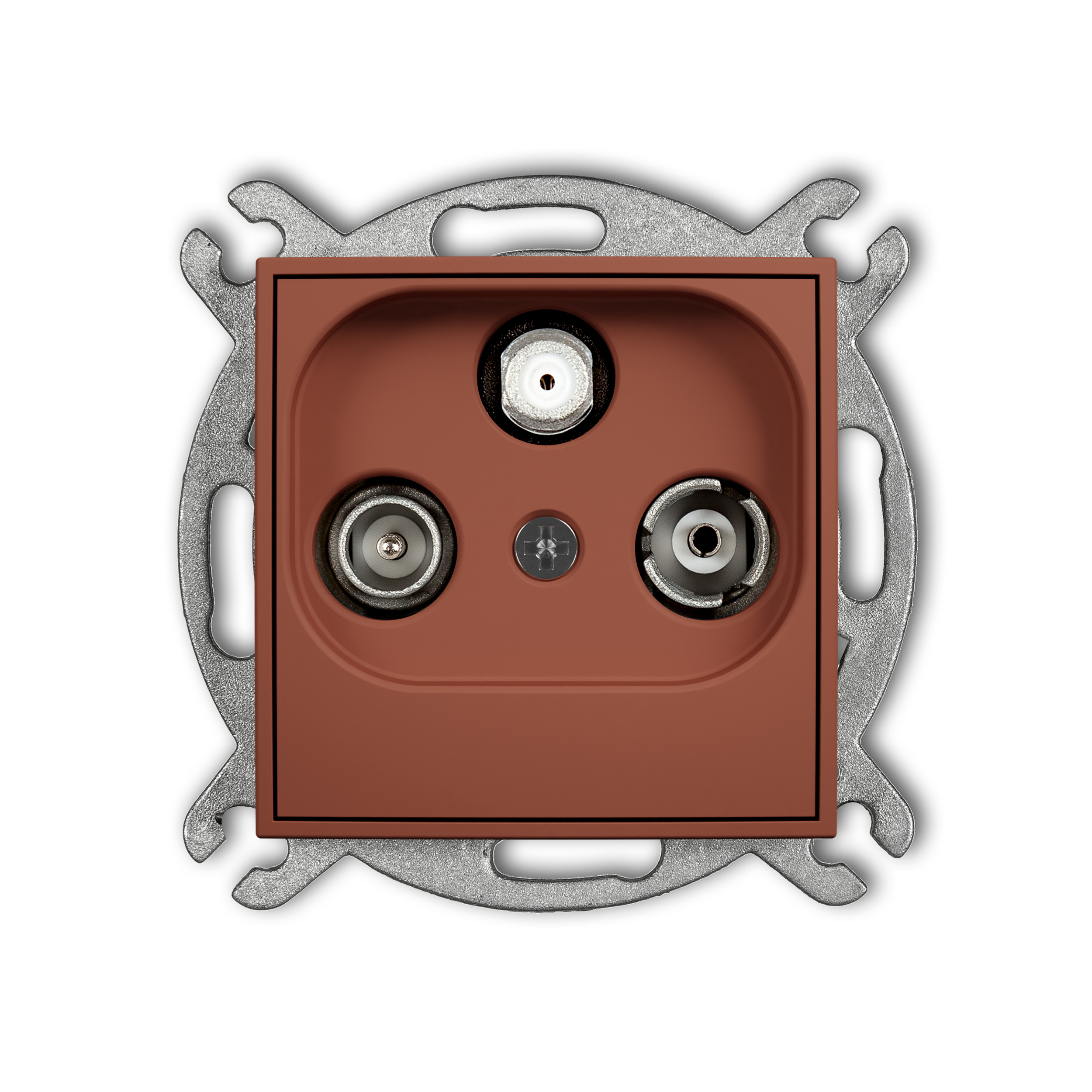

Radio/TV/SAT final socket (two antenna inputs) mechanism
terracotta
63MGST
Complementary products
Related products
-
Single push button "bell" mechanism
white
MWP-4
-

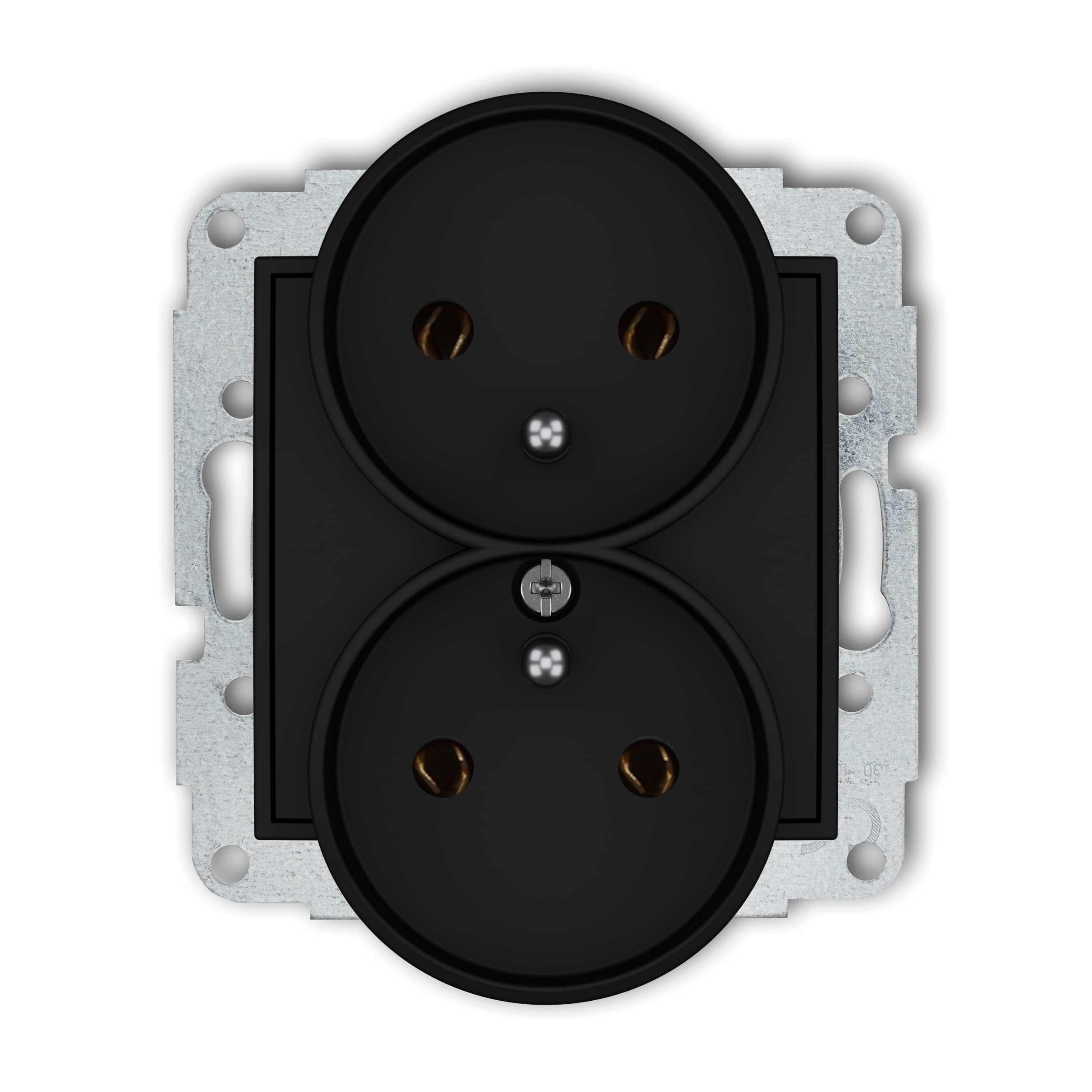

Double socket to a frame with the 2x(2P+Z) earth mechanism (without increased contact protection/shutter)
matt black
12MGPR-2z
-
1-gang universal square plastic frame
matt grey
27MR-1
-
2-gang universal square plastic frame
matt graphite
28MR-2
-
Single socket with the 2P+Z earth mechanism (with increased contact protection/shutter)
sage
61MGP-1zp
-

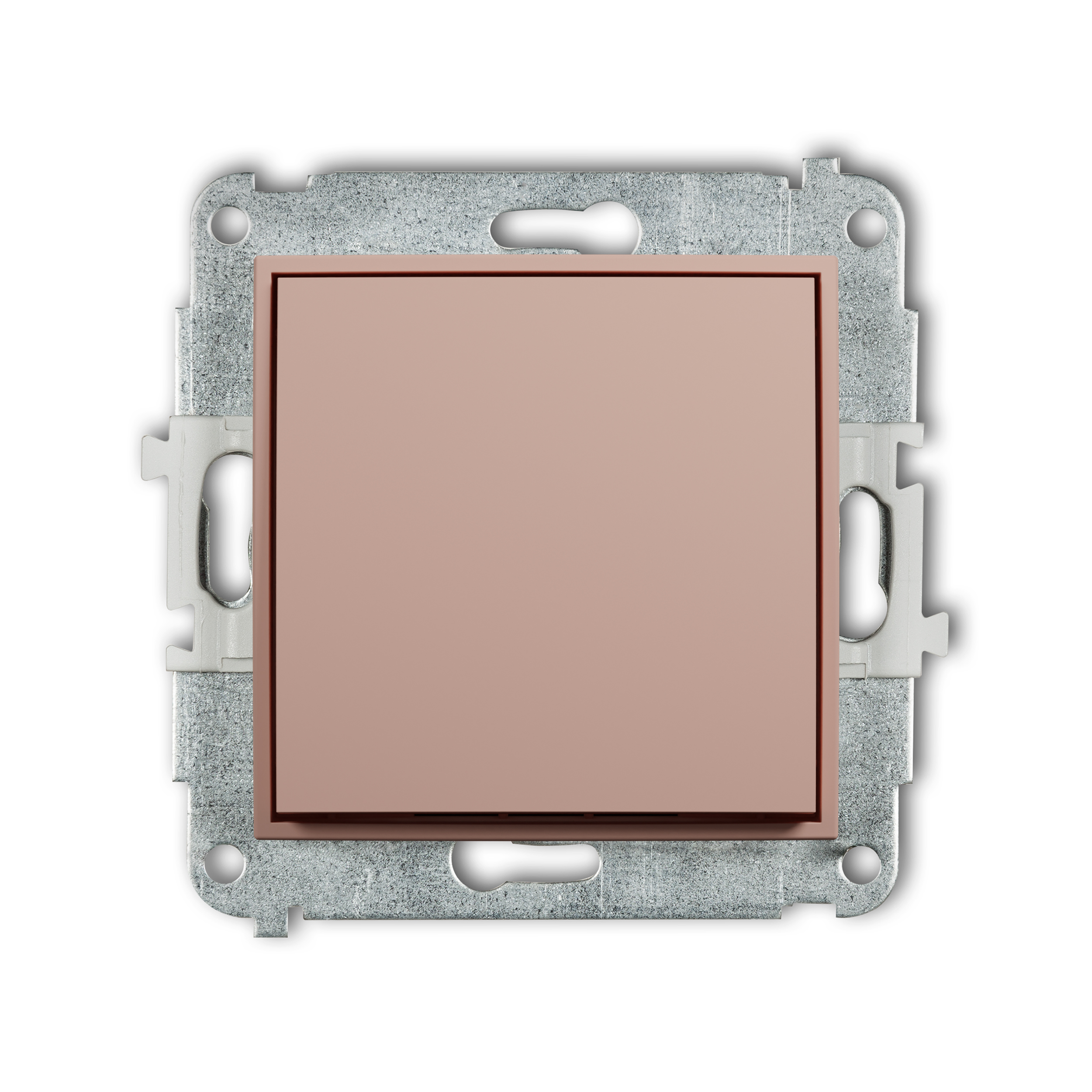

Single push button mechanism (single push button without pictogram)
