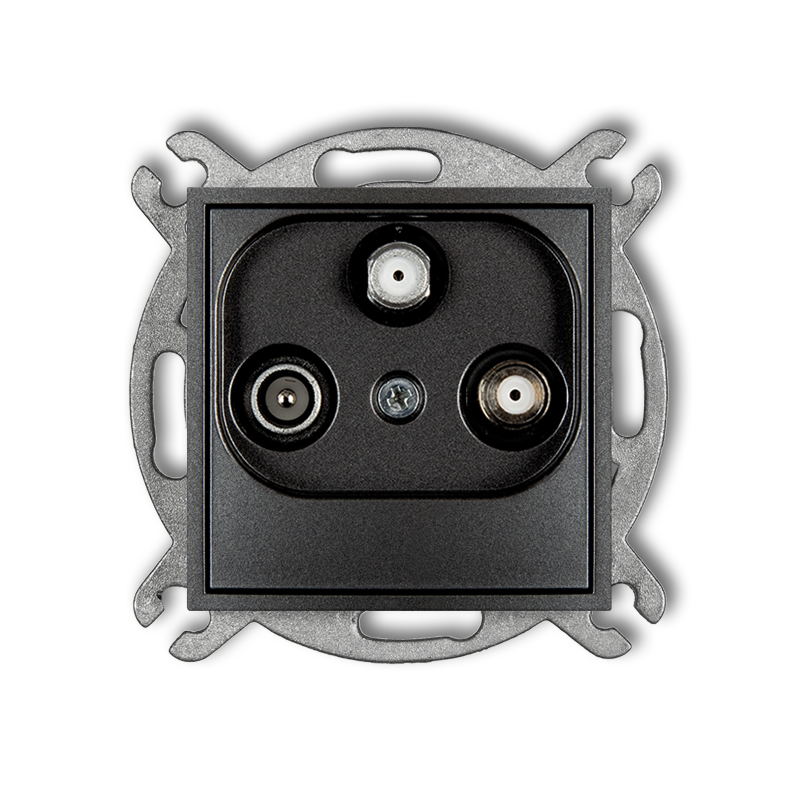

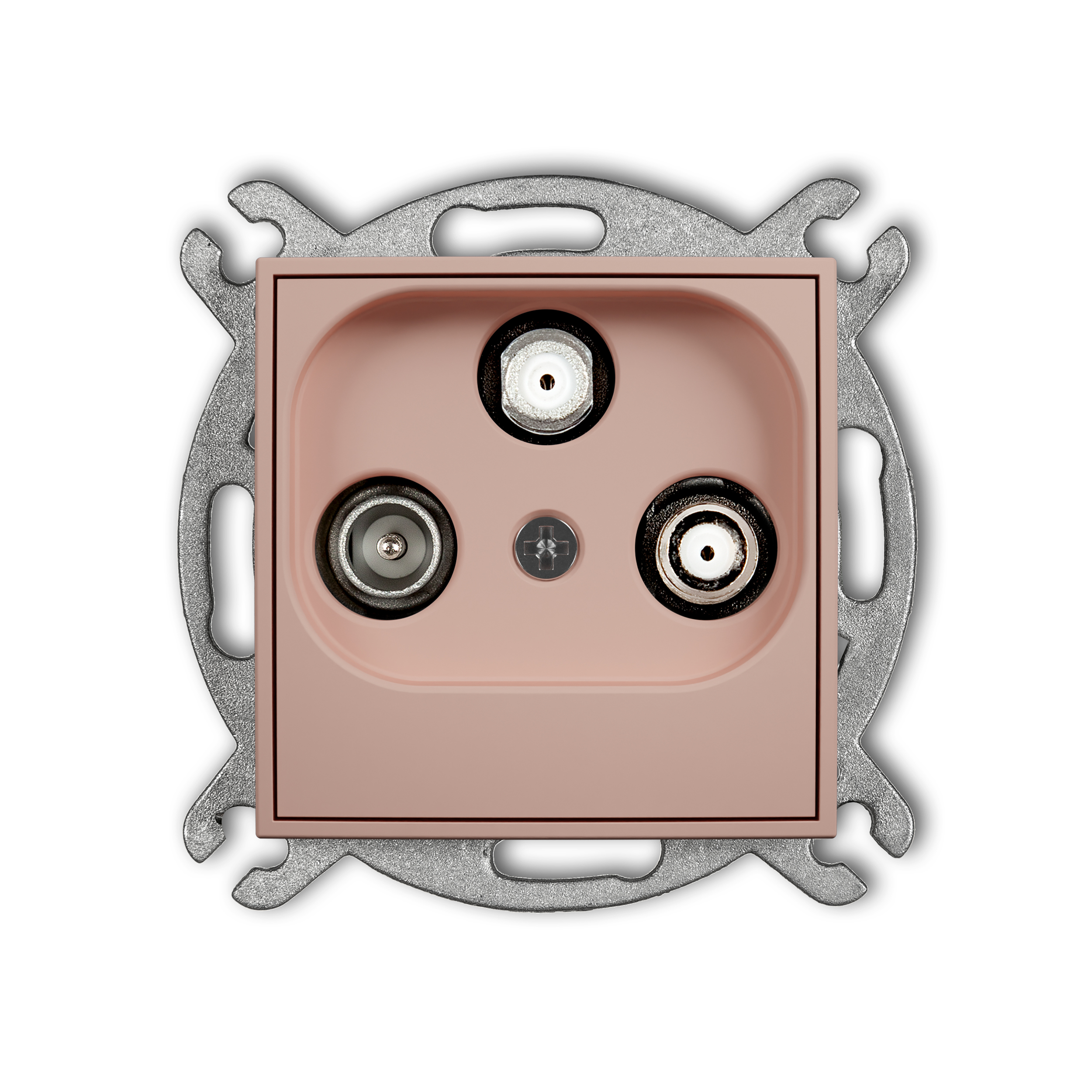

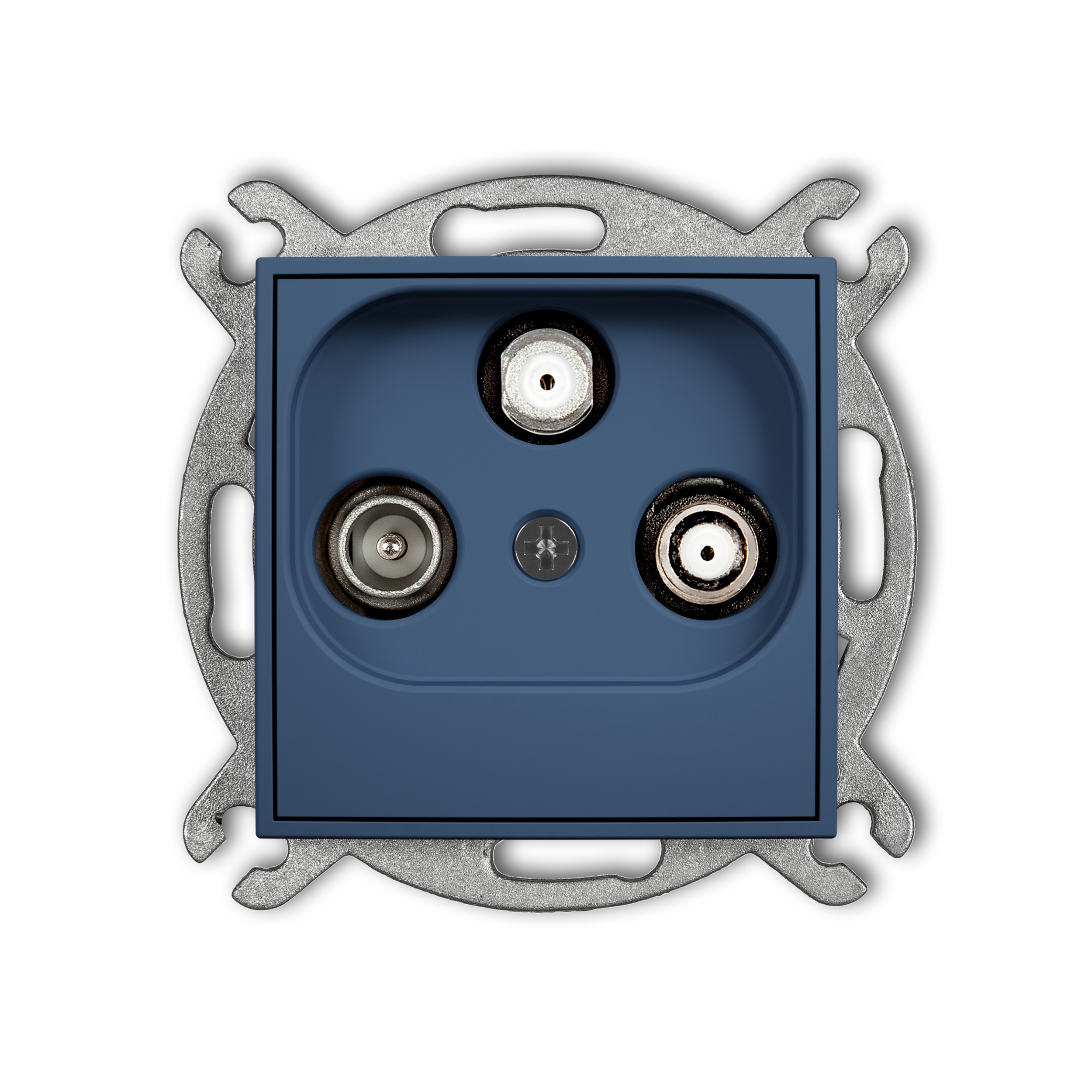

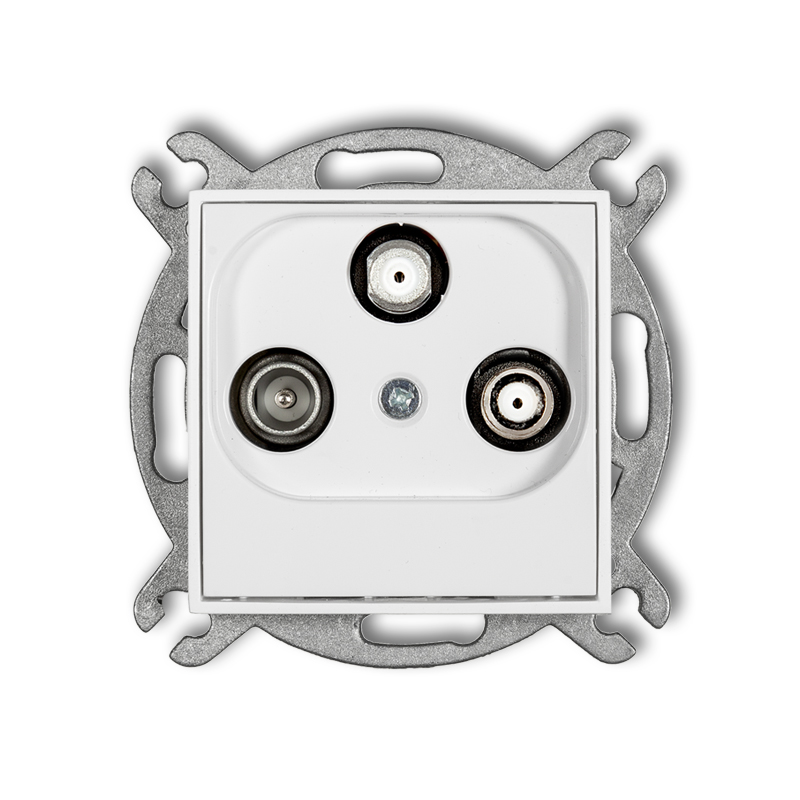

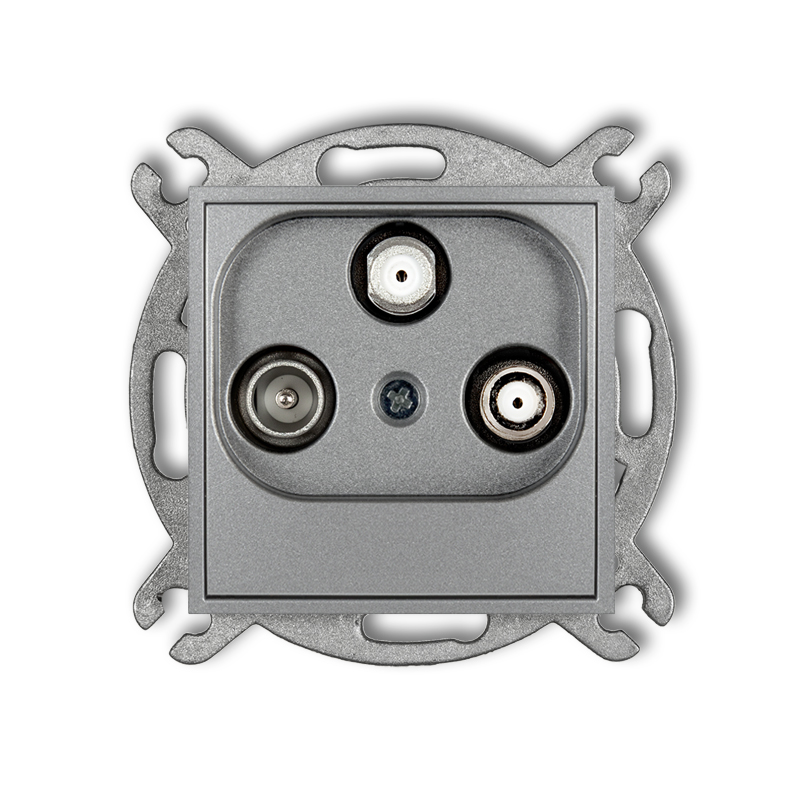

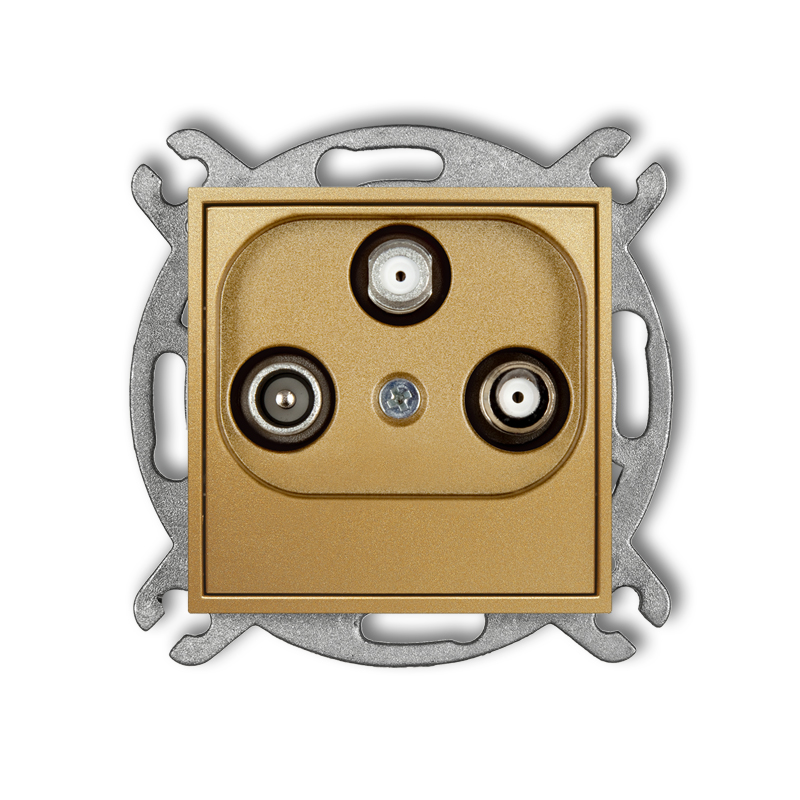

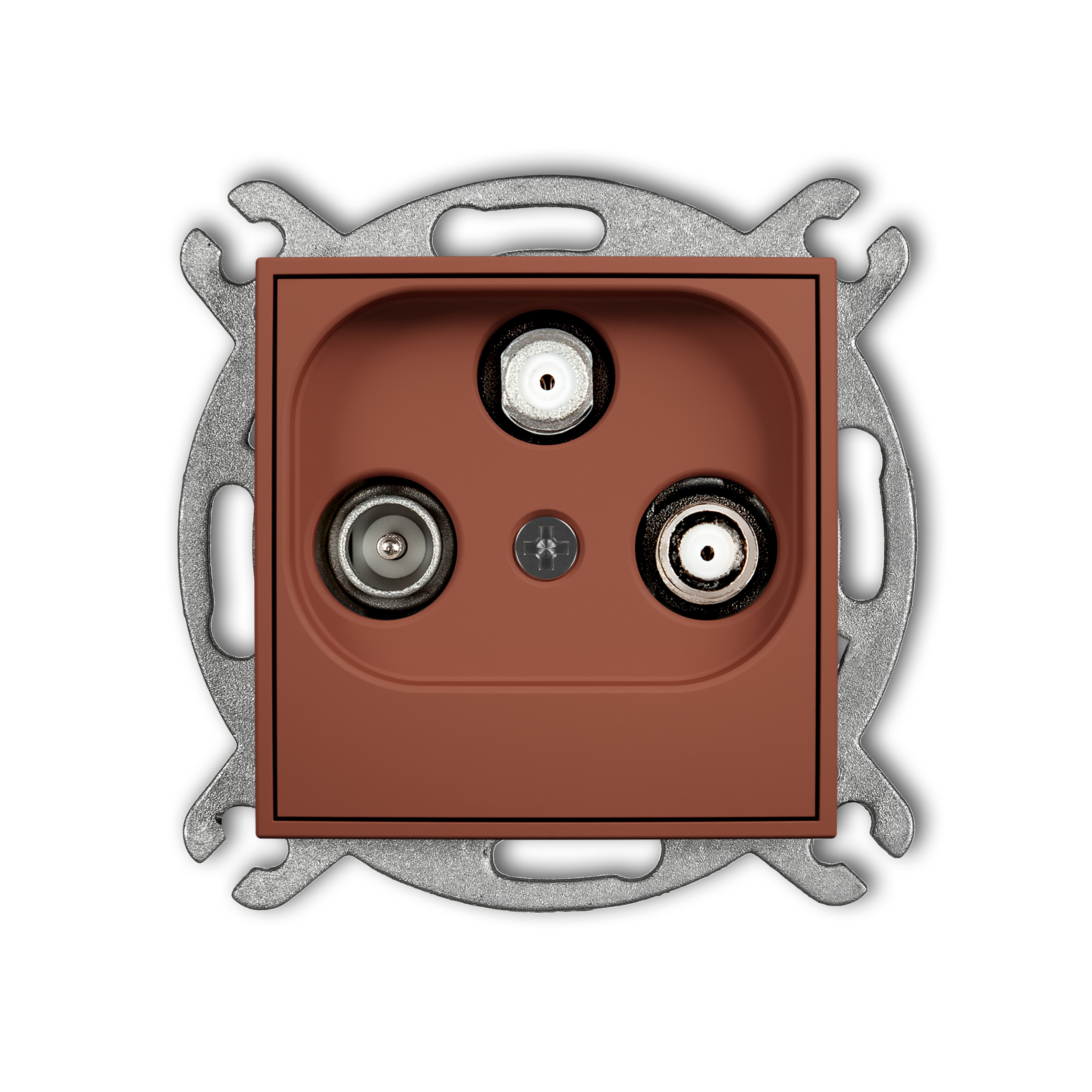

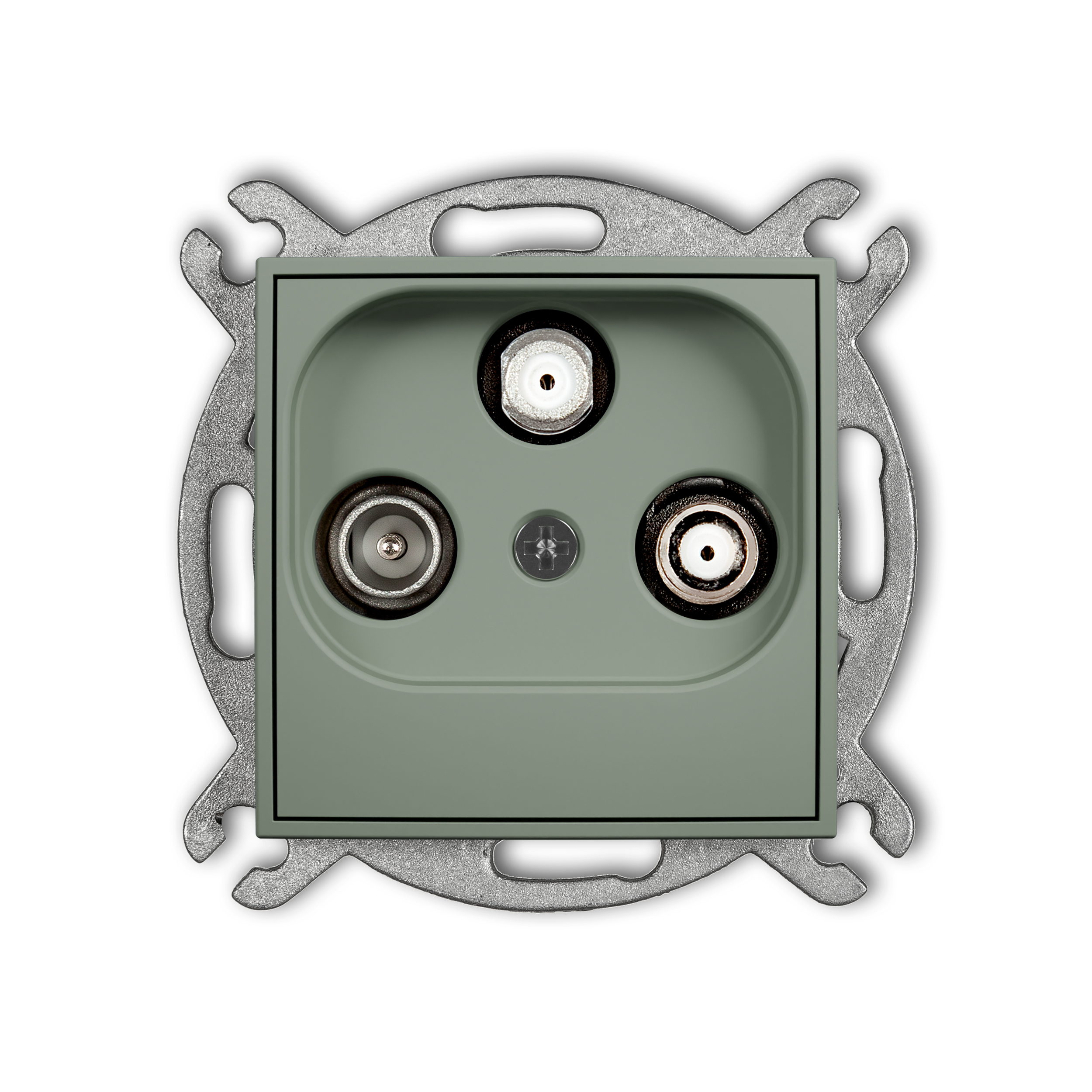

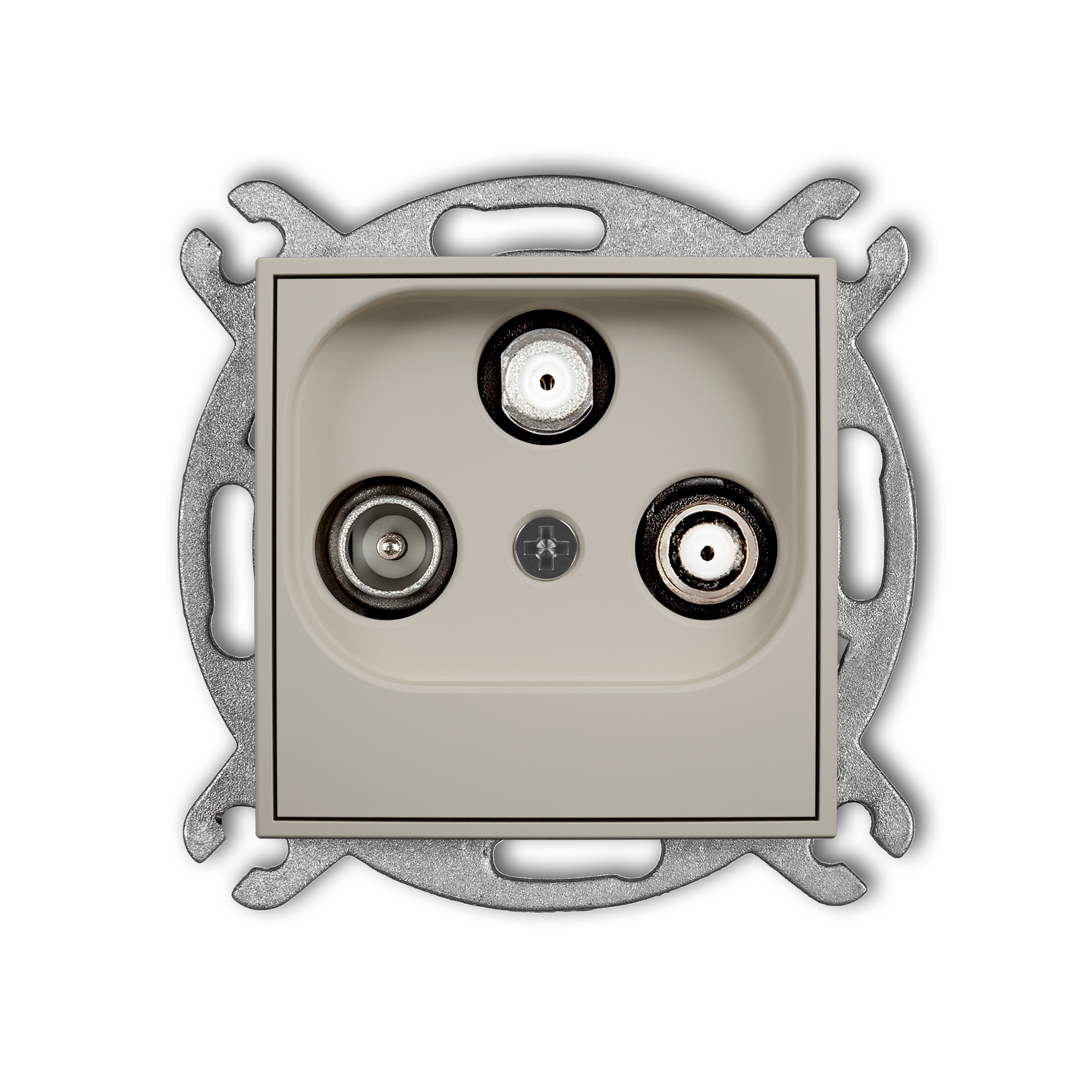

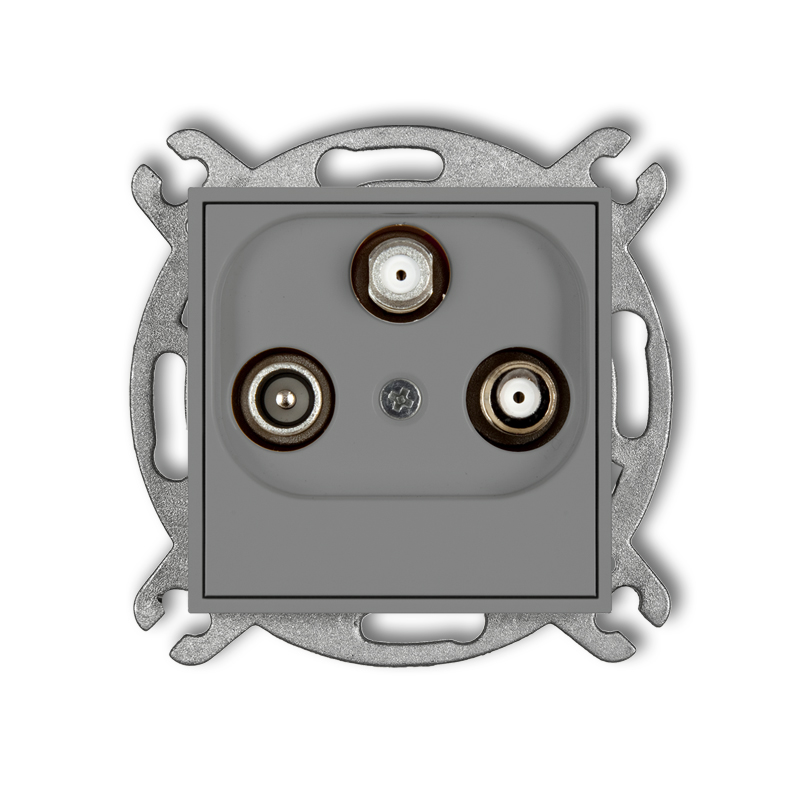

TV/SAT with two satellite inputs socket mechanism
![MINI](/media/filer_public/c2/40/c24081af-f93a-414f-8ea7-a8716140e1fc/mgsn.jpg)
white
MGSN
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
Input circut frequency range 2 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 862 MHz |
SAT 1 circut frequency range | 950 ÷ 2400 MHz |
SAT 2 circut frequency range | 5 ÷ 2400 MHz |
Compression damping | 0,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |

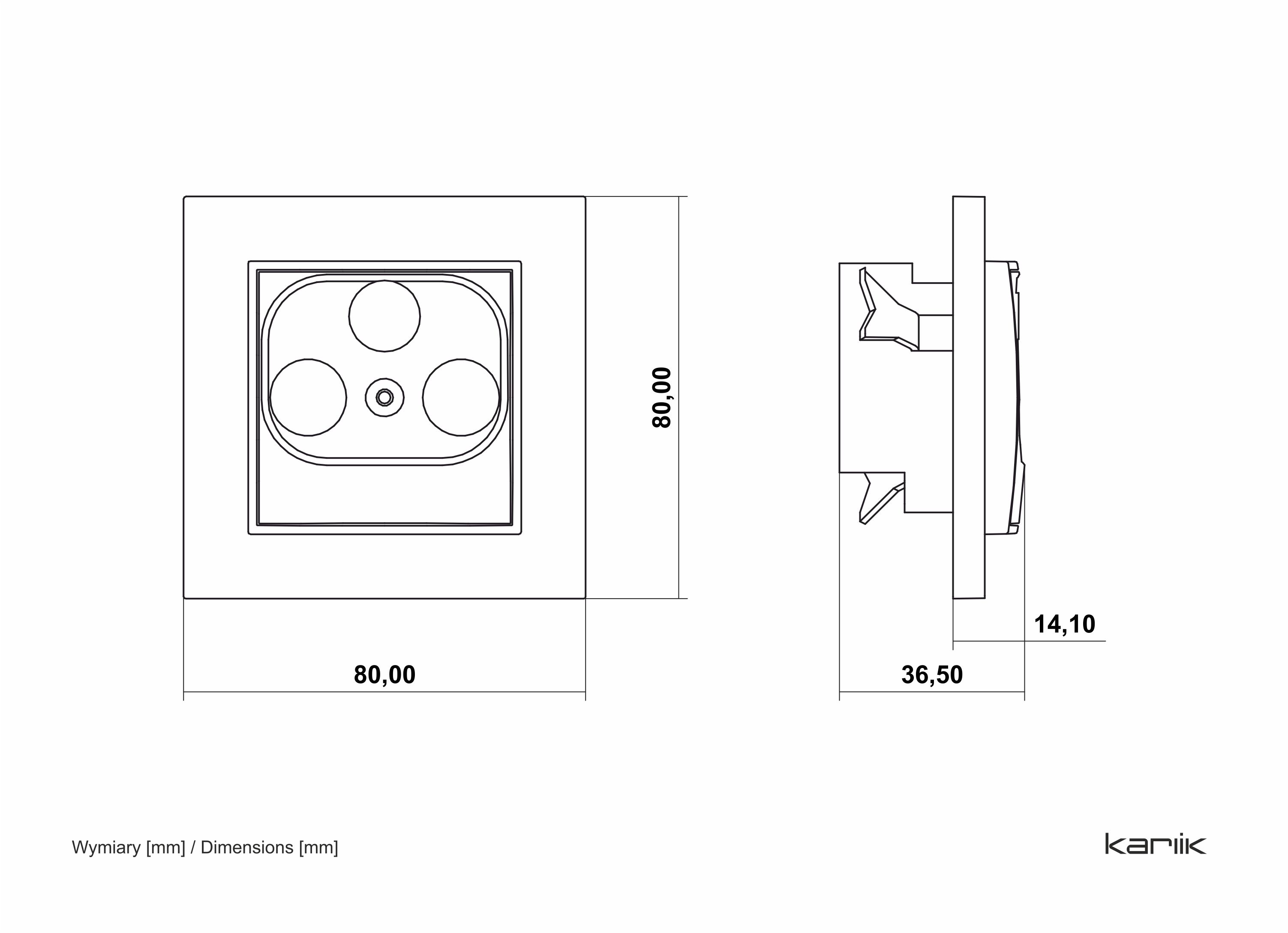

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat_KmhZJK8.jpg)
Product variants
-
Radio/TV/SAT through socket mechanism the 10 dB
white
MGSP
-
Radio/TV/SAT final socket (two antenna inputs) mechanism
silver metallic
7MGST
-
3F DATA (UPC) multimedia socket mechanism
graphite
11MGMU
-
3F DATA (VECTRA) multimedia socket mechanism
matt black
12MGMV
-

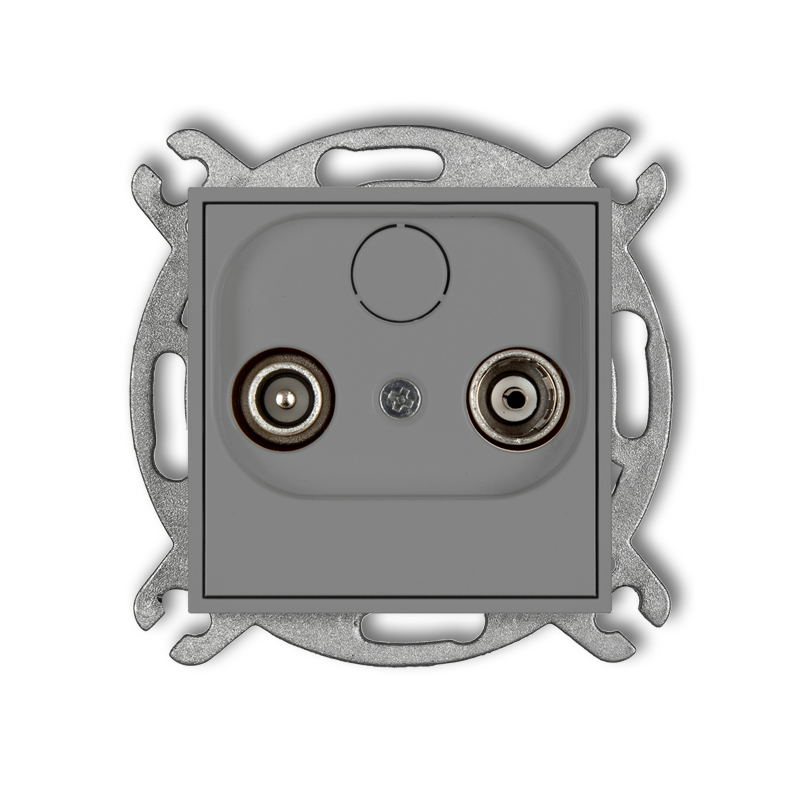

Radio/TV through socket mechanism the 15 dB
matt grey
27MG15P
-
Radio/TV final socket mechanism the 2 dB
matt graphite
28MG2K
Complementary products
Related products
-

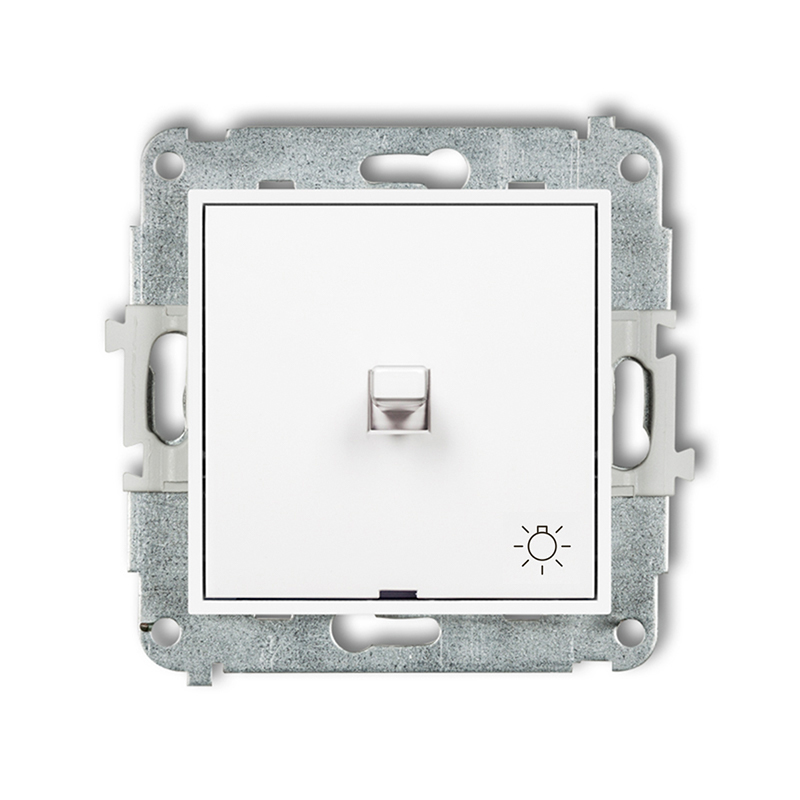

American-style single push button "light" mechanism
