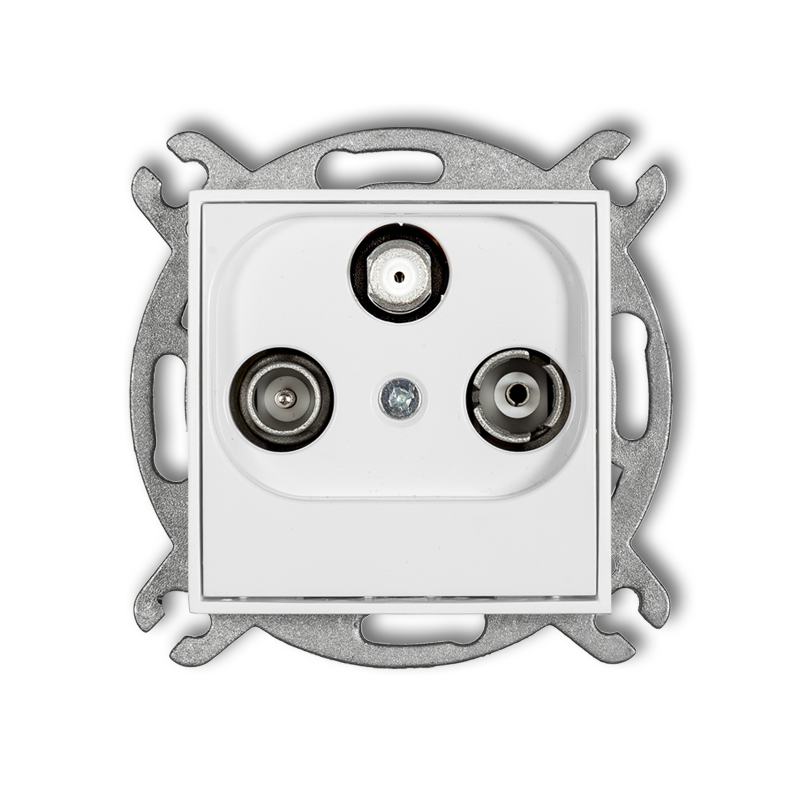

Radio/TV/SAT through socket mechanism the 10 dB
![MINI](/media/filer_public/ca/b3/cab3923a-9c70-4ae5-9d27-93810628a8e7/mgsp.jpg)
white
MGSP
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
SAT circut frequency range | 950 ÷ 2400 MHz |
Compression damping | 12 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |

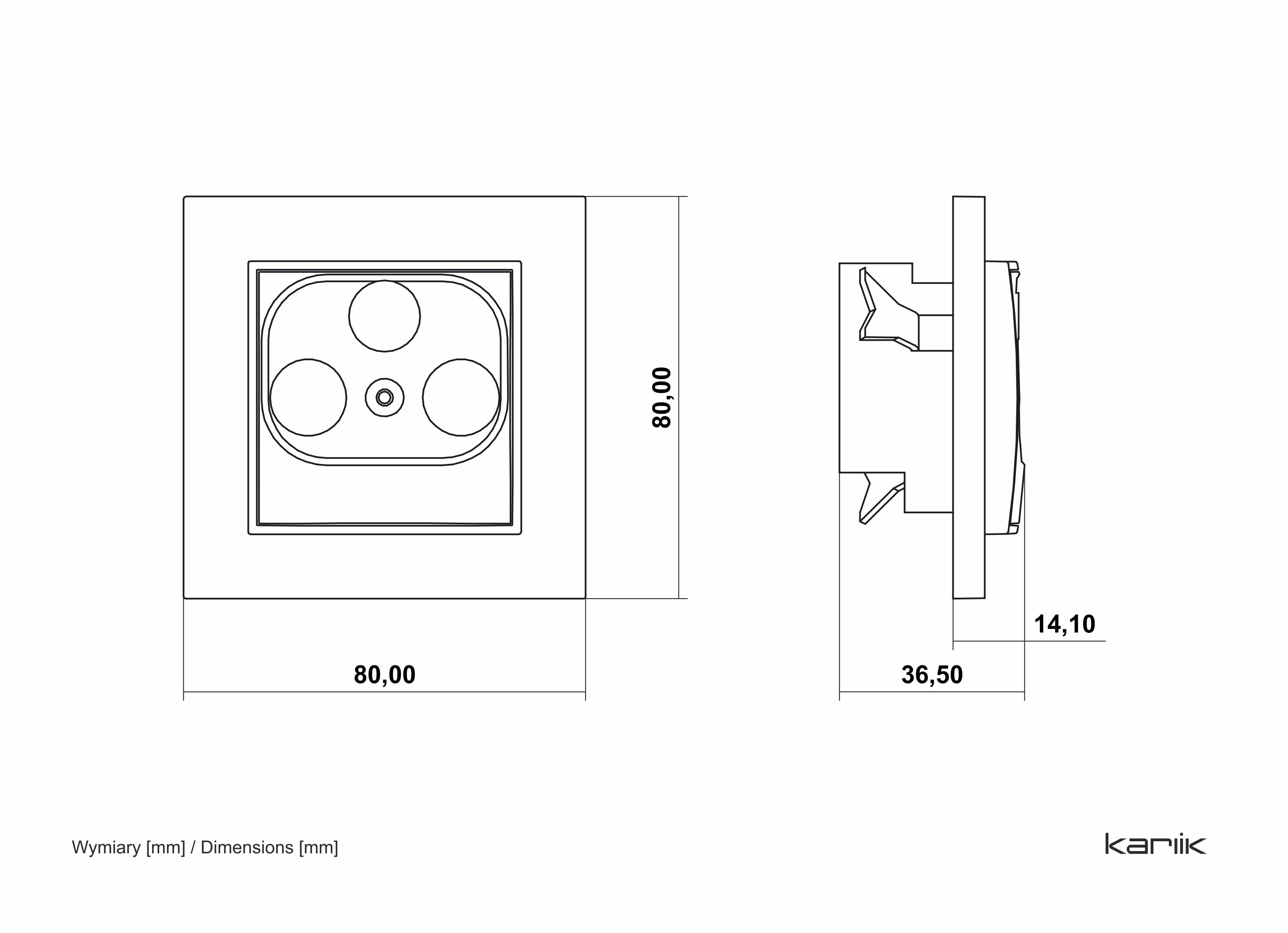

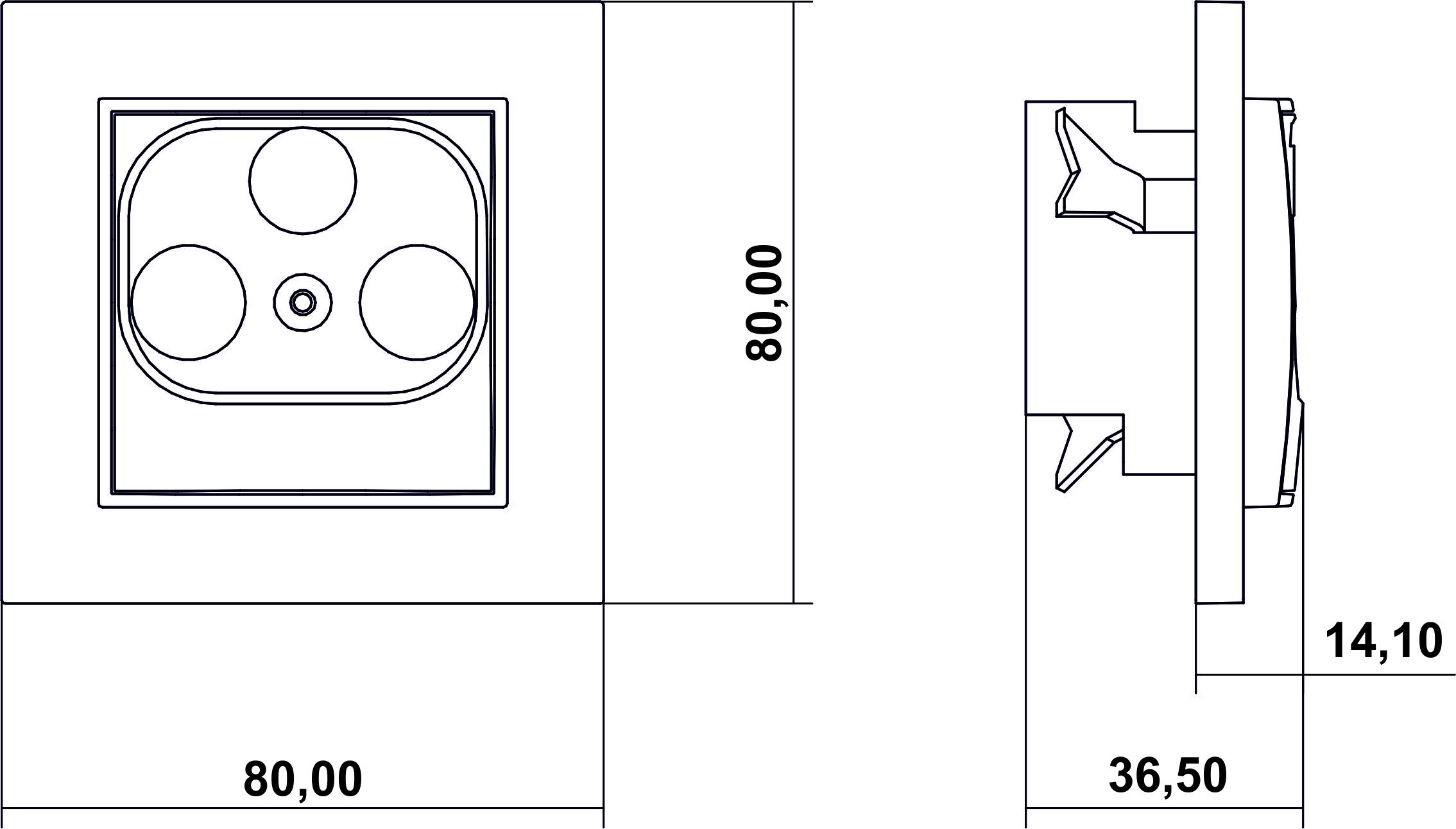

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat_8uBeDMQ.jpg)
Product variants
-
TV/SAT with two satellite inputs socket mechanism
white
MGSN
-
3F DATA (VECTRA) multimedia socket mechanism
white
MGMV
-
Radio/TV/SAT final socket mechanism the 1,5 dB
silver metallic
7MGS
-
Radio/TV through socket mechanism the 15 dB
graphite
11MG15P
-

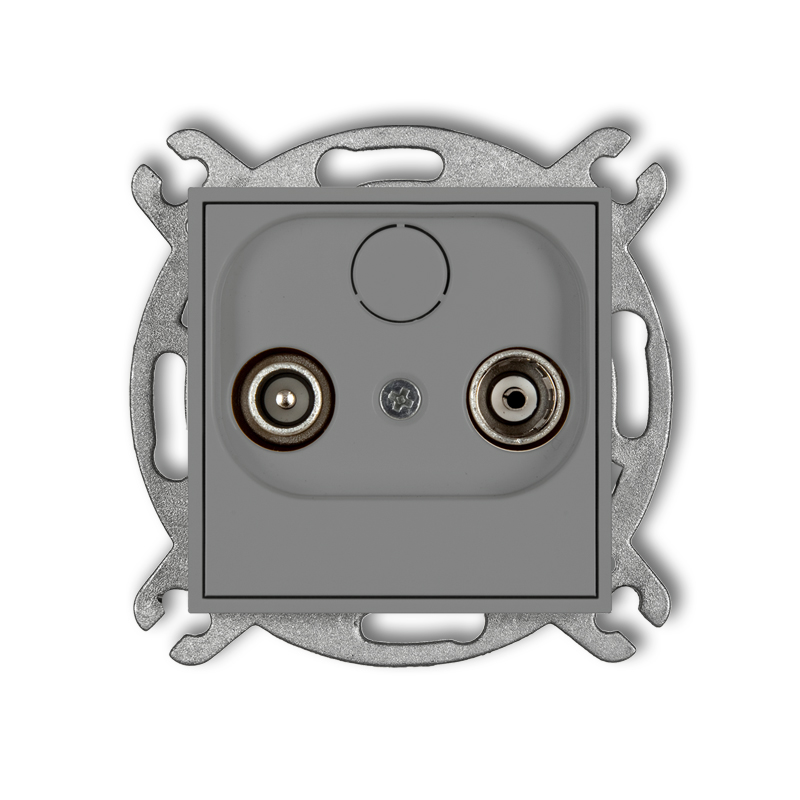

Radio/TV final socket mechanism the 2 dB
matt grey
27MG2K
-

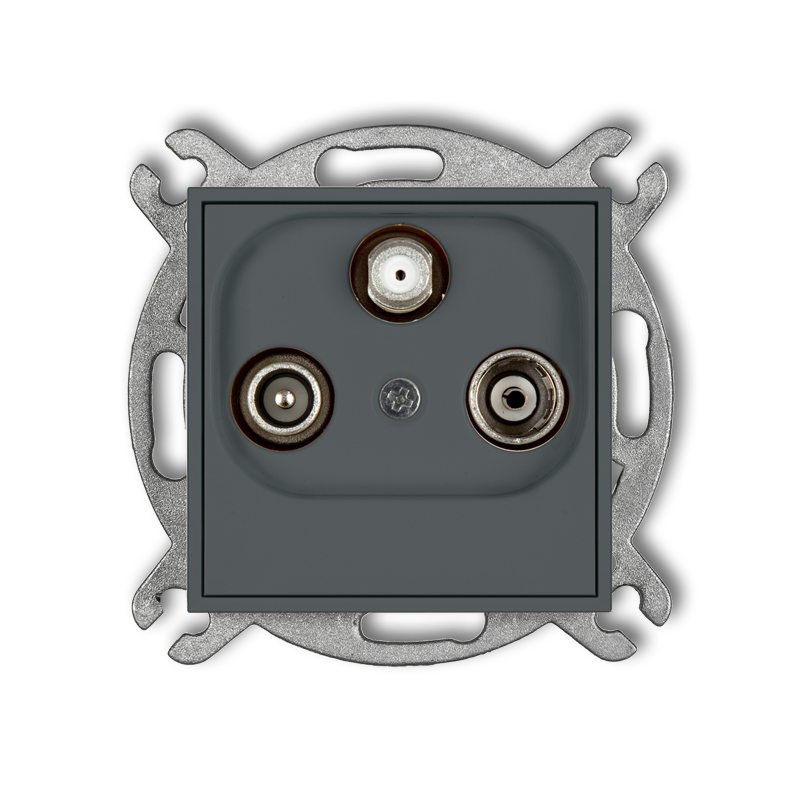

Radio/TV/SAT multimedia socket mechanism (Internet)
