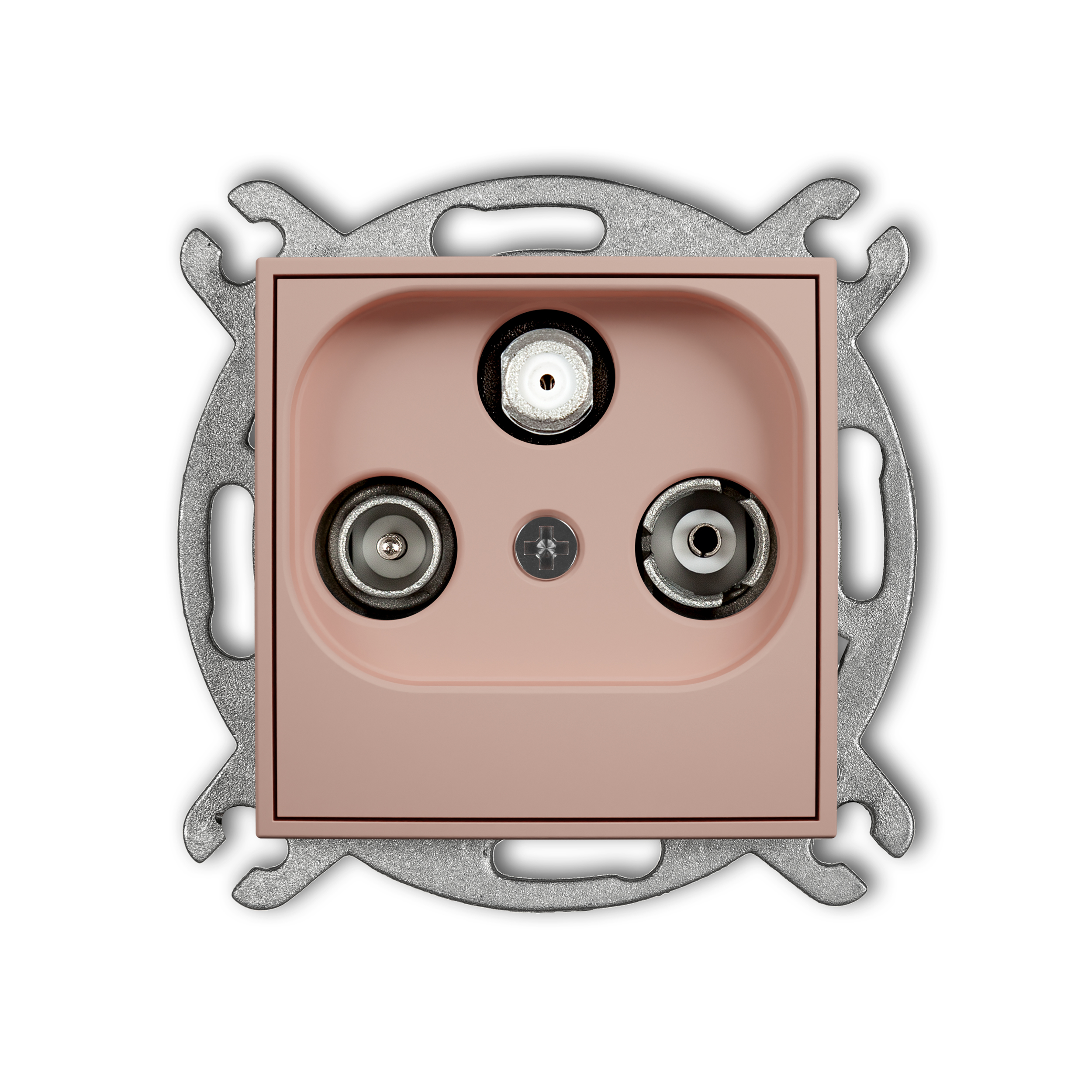

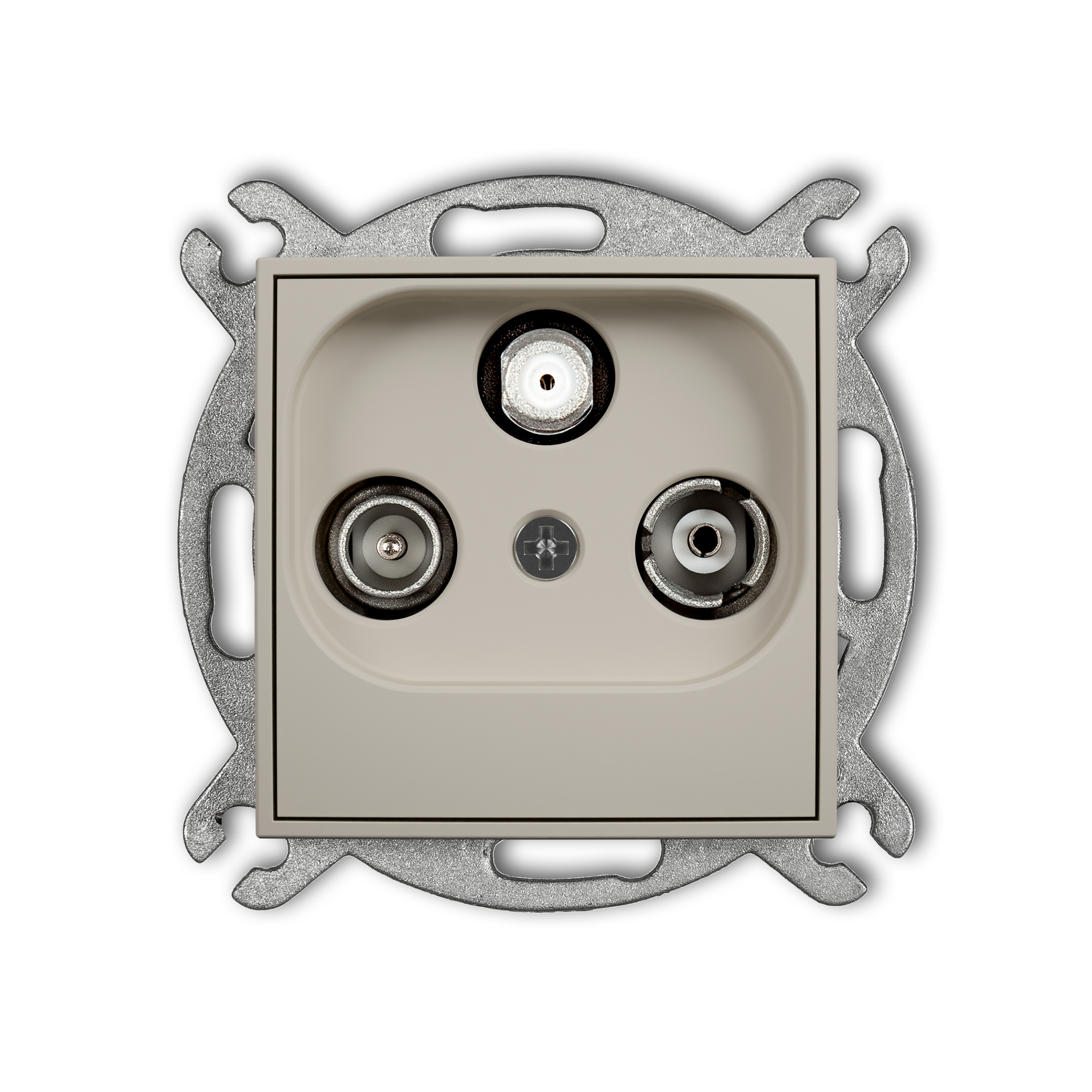

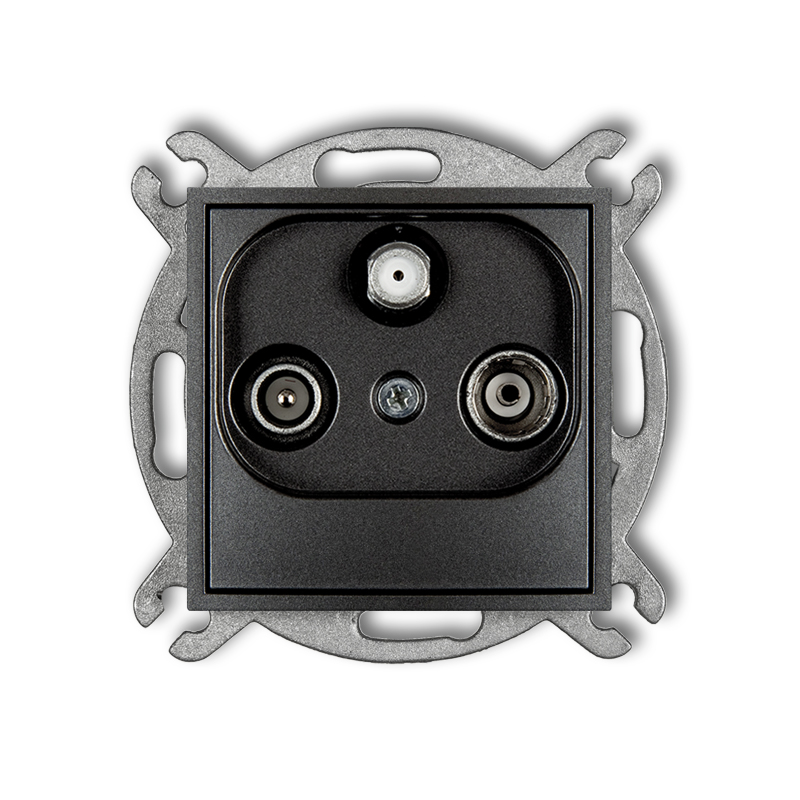

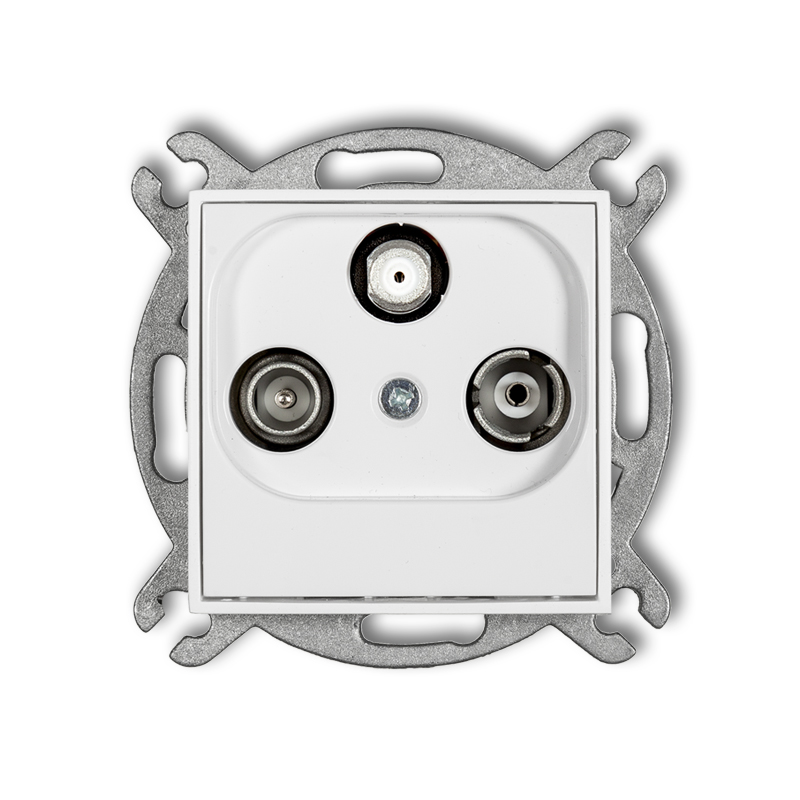

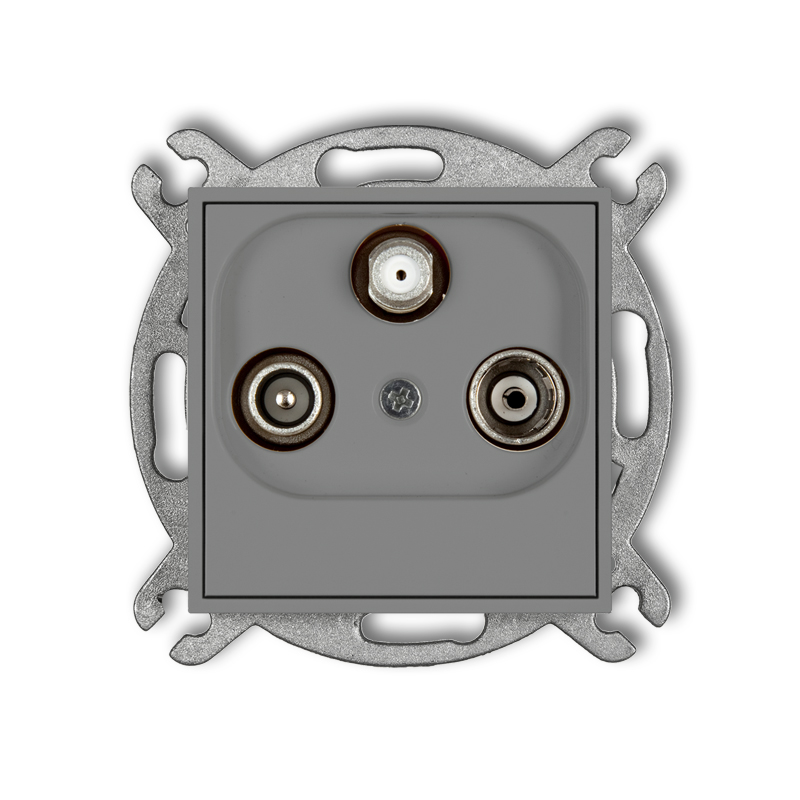

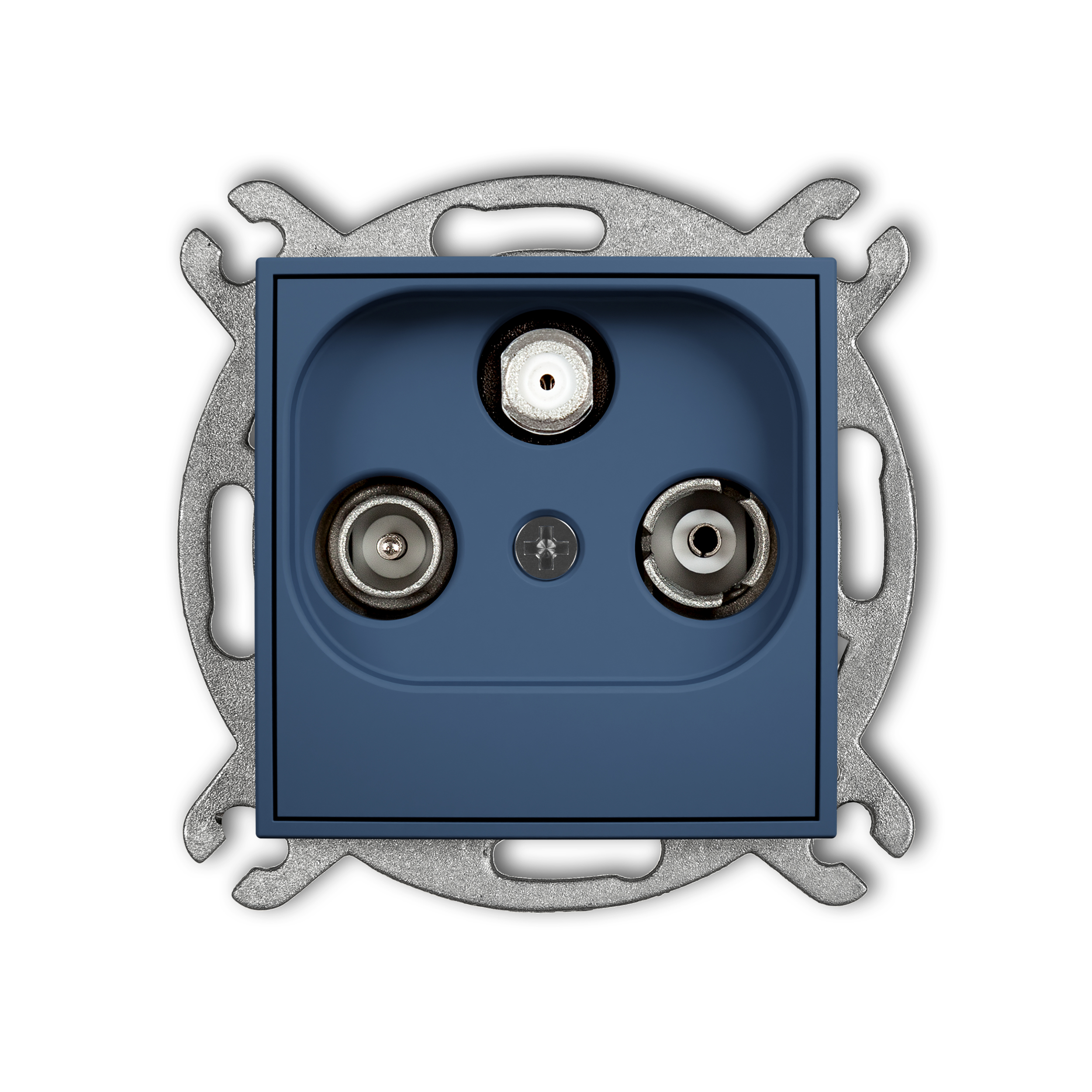

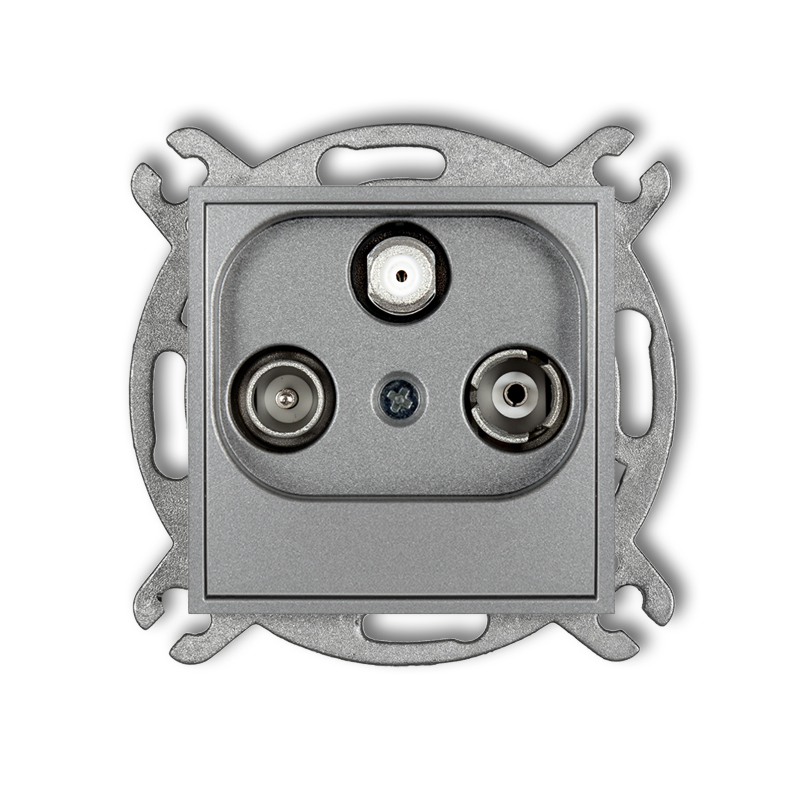

Radio/TV/SAT final socket (two antenna inputs) mechanism
![MINI](/media/filer_public/28/3a/283a8c63-1ac1-4a11-93a6-d13cfec0979a/mgst.jpg)
white
MGST
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Input circut frequency range 1 | 5 ÷ 2400 MHz |
TV circut frequency range | 5 ÷ 70, 120 ÷ 862 MHz |
Radio circut frequency range | 88 ÷ 108 MHz |
SAT circut frequency range | 5 ÷ 2400 MHz |
Compression damping | 1,5 dB |
Wave impedance (characteristic) | 75 Om |
Connection | Screw clamps |
UV resistance | Resistant |

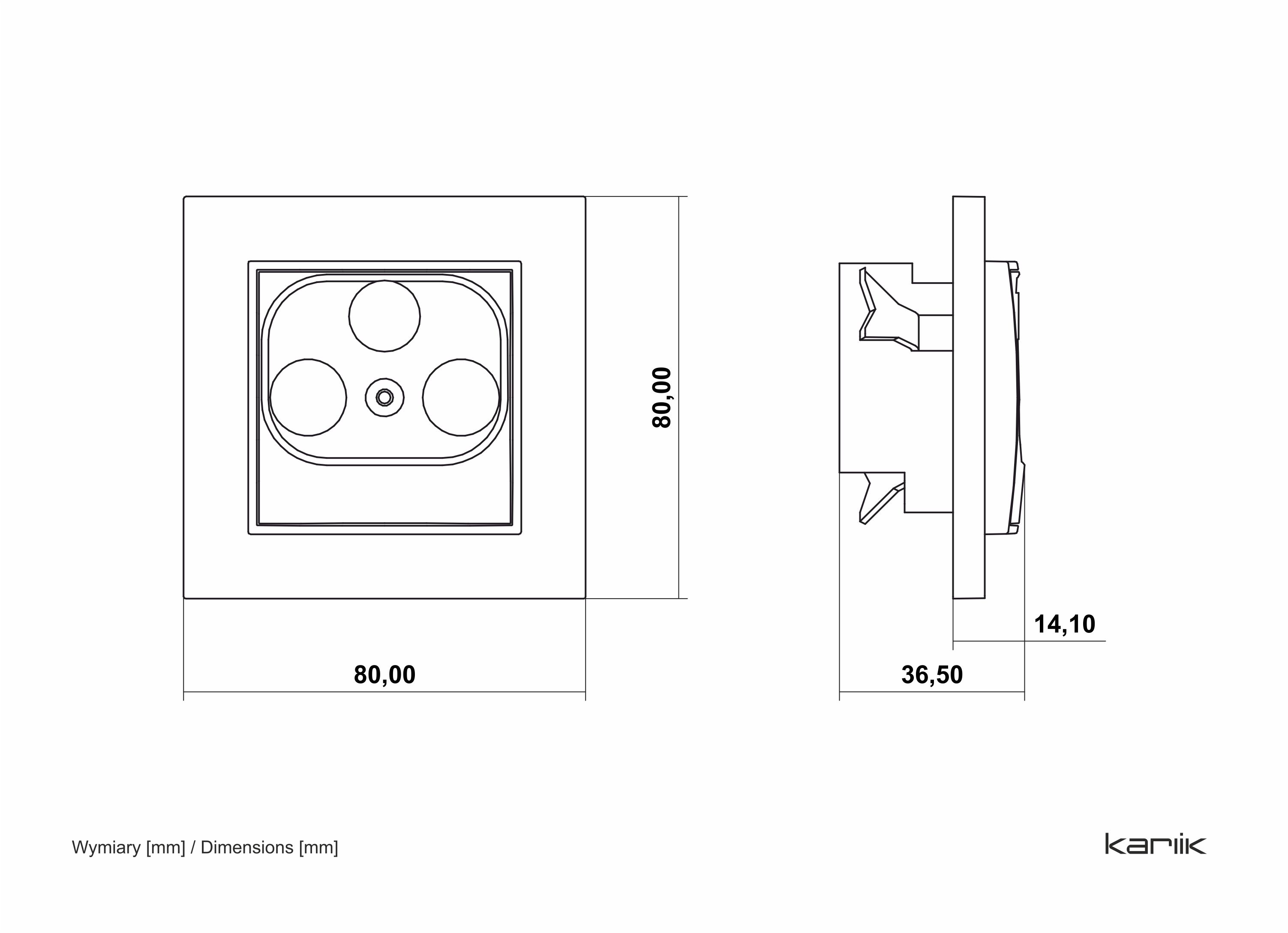

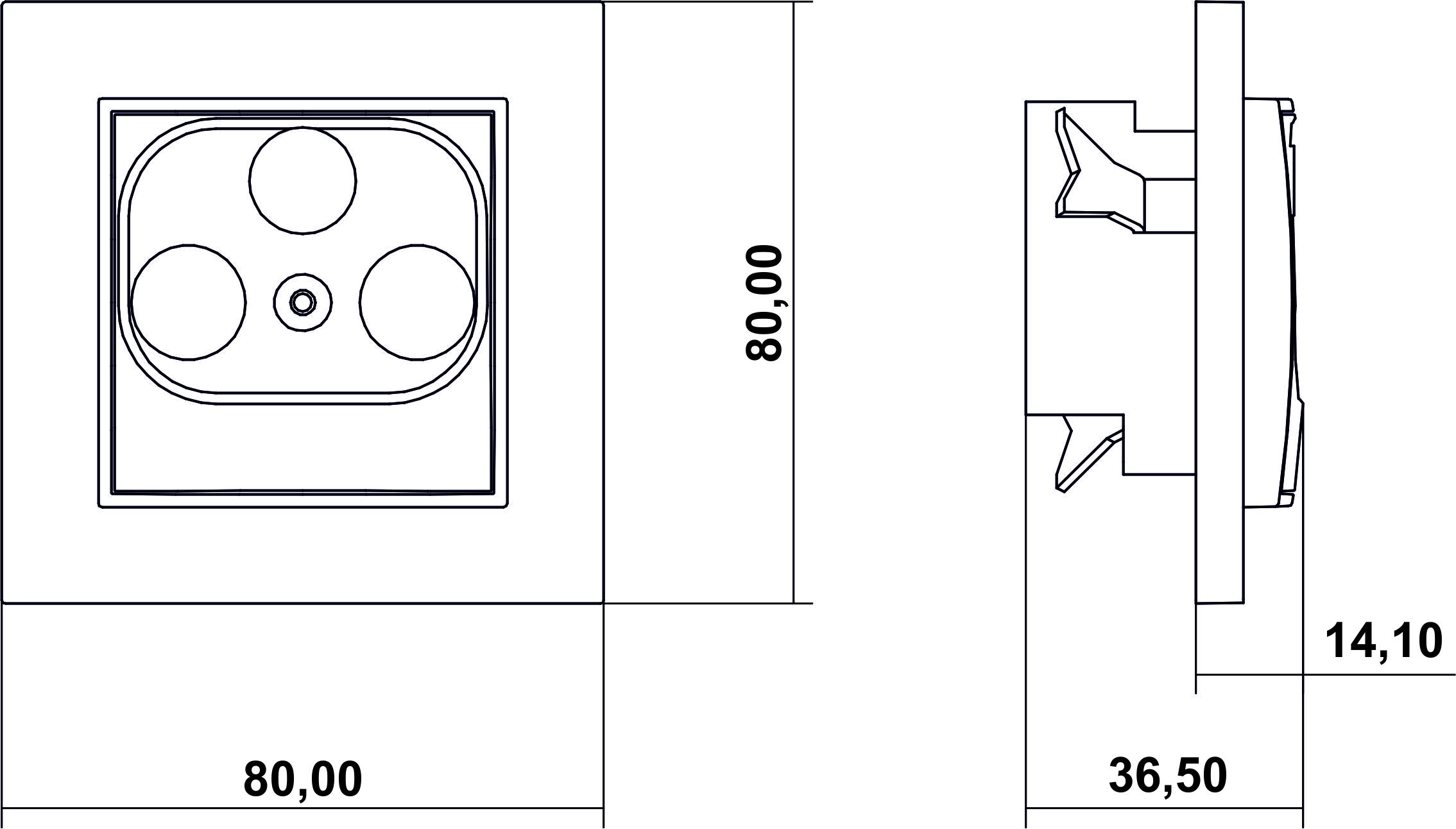

![Technical image](/media/techdata/karlik_mini_gniazdo_abonenckie_rtv-sat_gvWo620.jpg)
