Electronic dimmer push - rotary mechanism

Electronic dimmer push-rotary mechanism

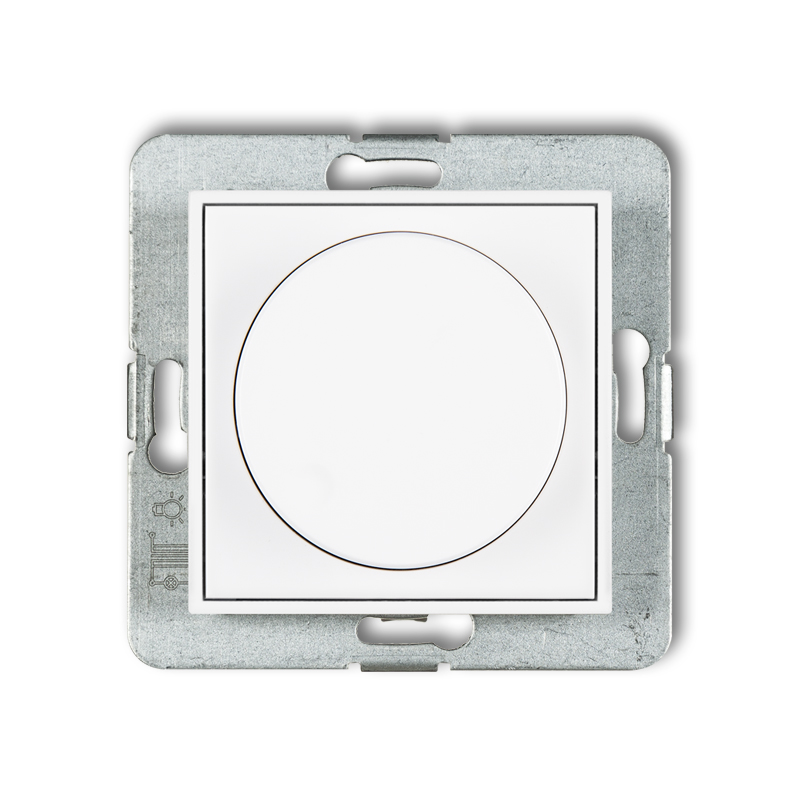

white

MRO-1

white

MRO-1

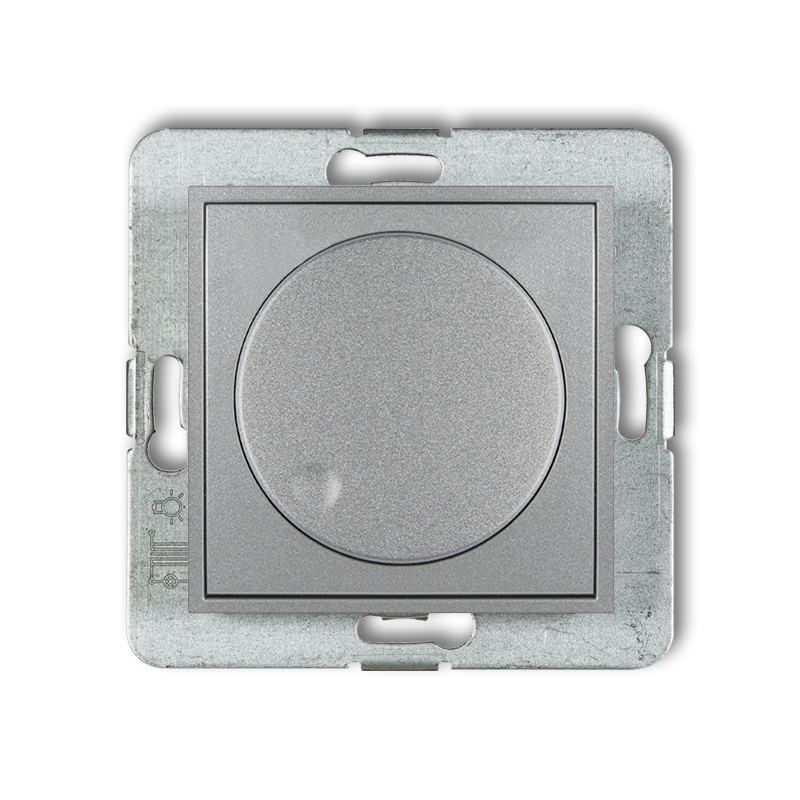

silver metallic

7MRO-1

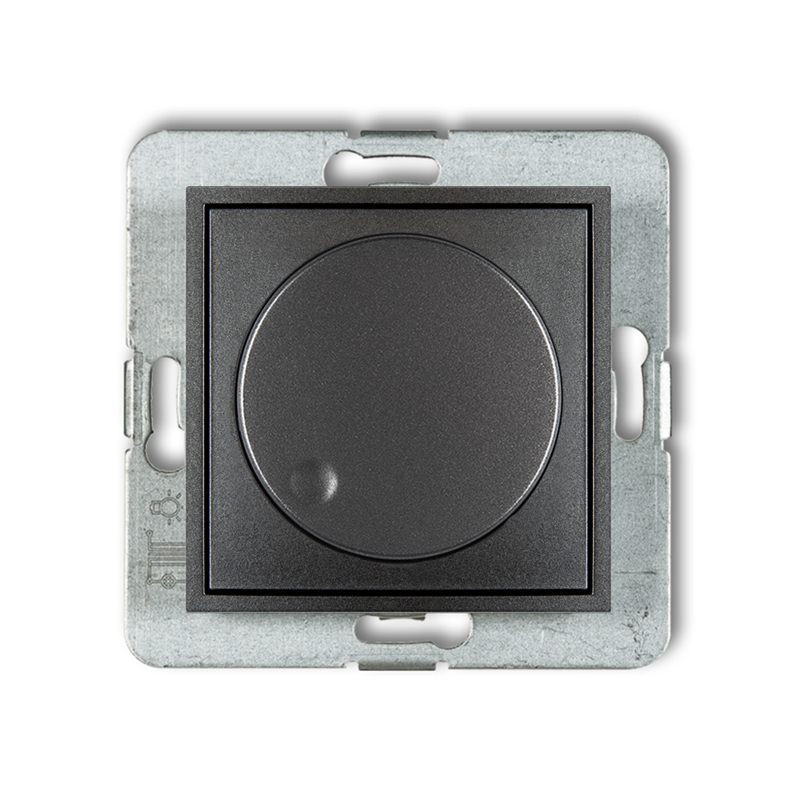

graphite

11MRO-1

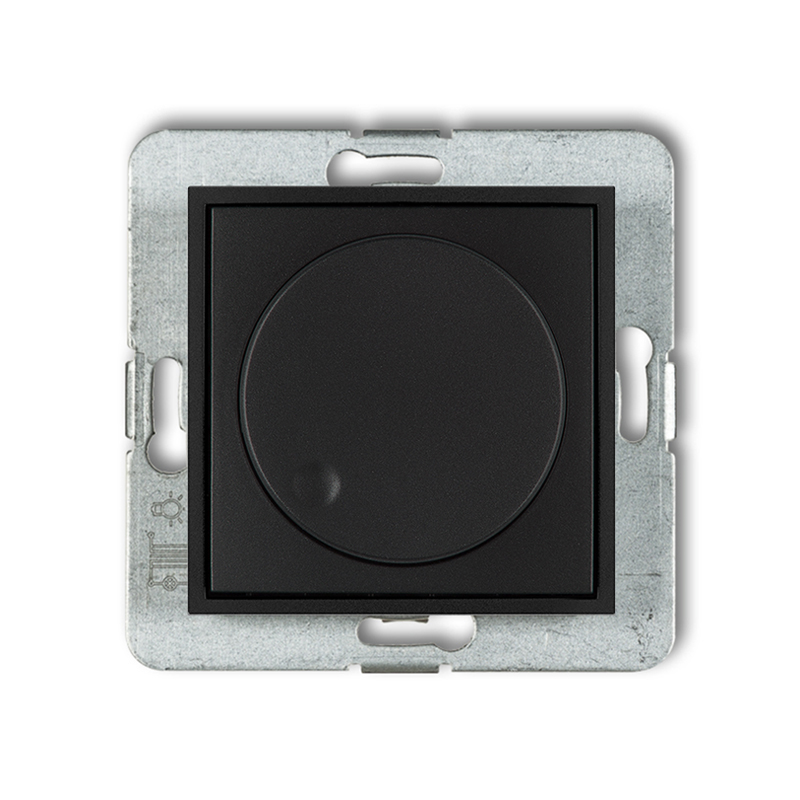

matt black

12MRO-1
matt white

25MRO-1

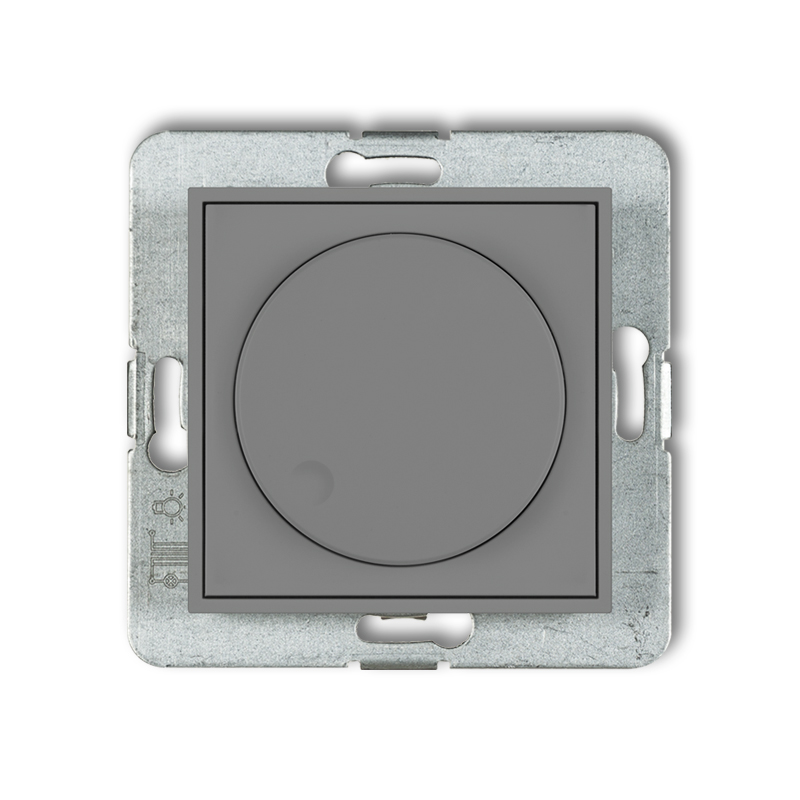

matt grey

27MRO-1

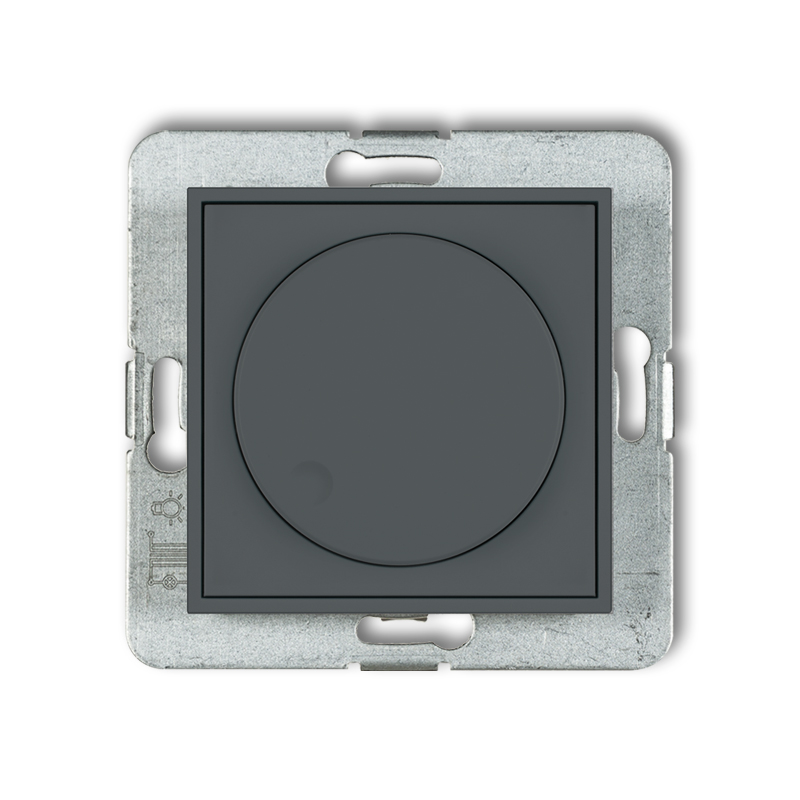

matt graphite

28MRO-1

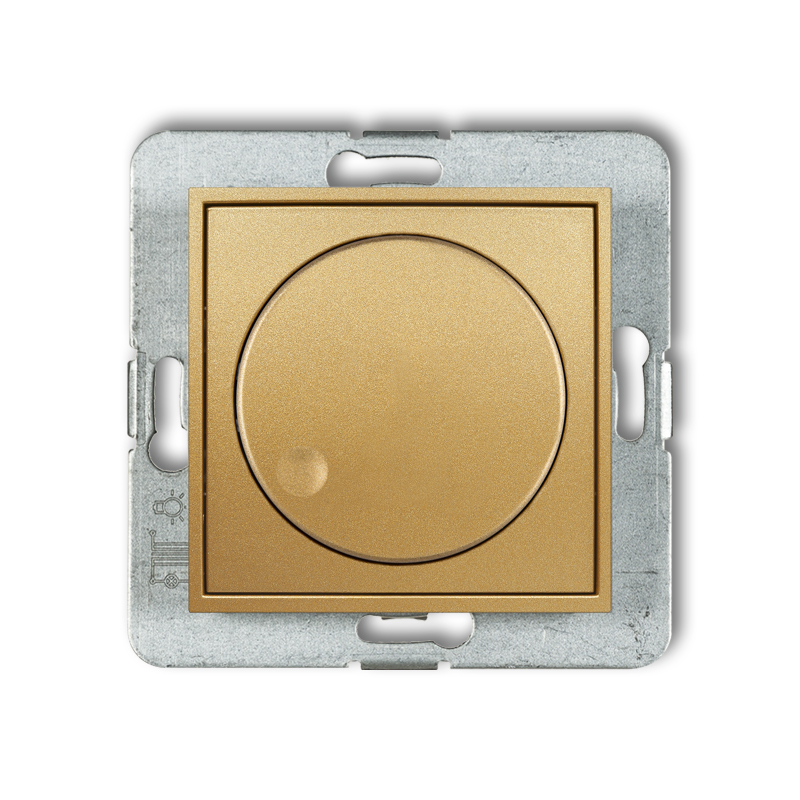

gold

29MRO-1

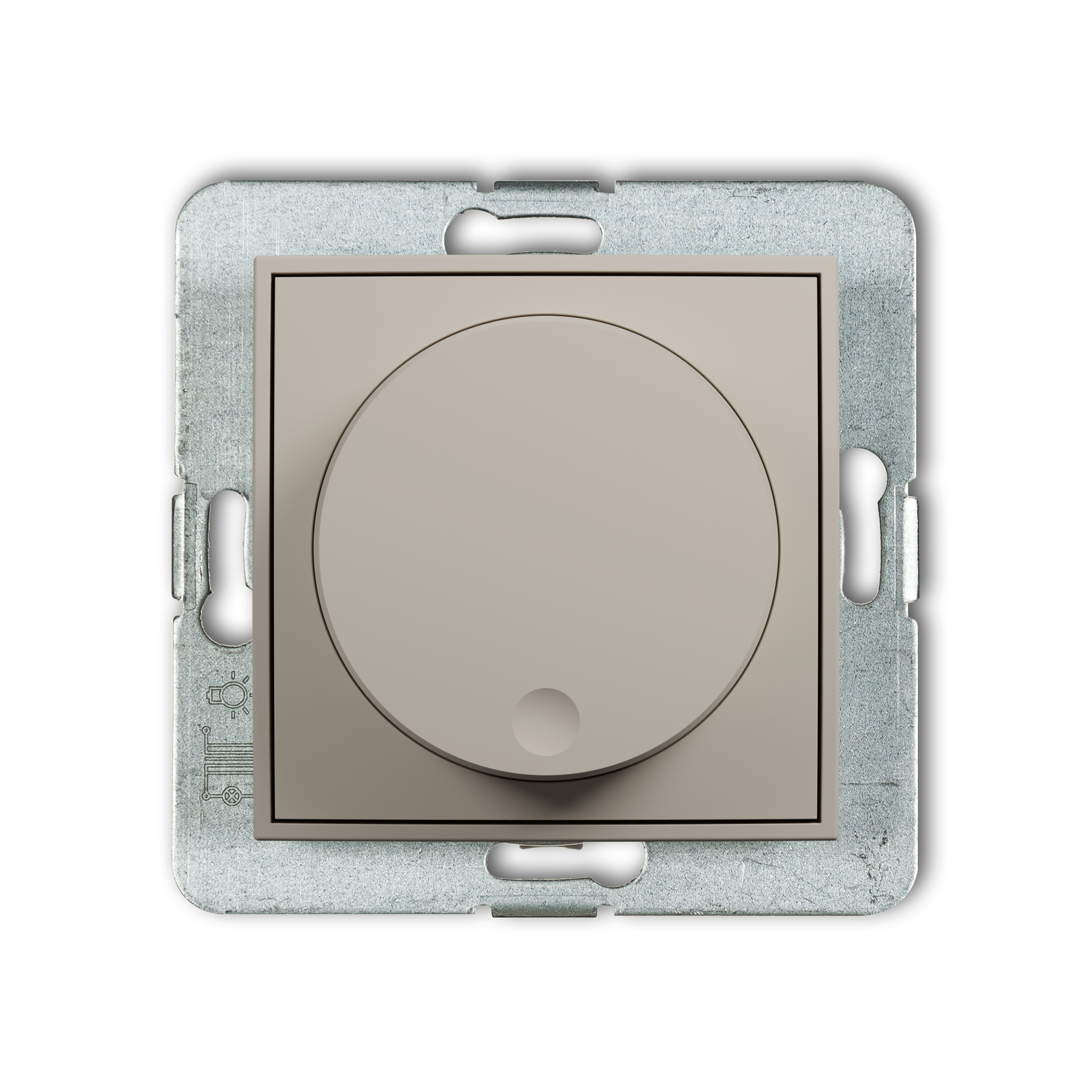

taupe

60MRO-1

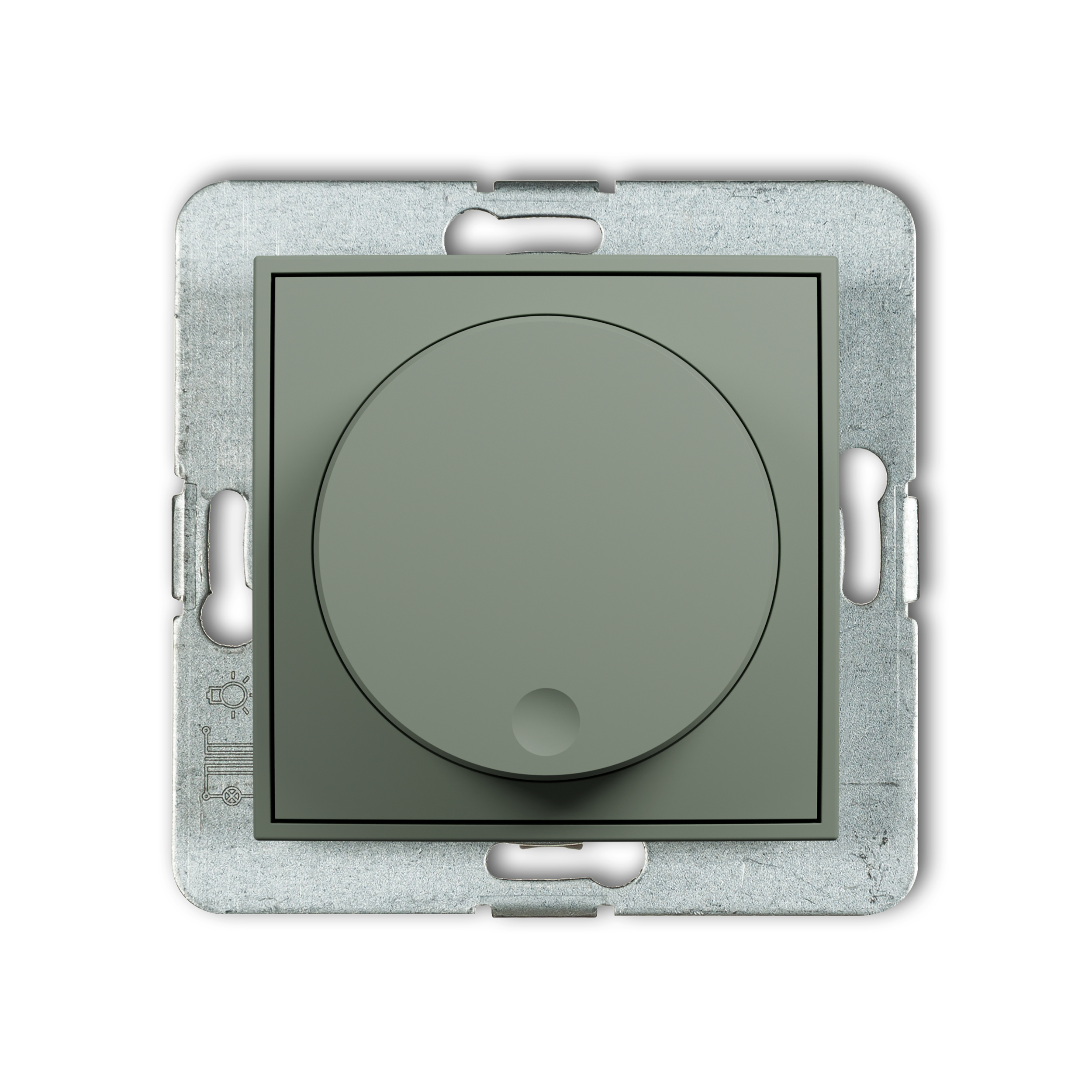

sage

61MRO-1

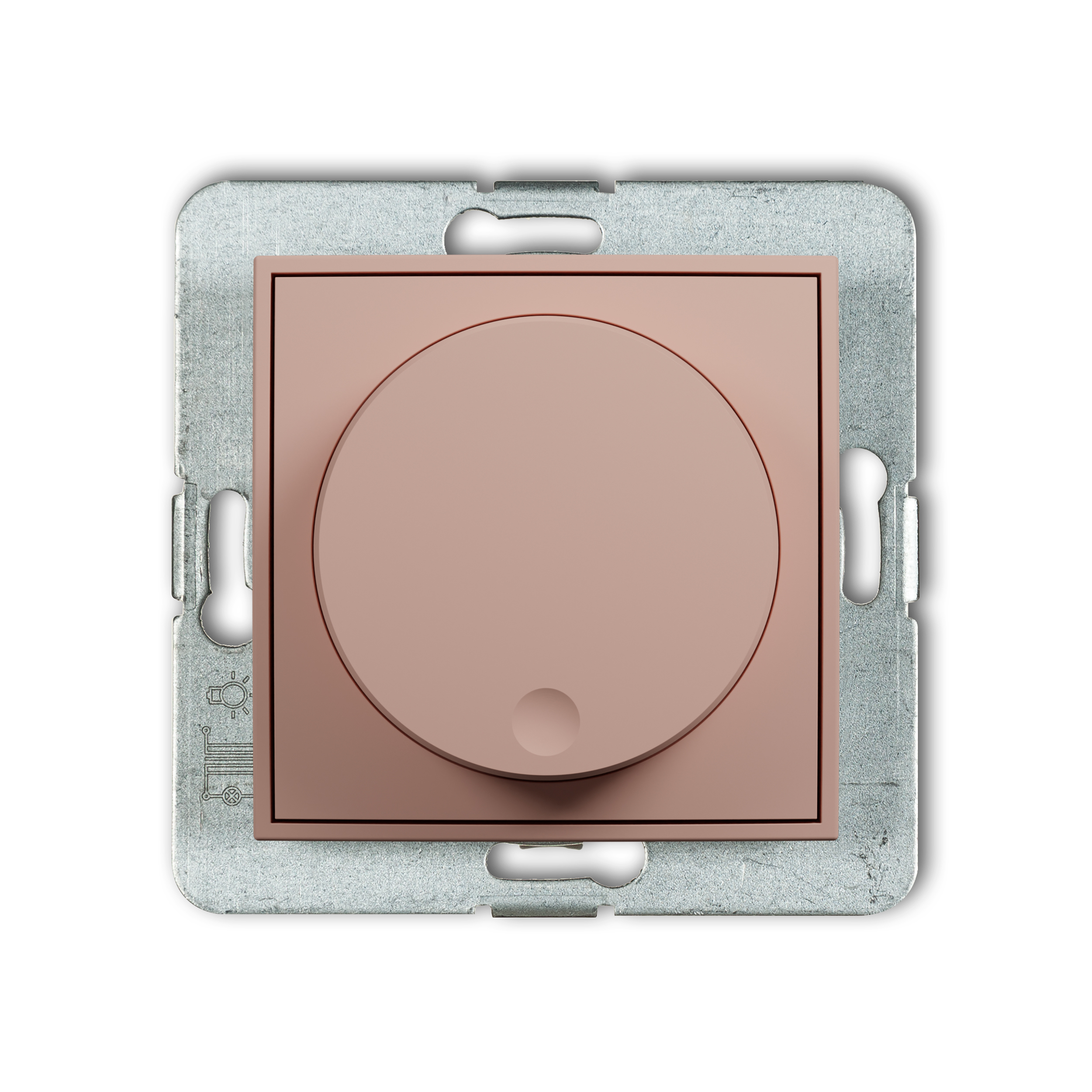

salmon

62MRO-1

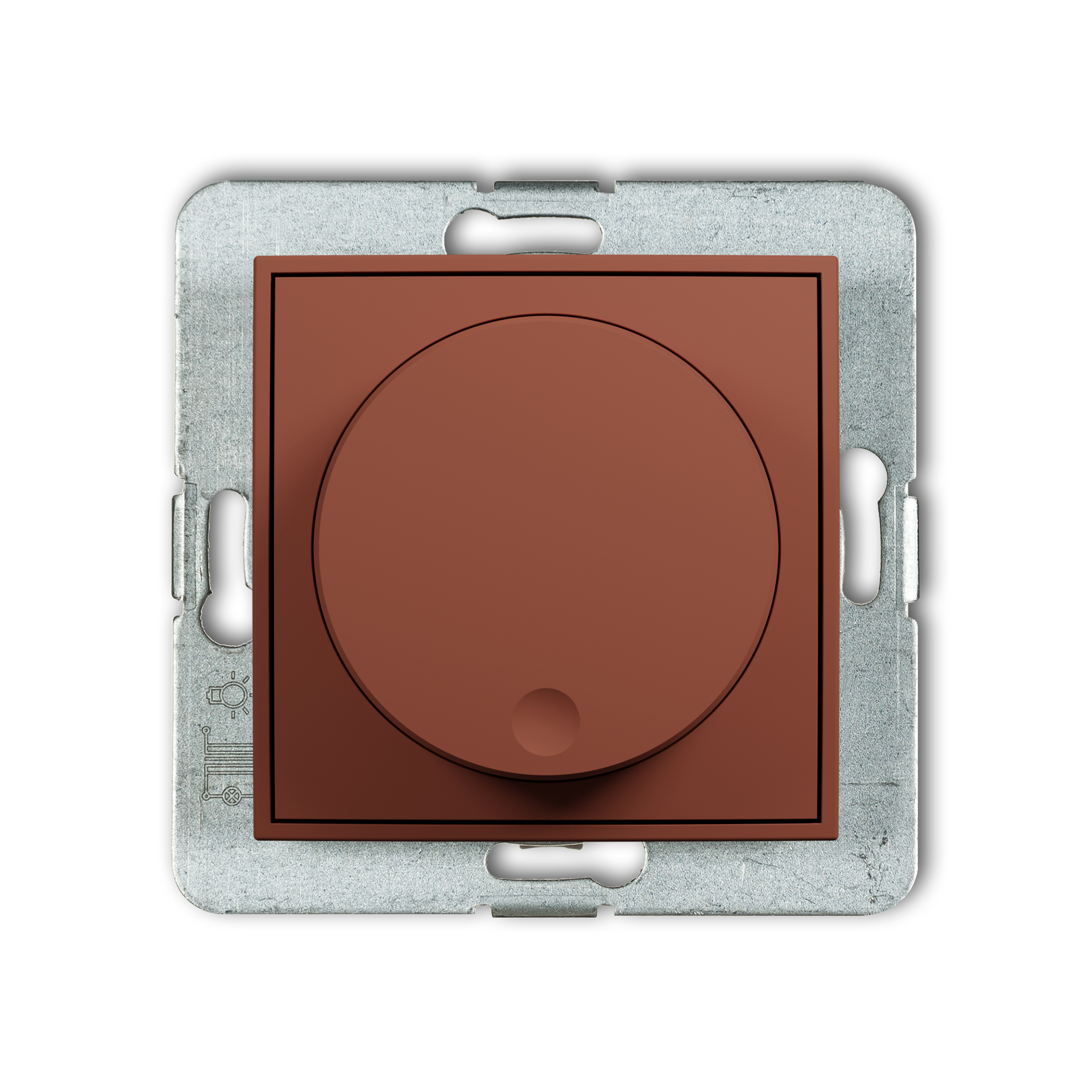

terracotta

63MRO-1

navy blue

64MRO-1

Product description
Downloads
Configurator

MINI mechanisms and frames are sold separately.

Electronic lightning controller with push and rotary button (dimmer switch) enables stepless adjustment of light intensity from 0 to 100% of full power of the illumination and it can be used with almost every frame. With electricity consumption proportionate to the lightning level it increases comfort and daily electricity savings.

Lightning controller is used to control illumination level of typical incandescent lightning. Controlling involves the use of potentiometer with switch. The configuration enables intelligent control of lightning systems and is convenient and economic in use. The controller is equipped with overload and short-circuit protection.

Note!
Connecting two regulators in a two-way system may damage regulators.

More information in the DOWNLOADS section.

The actual appearance of product may be different from the presented photographs.

Technical data

Protection index	IP 20
Power supply	230 V~ 50 Hz
Tolerance of voltage supply	-15 ÷ +10%
Light control switch and regulation on potentiometer	10 ÷ 100%
Cooperation with load	convectional incandescent, halogen 230 V~, low voltage halogen 12 V (with conventional and toroidal tranformer)
Load capacity	40 ÷ 400 W
Scope of regulation	5 ÷ 40°C
Control unit	triac
Number of connection clamps	3
Cross section of connection cables	max 1,5 mm2
Fixing of the casing	standard flash-mounted wall box Ø 60 mm
Temperature working range	od -20°C do +45°C
Withstand voltage	2 KV
Safety class	II
Surge voltage category	II
Contamination level	2
Connection	Screw terminals
UV resistance	Resistant
