Electronic control roller shutter mechanism (local control)
white
MSR-1
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Power supply | 230 V~ 50 Hz |
Load range | max 150 W |
Type of load | Inductive – single phase motor 230 V~ 50 Hz |
Type of work | Intermittent |
Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
UV resistance | Resistant |
Product variants
-

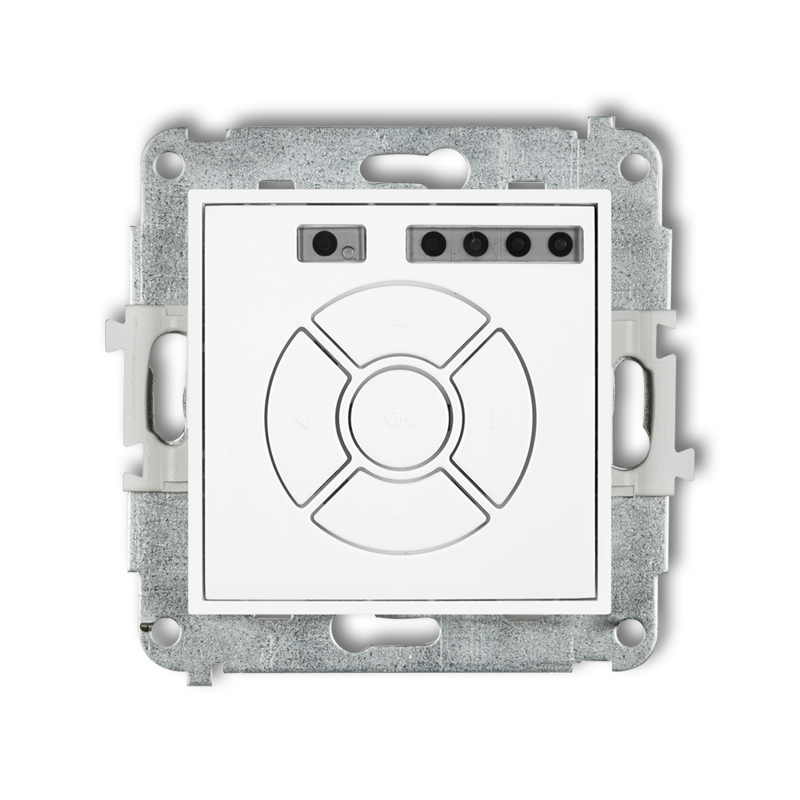

Electronic control roller shutter mechanism (local control and remote control)
white
MSR-2
-

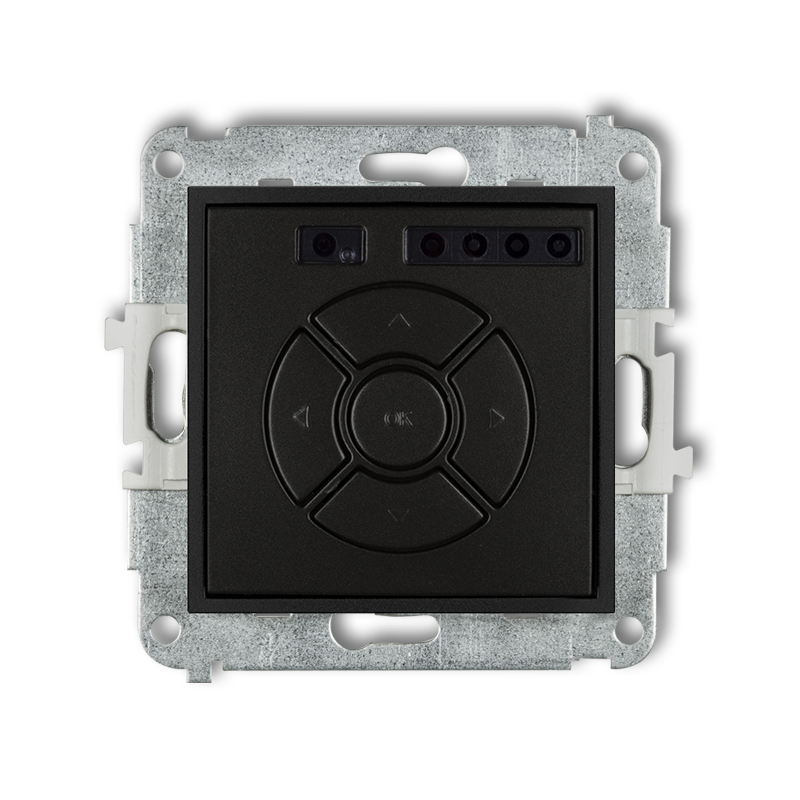

Electronic control roller shutter mechanism (central/additional button)
matt black
12MSR-6
-

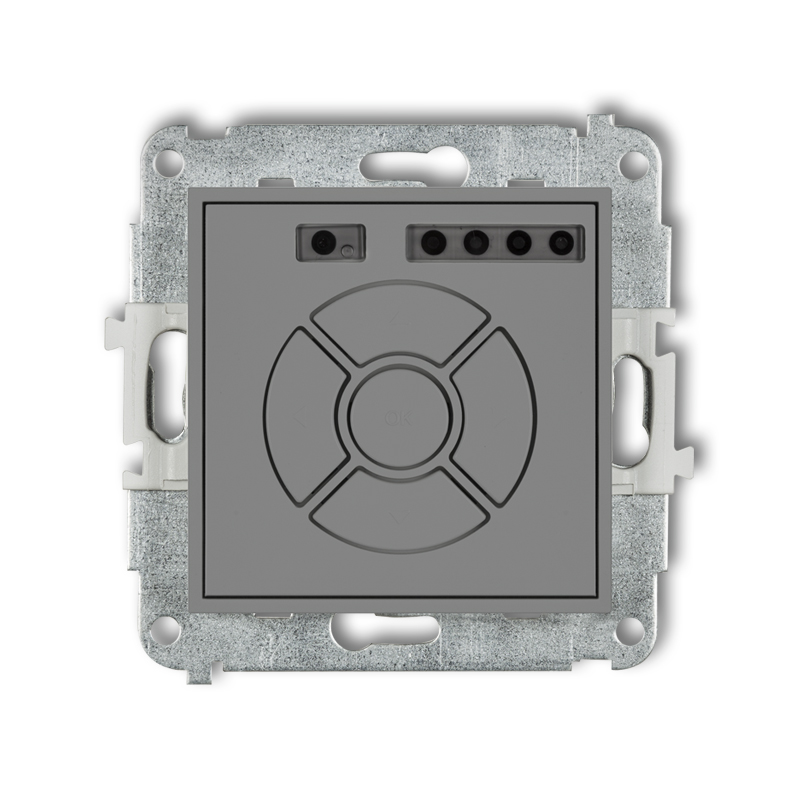

Electronic control roller shutter mechnism (local control, remote control, zone control, central/additional button)
matt grey
27MSR-3A
-
Electronic control roller shutter mechanism (local control and remote control)
matt graphite
28MSR-2
-

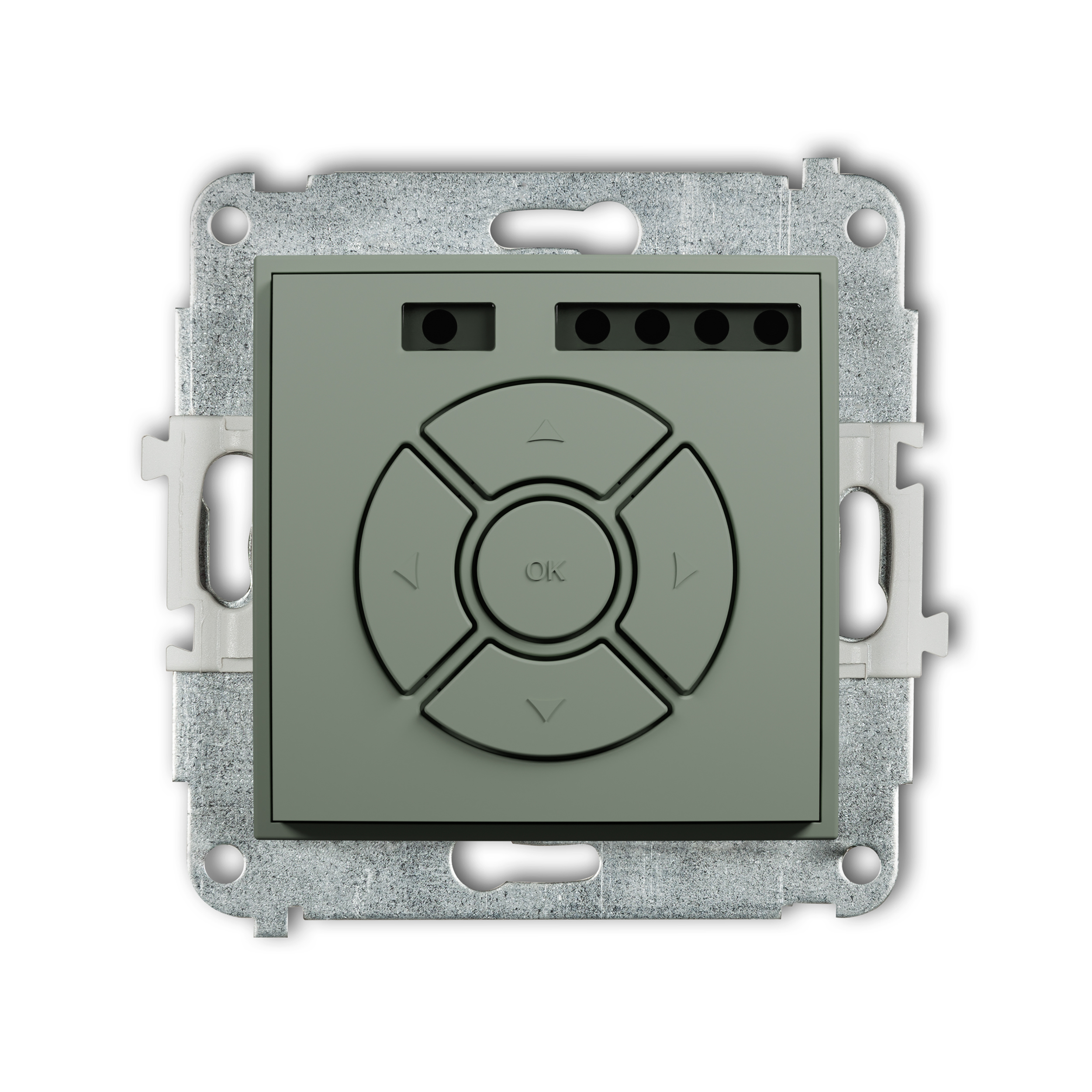

Electronic control roller shutter (local control, remote control, zone control)
sage
61MSR-3
-

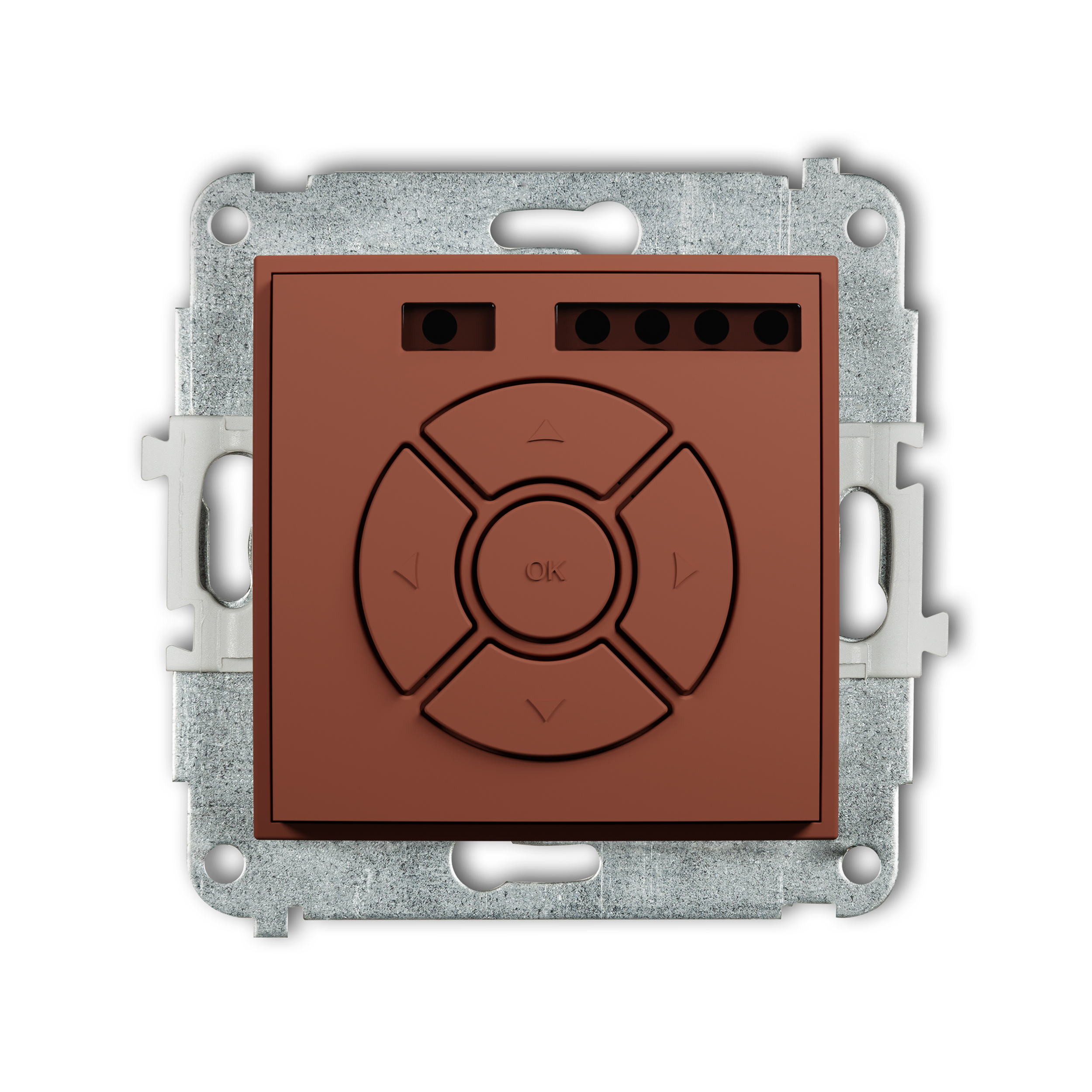

Electronic control roller shutter mechanism (zone button function)
terracotta
63MSR-5
Complementary products
Related products
-
Single push button "light" mechanism
white
MWP-5
-
Splash proof socket with the 2P+Z earth SCHUKO mechanism (shaded transparent cover, with increased contact protection/shutter)
matt black
12MGPB-1sdp
-

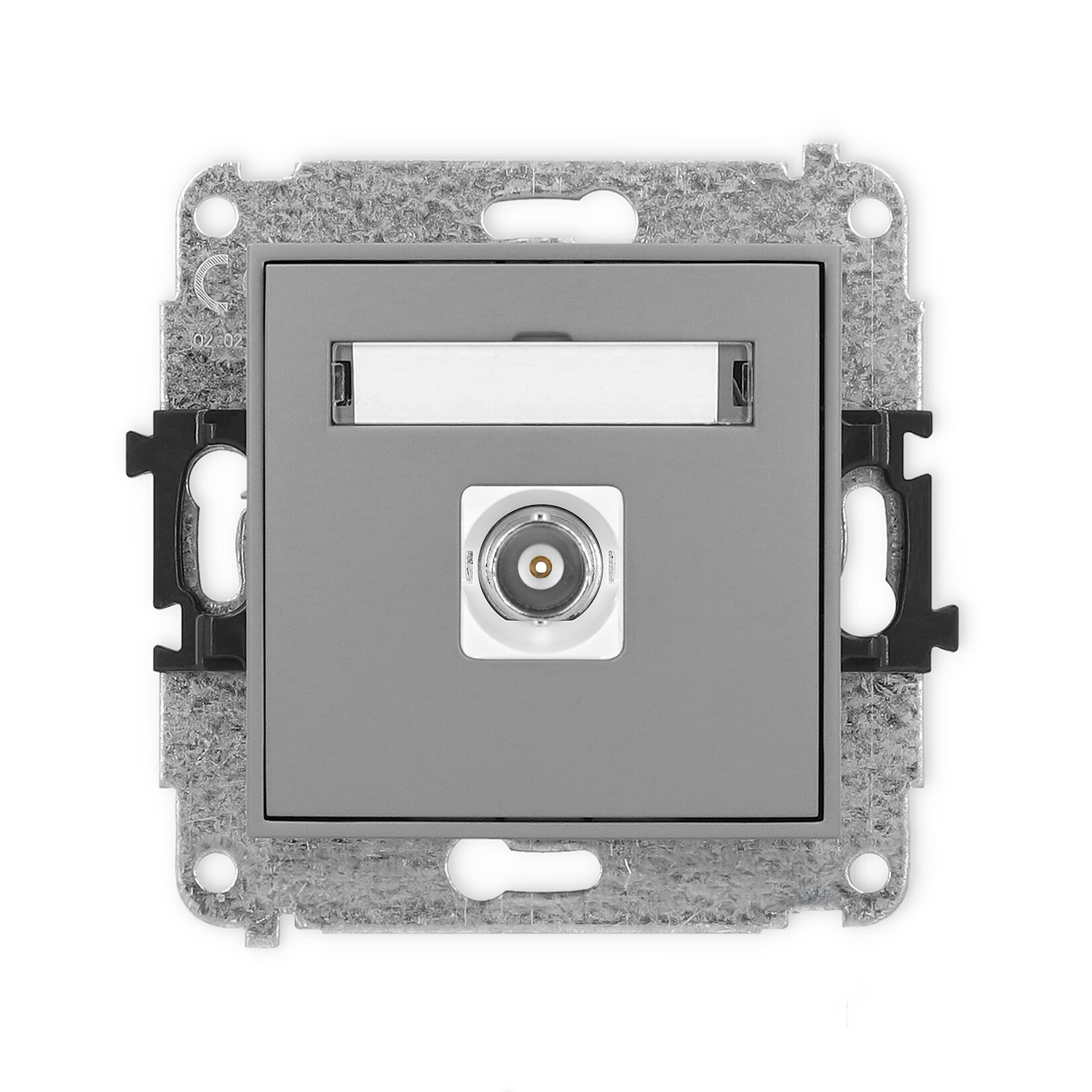

BNC single socket mechanism
matt grey
27MGBNC-1
-
American-style double two-way switch mechanism (double push button without pictograms)
matt graphite
28MWPUS-33.1
-

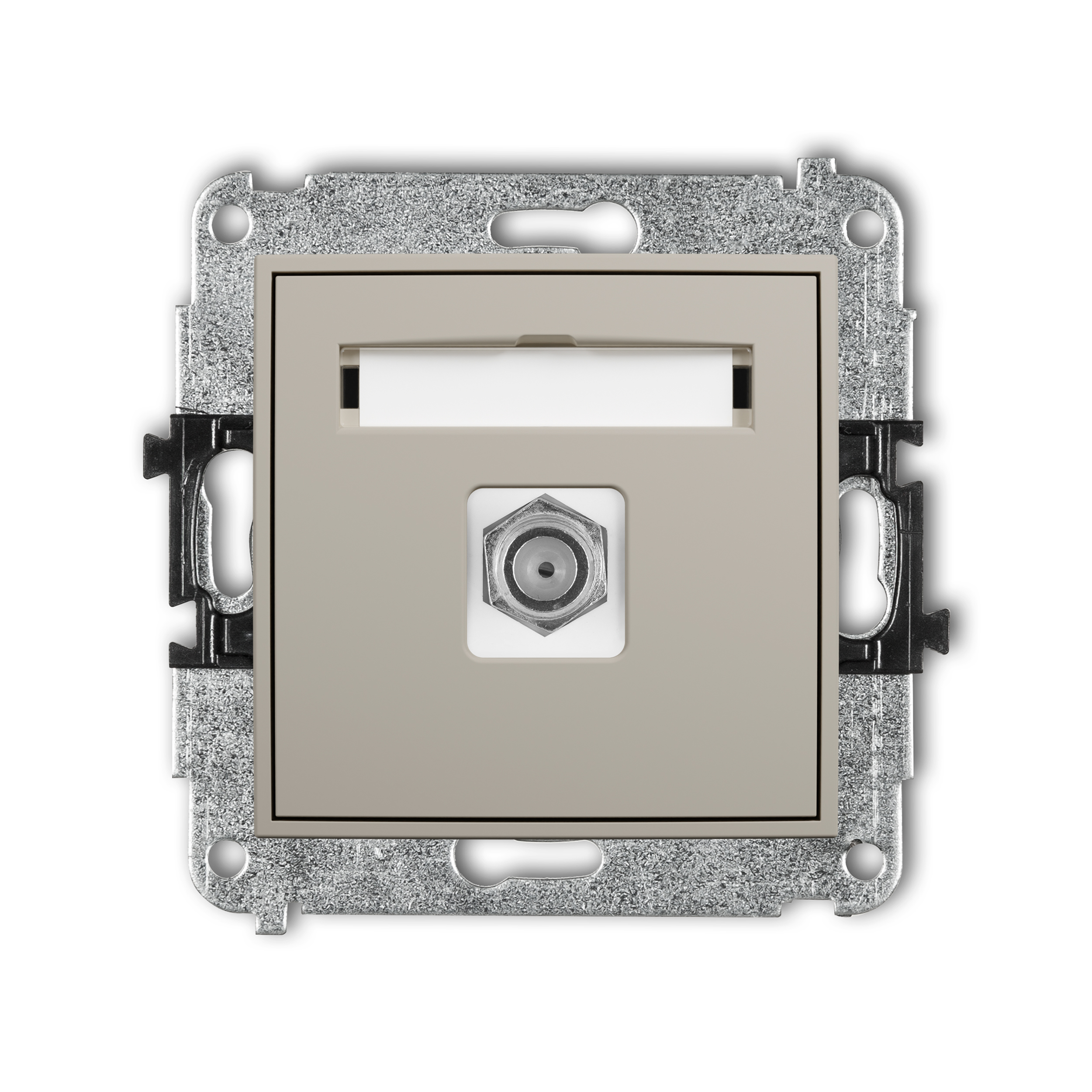

Single antenna F type socket (SAT) mechanism - nickel
