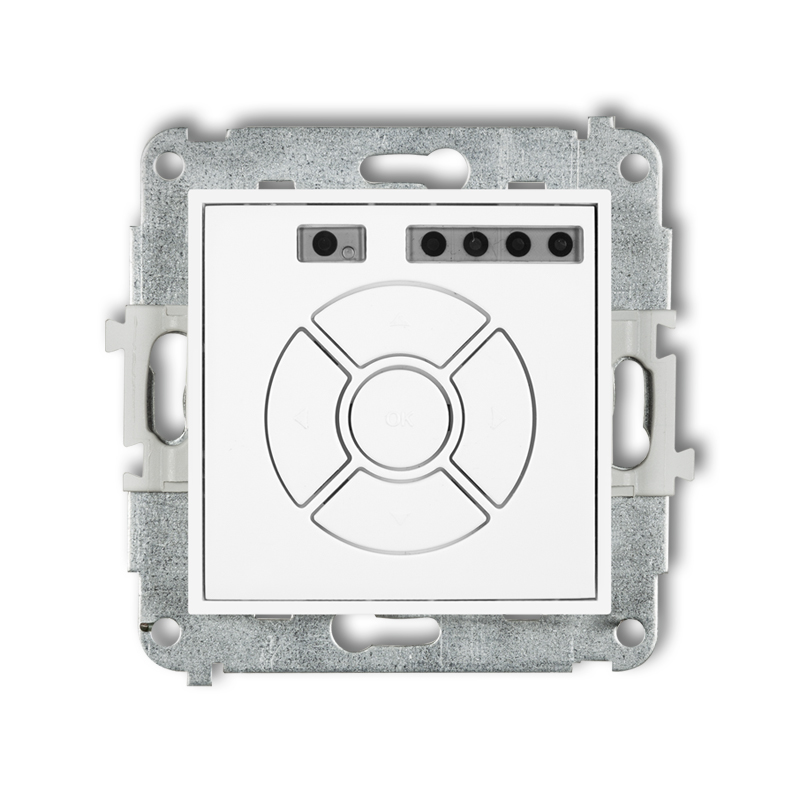

Electronic control roller shutter mechnism (local control, remote control, zone control, central/additional button)
white
MSR-3A
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Power supply | 230 V~ 50 Hz |
Load range | max 150 W |
Type of load | Inductive – single phase motor 230 V~ 50 Hz |
Type of work | Intermittent |
Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
UV resistance | Resistant |
Product variants
-
Electronic control roller shutter mechanism (local control)
white
MSR-1
-

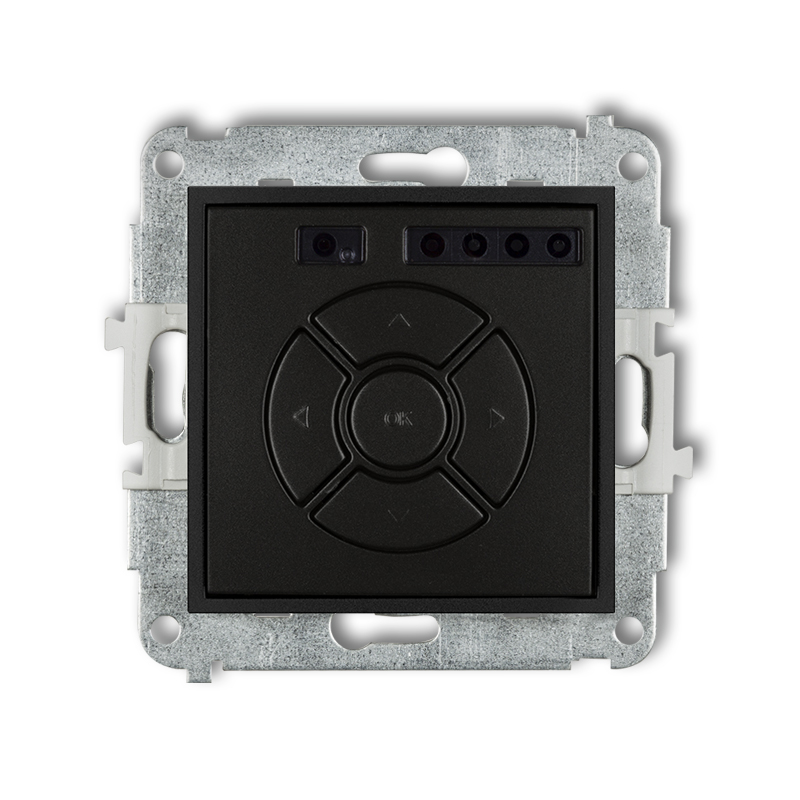

Electronic control roller shutter mechanism (local control and remote control)
matt black
12MSR-2
-

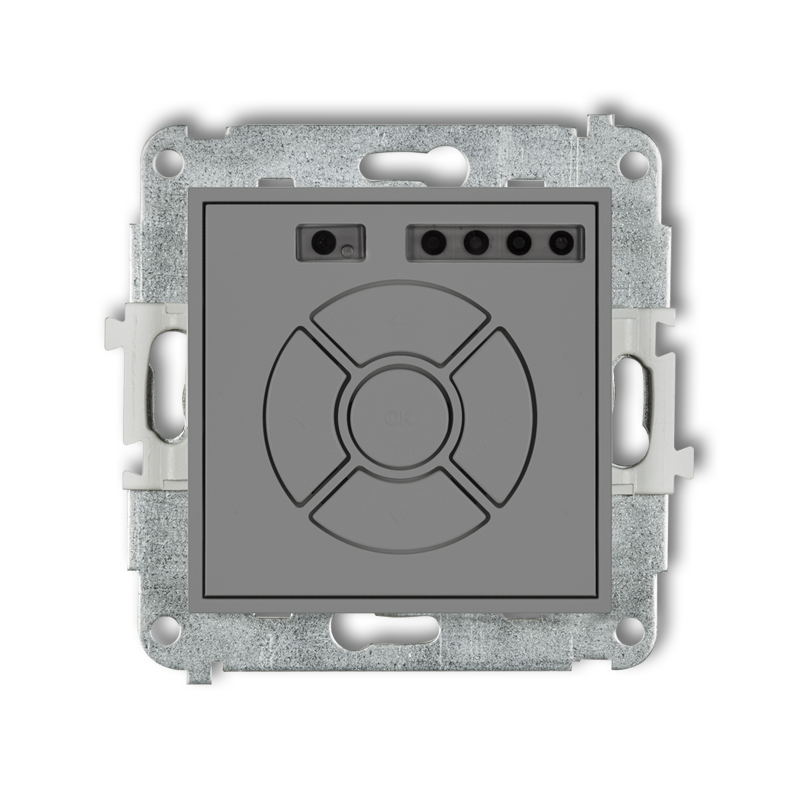

Electronic control roller shutter mechanism (zone button function)
matt grey
27MSR-5
-

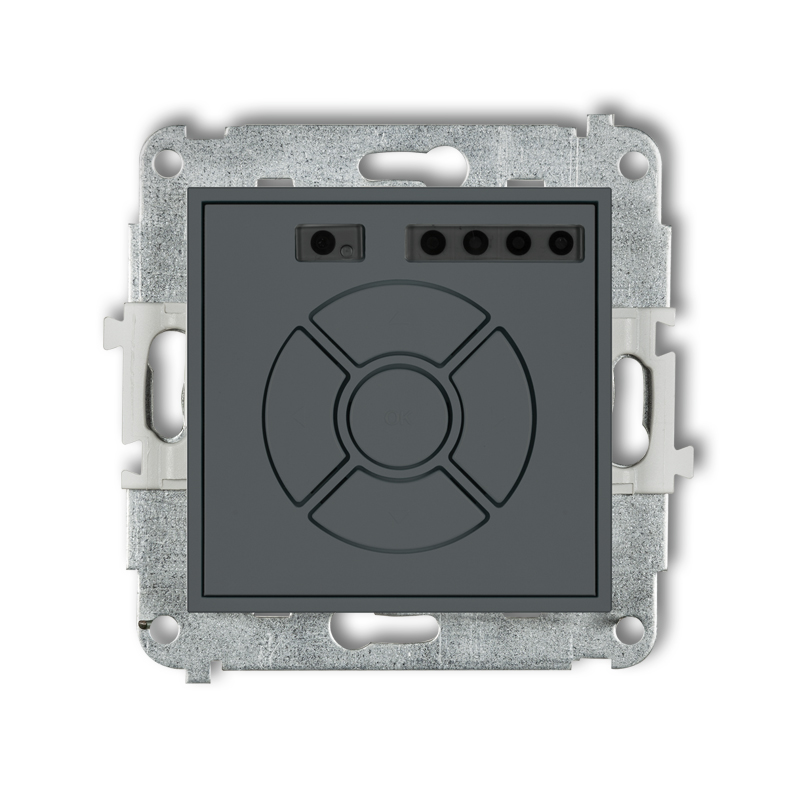

Electronic control roller shutter (local control, remote control, zone control)
matt graphite
28MSR-3
-

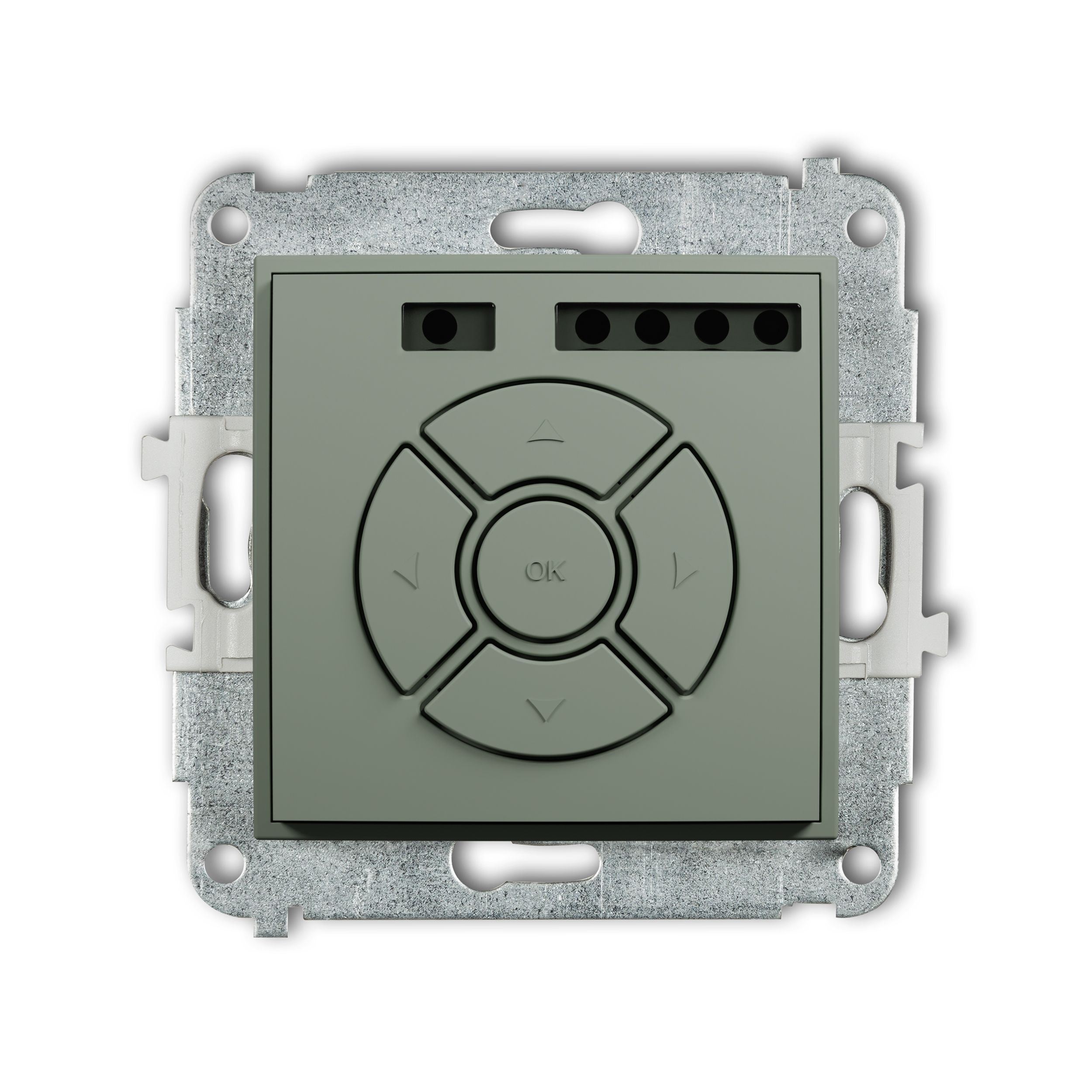

Electronic control roller shutter (local control, remote control, zone control)
sage
61MSR-3
-

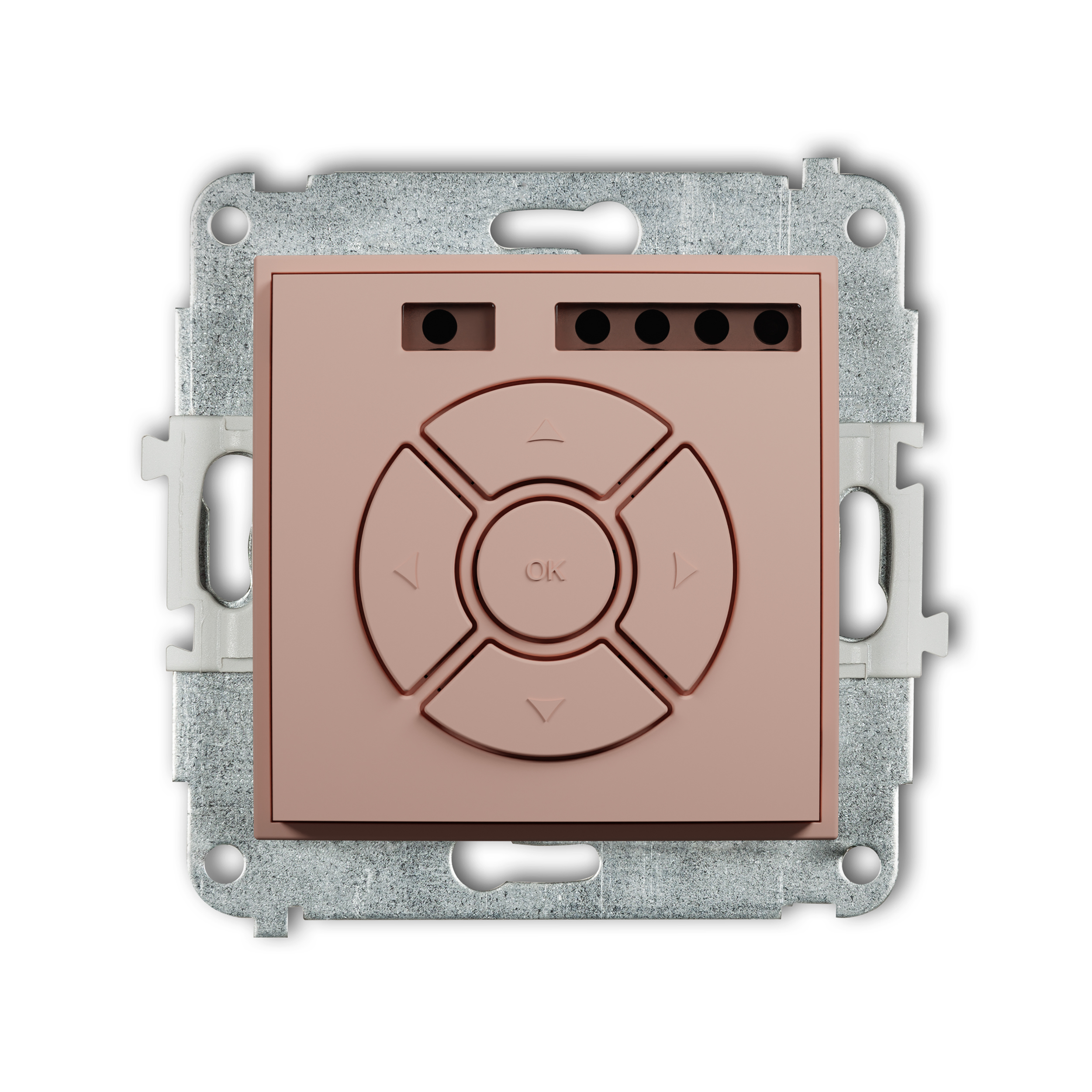

Electronic control roller shutter (local control, remote control, zone control)
salmon
62MSR-3
Complementary products
Related products
-
Single loudspeaker socket (2,5 mm2) mechanism
white
MGG-1
-
Single socket without the 2P earth mechanism (with increased contact protection/shutter)
matt black
12MGP-1p
-
1-gang universal square plastic frame
matt grey
27MR-1
-
BNC single socket mechanism
matt graphite
28MGBNC-1
-
American-style roller blind switch mechanism (double push button without pictograms)
taupe
60MWPUS-8
-

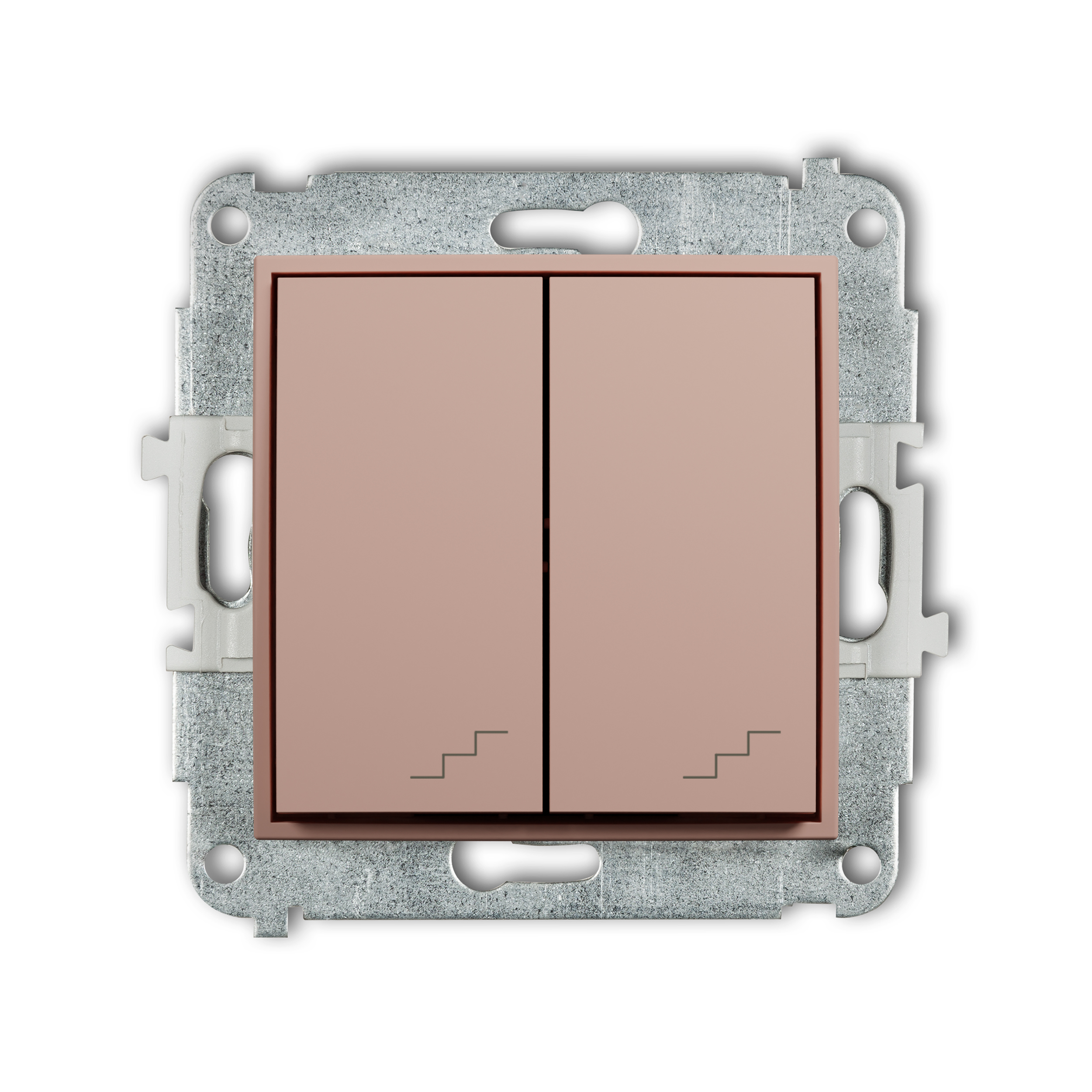

Double two-way switch mechanism
