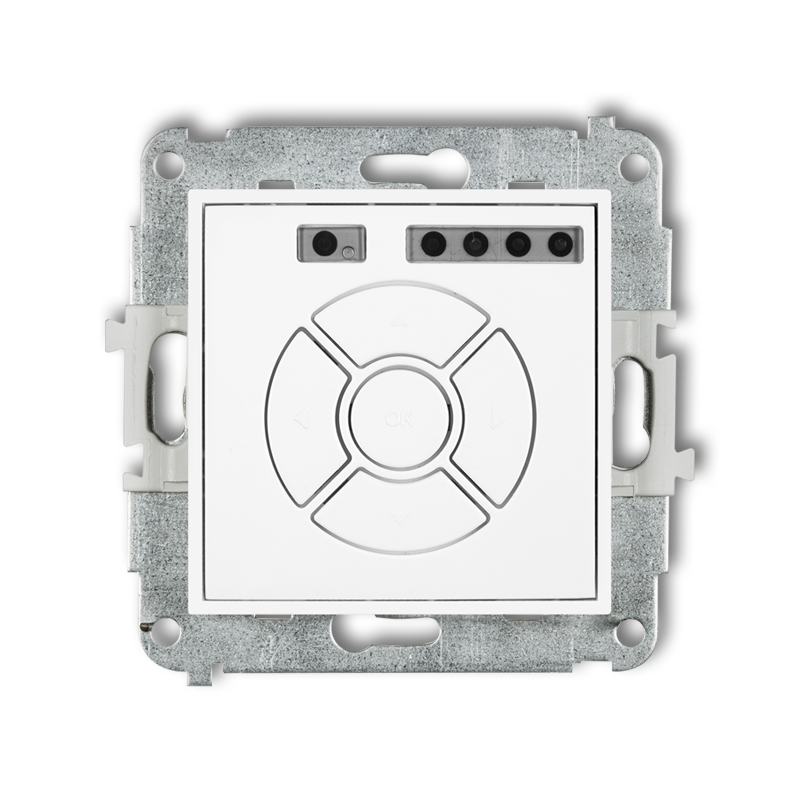

Electronic control roller shutter mechanism (zone button function)
white
MSR-5
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
The device is designed for controlling roller blinds equipped with electric motor with power up to maximum 150W, 230V 50Hz electric mains-operated.
Note! one controller operates locally only one blind.
More information in the DOWNLOADS section.
The actual appearance of product may be different from the presented photographs.
Technical data
Protection index | IP 20 |
Power supply | 230 V~ 50 Hz |
Load range | max 150 W |
Type of load | Inductive – single phase motor 230 V~ 50 Hz |
Type of work | Intermittent |
Cross-section of power supply cords | 0,75 ... 1,5 mm2 |
Cross-section of control cords for BUS line | 3 x 0,5 ... 1 mm2 |
UV resistance | Resistant |
