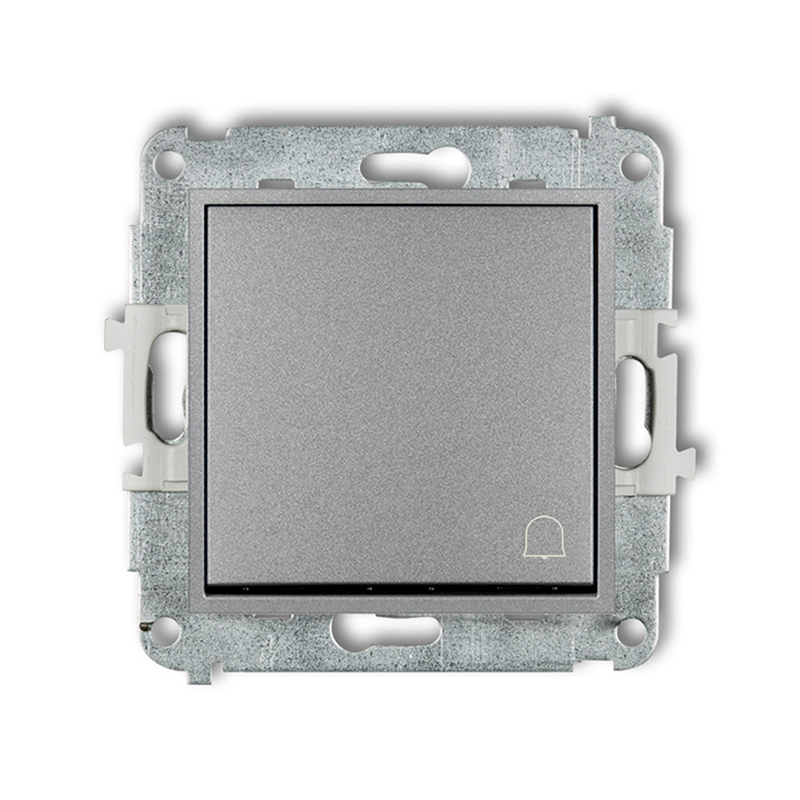

Single push button "bell" mechanism
white
MWP-4
-
white
MWP-4
-
silver metallic
7MWP-4
-

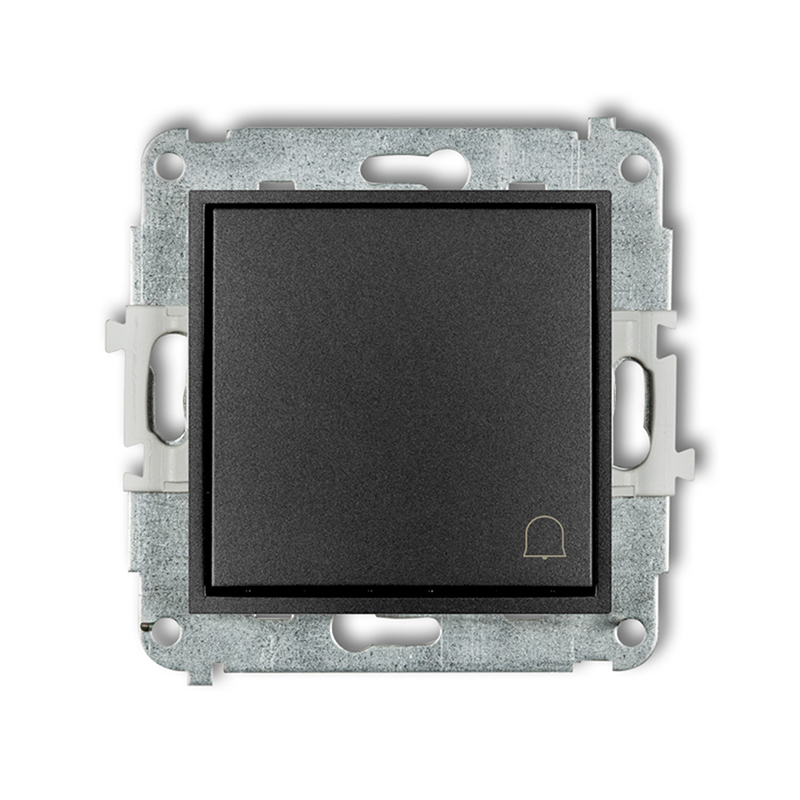

graphite
11MWP-4
-

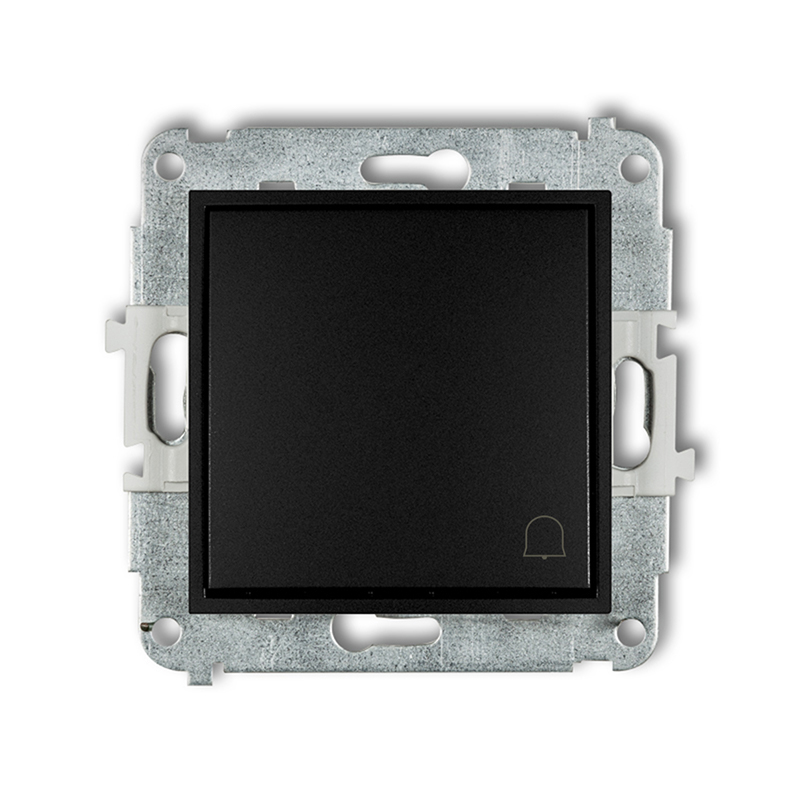

matt black
12MWP-4
-

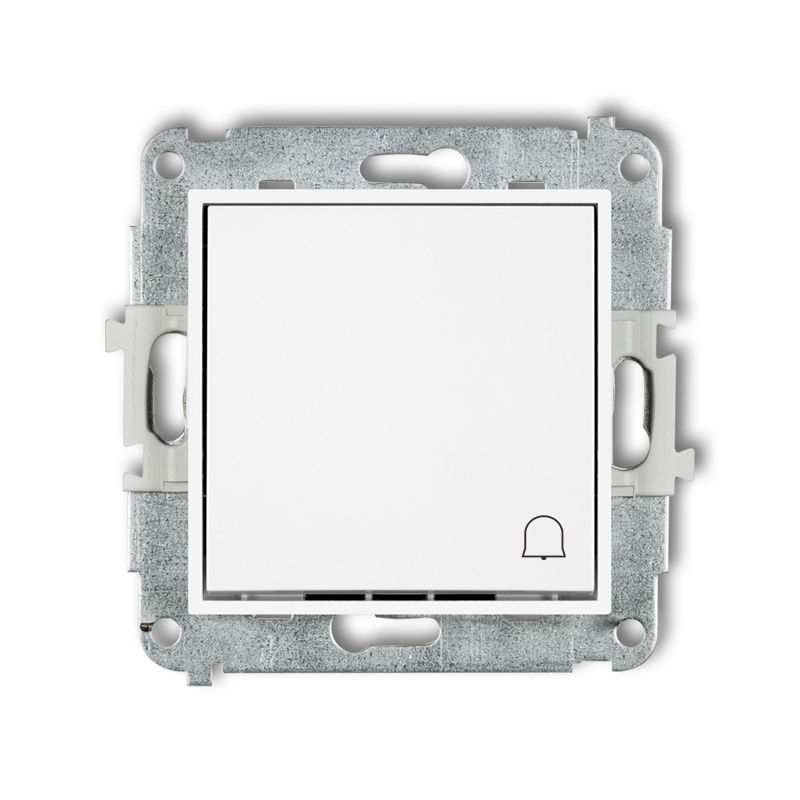

matt white
25MWP-4
-

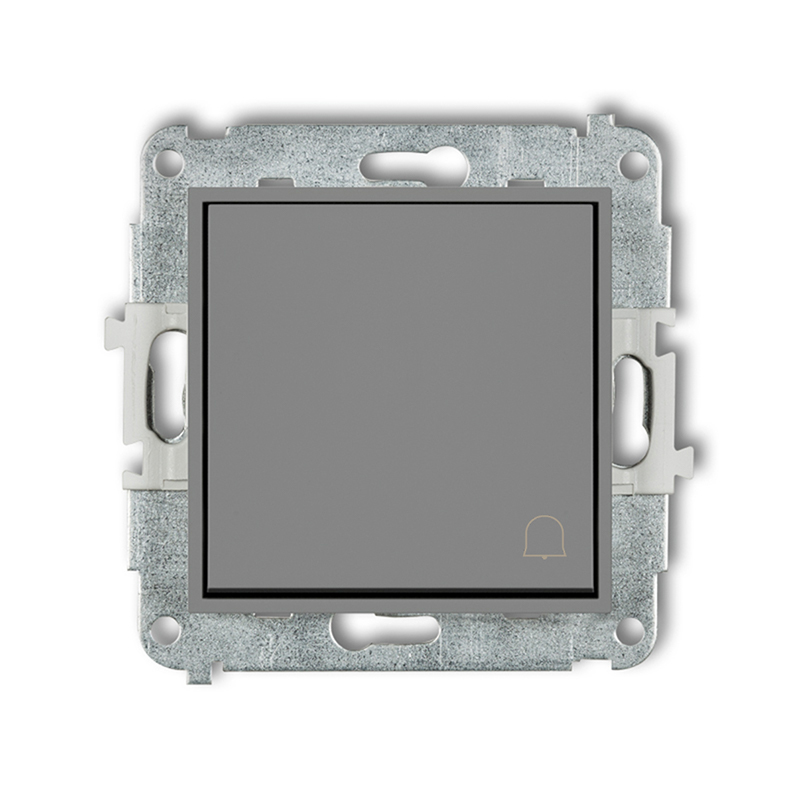

matt grey
27MWP-4
-

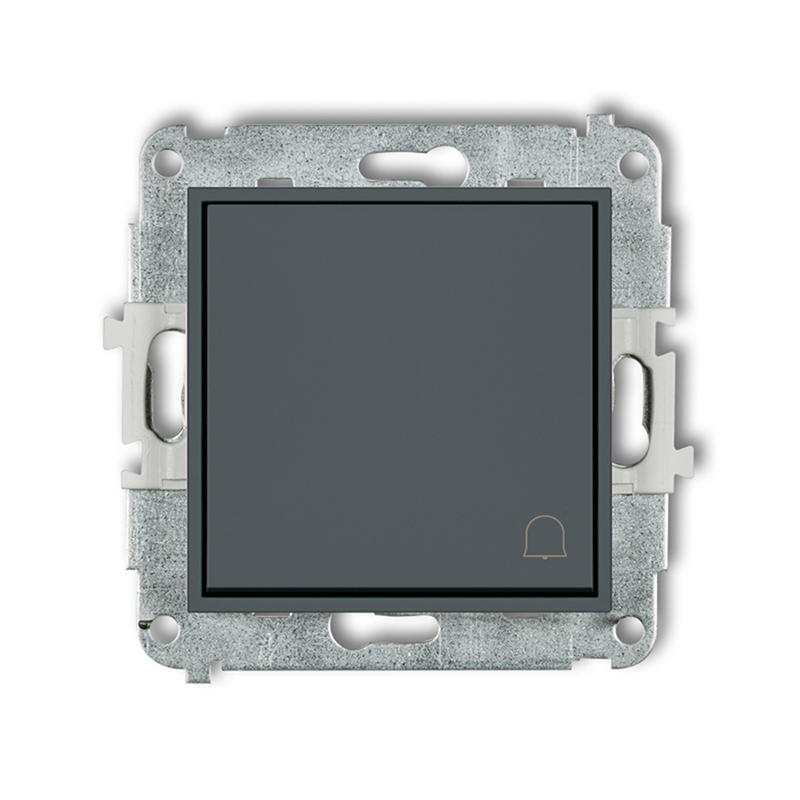

matt graphite
28MWP-4
-

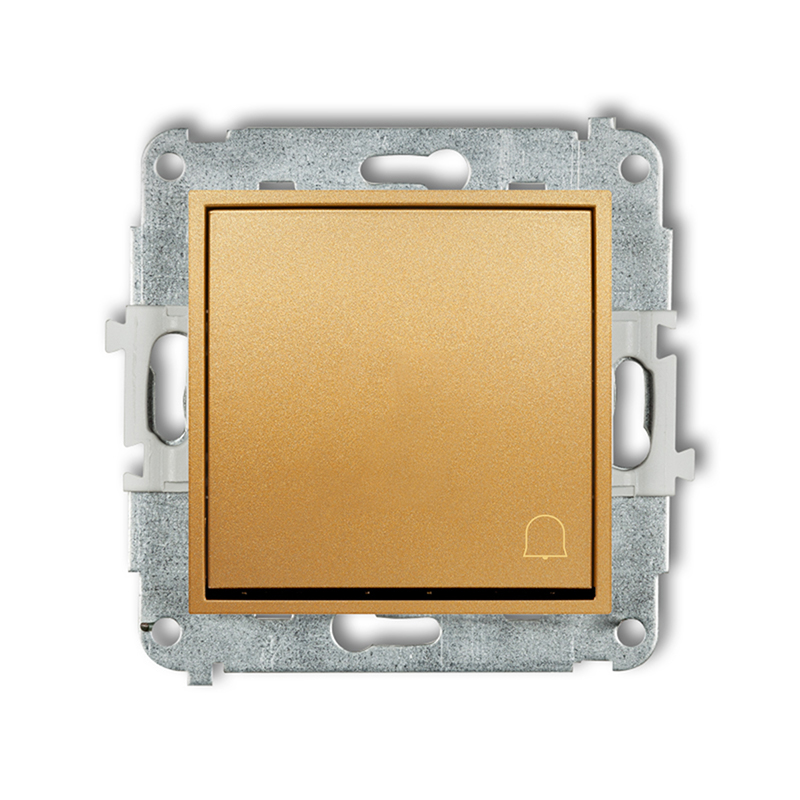

gold
29MWP-4
-
taupe
60MWP-4
-
sage
61MWP-4
-

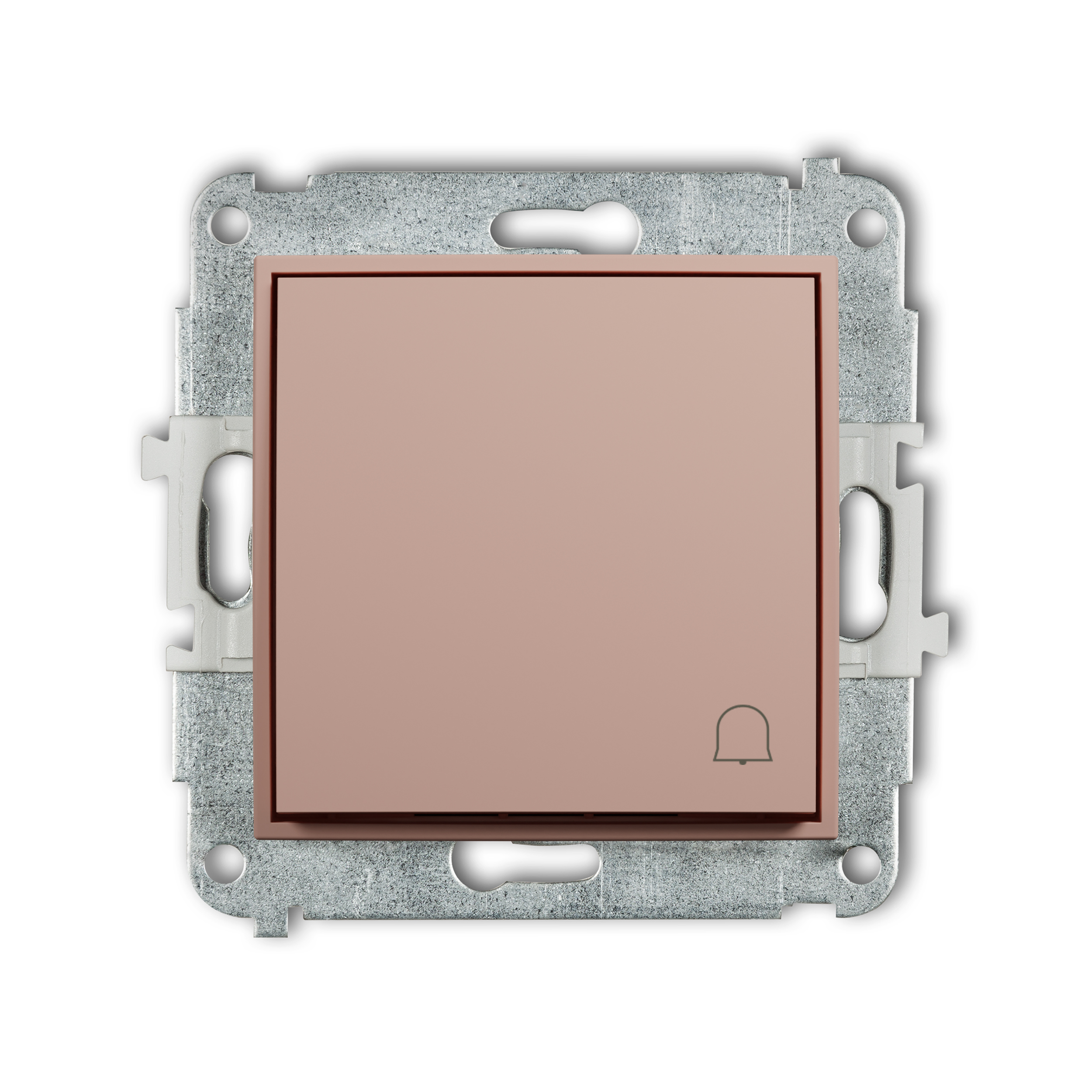

salmon
62MWP-4
-
terracotta
63MWP-4
-
navy blue
64MWP-4
Product description
Downloads
Configurator
MINI mechanisms and frames are sold separately.
MINI switches are also available in an illuminated version – a light module shall be bought separately to each switch. Available light modules:
> Incandescent light module: L-1 white.
> Light module LED: L-2 white, 2L-2 green, 3L-2 blue, 17L-2 red.
Light modules can go with all MINI switches besides the following switches: MWP-7, MWP-8, MWP-8.1, MWP-44.2, MWP-66, MWP-66.1, MWP-88, MWP-88.1, MWP-33, MWP-33.1, MWP-10.2, MWP-10.21.
MINI switches are also available in a hermetic version (IP44) - a sealant shall be bought separately to each switch. A sealant can go with all MINI switches besides the following switches: MWP-66, MWP-66.1, MWP-7, MWP-8, MWP-8.1, MWP-88, MWP-88.1.
The actual appearance of product may be different from the presented photographs.
See how switches in American style work on our You Tube channel.
Technical data
| Protection index | IP 20 / IP 44 |
| Rated current | 10 AX |
| Rated voltage | 250 V~ |
| Connection | Screw terminals |
| UV resistance | Resistant |
Product variants
-
Double push button switch mechanism (double push button without pictograms, separate power supply)
white
MWP-44.2
-
Triple switch mechanism
matt black
12MWP-7
-
Two-circuit switch mechanism
matt grey
27MWP-2
-
Two-way switch mechanism
matt graphite
28MWP-3
-
Single push button mechanism (single push button without pictogram)
sage
61MWP-4.1
-
Single push button "light" mechanism
navy blue
64MWP-5
Complementary products
Related products
-
1-gang universal square plastic frame
white
MR-1
-
Electronic dimmer push-rotary mechanism
matt black
12MRO-1
-

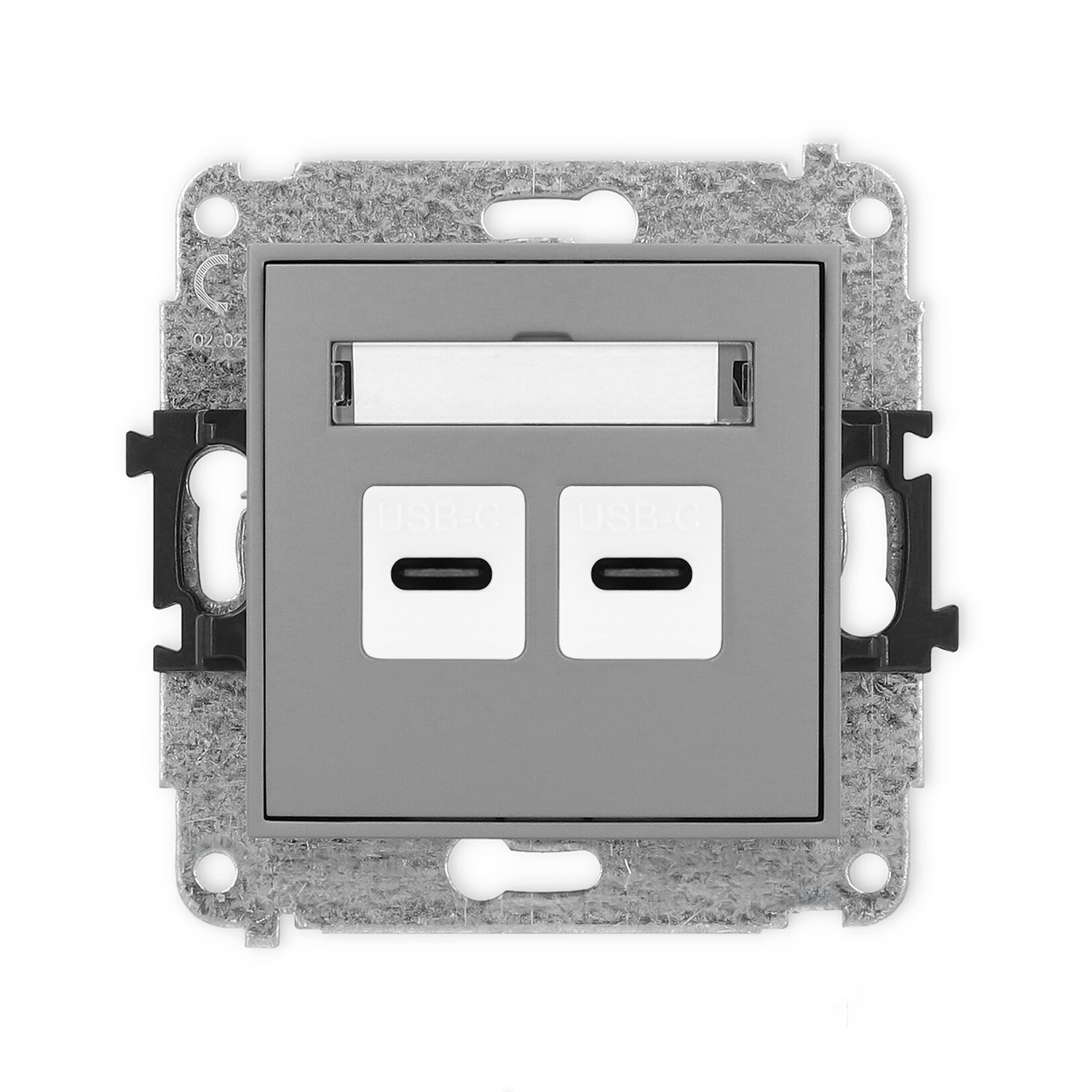

Double USB charger mechanism 2xUSB C, 20W max.
